2-05 — CLUTCH PIPING (#33577) — 16 parça

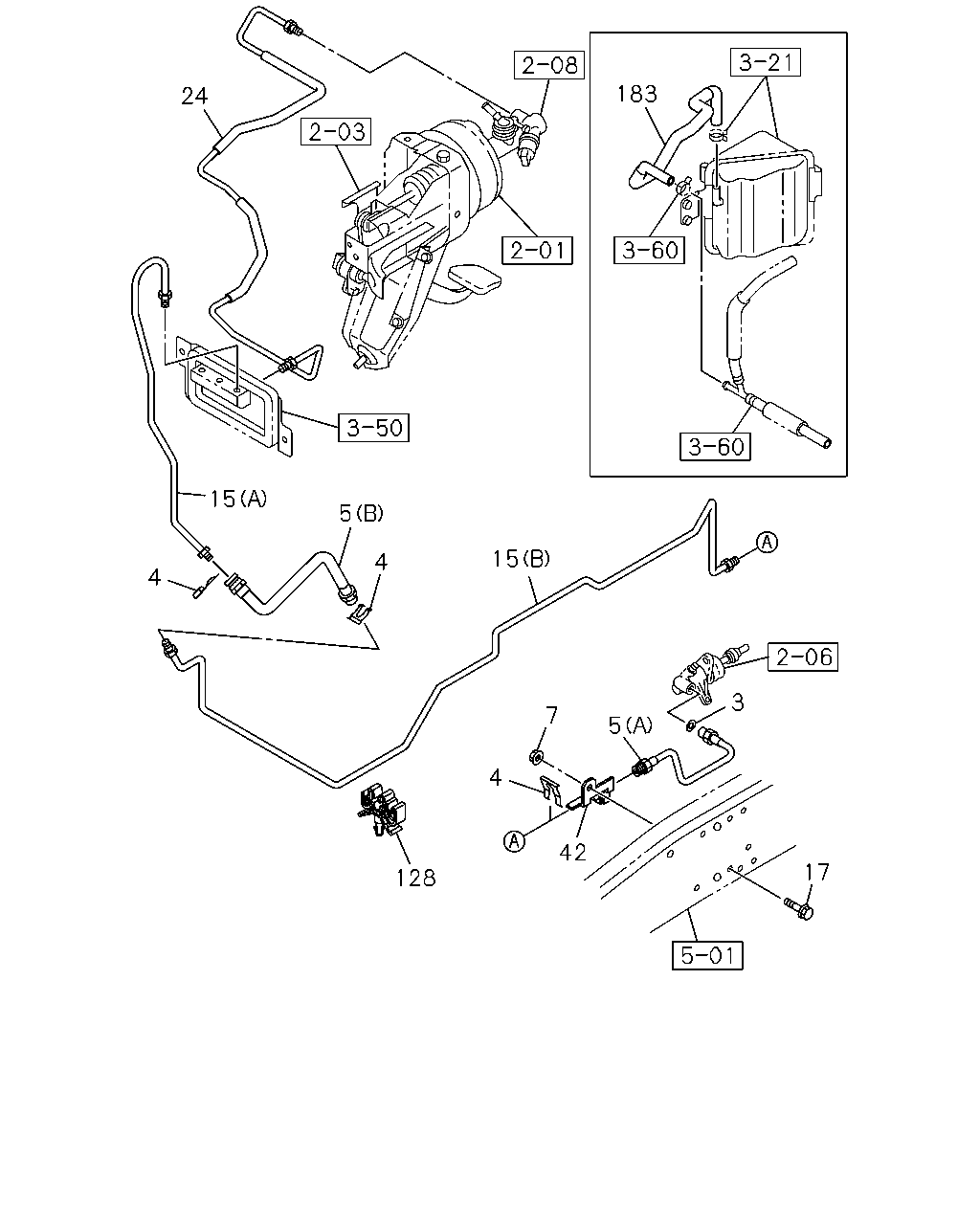

çizim 123355
183 24 15 5 15 4 4 3 7 5 4 42 17 128
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0901-
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 01 1 0901-
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0901-
5 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0901-
5 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 0901-
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 01 1 0901-
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-643-0 01 1 0901-1311
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98250-269-0 01 1 1312-
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98100-236-0 01 1 0901-
17 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98077-617-0 01 1 0901-
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97389-356-1 01 1 0901-
42 BRACKET; FLEX HOSE,CLU CONT 8-98102-893-0 01 1 0901-
128 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0901-
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98017-169-1 01 1 0901-1012
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> 		8-98121-942-0 01 1 1101-
