Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

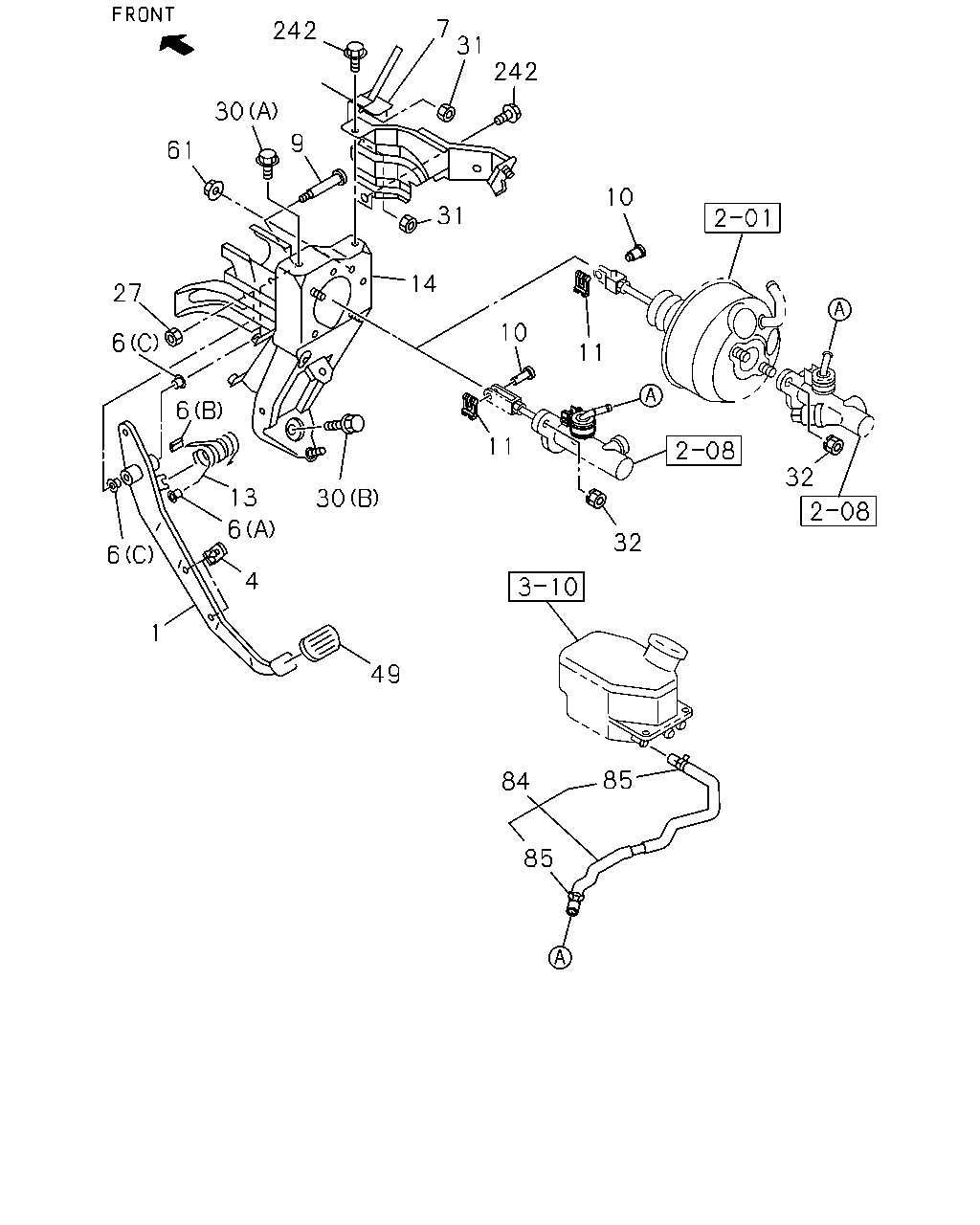

2-03 — CLUTCH PEDAL AND CONTROL
(#33576) — 30 parça
7
31
242
242
30
9
61
10
31
14
27
10
6
11
6
11
32
13
30
6
32
6
4
1
49
85
84
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
POWER ASSIST CLUTCH<S2T>
8-98002-484-0
01
1
0901-
1
PEDAL; CLU
EXC. POWER ASSIST CLUTCH<S2T>
8-98034-754-0
01
1
0901-
4
STOPPER; CLU PEDAL
THA
8-97853-534-1
02
1
0901-
6
BUSHING; CLU PEDAL
(C)
8-94238-596-0
02
1
0901-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (A)
8-97853-619-0
02
1
0901-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B)
8-97853-620-0
01
1
0901-
7
BRACKET; CLU PEDAL
8-98029-186-4
01
1
0901-
9
PIN; CLU PEDAL
8-97866-667-0
01
1
0901-
10
PIN; CLU PEDAL
8-97387-230-0
01
1
0901-1007
10
PIN; CLU PEDAL
8-98147-657-0
01
1
1008-
11
PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
0901-
13
SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T>
8-98023-621-1
01
1
0901-
13
SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T>
8-98034-014-0
01
1
0901-
14
BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T>
8-98002-482-4
01
1
0901-
14
BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T>
8-98034-750-0
01
1
0901-
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE THA
0-91380-010-0
01
1
0901-
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE THA
0-28661-025-0
01
1
0901-
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER
8-98033-926-0
01
1
0901-0903
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER
8-97313-188-0
01
1
0904-
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER
8-94279-050-0
02
1
0901-
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
0901-
49
RUBBER; PAD,CLU PEDAL
8-97853-413-2
01
1
0901-
61
NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER
8-94279-050-0
04
1
0901-
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH<S2T>
8-98023-510-4
01
1
0901-1208
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH<S2T> THA
8-98218-205-1
01
1
1209-
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>
8-98025-422-1
01
1
0901-1208
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>
8-98218-207-1
01
1
1209-
85
CLIP; HOSE TO M/CYL
THA
8-98031-178-0
02
1
0901-1208
85
CLIP; HOSE TO M/CYL
THA
8-98168-080-0
02
1
1209-
242
BOLT; BRKT,CLUTCH
M8X16 FLANGE
0-28450-816-0
02
1
0901-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
