Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

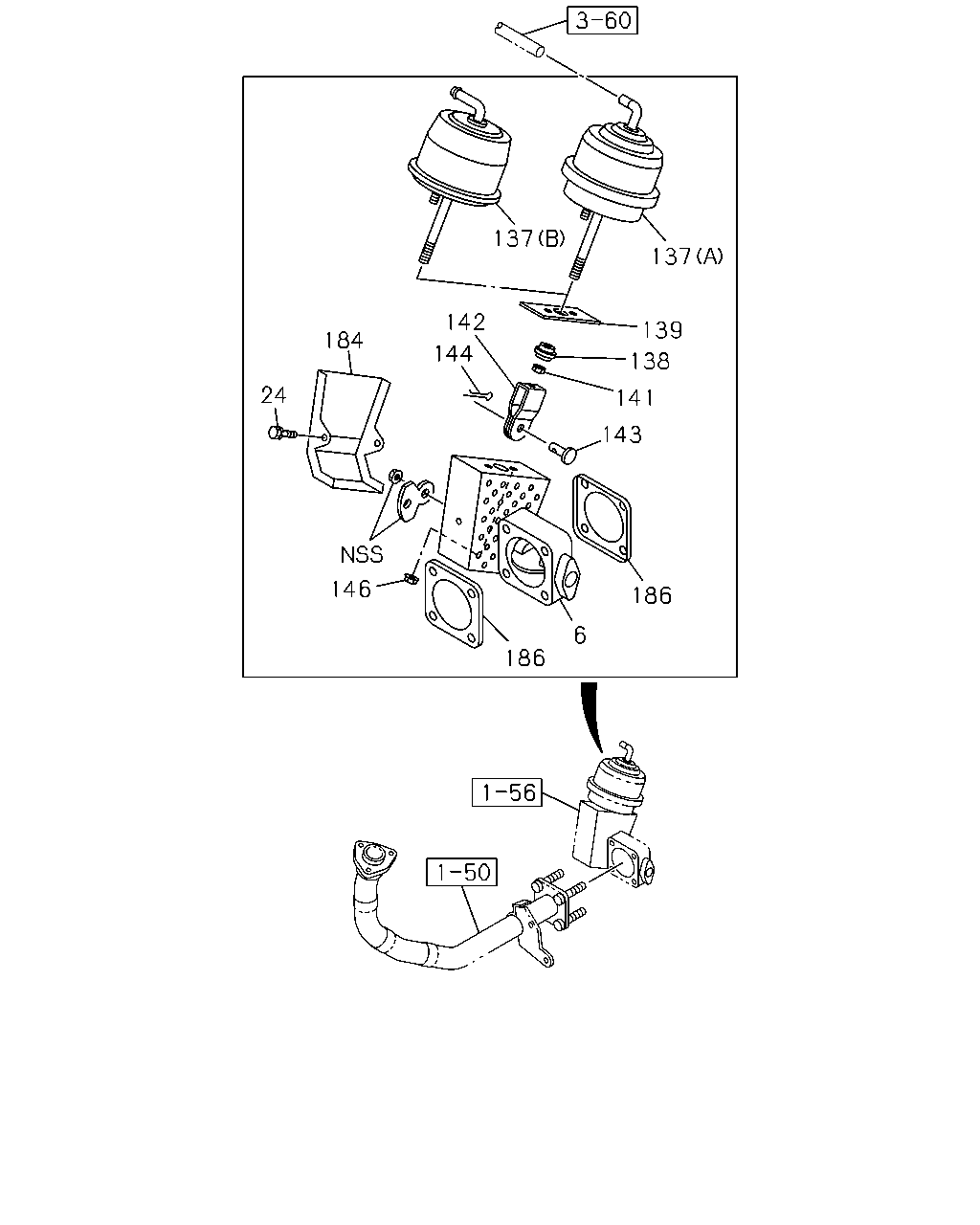

1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#33573) — 17 parça
186
6
186
146
146
141
138
139
137
137
142
144
184
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-98069-291-0
01
1
0901-
24
BOLT; COVER
8-97065-029-0
02
1
0901-
137
CHAMBER; POWER
(A)
8-98043-596-0
01
1
0901-1212
137
CHAMBER; POWER
(B)
8-98229-058-0
01
1
1301-
138
BEARING; EXH BRK VLV
5-22189-004-0
01
1
0901-1212
138
BEARING; EXH BRK VLV
8-98231-608-0
01
1
1301-
139
GASKET; EXH BRK VLV
8-94328-234-0
01
1
0901-
141
NUT; CLEVIS,EXH BRK VLV
8-94311-428-0
01
1
0901-
142
CLEVIS; EXH BRK VLV
8-97177-311-0
01
1
0901-1212
142
CLEVIS; EXH BRK VLV
8-98231-609-0
01
1
1301-
143
PIN; EXH BRK VLV
8-94311-452-0
01
1
0901-1212
143
PIN; EXH BRK VLV
8-98231-610-0
01
1
1301-
144
PIN; SPLIT,EXH BRK VLV
8-97029-428-0
01
1
0901-1212
144
PIN; SPLIT,EXH BRK VLV
8-97985-124-0
01
1
1301-
146
NUT; EXH BRK VLV
M8 FLANGE THA
0-91180-108-0
02
1
0901-
184
COVER; BRKT
8-97370-068-0
01
1
0901-
186
GASKET; EXH BRK VLV,BODY
8-98022-713-0
02
1
0901-
