1-41 — FUEL PIPING; CHASSIS (#33571) — 111 parça

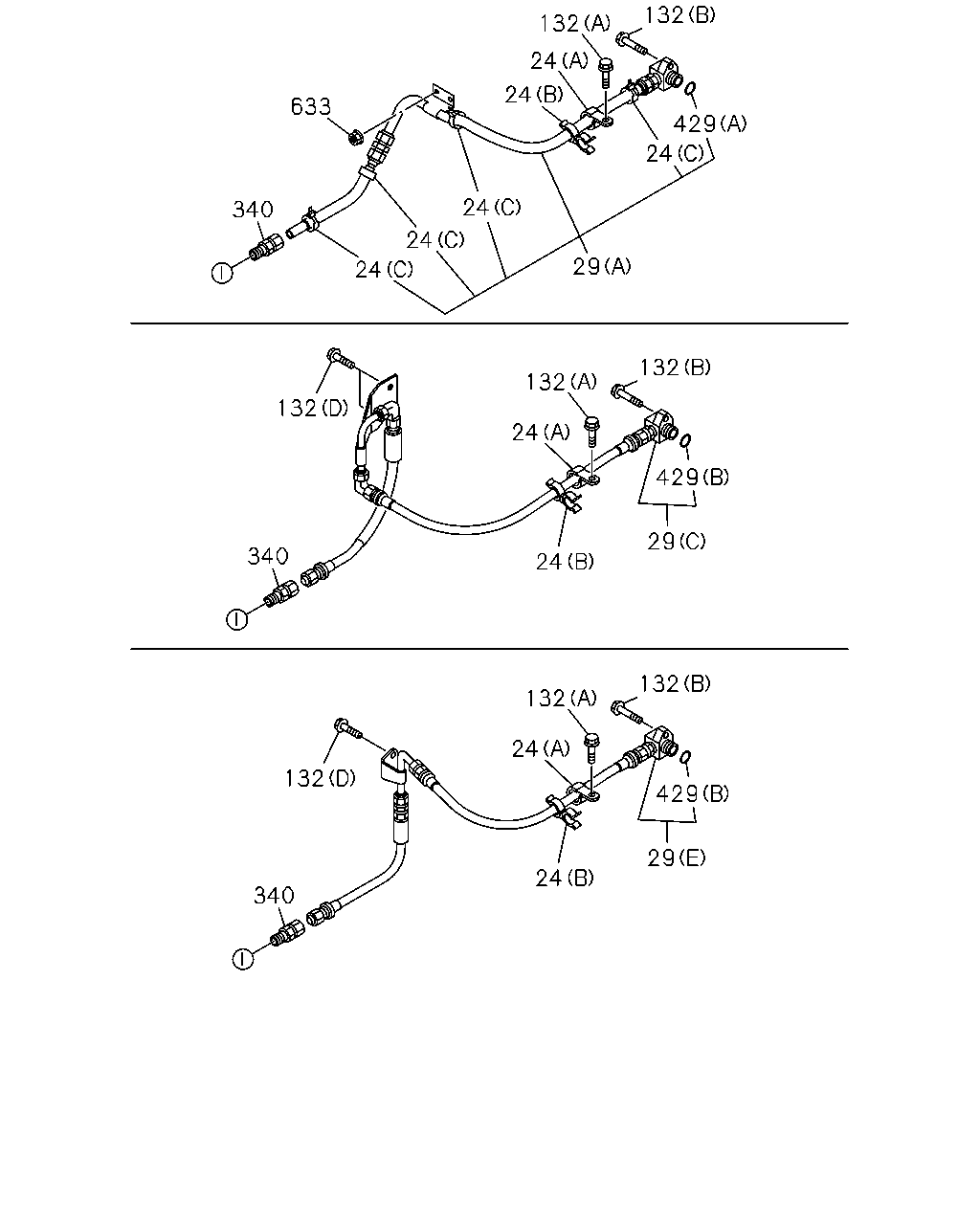

çizim 123274
132 132 24 24 633 429 24 24 340 24 29 24 132 132 132 24 429 29 340 24 132 132 24 132 429 29 24 340
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) 		8-98137-744-0 06 1 0901-0902
24 CLIP; FUEL HOSE
(B) ID=18 & 20.2 		8-94363-537-1 01 1 0901-0902
24 CLIP; FUEL HOSE
(B) ID=15.5 & 19.5 THA 		8-98137-046-0 01 1 0903-
24 CLIP; FUEL HOSE
(A) ID=17 L=21 		8-98082-035-0 01 1 0901-0902
24 CLIP; FUEL HOSE
(A) ID=14 L=20 		8-98144-944-0 01 1 0903-
29 HOSE; FUEL
(A) 		8-98114-276-2 01 1 0901-0902
29 HOSE; FUEL
(D) 		8-98144-592-0 01 1 0903-
29 HOSE; FUEL
(B) 		8-98114-277-1 01 1 0901-0902
29 HOSE; FUEL
(C) 		8-98144-594-0 01 1 0903-1004
29 HOSE; FUEL
(E) 		8-98154-089-0 01 1 1005-1005
29 HOSE; FUEL
(E) 		8-98161-990-0 01 1 1005-
132 BOLT; FUEL HOSE
(D) M12X35 FLANGE THA 		0-28651-235-0 02 1 0902-
132 BOLT; FUEL HOSE
(B) M6X25 FLANGE THA 		0-28050-625-0 01 1 0901-
132 BOLT; FUEL HOSE
(C) M6X60 FLANGE 		0-28050-660-0 01 1 0901-
132 BOLT; FUEL HOSE
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
340 CONNECTOR; CNG 8-98122-746-0 01 1 0901-0902
340 CONNECTOR; CNG 8-98144-429-0 01 1 0903-1304
340 CONNECTOR; CNG 8-98144-429-0 01 1 1305-
429 GASKET; JOINT
(A) 		8-98005-350-0 01 1 1005-
429 GASKET; JOINT
(A) 		8-98005-350-0 01 1 0901-0902
429 GASKET; JOINT
(B) 		8-98140-336-0 01 1 0901-0902
429 GASKET; JOINT
(B) 		8-98140-336-0 02 1 0903-1004
429 GASKET; JOINT
(B) 		8-98140-336-0 01 1 1005-
633 NUT; FUEL HOSE
M8 FLANGE THA 		0-91180-108-0 02 1 0901-0902

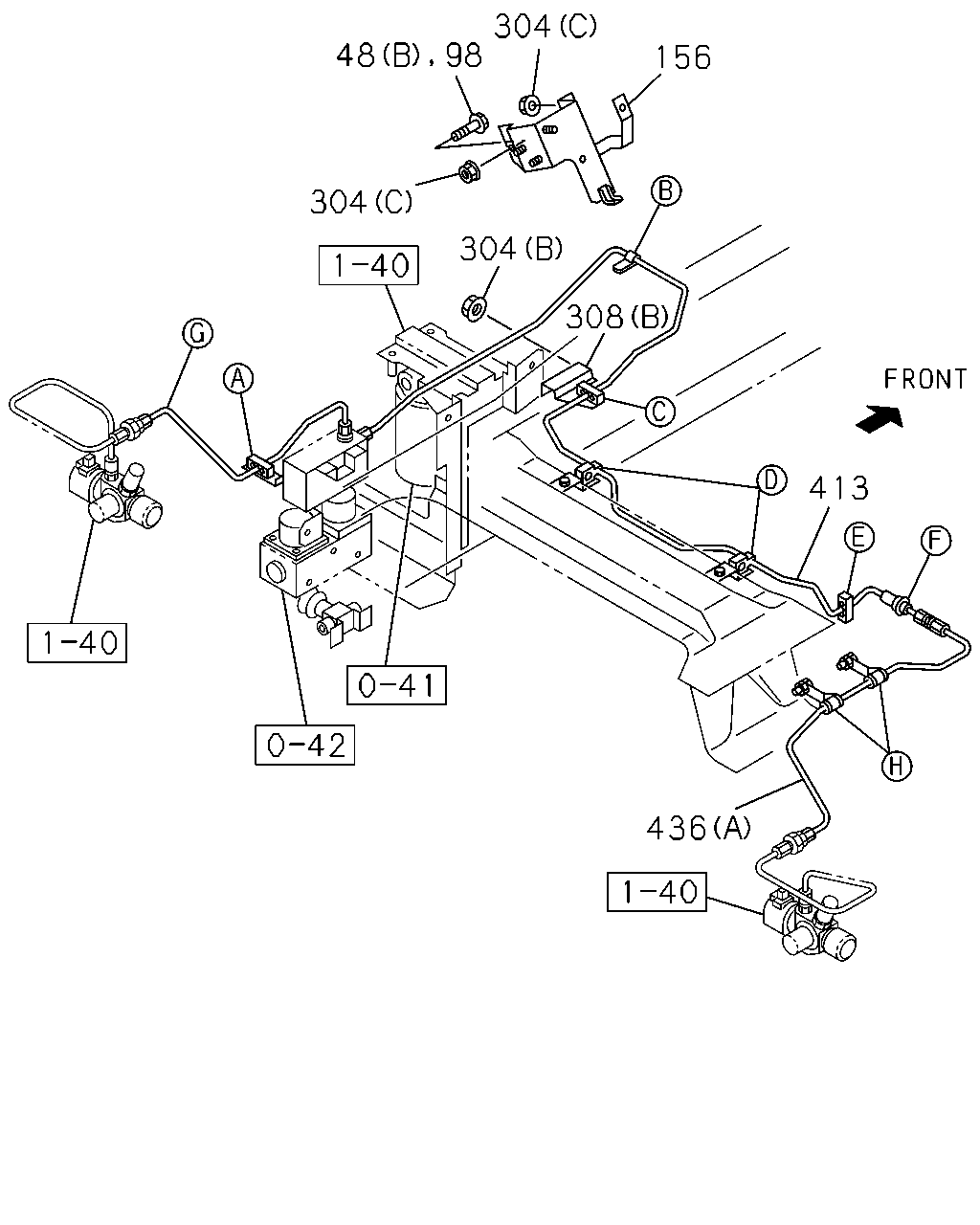

çizim 123347
304 156 304 304 308 413 436 48 98
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; BRKT
WHEEL BASE 3800MM<38W> (A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0901-1012
48 BOLT; BRKT
WHEEL BASE 3800MM<38W> (A) M10X35 FLANGE THA 		0-28661-035-0 01 1 1101-1201
48 BOLT; BRKT
WHEEL BASE 3800MM<38W> (A) M10X35 FLANGE THA 		0-28661-035-0 02 1 1202-
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
48 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0901-
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 3400MM<34W> M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 3800MM<38W> M8X25 FLANGE THA 		0-28650-825-0 02 1 0901-
156 BRACKET; FUEL HOSE 8-98114-278-1 01 1 0901-
304 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0901-1101
304 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1102-
304 NUT; BRKT
(A) M10 THA 		0-91111-510-0 02 1 0901-
304 NUT; BRKT
(C) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
308 BRACKET; FUEL PIPE
(B) 		8-98136-437-0 01 1 0901-
308 BRACKET; FUEL PIPE
(A) 		8-98034-748-1 02 1 0901-
413 PIPE; FUEL,CENTER 8-98114-245-1 01 1 0901-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (A) L=664 		8-98114-247-0 01 1 0901-0908
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (A) 		8-98151-502-0 01 1 0909-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (B) L=370 		8-98114-249-0 01 1 0901-0901
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (C) L=601 		8-98142-155-0 01 1 0902-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (A) L=840 		8-98114-248-0 01 1 0901-0908
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (A) L=840 		8-98151-503-1 01 1 0909-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (B) L=593 		8-98122-599-0 01 1 0901-0901
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (C) L=829 		8-98142-156-0 01 1 0902-

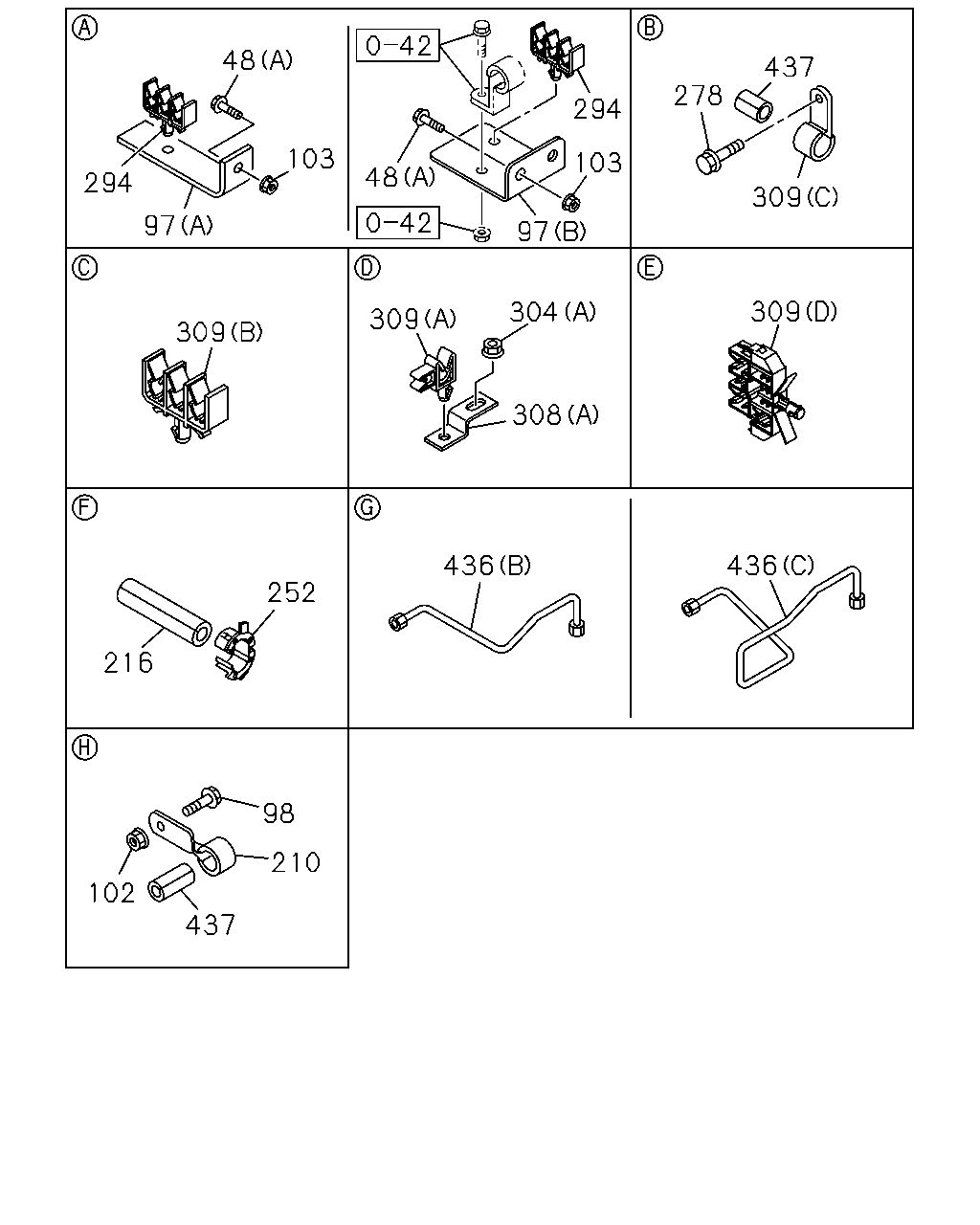

çizim 123506
48 437 278 294 103 103 48 294 309 97 97 309 304 309 309 308 436 436 252 216 98 210 102 437
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; BRKT
WHEEL BASE 3800MM<38W> (A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0901-1012
48 BOLT; BRKT
WHEEL BASE 3800MM<38W> (A) M10X35 FLANGE THA 		0-28661-035-0 01 1 1101-1201
48 BOLT; BRKT
WHEEL BASE 3800MM<38W> (A) M10X35 FLANGE THA 		0-28661-035-0 02 1 1202-
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
48 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0901-
97 BRACKET; CLIP
WHEEL BASE 3800MM<38W> (B) THA 		8-98204-817-0 01 1 1203-
97 BRACKET; CLIP
WHEEL BASE 3800MM<38W> (A) 		8-98052-405-0 01 1 0901-1202
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 3400MM<34W> M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 3800MM<38W> M8X25 FLANGE THA 		0-28650-825-0 02 1 0901-
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 3800MM<38W> M8 FLANGE THA 		0-91180-108-0 02 1 0901-
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 3400MM<34W> M8 FLANGE THA 		0-91180-108-0 01 1 0901-
103 NUT; BRKT
WHEEL BASE 3800MM<38W> M10 FLANGE THA 		0-91180-110-0 01 1 0902-1101
103 NUT; BRKT
WHEEL BASE 3800MM<38W> M10 FLANGE THA 		0-91180-210-0 01 1 1102-1202
103 NUT; BRKT
WHEEL BASE 3800MM<38W> M10 FLANGE THA 		0-91180-210-0 02 1 1203-
210 CLIP; FEED PIPE
WHEEL BASE 3400MM<34W> ID=13 L=50 		1-09700-027-1 01 1 0901-
210 CLIP; FEED PIPE
WHEEL BASE 3800MM<38W> ID=13 L=50 		1-09700-027-1 02 1 0901-
216 INSULATION; FUEL PIPE
OD=15 L=50 		8-97066-274-0 01 1 0901-
216 INSULATION; FUEL PIPE
OD=16 L=20 		8-97254-836-0 01 1 0901-
252 GROMMET
ID=17 		8-94128-319-2 01 1 0901-
278 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0901-
294 CLIP; FUEL PIPE
WHEEL BASE 3800MM<38W> ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 01 1 0901-
304 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0901-1101
304 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1102-
304 NUT; BRKT
(A) M10 THA 		0-91111-510-0 02 1 0901-
304 NUT; BRKT
(C) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
308 BRACKET; FUEL PIPE
(B) 		8-98136-437-0 01 1 0901-
308 BRACKET; FUEL PIPE
(A) 		8-98034-748-1 02 1 0901-
309 CLIP; PIPE
(B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0901-
309 CLIP; PIPE
(C) ID=13 L=28 		0-95235-255-0 01 1 0901-
309 CLIP; PIPE
(A) ID=12 & 6.35 		8-97215-437-0 02 1 0901-
309 CLIP; PIPE
(D) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 0901-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (A) L=664 		8-98114-247-0 01 1 0901-0908
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (A) 		8-98151-502-0 01 1 0909-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (B) L=370 		8-98114-249-0 01 1 0901-0901
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3400MM<34W> (C) L=601 		8-98142-155-0 01 1 0902-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (A) L=840 		8-98114-248-0 01 1 0901-0908
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (A) L=840 		8-98151-503-1 01 1 0909-
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (B) L=593 		8-98122-599-0 01 1 0901-0901
436 PIPE; FUEL,REGULATOR
WHEEL BASE 3800MM<38W> (C) L=829 		8-98142-156-0 01 1 0902-
437 RUBBER; INSULATOR
WHEEL BASE 3400MM<34W> OD=16 L=20 		8-97254-836-0 01 1 0901-
437 RUBBER; INSULATOR
WHEEL BASE 3800MM<38W> OD=16 L=20 		8-97254-836-0 02 1 0901-
çizim 123512
343 24 132 29 24 429 343 29 132 429
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) 		8-98137-744-0 06 1 0901-0902
24 CLIP; FUEL HOSE
(B) ID=18 & 20.2 		8-94363-537-1 01 1 0901-0902
24 CLIP; FUEL HOSE
(B) ID=15.5 & 19.5 THA 		8-98137-046-0 01 1 0903-
24 CLIP; FUEL HOSE
(A) ID=17 L=21 		8-98082-035-0 01 1 0901-0902
24 CLIP; FUEL HOSE
(A) ID=14 L=20 		8-98144-944-0 01 1 0903-
29 HOSE; FUEL
(A) 		8-98114-276-2 01 1 0901-0902
29 HOSE; FUEL
(D) 		8-98144-592-0 01 1 0903-
29 HOSE; FUEL
(B) 		8-98114-277-1 01 1 0901-0902
29 HOSE; FUEL
(C) 		8-98144-594-0 01 1 0903-1004
29 HOSE; FUEL
(E) 		8-98154-089-0 01 1 1005-1005
29 HOSE; FUEL
(E) 		8-98161-990-0 01 1 1005-
132 BOLT; FUEL HOSE
(D) M12X35 FLANGE THA 		0-28651-235-0 02 1 0902-
132 BOLT; FUEL HOSE
(B) M6X25 FLANGE THA 		0-28050-625-0 01 1 0901-
132 BOLT; FUEL HOSE
(C) M6X60 FLANGE 		0-28050-660-0 01 1 0901-
132 BOLT; FUEL HOSE
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-
343 UNION; ELBOW 8-98117-482-0 01 1 0901-0902
343 UNION; ELBOW 8-98144-428-0 01 1 0903-1304
343 UNION; ELBOW 8-98144-428-0 01 1 1305-
429 GASKET; JOINT
(A) 		8-98005-350-0 01 1 1005-
429 GASKET; JOINT
(A) 		8-98005-350-0 01 1 0901-0902
429 GASKET; JOINT
(B) 		8-98140-336-0 01 1 0901-0902
429 GASKET; JOINT
(B) 		8-98140-336-0 02 1 0903-1004
429 GASKET; JOINT
(B) 		8-98140-336-0 01 1 1005-
