◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#33570) — 335 parça

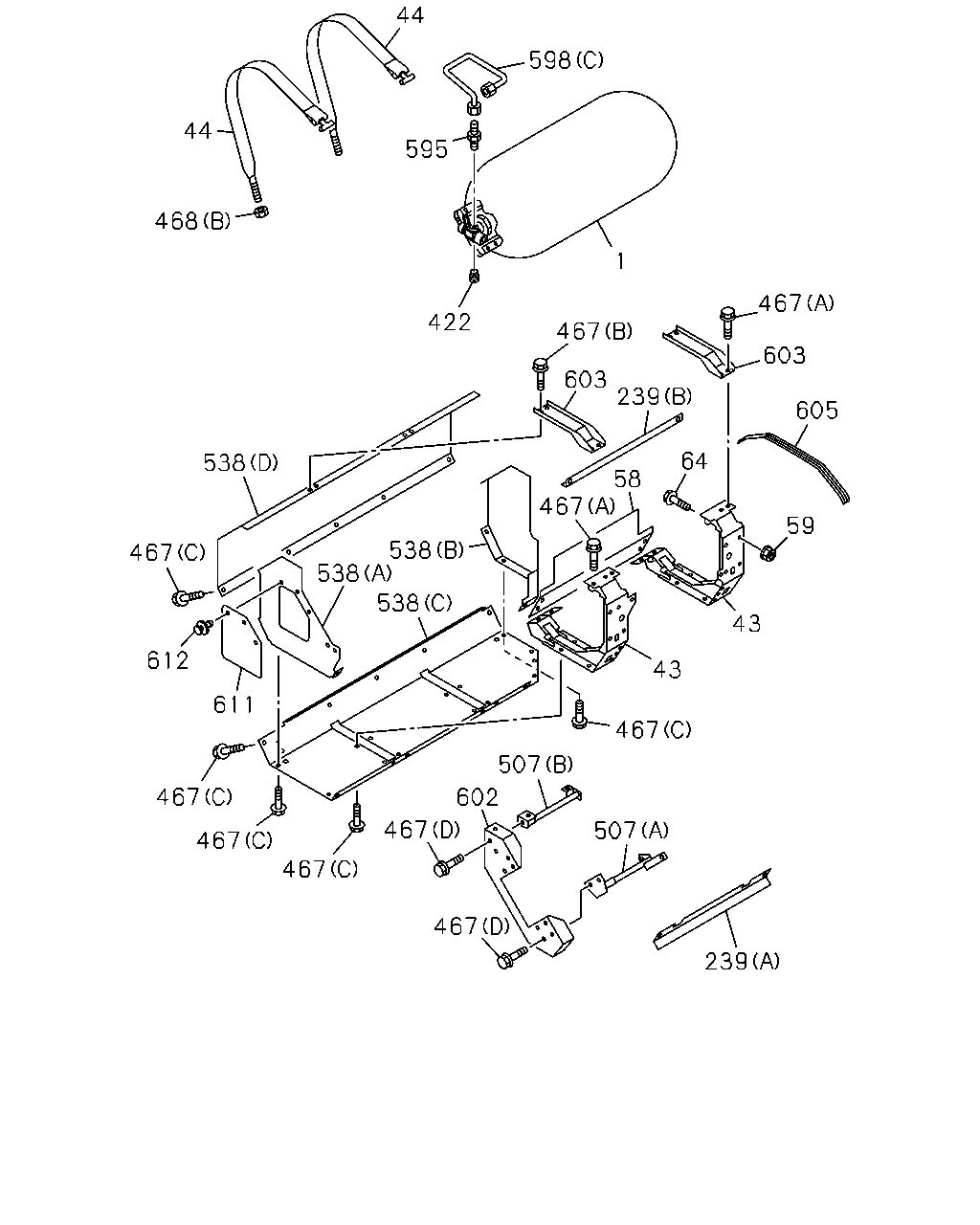

çizim 123341
44 598 44 595 468 1 467 422 467 603 603 239 605 64 538 58 467 59 538 467 538 538 43 612 43 611 467 507 467 602 467 507 467 467 467 239
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1202-1208
1 TANK; FUEL
OD=404X1440 150L THA 		8-98114-208-3 01 1 0901-1012
1 TANK; FUEL
OD=404X1440 150L THA 		8-98114-208-3 01 1 0901-1012
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1101-1201
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1101-1201
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1202-1208
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1209-
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1209-
1 TANK; FUEL
THA 		8-98237-762-0 01 1 1303-
1 TANK; FUEL
THA 		8-98237-762-0 01 1 1303-
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR 		8-98046-451-3 01 1 0901-
43 BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR 		8-98046-445-3 01 1 0901-
43 BRACKET; FUEL TANK
FRONT 		8-98046-443-3 01 1 0901-
43 BRACKET; FUEL TANK
FRONT 		8-98114-212-0 01 1 0901-1201
43 BRACKET; FUEL TANK
FRONT 		8-98114-212-0 01 1 1202-
43 BRACKET; FUEL TANK
REAR 		8-98114-213-0 01 1 0901-1201
43 BRACKET; FUEL TANK
REAR 		8-98114-213-0 01 1 1202-
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 0901-1012
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 0901-1012
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 1101-
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 1101-
58 PROTECTOR; HEAT,FUEL TANK 8-98046-471-0 01 1 0901-
59 NUT; FUEL TANK
M16 THA 		0-91111-516-0 01 1 0901-
59 NUT; FUEL TANK
M10 FLANGE THA 		0-91180-110-0 20 1 0901-1012
59 NUT; FUEL TANK
M10 FLANGE THA 		0-91180-210-0 20 1 1101-
64 BOLT; FUEL TANK
M10X35 FLANGE THA 		0-28651-035-0 20 1 0901-1012
64 BOLT; FUEL TANK
M10X35 FLANGE THA 		0-28661-035-0 20 1 1101-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1209-
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1209-
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (B) 		8-98147-290-0 04 1 1209-
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 0901-1012
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 0901-1012
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1101-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 02 1 1209-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 02 1 1209-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (C) 		8-98059-612-1 02 1 0901-0905
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (C) 		8-98147-290-0 02 1 0906-
422 PLUG; FUEL TANK
PT3/8 THA 		5-09605-005-0 01 1 0901-1012
422 PLUG; FUEL TANK
PT3/8 THA 		5-09605-005-0 01 1 1101-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1202-1208
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1202-1208
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 33 1 1202-
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 1202-
467 BOLT
WHEEL BASE 3400MM<34W> (D) M10X30 FLANGE THA 		0-28651-030-0 22 1 0901-
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 0901-1201
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 0901-1201
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1202-1208
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1209-
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1209-
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 29 1 0901-1201
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1202-1208
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1209-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1209-
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 31 1 0901-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 0901-1201
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 1202-
468 NUT
(A) M16 THA 		0-91111-516-0 01 1 0901-1201
468 NUT
(A) M16 THA 		0-91111-516-0 01 1 1202-
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 0901-1012
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 0901-1012
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 1101-
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 1101-
507 ROD
(B) 		8-98046-474-0 01 1 0901-1012
507 ROD
(B) 		8-98046-474-0 01 1 1101-
507 ROD
(B) 		8-98046-475-0 01 1 0901-1201
507 ROD
(B) 		8-98046-475-0 01 1 1202-
507 ROD
(A) 		8-98046-476-0 01 1 0901-1012
507 ROD
(A) 		8-98046-476-0 01 1 1101-
507 ROD
(A) 		8-98046-477-0 01 1 0901-1201
507 ROD
(A) 		8-98046-477-0 01 1 1202-
538 COVER; FUEL TANK
(A) THA 		8-97925-223-0 01 1 0901-1012
538 COVER; FUEL TANK
(A) THA 		8-97925-223-0 01 1 1101-
538 COVER; FUEL TANK
(A) THA 		8-97925-224-0 01 1 0901-1201
538 COVER; FUEL TANK
(A) THA 		8-97925-224-0 01 1 1202-
538 COVER; FUEL TANK
(C) THA 		8-97925-226-2 01 1 0901-1012
538 COVER; FUEL TANK
(C) THA 		8-97925-226-2 01 1 1101-
538 COVER; FUEL TANK
(C) THA 		8-97925-227-2 01 1 0901-1201
538 COVER; FUEL TANK
(C) THA 		8-97925-227-2 01 1 1202-
538 COVER; FUEL TANK
(D) THA 		8-97925-228-1 01 1 0901-1012
538 COVER; FUEL TANK
(D) THA 		8-97925-228-1 01 1 1101-
538 COVER; FUEL TANK
(D) THA 		8-97925-229-1 01 1 0901-1201
538 COVER; FUEL TANK
(D) THA 		8-97925-229-1 01 1 1202-
538 COVER; FUEL TANK
(B) 		8-98081-694-0 01 1 0901-
538 COVER; FUEL TANK
(B) 		8-98081-695-0 01 1 0901-
595 UNION; 2WAY 8-97226-436-1 01 1 0901-1012
595 UNION; 2WAY 8-97226-436-1 01 1 0901-1012
595 UNION; 2WAY 8-97226-436-1 01 1 1101-
595 UNION; 2WAY 8-97226-436-1 01 1 1101-
598 PIPE; FUEL,CNG
(A) 		8-98164-579-0 01 1 1001-1201
598 PIPE; FUEL,CNG
(A) 		8-98120-790-0 01 1 0901-0902
598 PIPE; FUEL,CNG
(A) 		8-98144-789-0 01 1 0903-0912
598 PIPE; FUEL,CNG
(A) THA 		8-98200-242-0 01 1 1202-
598 PIPE; FUEL,CNG
(C) 		8-98120-791-0 01 1 0901-1012
598 PIPE; FUEL,CNG
(A) 		8-98120-791-0 01 1 1101-
598 PIPE; FUEL,CNG
(B) 		8-98120-792-0 01 1 0901-1201
598 PIPE; FUEL,CNG
(B) 		8-98120-792-0 01 1 1202-
602 PLATET; STOPPER 8-98135-892-0 01 1 0901-
602 PLATET; STOPPER 8-98135-893-0 01 1 0901-1201
602 PLATET; STOPPER 8-98135-893-0 01 1 1202-
603 STAY; COVER
THA 		8-97925-221-1 01 1 0901-1012
603 STAY; COVER
THA 		8-97925-221-1 01 1 1101-
603 STAY; COVER
THA 		8-97925-222-1 01 1 0901-1201
603 STAY; COVER
THA 		8-97925-222-1 01 1 1202-
605 GASKET; FUEL TANK
WHEEL BASE 3800MM<38W> L=960 THA 		1-22553-044-0 03 1 1410-
605 GASKET; FUEL TANK
L=960 THA 		1-22553-044-0 03 1 1410-
605 GASKET; FUEL TANK
L=960 THA 		1-22553-044-0 01 1 0901-1409
605 GASKET; FUEL TANK
L=960 THA 		1-22553-044-0 01 1 0901-1409
605 GASKET; FUEL TANK
WHEEL BASE 3400MM<34W> L=960 THA 		1-22553-044-0 02 1 1410-
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1202-1208
611 RUBBER; SHUTTER 1-53449-093-0 01 1 0901-1201
611 RUBBER; SHUTTER 1-53449-093-0 01 1 0901-1201
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1202-1208
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1209-
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1209-
612 FASTENER
THA 		8-97372-006-0 03 1 0901-1012
612 FASTENER
THA 		8-97372-006-0 03 1 0901-1012
612 FASTENER
THA 		8-97372-006-0 03 1 1101-
612 FASTENER
THA 		8-97372-006-0 03 1 1101-

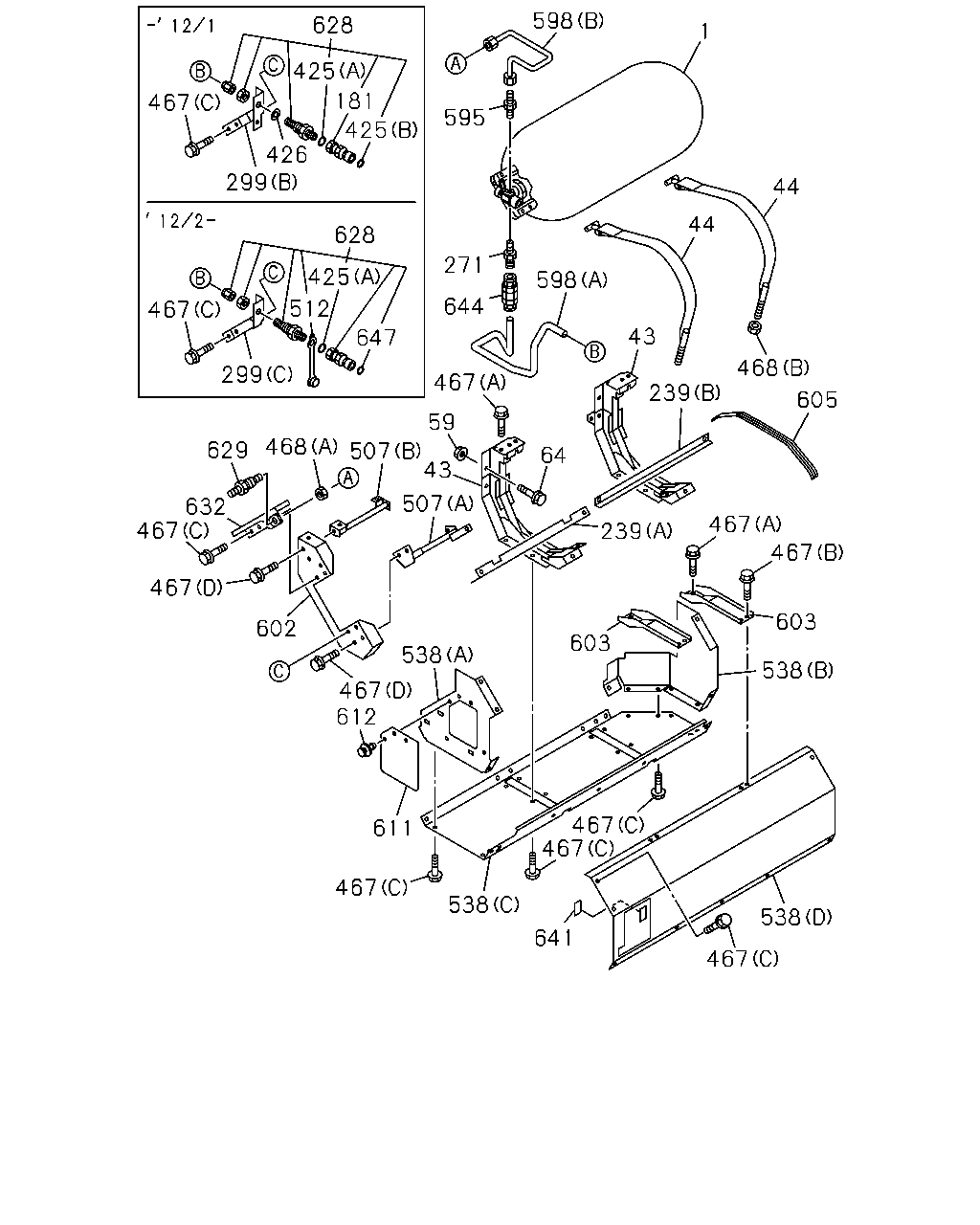

çizim 123342
598 628 1 425 467 181 595 425 426 299 44 44 628 271 425 598 467 644 512 43 647 468 299 467 239 605 59 468 629 507 43 64 507 632 467 467 239 467 467 603 602 603 538 538 467 612 467 467 611 467 538 538 641 467
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1202-1208
1 TANK; FUEL
OD=404X1440 150L THA 		8-98114-208-3 01 1 0901-1012
1 TANK; FUEL
OD=404X1440 150L THA 		8-98114-208-3 01 1 0901-1012
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1101-1201
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1101-1201
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1202-1208
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1209-
1 TANK; FUEL
OD=404X1440 150L THA 		8-98188-215-0 01 1 1209-
1 TANK; FUEL
THA 		8-98237-762-0 01 1 1303-
1 TANK; FUEL
THA 		8-98237-762-0 01 1 1303-
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR 		8-98046-451-3 01 1 0901-
43 BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR 		8-98046-445-3 01 1 0901-
43 BRACKET; FUEL TANK
FRONT 		8-98046-443-3 01 1 0901-
43 BRACKET; FUEL TANK
FRONT 		8-98114-212-0 01 1 0901-1201
43 BRACKET; FUEL TANK
FRONT 		8-98114-212-0 01 1 1202-
43 BRACKET; FUEL TANK
REAR 		8-98114-213-0 01 1 0901-1201
43 BRACKET; FUEL TANK
REAR 		8-98114-213-0 01 1 1202-
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 0901-1012
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 0901-1012
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 1101-
44 BAND; FUEL TANK
THA 		8-97925-213-1 02 1 1101-
59 NUT; FUEL TANK
M16 THA 		0-91111-516-0 01 1 0901-
59 NUT; FUEL TANK
M10 FLANGE THA 		0-91180-110-0 20 1 0901-1012
59 NUT; FUEL TANK
M10 FLANGE THA 		0-91180-210-0 20 1 1101-
64 BOLT; FUEL TANK
M10X35 FLANGE THA 		0-28651-035-0 20 1 0901-1012
64 BOLT; FUEL TANK
M10X35 FLANGE THA 		0-28661-035-0 20 1 1101-
181 PLUG; CONNECTOR 8-97638-677-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1209-
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1209-
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (B) 		8-98147-290-0 04 1 1209-
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 0901-1012
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 0901-1012
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1101-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 02 1 1209-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 02 1 1209-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (C) 		8-98059-612-1 02 1 0901-0905
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (C) 		8-98147-290-0 02 1 0906-
271 CONNECTOR; 2 WAY,FUEL HOSE 8-98120-764-0 01 1 0901-1201
271 CONNECTOR; 2 WAY,FUEL HOSE 8-98120-764-0 01 1 1202-
299 BRACKET; FUEL FILTER
(C) THA 		8-98200-240-0 02 1 1202-
299 BRACKET; FUEL FILTER
(B) 		8-98122-627-0 01 1 0901-1201
299 BRACKET; FUEL FILTER
(A) 		8-98114-280-1 01 1 0901-
425 GASKET; ADAPTER
(A) THA 		8-98177-921-0 01 1 1202-
425 GASKET; ADAPTER
(A) 		8-97638-671-0 01 1 0901-1201
425 GASKET; ADAPTER
(B) 		8-97638-672-0 01 1 0901-1201
426 WASHER; PL
ID=21 THA 		0-91610-520-0 01 1 0902-1201
426 WASHER; PL
ID=14.5 OD=30 		9-09851-946-0 01 1 0901-0901
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1202-1208
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1202-1208
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 33 1 1202-
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 1202-
467 BOLT
WHEEL BASE 3400MM<34W> (D) M10X30 FLANGE THA 		0-28651-030-0 22 1 0901-
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 0901-1201
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 0901-1201
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1202-1208
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1209-
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1209-
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 29 1 0901-1201
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1202-1208
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1209-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1209-
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 31 1 0901-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 0901-1201
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 1202-
468 NUT
(A) M16 THA 		0-91111-516-0 01 1 0901-1201
468 NUT
(A) M16 THA 		0-91111-516-0 01 1 1202-
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 0901-1012
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 0901-1012
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 1101-
468 NUT
(B) M10 LOCK NUT FLANGE THA 		0-91380-010-0 02 1 1101-
507 ROD
(B) 		8-98046-474-0 01 1 0901-1012
507 ROD
(B) 		8-98046-474-0 01 1 1101-
507 ROD
(B) 		8-98046-475-0 01 1 0901-1201
507 ROD
(B) 		8-98046-475-0 01 1 1202-
507 ROD
(A) 		8-98046-476-0 01 1 0901-1012
507 ROD
(A) 		8-98046-476-0 01 1 1101-
507 ROD
(A) 		8-98046-477-0 01 1 0901-1201
507 ROD
(A) 		8-98046-477-0 01 1 1202-
512 CAP; CONNECTOR
THA 		8-98207-581-0 01 1 1203-
538 COVER; FUEL TANK
(A) THA 		8-97925-223-0 01 1 0901-1012
538 COVER; FUEL TANK
(A) THA 		8-97925-223-0 01 1 1101-
538 COVER; FUEL TANK
(A) THA 		8-97925-224-0 01 1 0901-1201
538 COVER; FUEL TANK
(A) THA 		8-97925-224-0 01 1 1202-
538 COVER; FUEL TANK
(C) THA 		8-97925-226-2 01 1 0901-1012
538 COVER; FUEL TANK
(C) THA 		8-97925-226-2 01 1 1101-
538 COVER; FUEL TANK
(C) THA 		8-97925-227-2 01 1 0901-1201
538 COVER; FUEL TANK
(C) THA 		8-97925-227-2 01 1 1202-
538 COVER; FUEL TANK
(D) THA 		8-97925-228-1 01 1 0901-1012
538 COVER; FUEL TANK
(D) THA 		8-97925-228-1 01 1 1101-
538 COVER; FUEL TANK
(D) THA 		8-97925-229-1 01 1 0901-1201
538 COVER; FUEL TANK
(D) THA 		8-97925-229-1 01 1 1202-
538 COVER; FUEL TANK
(B) 		8-98081-694-0 01 1 0901-
538 COVER; FUEL TANK
(B) 		8-98081-695-0 01 1 0901-
595 UNION; 2WAY 8-97226-436-1 01 1 0901-1012
595 UNION; 2WAY 8-97226-436-1 01 1 0901-1012
595 UNION; 2WAY 8-97226-436-1 01 1 1101-
595 UNION; 2WAY 8-97226-436-1 01 1 1101-
598 PIPE; FUEL,CNG
(A) 		8-98164-579-0 01 1 1001-1201
598 PIPE; FUEL,CNG
(A) 		8-98120-790-0 01 1 0901-0902
598 PIPE; FUEL,CNG
(A) 		8-98144-789-0 01 1 0903-0912
598 PIPE; FUEL,CNG
(A) THA 		8-98200-242-0 01 1 1202-
598 PIPE; FUEL,CNG
(C) 		8-98120-791-0 01 1 0901-1012
598 PIPE; FUEL,CNG
(A) 		8-98120-791-0 01 1 1101-
598 PIPE; FUEL,CNG
(B) 		8-98120-792-0 01 1 0901-1201
598 PIPE; FUEL,CNG
(B) 		8-98120-792-0 01 1 1202-
602 PLATET; STOPPER 8-98135-892-0 01 1 0901-
602 PLATET; STOPPER 8-98135-893-0 01 1 0901-1201
602 PLATET; STOPPER 8-98135-893-0 01 1 1202-
603 STAY; COVER
THA 		8-97925-221-1 01 1 0901-1012
603 STAY; COVER
THA 		8-97925-221-1 01 1 1101-
603 STAY; COVER
THA 		8-97925-222-1 01 1 0901-1201
603 STAY; COVER
THA 		8-97925-222-1 01 1 1202-
605 GASKET; FUEL TANK
WHEEL BASE 3800MM<38W> L=960 THA 		1-22553-044-0 03 1 1410-
605 GASKET; FUEL TANK
L=960 THA 		1-22553-044-0 03 1 1410-
605 GASKET; FUEL TANK
L=960 THA 		1-22553-044-0 01 1 0901-1409
605 GASKET; FUEL TANK
L=960 THA 		1-22553-044-0 01 1 0901-1409
605 GASKET; FUEL TANK
WHEEL BASE 3400MM<34W> L=960 THA 		1-22553-044-0 02 1 1410-
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1202-1208
611 RUBBER; SHUTTER 1-53449-093-0 01 1 0901-1201
611 RUBBER; SHUTTER 1-53449-093-0 01 1 0901-1201
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1202-1208
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1209-
611 RUBBER; SHUTTER 1-53449-093-0 01 1 1209-
612 FASTENER
THA 		8-97372-006-0 03 1 0901-1012
612 FASTENER
THA 		8-97372-006-0 03 1 0901-1012
612 FASTENER
THA 		8-97372-006-0 03 1 1101-
612 FASTENER
THA 		8-97372-006-0 03 1 1101-
628 COUPLER; FUEL TANK 8-98174-958-0 01 1 1203-
628 COUPLER; FUEL TANK 8-98122-626-0 01 1 0901-1201
629 UNION; FUEL,CNG 8-97386-218-1 01 1 0901-1012
629 UNION; FUEL,CNG 8-97386-218-1 01 1 0901-1012
629 UNION; FUEL,CNG 8-97386-218-1 01 1 1101-
629 UNION; FUEL,CNG 8-97386-218-1 01 1 1101-
632 BRACKET; UNION
THA 		8-97925-218-1 01 1 0901-1012
632 BRACKET; UNION
THA 		8-97925-218-1 01 1 1101-
632 BRACKET; UNION
THA 		8-97925-219-1 01 1 0901-1201
632 BRACKET; UNION
THA 		8-97925-219-1 01 1 1202-
641 SEAL; COVER,TANK 8-98090-873-1 01 1 0901-1201
641 SEAL; COVER,TANK 8-98090-873-1 01 1 1202-
644 VALVE; CHECK 8-98120-763-0 01 1 0901-1201
644 VALVE; CHECK 8-98120-763-0 01 1 1202-
647 CAP; KIT
THA 		8-98177-921-0 01 1 1202-

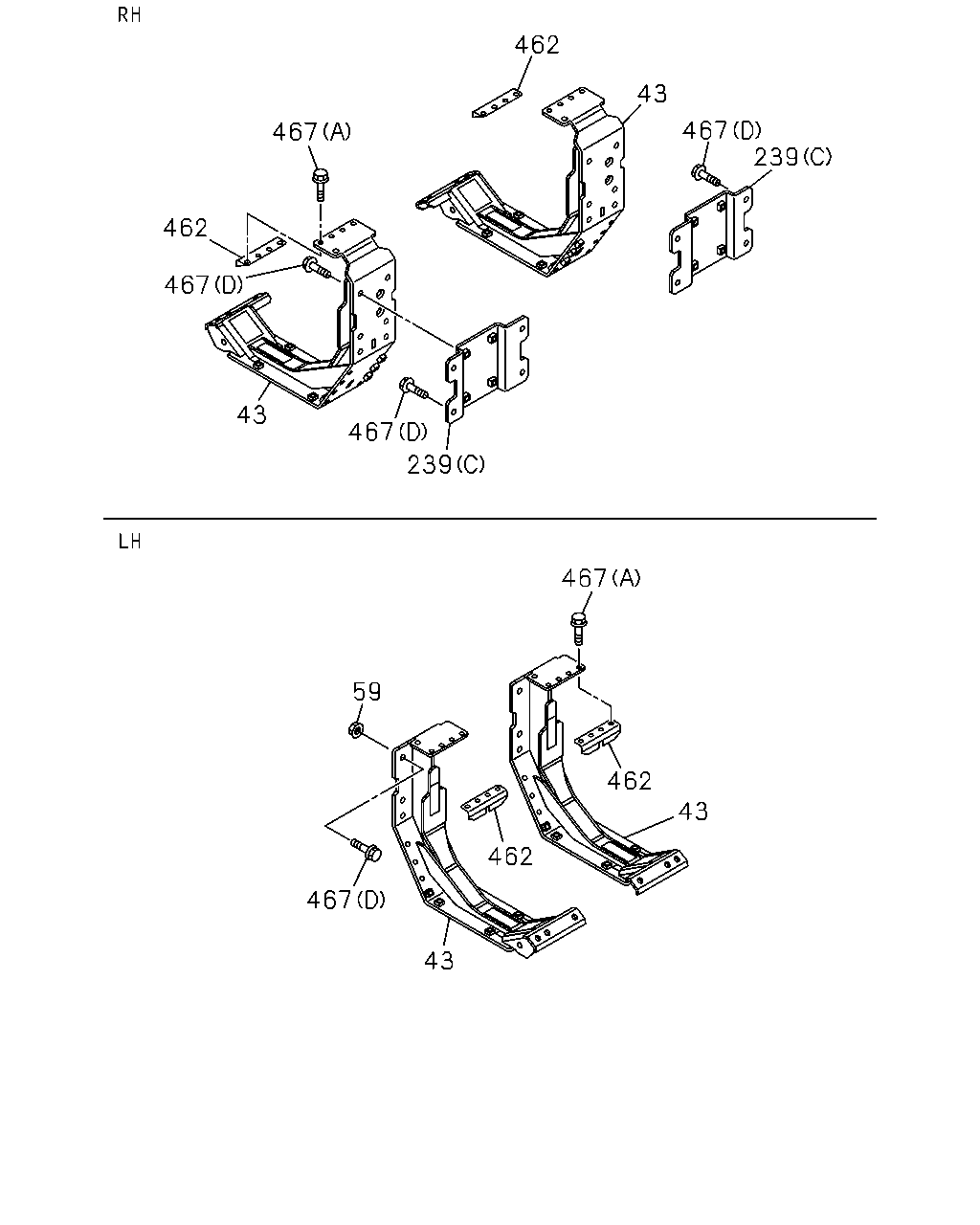

çizim 123343
462 43 467 239 467 462 467 43 467 239 467 59 462 43 462 467 43
BalonParca AdiParca NoAdetTipApplied Date
43 BRACKET; FUEL TANK
WHEEL BASE 3400MM<34W> REAR 		8-98046-451-3 01 1 0901-
43 BRACKET; FUEL TANK
WHEEL BASE 3800MM<38W> REAR 		8-98046-445-3 01 1 0901-
43 BRACKET; FUEL TANK
FRONT 		8-98046-443-3 01 1 0901-
43 BRACKET; FUEL TANK
FRONT 		8-98114-212-0 01 1 0901-1201
43 BRACKET; FUEL TANK
FRONT 		8-98114-212-0 01 1 1202-
43 BRACKET; FUEL TANK
REAR 		8-98114-213-0 01 1 0901-1201
43 BRACKET; FUEL TANK
REAR 		8-98114-213-0 01 1 1202-
59 NUT; FUEL TANK
M16 THA 		0-91111-516-0 01 1 0901-
59 NUT; FUEL TANK
M10 FLANGE THA 		0-91180-110-0 20 1 0901-1012
59 NUT; FUEL TANK
M10 FLANGE THA 		0-91180-210-0 20 1 1101-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1209-
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1209-
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (B) 		8-98147-290-0 04 1 1209-
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 0901-1012
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 0901-1012
239 SUPPORT; FUEL TANK
(A) THA 		8-97925-216-0 01 1 1101-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 1202-1208
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 02 1 1209-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 02 1 1209-
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
(B) 		8-98046-486-0 01 1 0901-1201
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (C) 		8-98059-612-1 02 1 0901-0905
239 SUPPORT; FUEL TANK
WHEEL BASE 3400MM<34W> (C) 		8-98147-290-0 02 1 0906-
462 BRACKET; COCK,PREHEATER 8-98046-535-0 02 1 1202-1208
462 BRACKET; COCK,PREHEATER 8-98046-535-0 02 1 0901-1201
462 BRACKET; COCK,PREHEATER 8-98046-535-0 02 1 0901-1201
462 BRACKET; COCK,PREHEATER 8-98046-535-0 02 1 1202-1208
462 BRACKET; COCK,PREHEATER 8-98046-535-0 02 1 1209-
462 BRACKET; COCK,PREHEATER 8-98046-535-0 02 1 1209-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1202-1208
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1202-1208
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 33 1 1202-
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 1202-
467 BOLT
WHEEL BASE 3400MM<34W> (D) M10X30 FLANGE THA 		0-28651-030-0 22 1 0901-
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 0901-1201
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 0901-1201
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1202-1208
467 BOLT
WHEEL BASE 3800MM<38W> (D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1209-
467 BOLT
(D) M10X30 FLANGE THA 		0-28651-030-0 12 1 1209-
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 29 1 0901-1201
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1202-1208
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1209-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 1209-
467 BOLT
(C) M8X20 FLANGE THA 		0-28650-820-0 31 1 0901-
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 0901-1201
467 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 06 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 0901-1201
467 BOLT
(A) M8X25 FLANGE THA 		0-28650-825-0 08 1 1202-

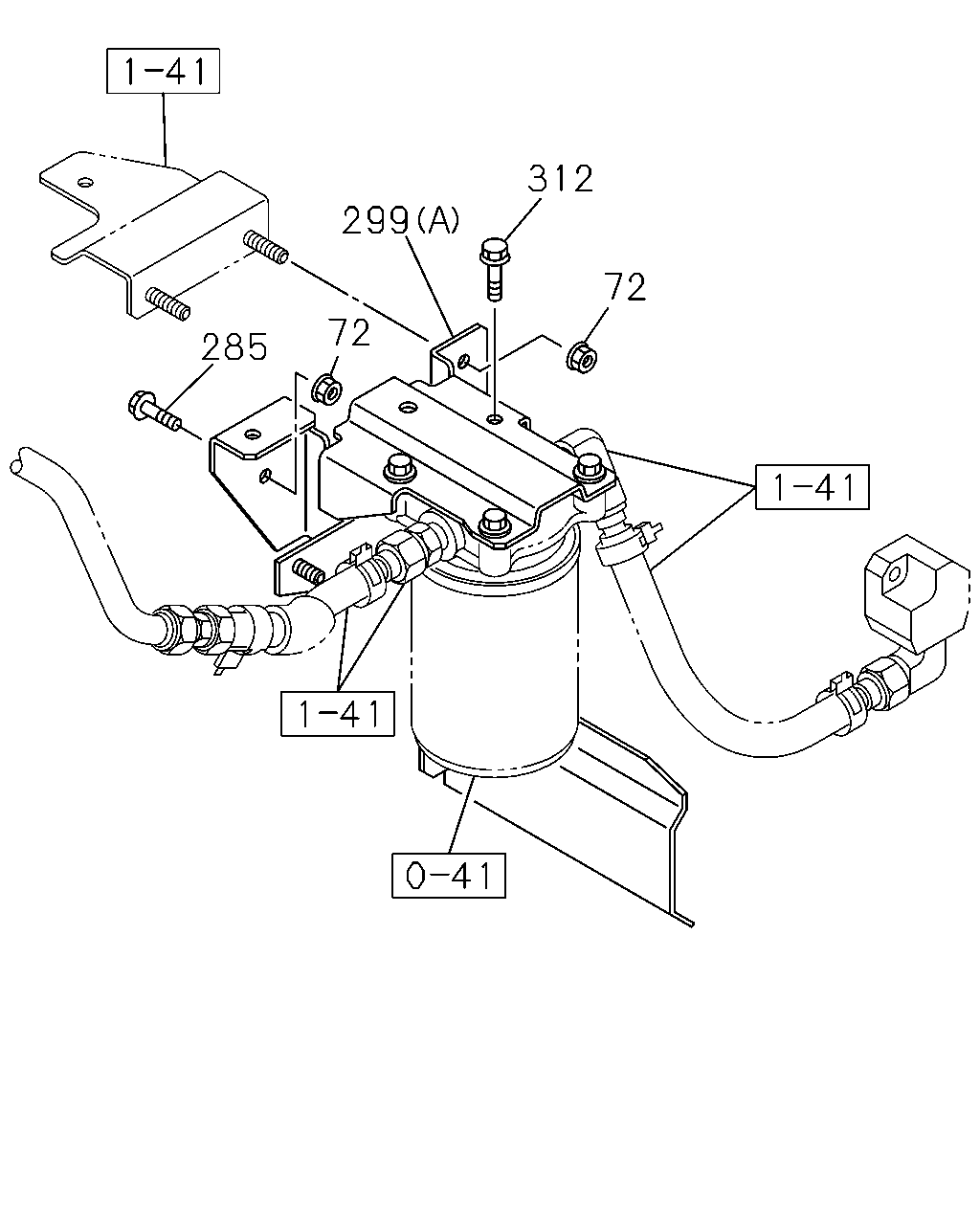

çizim 123344
312 299 72 72 285
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 0901-1012
72 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1101-
285 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 01 1 0901-1012
285 BOLT; BRKT
M10X30 FLANGE THA 		0-28661-030-0 01 1 1101-
299 BRACKET; FUEL FILTER
(C) THA 		8-98200-240-0 02 1 1202-
299 BRACKET; FUEL FILTER
(B) 		8-98122-627-0 01 1 0901-1201
299 BRACKET; FUEL FILTER
(A) 		8-98114-280-1 01 1 0901-
312 BOLT; FUEL FILTER CLAMP
M10X25 FLANGE THA 		0-28751-025-0 04 1 0901-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
