2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#3357) — 44 parça

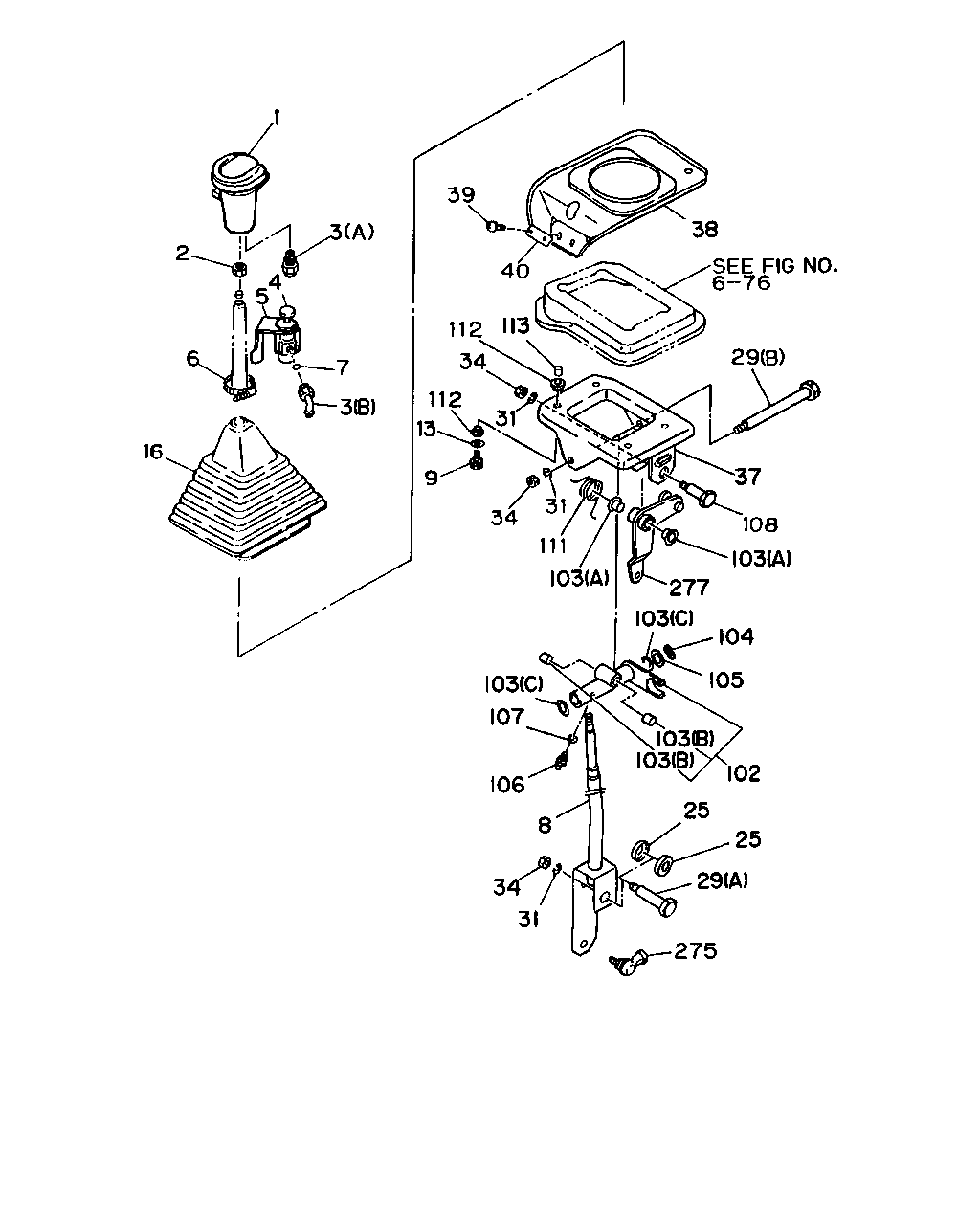

çizim 4931
1 3 4 5 2 6 7 3 16 38 29 37 108 103 277 103 104 105 103 103 102 25 25 29 275 31 34 8 106 107 103 103 111 31 34 9 31 13 112 34 112 113 40 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 KNOB; CHANGE LEVER 1-33611-030-0 01 1 9002- ● ● ●
1 KNOB; CHANGE LEVER 1-33611-031-0 01 1 9002- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9002- ● ● ● ●
3 CONNECTOR; CONT TUBE
(B) 		1-33619-036-0 02 1 9002-9306 ● ● ● ●
3 CONNECTOR; CONT TUBE
(A) 		1-33619-035-0 02 1 9002-9306 ● ● ●
3 CONNECTOR; CONT TUBE
(A) 		1-33619-035-0 04 1 9002-9306 ●
3 CONNECTOR; CONT TUBE
(A) 		1-33619-403-0 04 1 9307- ●
3 CONNECTOR; CONT TUBE
(B) 		1-33619-402-0 02 1 9307- ● ●
3 CONNECTOR; CONT TUBE
(A) 		1-33619-403-0 02 1 9307- ●
4 VALVE; ACTUATOR 1-33712-003-0 01 1 9002- ● ● ● ●
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 9002-9006 ● ● ● ●
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE<BAP> 		1-33719-078-0 01 1 9007- ● ● ● ●
6 CLAMP; BRKT 1-33719-079-0 01 1 9002-9006 ● ● ● ●
6 CLAMP; BRKT
COUNTER SHAFT BRAKE<BAP> 		1-33719-079-0 01 1 9007- ● ● ● ●
7 GASKET; CONNECTOR 1-33619-034-0 03 1 9002- ● ● ● ●
8 LEVER; CHANGE
L=308 		1-33613-223-1 01 1 9002- ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		9-01910-825-0 04 1 9002-9005 ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9006-9302 ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28080-825-0 04 1 9303- ● ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9002- ● ● ● ●
16 BOOT; CHANGE LEVER 1-79997-179-4 01 1 9002- ● ● ● ●
25 WASHER
ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 9002- ● ● ● ●
29 SHAFT
(A) L=61 		1-33619-126-2 01 1 9002- ● ● ● ●
29 SHAFT
(B) L=135 		1-33619-127-0 01 1 9002- ● ● ● ●
31 WASHER; LK
ID=10.2 		9-09150-510-0 03 1 9002- ● ● ● ●
34 NUT
M10 		9-09110-410-0 03 1 9002- ● ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-166-1 01 1 9002- ● ● ● ●
38 HOLDER; BOOT CHANGE LEVER 1-79997-152-5 01 1 9002- ● ● ● ●
39 SCREW; BOOT,CHANGE LEVER
M6X20 W/LK&PL WASHER 		1-09981-312-0 04 1 9002- ● ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79997-151-1 01 1 9002- ● ● ● ●
102 SPIDER ASM 1-33615-022-3 01 1 9002- ● ● ● ●
103 BUSHING; RELAY LEVER
(A) ID=16 OD=18 L=12.5 		1-09330-048-0 02 1 9002- ● ● ● ●
103 BUSHING; RELAY LEVER
(B) ID=16 OD=18 L=16 		1-09330-049-0 02 1 9002- ● ● ● ●
103 BUSHING; RELAY LEVER
(C) ID=16 OD=18 H=16 		1-09503-151-0 02 1 9002- ● ● ● ●
104 WASHER; WAVED 9-09855-315-0 03 1 9002- ● ● ● ●
105 SHIM; CHANGE LEVER 1-33659-096-0 03 1 9002- ● ● ● ●
106 NIPPLE; GREASE
M6 STRAIGHT 		9-09031-006-0 01 1 9002- ● ● ● ●
107 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9002- ● ● ● ●
108 SHAFT; SELECT LEVER 1-33619-128-1 01 1 9002- ● ● ● ●
111 SPRING 1-09585-106-0 01 1 9002- ● ● ● ●
112 RUBBER; CUSHION 1-33619-148-0 08 1 9002- ● ● ● ●
113 SPACER 9-09651-072-0 04 1 9002- ● ● ● ●
275 END; SCREW
10PD1 STD ENG(40L) 		1-09760-078-0 02 1 9002-9211 ● ●
277 LEVER; RELAY 1-33651-314-0 01 1 9002- ● ● ● ●
