1-11 — RADIATOR HOSE AND SUB TANK
(#33567) — 19 parça
◀

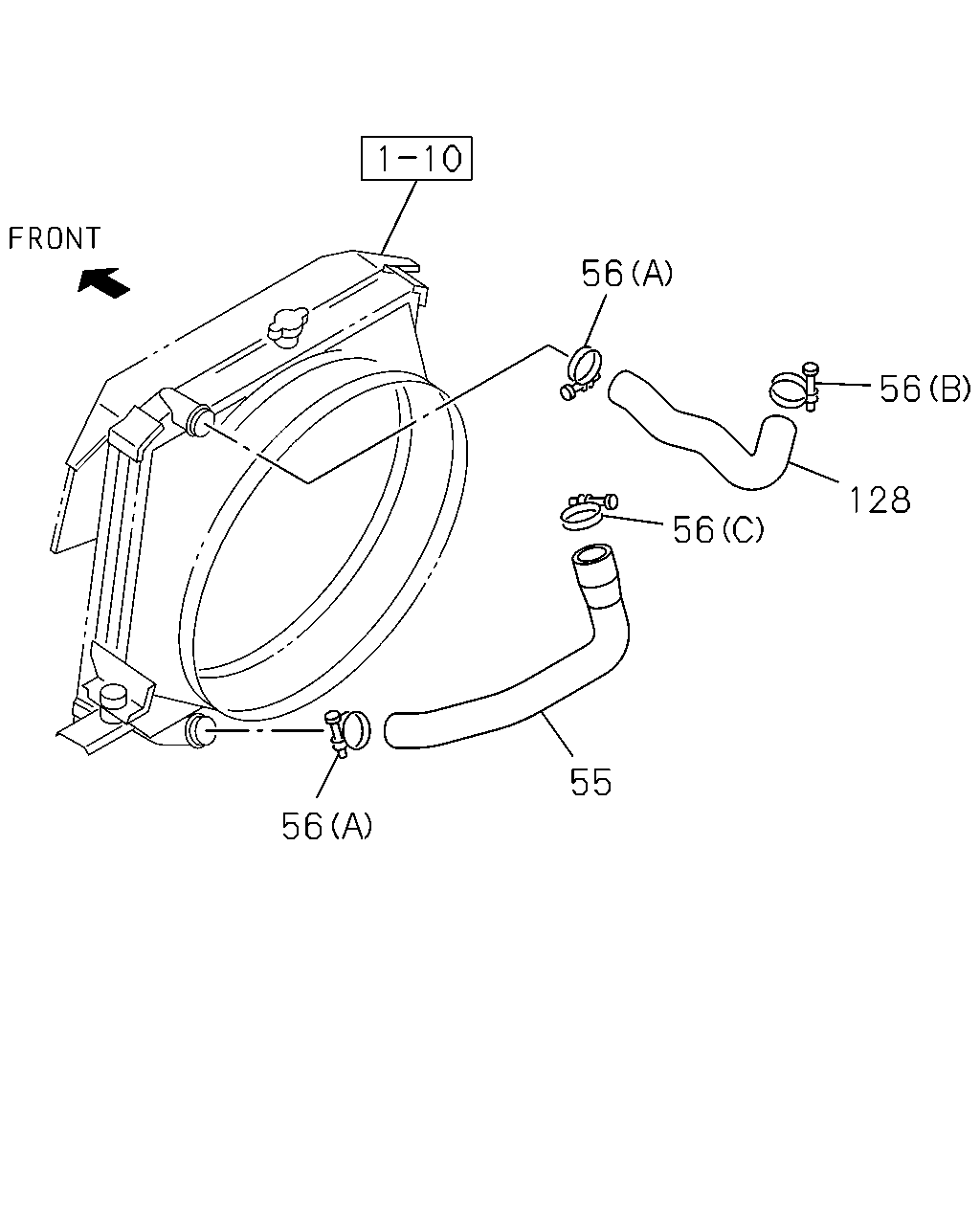

[111A] RAD HOSE,CLIP (8 parça)

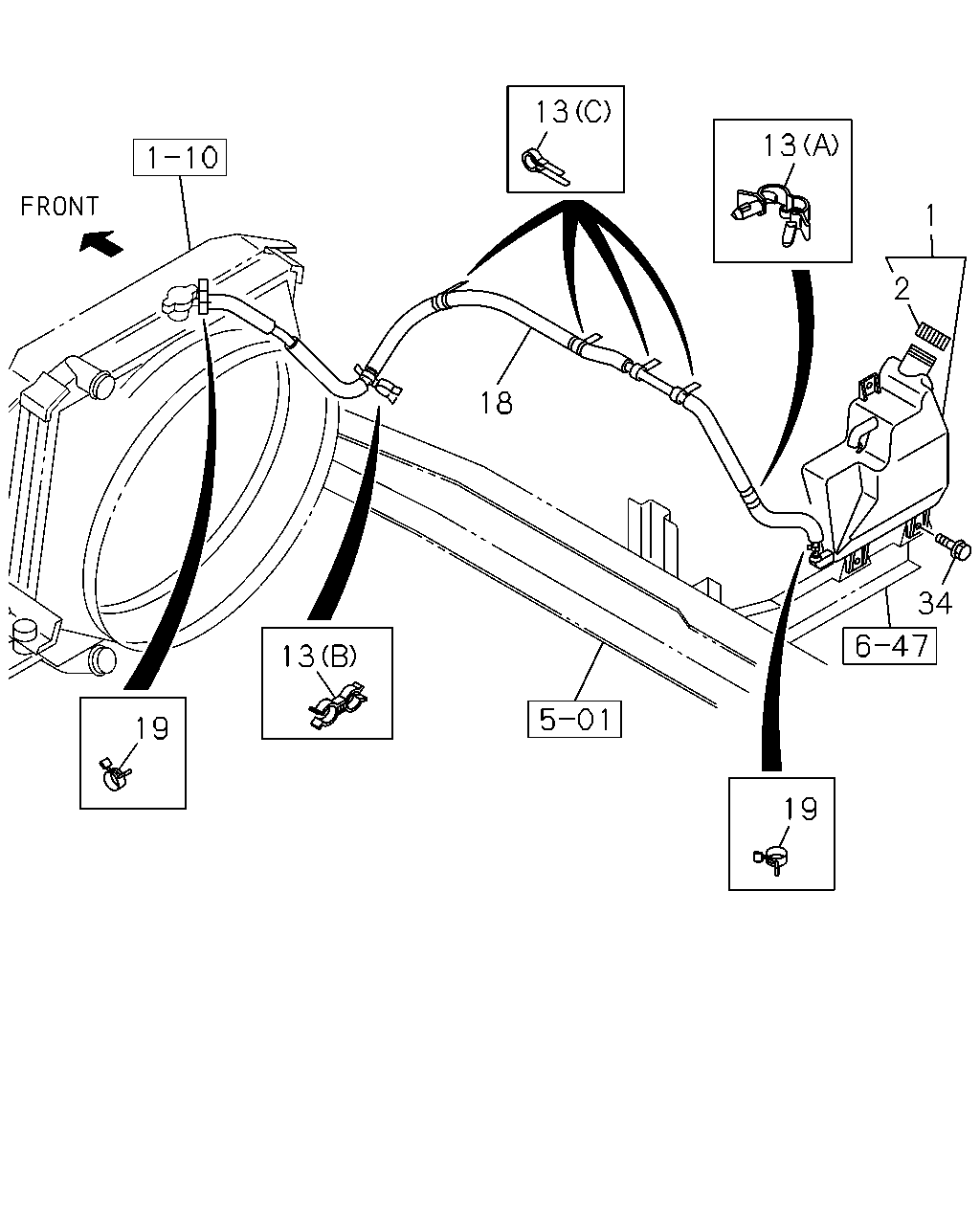

[111A] SURGE TANK,HOSE (11 parça)
▶
56
56
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
THA
8-97177-372-0
01
1
0901-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98036-282-0
02
1
0901-0901
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
0902-
56
CLIP; WATER HOSE,RAD
(B) ID=52
8-98036-283-0
01
1
0901-0901
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
0902-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98036-284-0
01
1
0901-0901
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
0902-
128
HOSE; WATER,RAD INL
8-98058-629-1
01
1
0901-
13
13
1
2
18
34
13
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-97387-632-1
01
1
0901-1010
1
TANK; SURGE,RAD
8-98178-179-0
01
1
1011-
2
CAP; SURGE TANK
8-97217-796-0
01
1
0901-1010
2
CAP; SURGE TANK
8-98178-074-0
01
1
1011-
13
CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5
1-09709-290-0
01
1
0901-
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47
5-09700-319-0
04
1
0901-
13
CLIP; HOSE,SURGE TANK
(B) ID=10 & 11
8-94438-996-0
01
1
0901-
18
HOSE; RAD TO SURGE TANK
8-98112-746-0
01
1
0901-
19
CLIP; HOSE,SURGE TANK
ID=12
8-94238-610-0
02
1
0901-0911
19
CLIP; HOSE,SURGE TANK
ID=12 THA
8-98150-358-0
02
1
0912-
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
0901-
