Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#33566) — 31 parça
◀

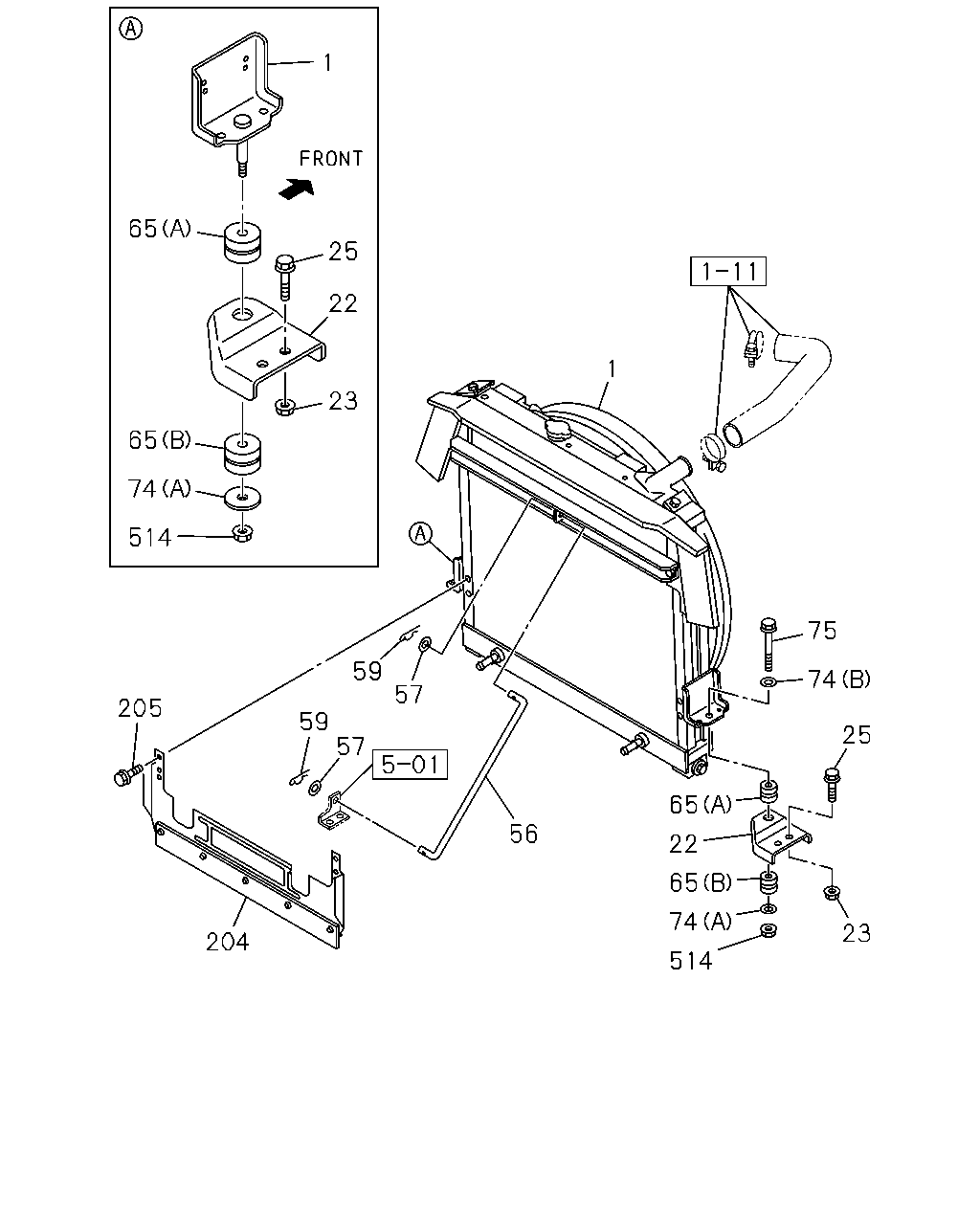

[110A] FIXING (18 parça)

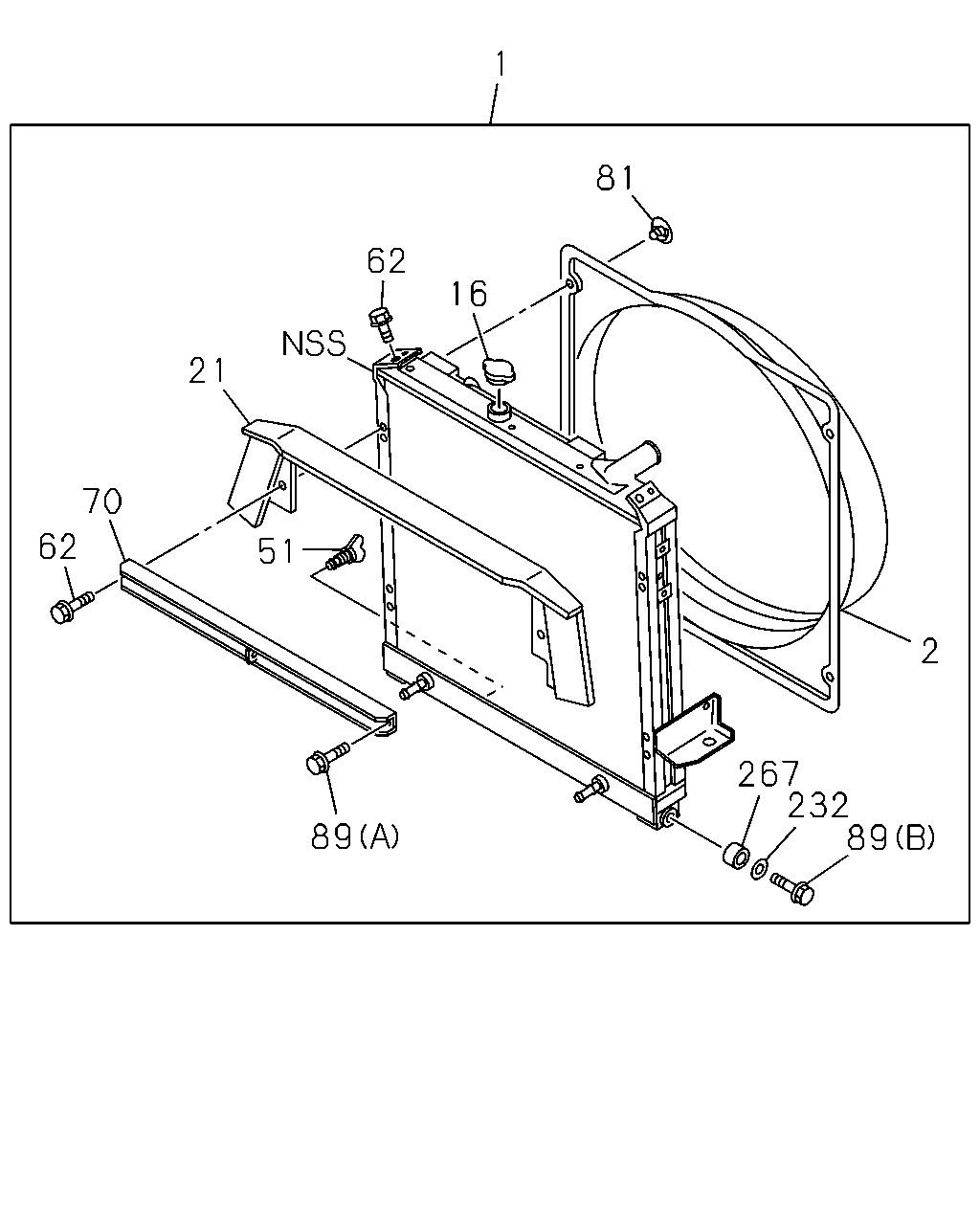

[110A] COMPONENT (13 parça)
▶
1
65
25
22
1
23
65
74
514
75
59
74
57
205
59
57
25
65
56
22
65
74
23
204
514
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-98112-735-3
01
1
0901-1403
1
RADIATOR ASM
THA
8-98259-860-0
01
1
1404-
22
BRACKET; RAD MTG
8-98112-736-2
01
1
0901-
22
BRACKET; RAD MTG
8-98112-737-2
01
1
0901-
23
NUT; RAD MTG
M10 FLANGE THA
0-91180-210-0
04
1
0901-0908
23
NUT; RAD MTG
M10 FLANGE THA
0-91180-110-0
04
1
0909-
25
BOLT; BRKT
M10X30 FLANGE THA
0-28651-030-0
04
1
0901-
56
STAY; RAD
8-98112-740-0
01
1
0901-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
0901-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0901-
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
0901-
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
0901-
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
0911-
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
0901-
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63
8-94249-446-0
01
1
0911-
204
GUIDE ASM; AIR
8-98081-417-1
01
1
0901-
205
BOLT; AIR GUIDE
M6X12 FLANGE THA
0-28050-612-0
02
1
0901-
514
NUT; RAD
M8 FLANGE THA
0-91180-108-0
02
1
0901-
1
81
62
16
21
70
62
51
2
267
232
89
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-98112-735-3
01
1
0901-1403
1
RADIATOR ASM
THA
8-98259-860-0
01
1
1404-
2
GUIDE; FAN
8-98089-894-0
01
1
0901-
16
CAP; RAD
8-97241-152-0
01
1
0901-
21
SEAL; RAD
8-98128-143-0
01
1
0901-
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
0901-
62
BOLT; STAY
M8X12 FLANGE THA
0-28050-812-0
02
1
0901-
70
STAY; RAD
THA
8-97073-125-0
01
1
0901-
81
SCREW; FAN GUIDE,RAD
8-97088-810-0
02
1
0901-
89
BOLT
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
0901-
89
BOLT
(B) M8X25 W/PL WASHER THA
1-21469-153-0
02
1
0901-
232
COLLAR; DIST,CUSHION RUBBER
THA
1-87410-723-0
02
1
0901-
267
RUBBER; CUSHION
THA
1-21467-023-0
02
1
0901-
