◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#33565) — 21 parça

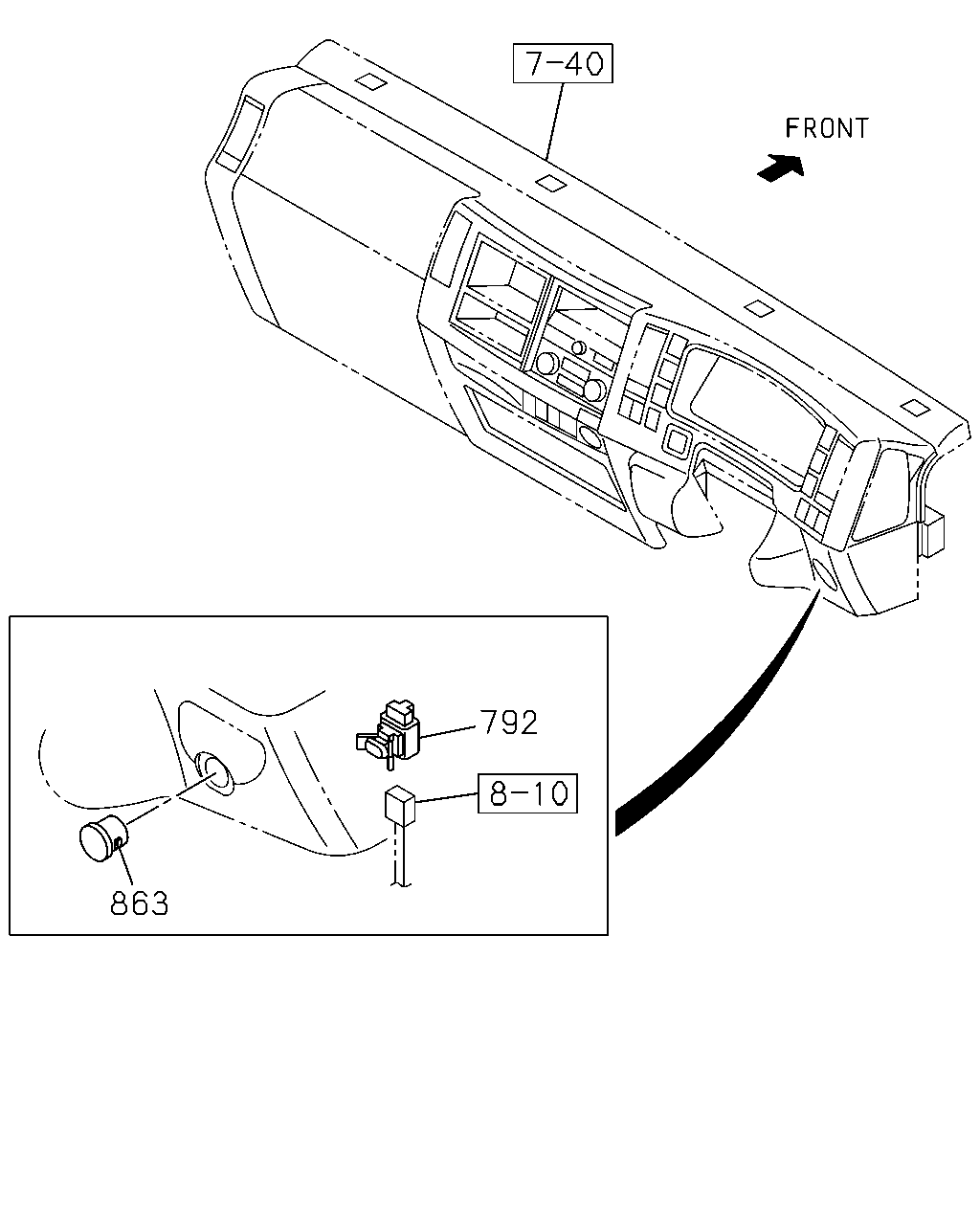

çizim 123331
792 863
BalonParca AdiParca NoAdetTipApplied Date
792 RESISTOR; IDLE 8-98013-906-0 01 1 0901-1012
863 COVER; SENSOR
GRAY 		8-97408-816-0 01 1 0901-

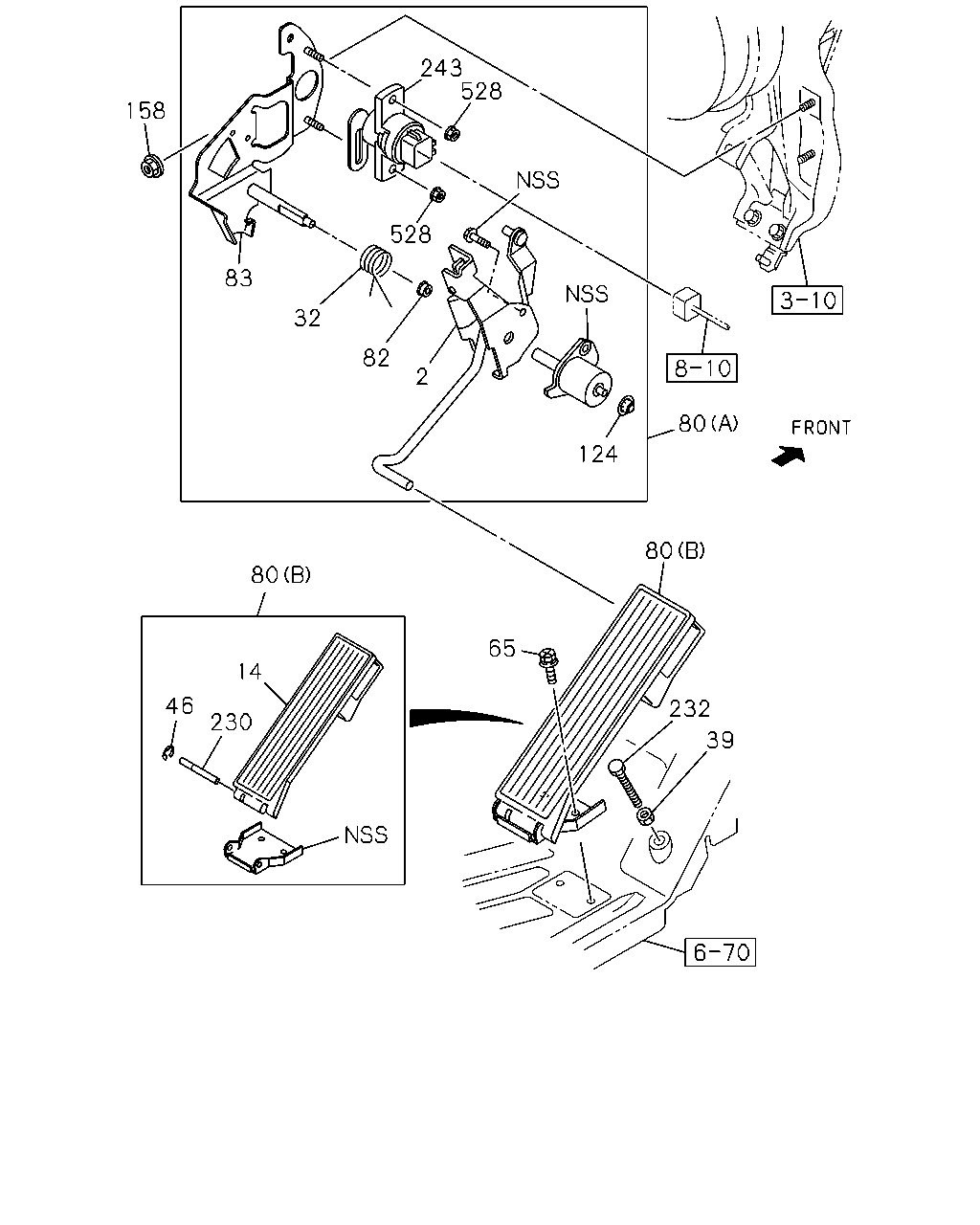

çizim 123332
243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 8-98002-158-2 01 1 0901-
14 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0901-
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0901-
39 NUT; ACCEL PEDAL STOPPER
M8 THA 		0-91110-508-0 01 1 0901-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0901-
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0901-
80 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0901-
80 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0901-
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0901-
83 BRACKET; CONT LINK 8-98023-885-2 01 1 0901-
124 NUT; LEVER
ID=7.9 PUSH NUT THA 		8-94368-617-0 01 1 0901-
158 NUT; BRKT
M8 FLANGE 		8-94279-060-0 02 1 0901-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0901-
232 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0901-
243 SENSOR; ACCEL 8-97602-416-0 01 1 0901-0910
243 SENSOR; ACCEL 8-98131-263-0 01 1 0911-
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0901-

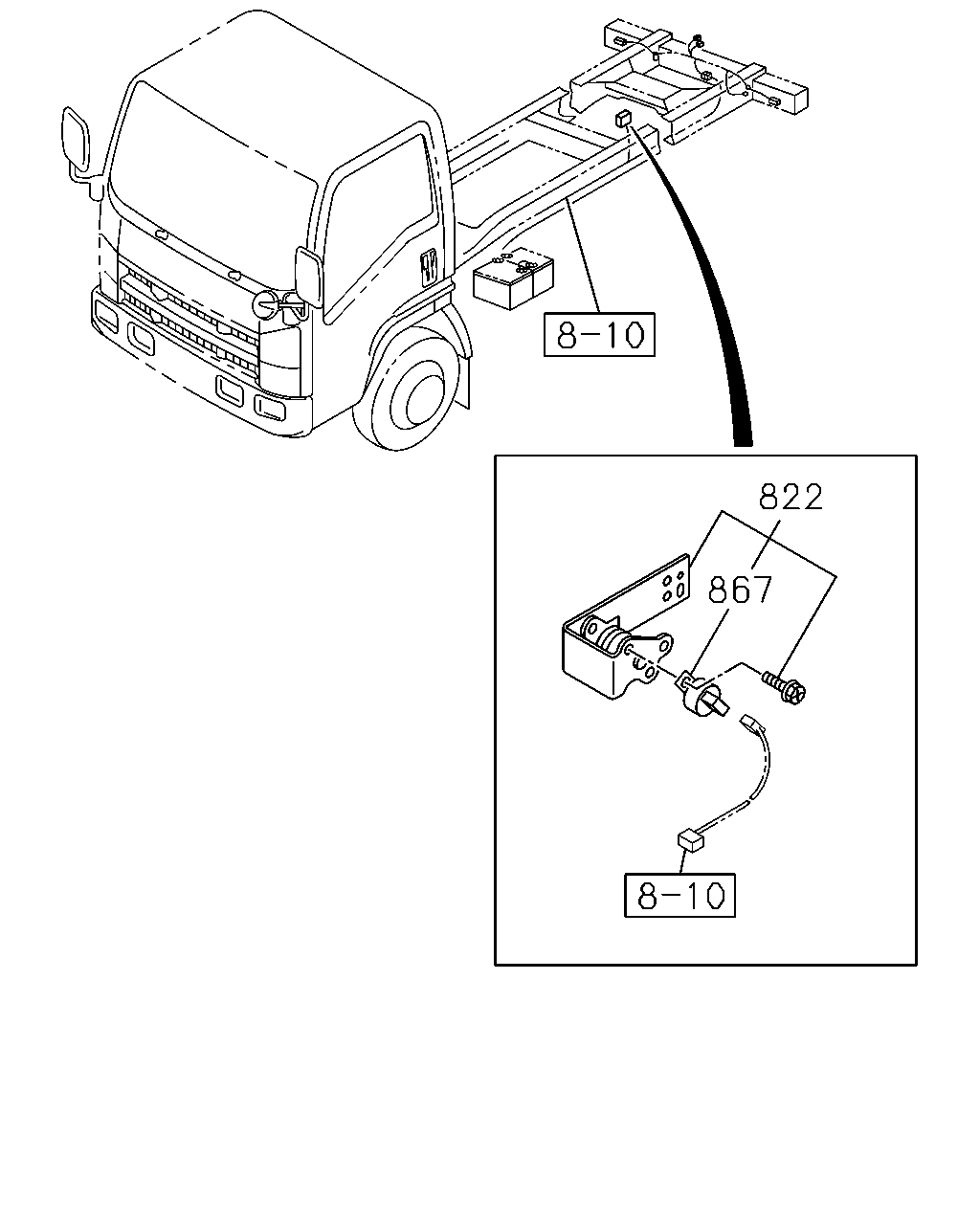

çizim 123334
822 867
BalonParca AdiParca NoAdetTipApplied Date
822 LEVER ASM; ENG CONT
POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97219-466-4 01 1 0901-
867 SENSOR; THROTTLE POSITION
POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97200-308-0 01 1 0901-
