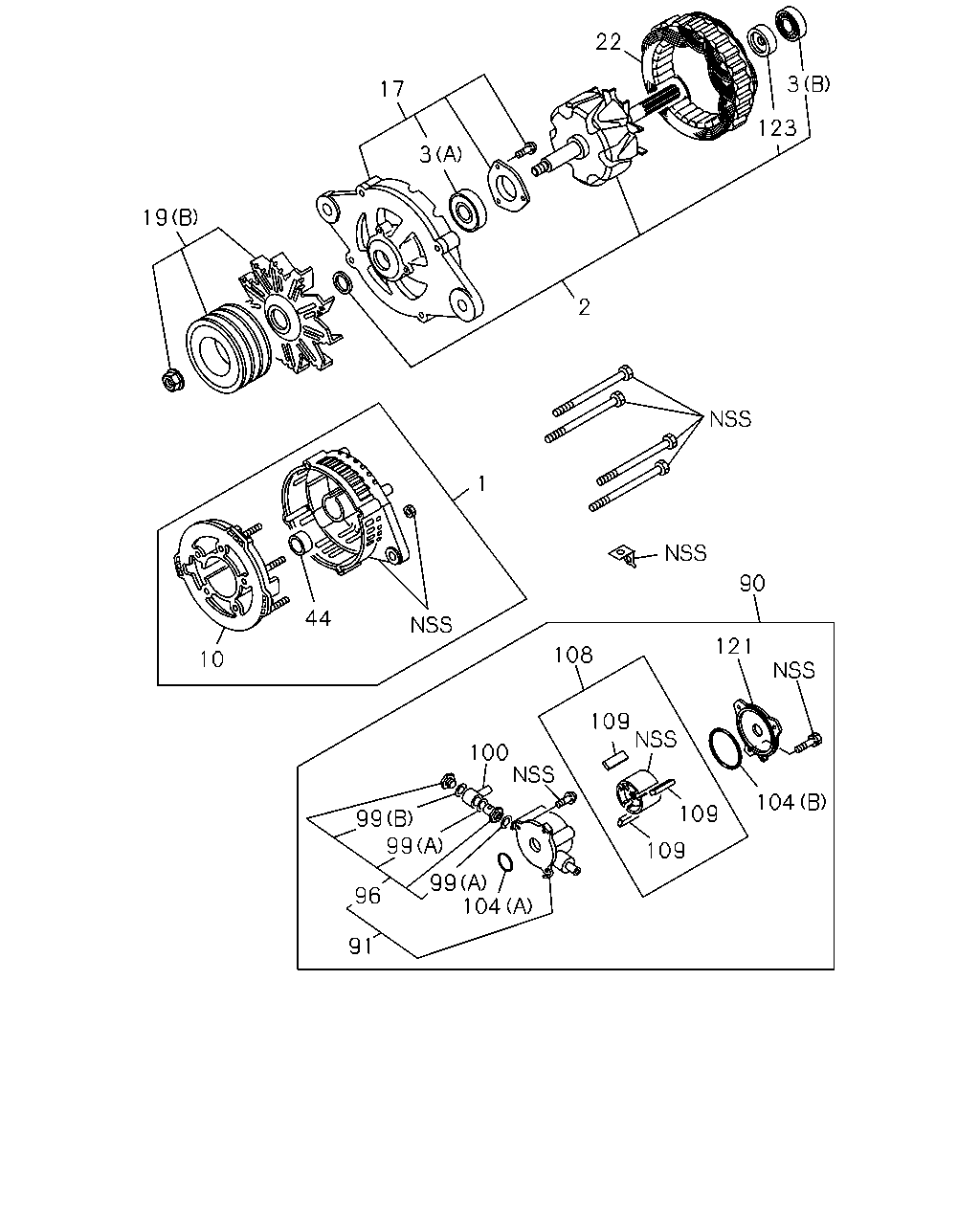

0-66 — GENERATOR (#33562) — 65 parça

22 3 17 123 3 19 2 18 1 90 44 121 108 10 109 100 104 109 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1	8-97249-332-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0	8-97302-702-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0	8-98230-321-0	01	1	1209-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1	8-98230-322-0	01	1	1209-
2	ROTOR; GEN ASM PART: B = 8-97351-574-1	8-97249-330-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97351-573-0	8-97302-700-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-574-1	8-97161-473-0	01	1	-1006
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97351-573-0	8-98146-442-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-574-1	8-98146-442-0	01	1	1007-
10	RECTIFIER; GEN ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97249-333-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-98230-331-0	01	1	1209-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-574-1	8-97249-334-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97351-573-0	8-97302-703-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97351-573-0	8-97083-293-0	01	1	-
19	PULLEY; GEN (A) ASM PART: A = 8-97351-573-0	8-97083-292-0	01	1	-
19	PULLEY; GEN (B) ASM PART: B = 8-97351-574-1	8-97249-335-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-574-1	8-97249-331-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97351-573-0	8-97302-701-0	01	1	-
44	SEAL; RR COVER,GEN THA ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	5-19679-003-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97083-298-0	03	1	-
121	COVER; RR,VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-116-0	01	1	-
123	GUIDE; BRUSH ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97062-644-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97351-573-0	8-97131-532-0	01	1	-
	24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-574-1	8-97249-336-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97351-573-0	8-97131-532-0	01	1	-
	24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-574-1	8-97249-336-0	01	1	-

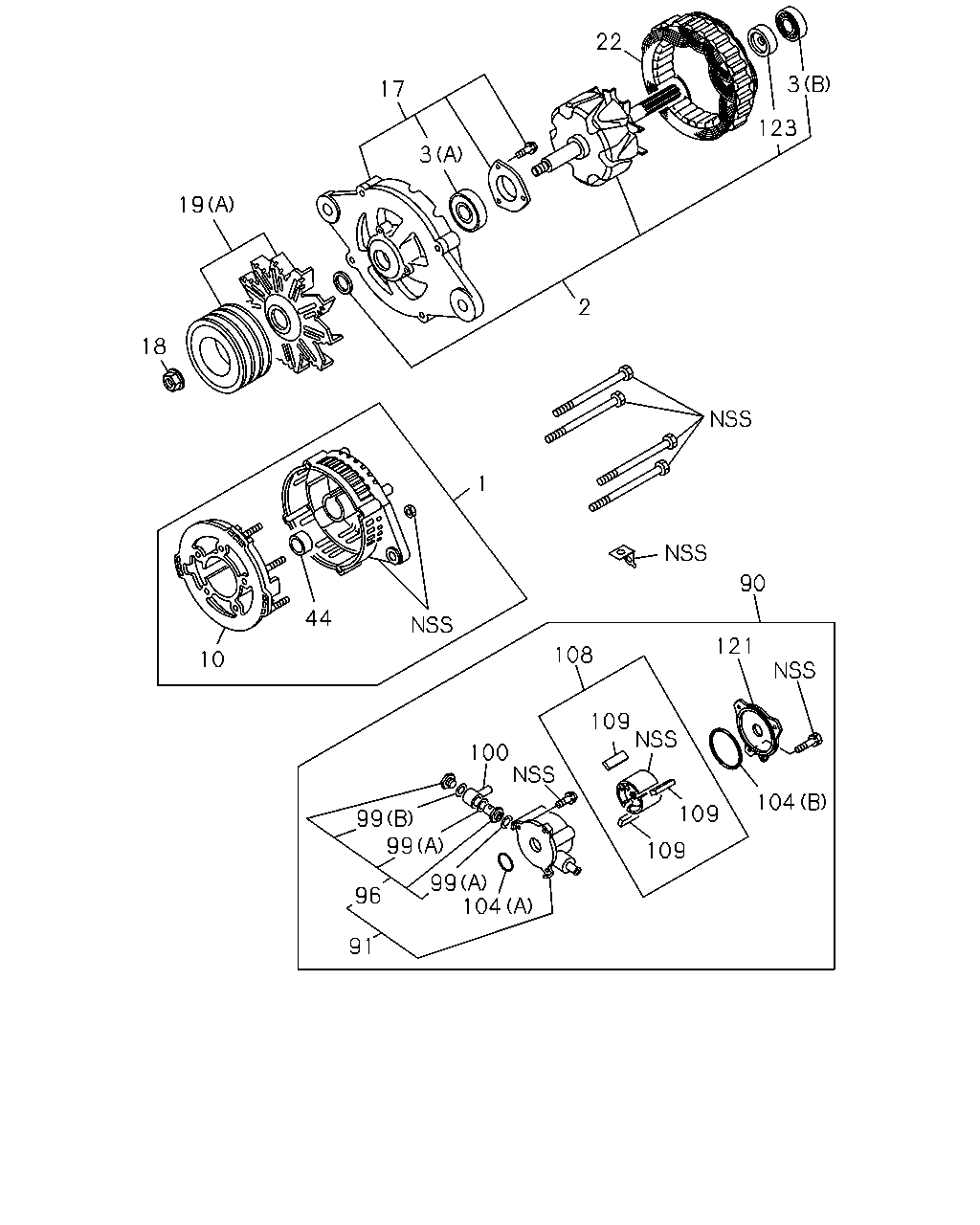

22 3 17 123 3 19 2 1 90 44 121 108 10 109 100 104 109 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1	8-97249-332-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0	8-97302-702-0	01	1	-1208
1	COVER ASM; RR,GEN ASM PART: A = 8-97351-573-0	8-98230-321-0	01	1	1209-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-574-1	8-98230-322-0	01	1	1209-
2	ROTOR; GEN ASM PART: B = 8-97351-574-1	8-97249-330-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97351-573-0	8-97302-700-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-574-1	8-97161-473-0	01	1	-1006
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97351-573-0	8-98146-442-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-574-1	8-98146-442-0	01	1	1007-
10	RECTIFIER; GEN ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97249-333-0	01	1	-1208
10	RECTIFIER; GEN ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-98230-331-0	01	1	1209-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-574-1	8-97249-334-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97351-573-0	8-97302-703-0	01	1	-
19	PULLEY; GEN (A) ASM PART: A = 8-97351-573-0	8-97083-292-0	01	1	-
19	PULLEY; GEN (B) ASM PART: B = 8-97351-574-1	8-97249-335-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-574-1	8-97249-331-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97351-573-0	8-97302-701-0	01	1	-
44	SEAL; RR COVER,GEN THA ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-117-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	5-19679-003-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-115-1	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97083-298-0	03	1	-
121	COVER; RR,VAC PUMP ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97148-116-0	01	1	-
123	GUIDE; BRUSH ASM PART: A = 8-97351-573-0, B = 8-97351-574-1	8-97062-644-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
