Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

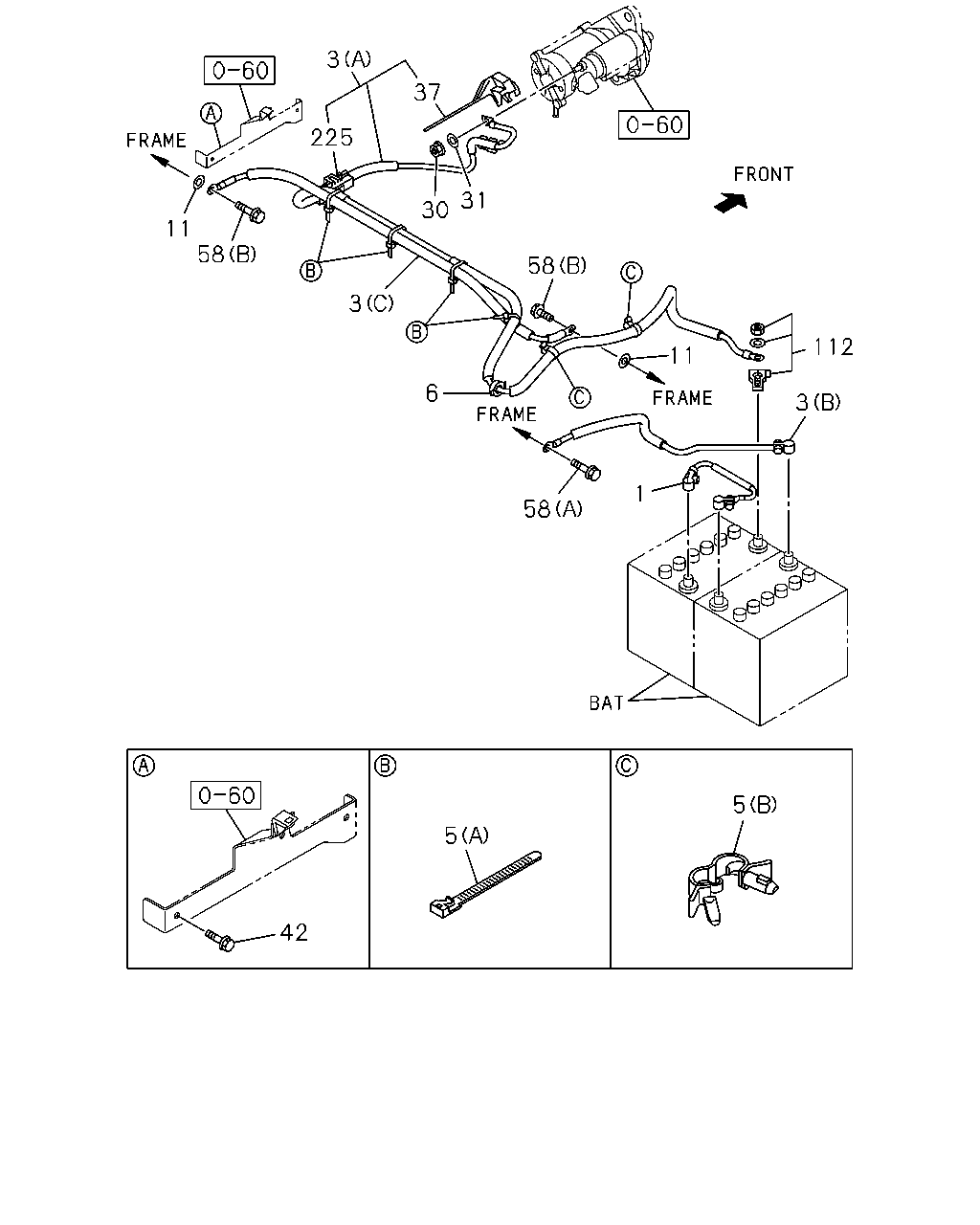

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#33560) — 19 parça
11
58
3
6
58
1
3
112
11
58
30
31
225
37
3
5
5
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
0901-
3
HARNESS; CABLE,BATTERY TO STARTER
(A) THA
8-97924-801-1
01
1
0901-
3
HARNESS; CABLE,BATTERY TO STARTER
(B) THA
8-97924-803-0
01
1
0901-
3
HARNESS; CABLE,BATTERY TO STARTER
(C) THA
8-97924-847-0
01
1
0901-
5
CLIP; BATTERY CABLE TO BODY
(B) ID=13-18 L=18
1-09709-291-0
02
1
0901-
5
CLIP; BATTERY CABLE TO BODY
(A) L=250 THA
5-09707-030-1
04
1
0901-
5
CLIP; BATTERY CABLE TO BODY
(A) L=140 THA
5-09707-031-1
01
1
0901-
6
GROMMET; BATTERY CABLE
ID=17
8-94128-319-2
01
1
0901-
11
WASHER; BATTERY CABLE EARTH
ID=8.4 OD=18 THA
0-91614-608-0
02
1
0901-0901
11
WASHER; BATTERY CABLE EARTH
8-98099-007-0
02
1
0902-
30
NUT; CABLE,STARTER TO BATTERY
M8 THA
0-91110-508-0
01
1
0901-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA
0-91510-808-0
01
1
0901-
37
CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
0901-
42
BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE THA
8-97329-599-0
01
1
0901-
58
BOLT; CABLE,BATTERY
(B) M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
0901-
58
BOLT; CABLE,BATTERY
(A) M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0901-
112
TERMINAL; BATTERY
8-97365-770-0
01
1
0901-
225
BLOCK; TERMINAL
THA
8-98294-524-0
01
1
1410-
225
BLOCK; TERMINAL
THA
8-98029-689-0
01
1
0901-
