◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶

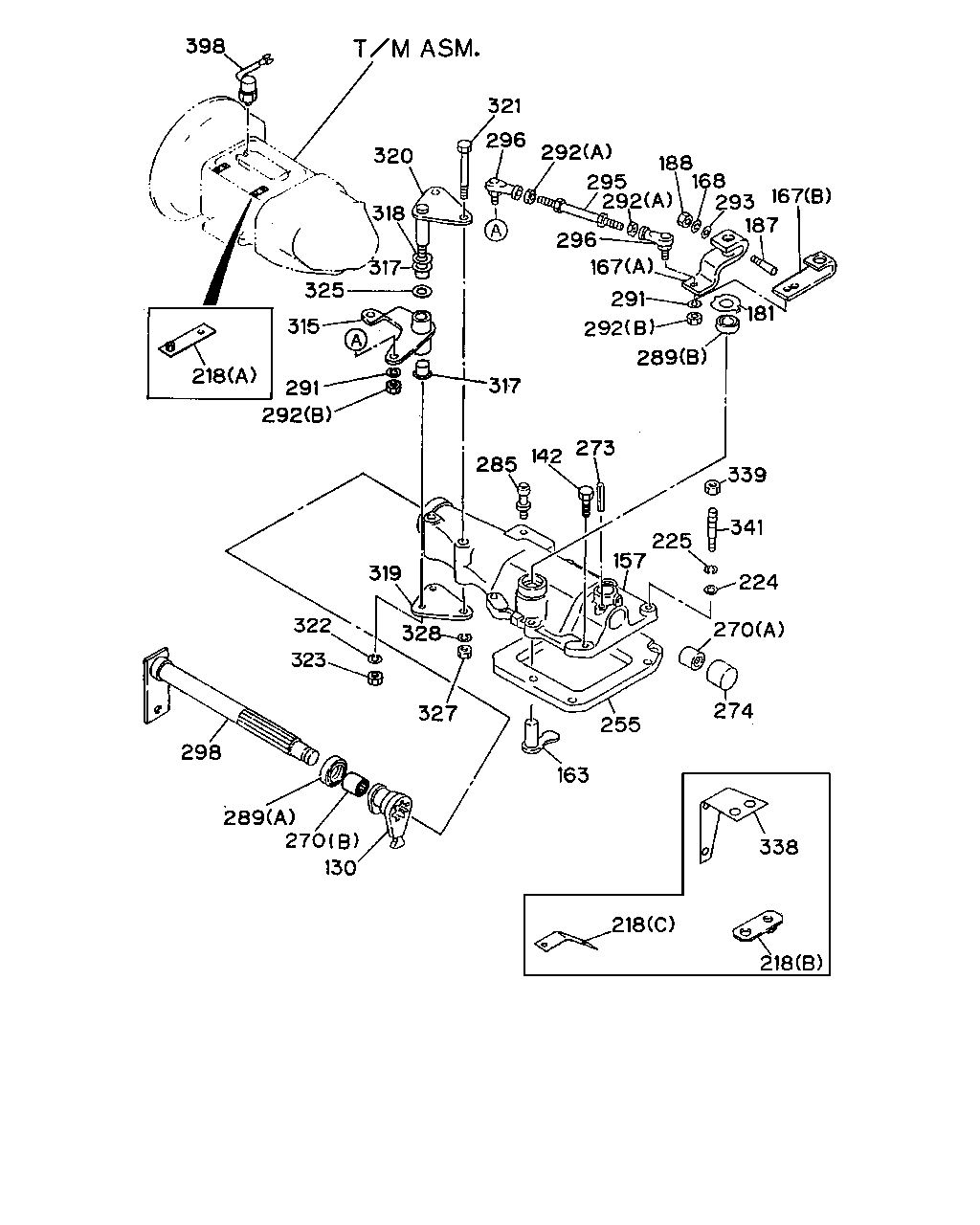

2-30B — GEAR SHIFTER AND QUADRANT BOX (#3355) — 58 parça
çizim 6247
398 320 318 317 325 315 291 292 317 218 321 296 292 295 292 188 168 293 167 187 296 167 291 292 289 181 273 142 285 339 341 224 225 157 270 274 255 163 319 328 327 322 323 298 289 270 130 218 338 218
BalonParca AdiParca NoAdetTipApplied Date A B C D
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 9002- ● ● ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9002- ● ● ● ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 9002- ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9002- ● ● ● ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-070-0 01 1 9002-9306 ● ● ● ●
167 LEVER; SELECT,EXTERNAL
10PD1 STD ENG(40L) (A) 		1-33521-064-0 01 1 9002- ● ●
167 LEVER; SELECT,EXTERNAL
6RB1 STD ENG(07L) (B) 		1-33521-070-0 01 1 9307- ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9002- ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9002- ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9002- ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9002-9205 ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9206- ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47465-485-0 02 1 9002- ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-123-1 01 1 9002- ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-228-0 02 1 9002- ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9002- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9002- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9002- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9002- ● ● ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9002- ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9002- ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-005-0 01 1 9002-9008 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9009- ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9002- ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9002- ● ● ● ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9312 ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9401- ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9002- ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09110-408-0 02 1 9002-9312 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9002- ● ● ● ●
295 ROD; LINK,RELAY LEVER
6RB1 STD ENG(07L) 		1-33652-393-0 01 1 9002-9510 ● ● ● ●
295 ROD; LINK,RELAY LEVER
6RB1 STD ENG(07L) 		9-08400-815-0 01 1 9511- ● ● ● ●
295 ROD; LINK,RELAY LEVER
10PD1 STD ENG(40L) 		1-33652-392-0 01 1 9002-9402 ● ●
295 ROD; LINK,RELAY LEVER
10PD1 STD ENG(40L) L=130 		1-09765-262-0 01 1 9403- ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9002- ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-068-0 01 1 9002- ● ● ● ●
315 LEVER; SELECT
6RB1 STD ENG(07L) 		1-33651-337-0 01 1 9002- ● ● ● ●
315 LEVER; SELECT
10PD1 STD ENG(40L) 		1-33651-246-2 01 1 9002- ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9002- ● ● ● ●
318 WASHER; WAVE
10PD1 STD ENG(40L) 		9-09855-315-0 01 1 9002- ● ●
319 BRACKET; SELECT LEVER
10PD1 STD ENG(40L) 		1-33657-190-0 01 1 9002- ● ●
319 BRACKET; SELECT LEVER
6RB1 STD ENG(07L) 		1-33657-196-0 01 1 9002- ● ● ● ●
320 SHAFT; LEVER
10PD1 STD ENG(40L) 		1-33619-129-0 01 1 9002- ● ●
320 SHAFT; LEVER
6RB1 STD ENG(07L) 		1-33619-134-0 01 1 9002- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		9-01056-080-0 02 1 9002-9004 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9005-9306 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9307- ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9002- ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9002- ● ● ● ●
325 SHIM; LEVER
10PD1 STD ENG(40L) 		1-33659-096-0 01 1 9002- ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9002- ● ● ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ●
338 BRACKET; FLEX TUBE 1-47475-452-0 01 1 9002- ● ● ● ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9002- ● ● ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9002- ● ● ● ●
398 SWITCH; REV LAMP 1-82440-046-0 01 1 9002- ● ● ● ●
