51128 - TBR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

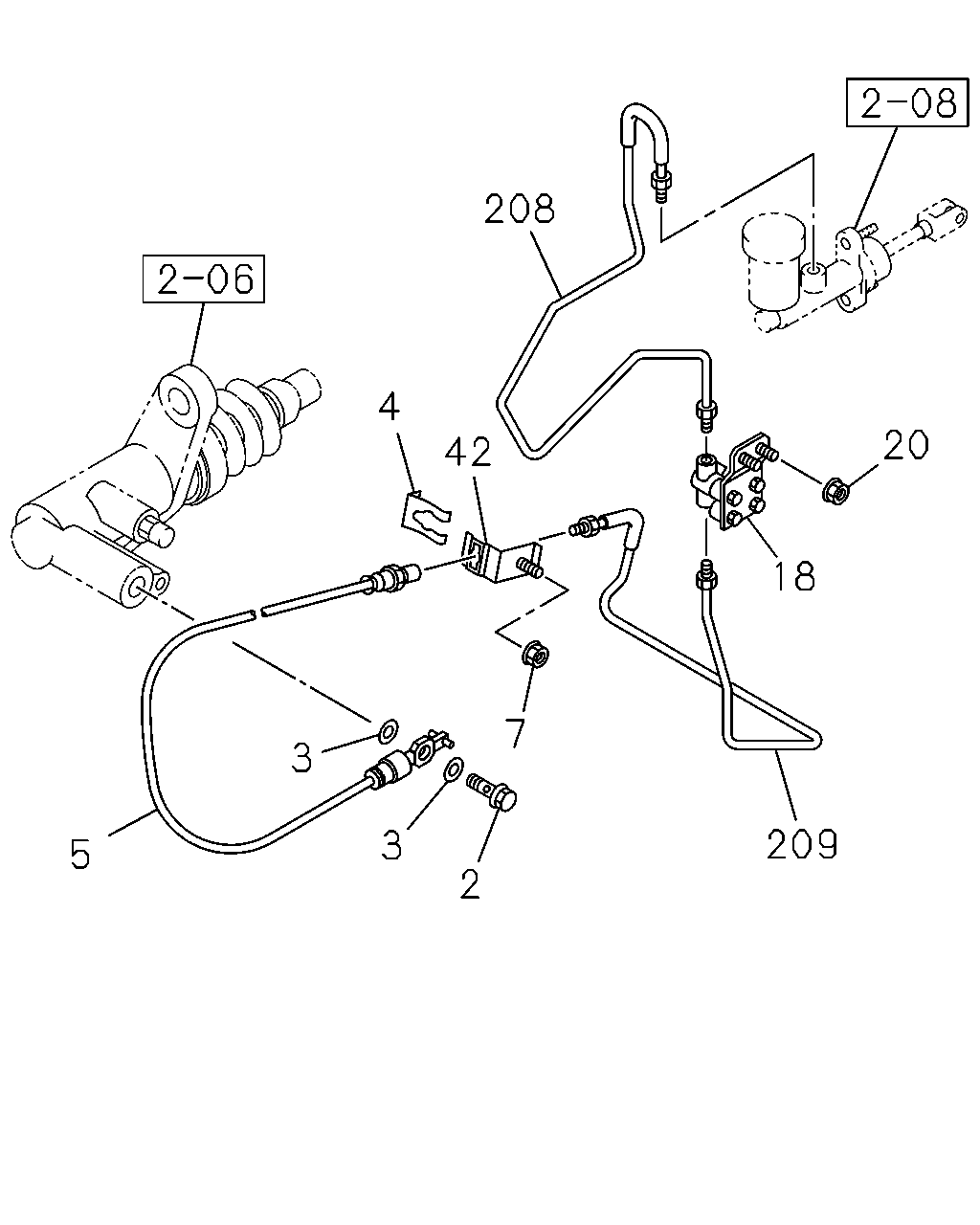

2-05 — CLUTCH PIPING
(#33528) — 13 parça
208
4
20
42
18
7
3
209
3
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,SLAVE CYL
M10X22
8-97381-454-0
01
1
0610-0905
2
BOLT; EYE,SLAVE CYL
M10X22
8-98014-005-0
01
1
0906-
3
GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0
9-09571-410-0
02
1
0610-
4
CLIP; FLEX HOSE,CLU CONT
8-94436-216-0
01
1
0610-0704
4
CLIP; FLEX HOSE,CLU CONT
8-97946-552-0
01
1
0705-
5
HOSE; FLEX,CLU PIPE
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD)
8-94443-569-1
01
1
0610-
5
HOSE; FLEX,CLU PIPE
GRADE XUV/SPORTIVO(RBG)
8-97223-128-0
01
1
0610-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE
0-91180-108-0
01
1
0610-
18
DAMPER ASM; CLU OIL
8-97140-813-0
01
1
0610-
20
NUT; CLU OIL DAMPER
M6 FLANGE
0-91180-106-0
02
1
0610-
42
BRACKET; FLEX HOSE,CLU CONT
IDN
8-94425-108-2
01
1
0610-
208
PIPE; OIL,M/CYL TO DAMPER CYL
PHI
8-97975-976-2
01
1
0610-
209
PIPE; OIL,DAMPER CYL TO FLEX HOSE
PHI
8-97975-977-1
01
1
0610-
