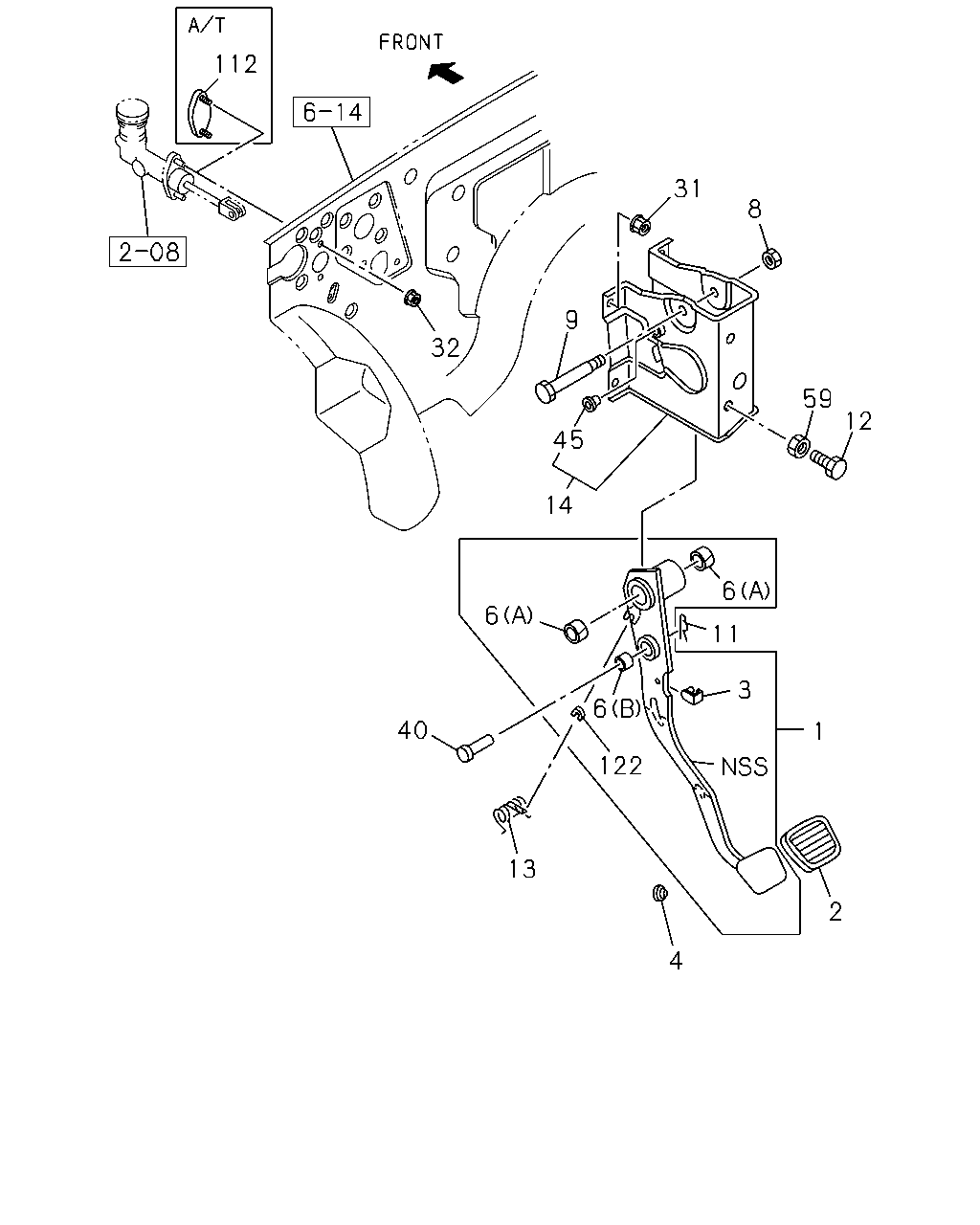

2-03 — CLUTCH PEDAL AND CONTROL
(#33527) — 20 parça
112
31
8
9
32
59
12
45
14
6
6
11
6
3
40
1
122
13
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
M/T MSG 5 SPEED(M75)
8-97071-835-0
01
1
0610-
2
COVER; CLU PEDAL
M/T MSG 5 SPEED(M75)
8-94222-524-1
01
1
0610-
3
RUBBER; STOPPER,CLU PEDAL
M/T MSG 5 SPEED(M75)
8-94463-258-0
01
1
0610-
4
STOPPER; CLU PEDAL
M/T MSG 5 SPEED(M75)
8-94103-675-0
01
1
0610-
6
BUSHING; CLU PEDAL
M/T MSG 5 SPEED(M75) (A)
8-94244-439-0
02
1
0610-
6
BUSHING; CLU PEDAL
M/T MSG 5 SPEED(M75) (B)
8-97035-885-0
01
1
0610-
8
NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75) M10 FLANGE
0-91180-110-0
01
1
0610-
9
PIN; CLU PEDAL
M/T MSG 5 SPEED(M75)
8-94455-308-0
01
1
0610-
11
PIN; SNAP,PUSH ROD TO PEDAL
M/T MSG 5 SPEED(M75) L=27.7
1-09747-005-0
01
1
0610-
12
BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10X35
0-20851-035-0
01
1
0610-
13
SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75)
8-97312-882-0
01
1
0610-
14
BRACKET ASM; CLU PEDAL MTG
M/T MSG 5 SPEED(M75)
8-94315-200-3
01
1
0610-
31
NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE
5-09440-005-0
04
1
0610-0805
31
NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE
8-97581-233-0
04
1
0806-
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91180-108-0
02
1
0610-
40
PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75)
8-94432-133-1
01
1
0610-
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MSG 5 SPEED(M75)
8-94175-433-0
02
1
0610-
59
NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10
0-91110-510-0
01
1
0610-
112
PLUG; METAL,M/CYL
A/T AISIN(RMD)
8-97259-210-0
01
1
0611-
122
BUSHING; ASSIST PEDAL,CLU
M/T MSG 5 SPEED(M75)
8-94175-434-0
01
1
0610-
