Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#33523) — 19 parça
◀

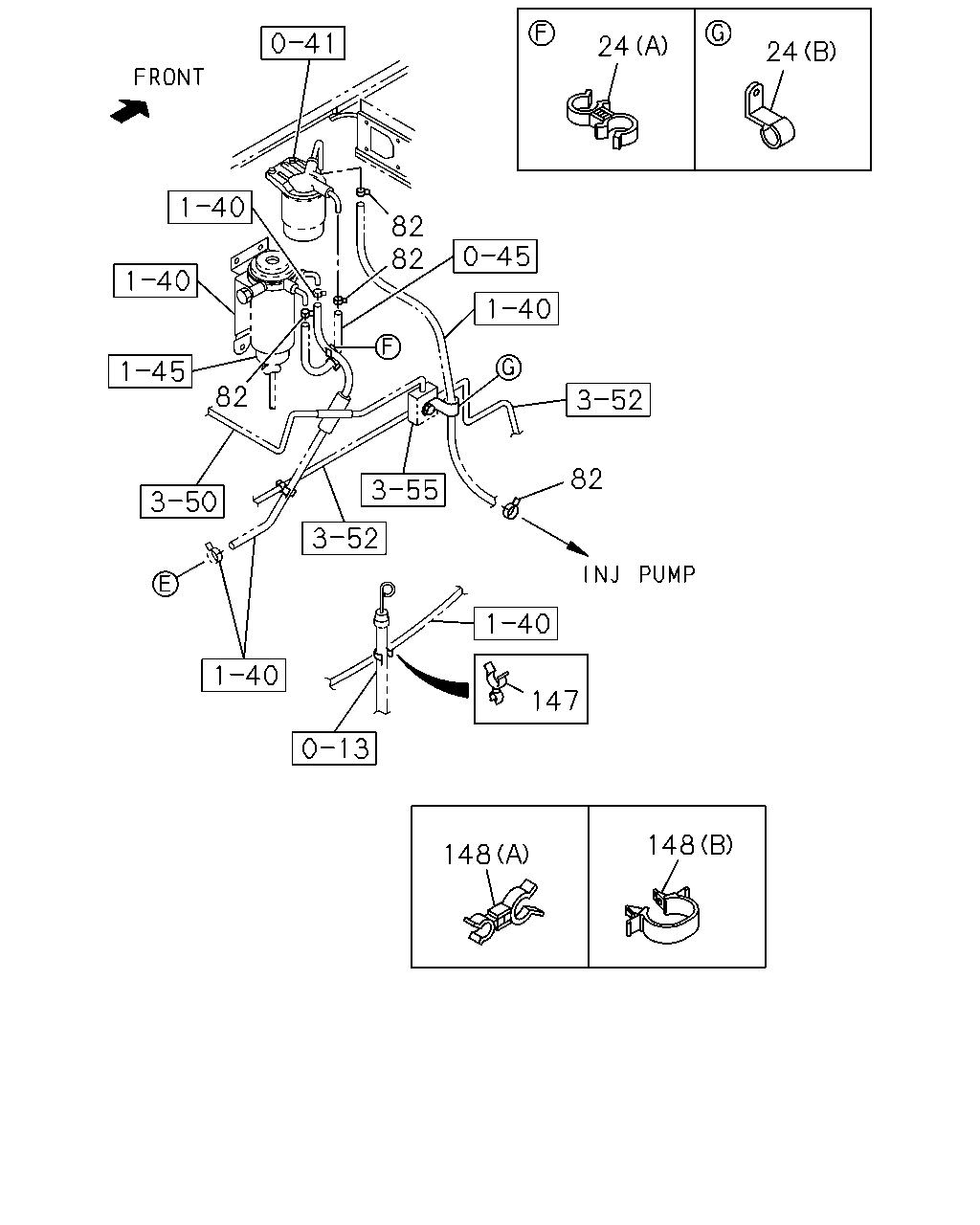

[141A] NO.2 (7 parça)

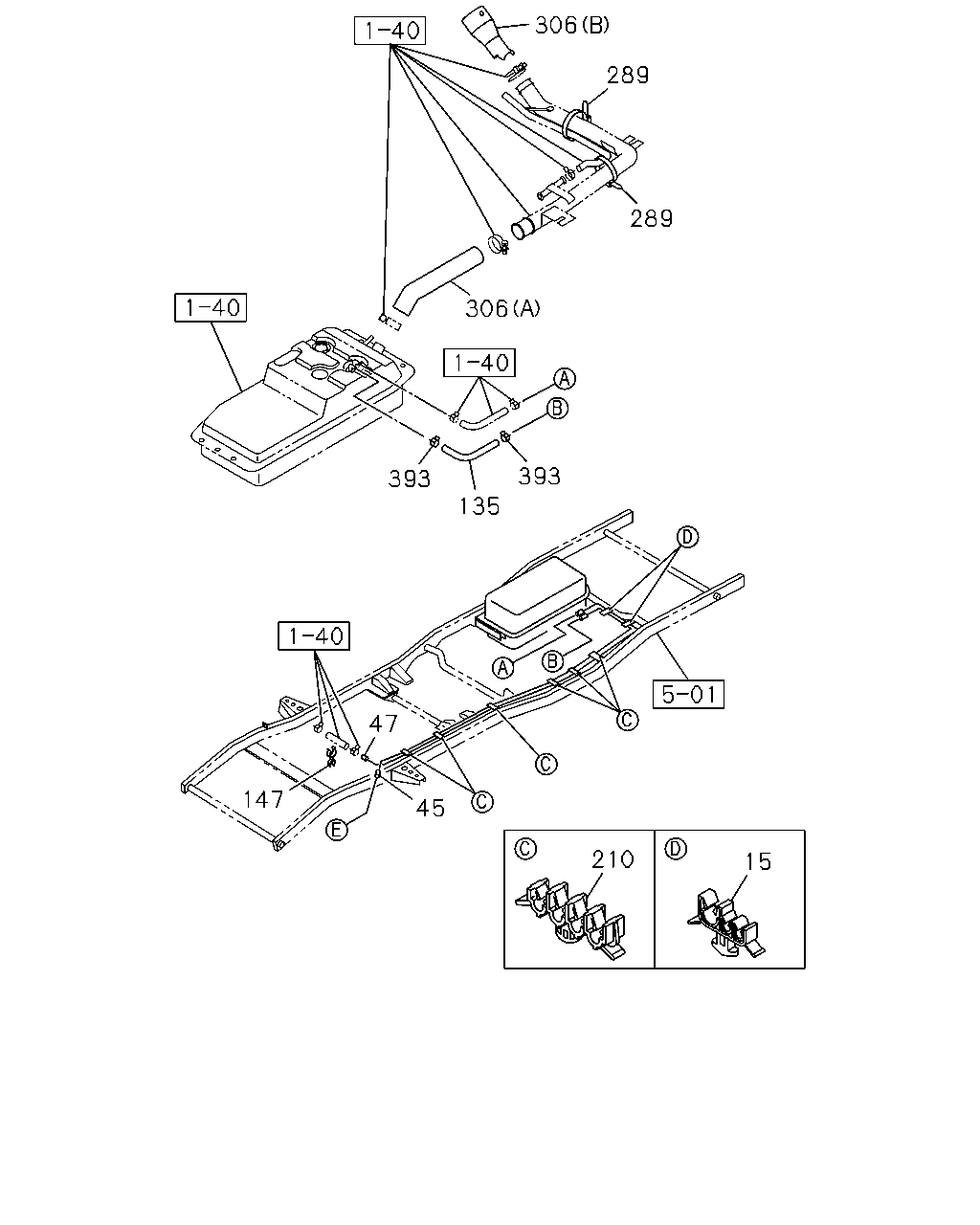

[141A] NO.1 (12 parça)
▶
24
24
82
82
82
82
147
148
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(B) ID=19 H=21 L=24
5-09700-360-0
01
1
0610-
24
CLIP; FUEL HOSE
(A) ID=18 & 18
8-94323-068-0
01
1
0610-
82
CLIP; FUEL HOSE
ID=19
8-97240-196-0
04
1
0610-
147
CLIP; FUEL PIPE TO HOSE
A/T AISIN(RMD) ID=13.2 & 11.5
8-97230-081-0
01
1
0611-
147
CLIP; FUEL PIPE TO HOSE
M/T MSG 5 SPEED(M75) ID=13.2 & 11.5
8-97230-081-0
02
1
0610-
148
CLIP; HOSE,FUEL
(B) ID=20
8-94410-200-0
01
1
0610-
148
CLIP; HOSE,FUEL
(A) ID=20.2 & 6
8-94472-577-0
02
1
0610-
306
289
289
306
393
393
135
47
147
45
210
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
8-97245-523-0
09
1
0610-
45
PIPE; FUEL,DELIVERY
PHI
8-97977-755-0
01
1
0610-
47
PIPE; FUEL,RETURN
PHI
8-97977-756-0
01
1
0610-
135
HOSE; FUEL TANK TO FUEL PIPE
L=290 SERVICED BY L=3000
0-01262-300-0
01
1
0610-
147
CLIP; FUEL PIPE TO HOSE
A/T AISIN(RMD) ID=13.2 & 11.5
8-97230-081-0
01
1
0611-
147
CLIP; FUEL PIPE TO HOSE
M/T MSG 5 SPEED(M75) ID=13.2 & 11.5
8-97230-081-0
02
1
0610-
210
CLIP; FEED PIPE
8-97146-096-0
06
1
0610-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
03
1
0610-
306
HOSE; FUEL,FILTER
(B) PHI
8-97976-152-0
01
1
0610-
306
HOSE; FUEL,FILTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) (A) PHI
8-97977-027-0
01
1
0610-
306
HOSE; FUEL,FILTER
GRADE XUV/SPORTIVO(RBG) (A) PHI
8-97977-028-0
01
1
0610-
393
CLIP; HOSE,DELIVERY
ID=19
8-97240-196-0
02
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
