Sayfa 2-26A - Isuzu EPC

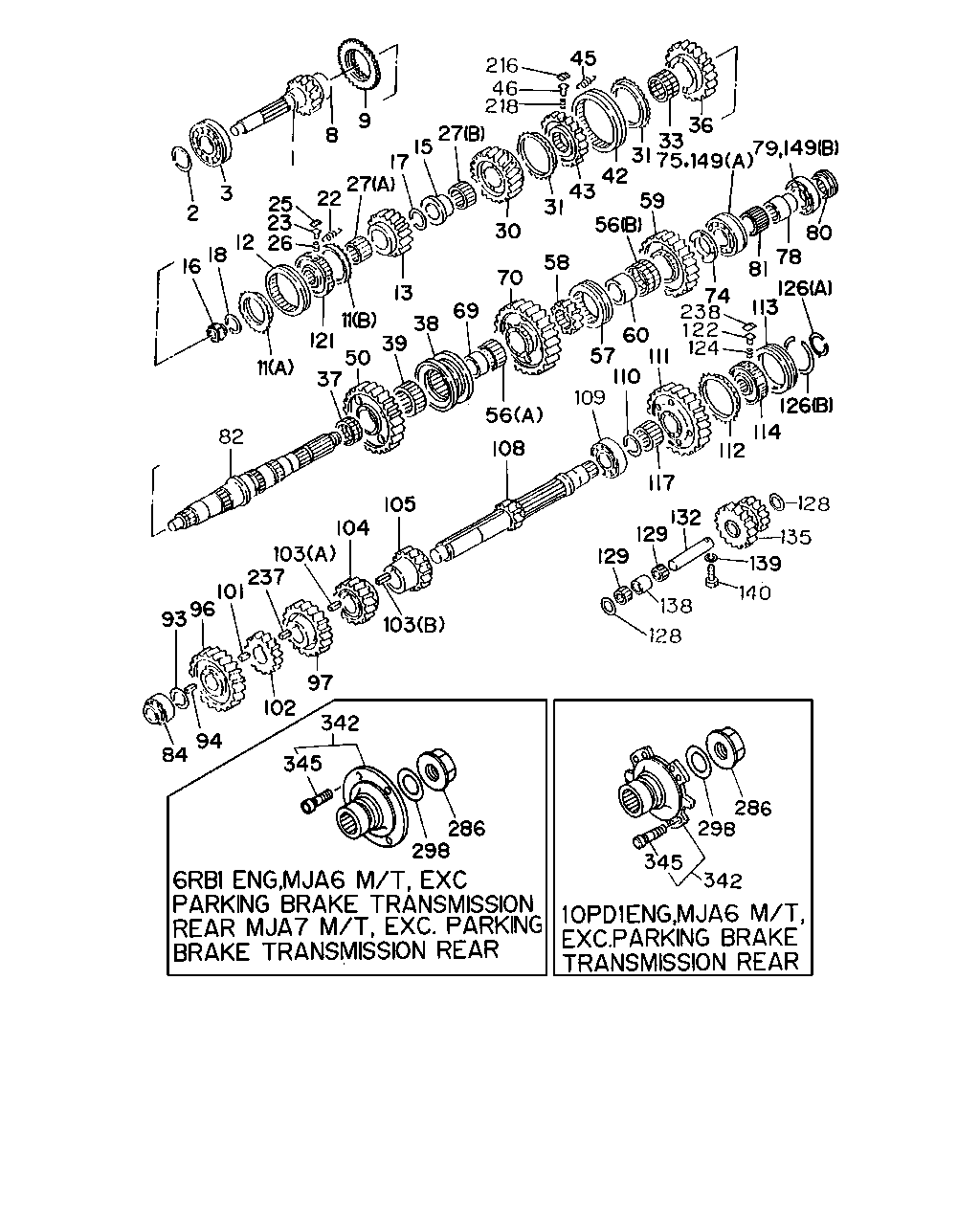

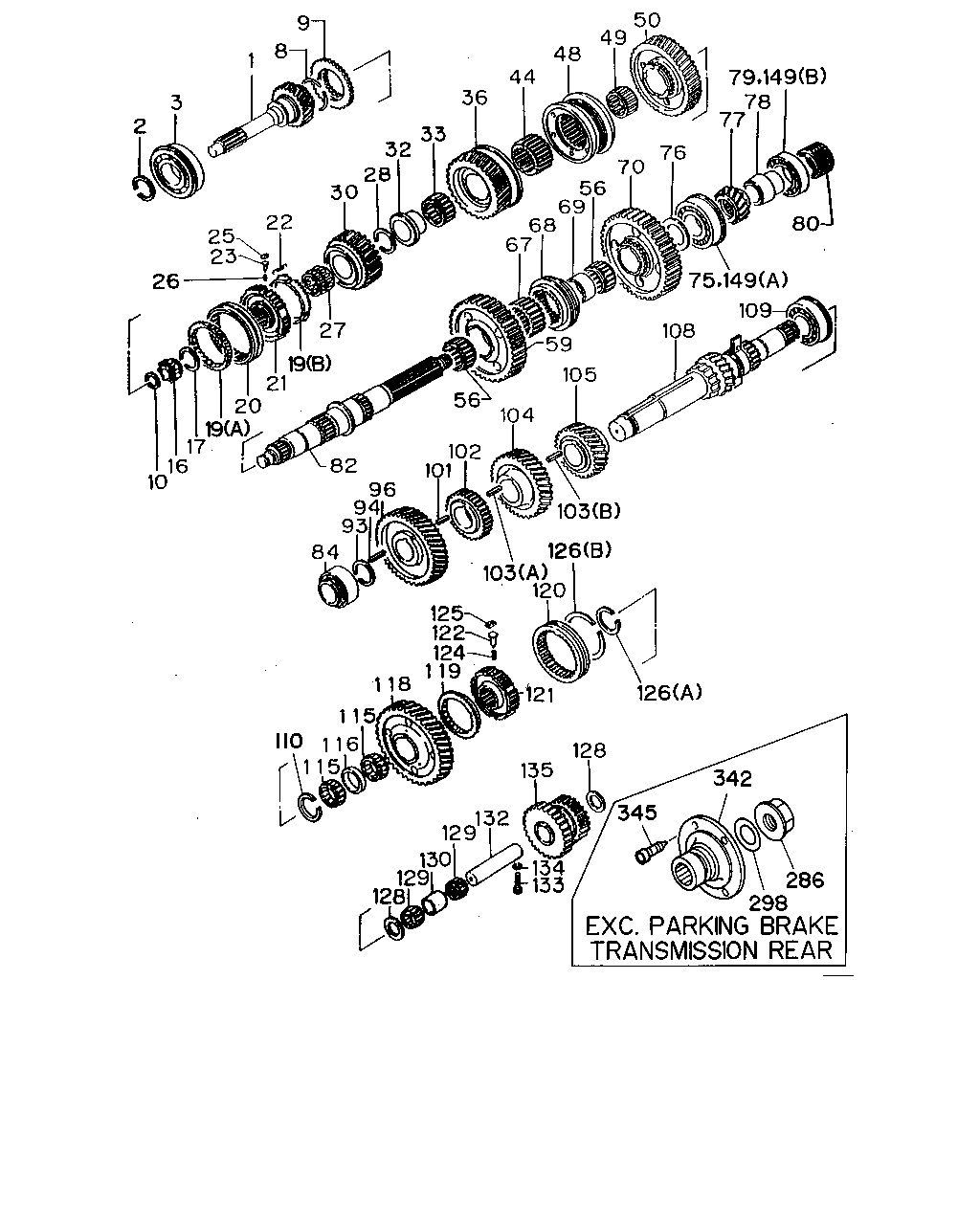

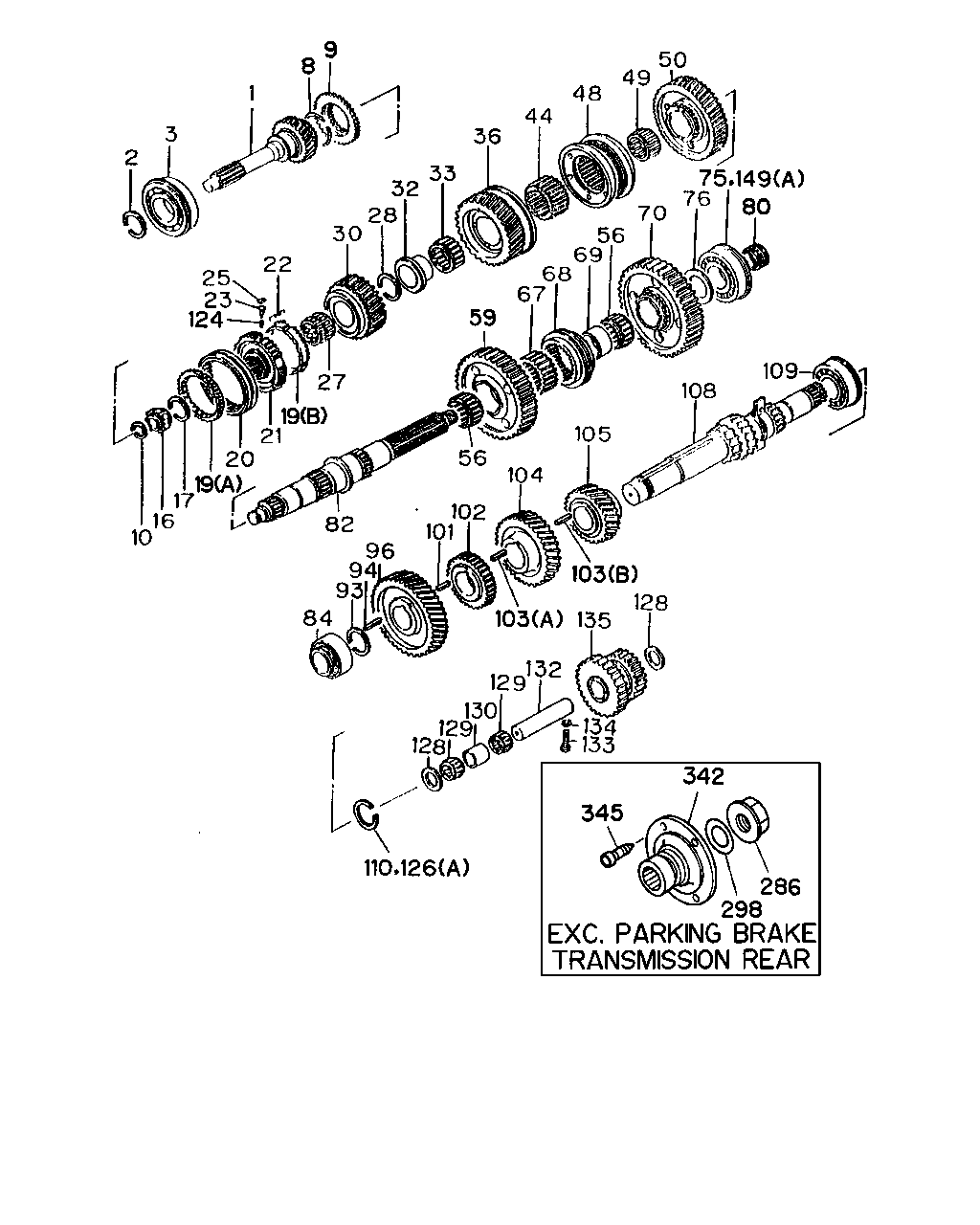

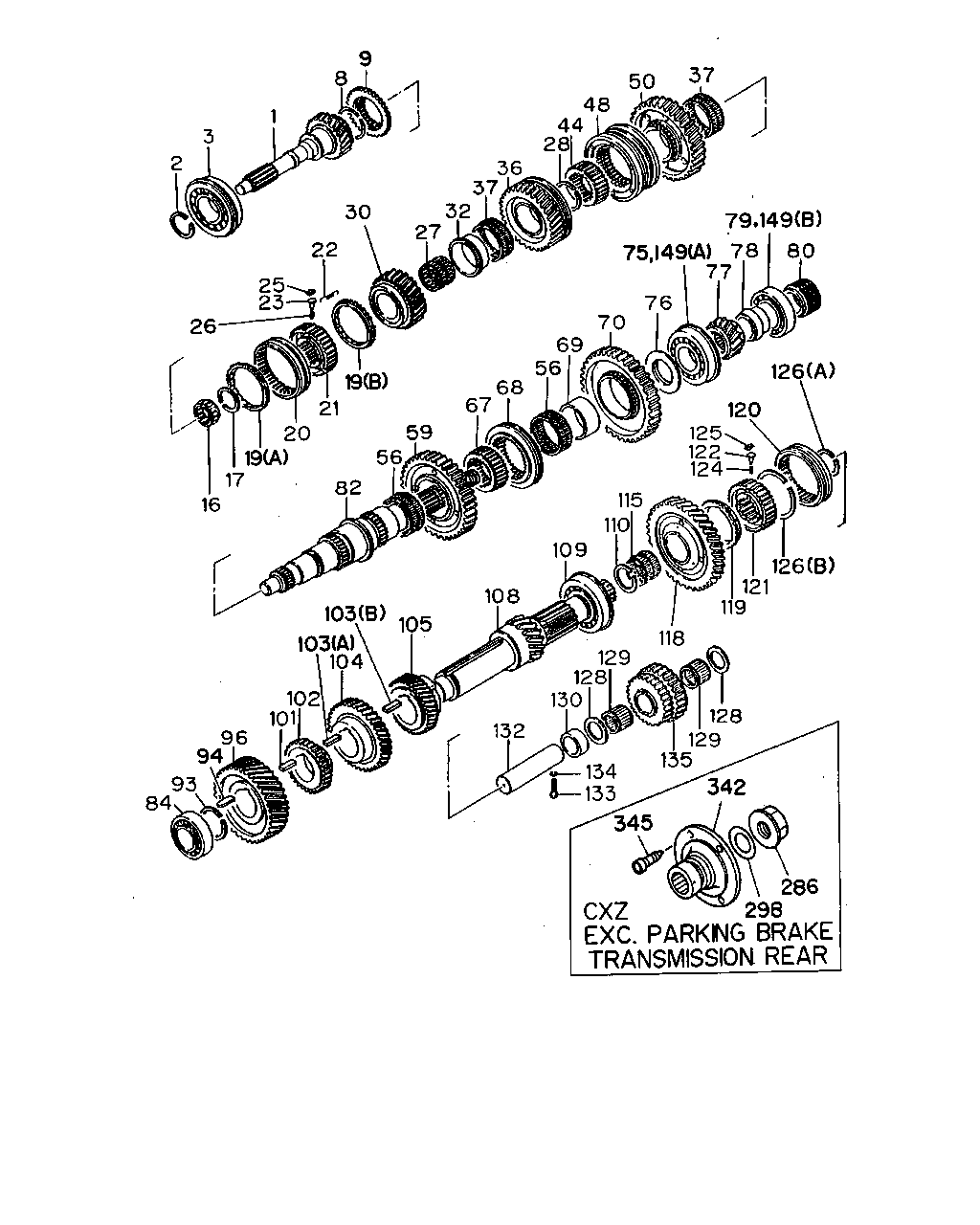

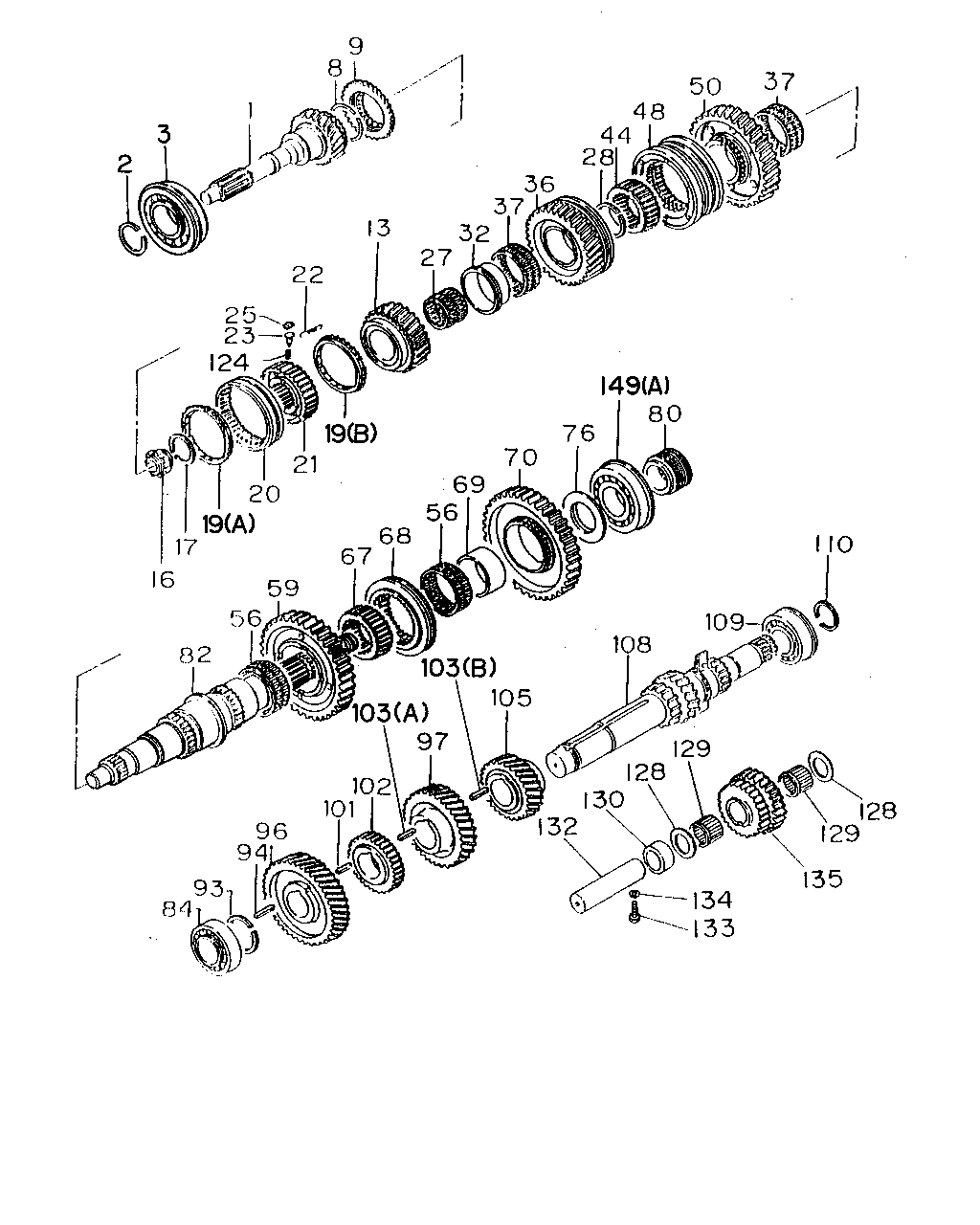

2-26A — MANUAL TRANSMISSION GEAR (#3352) — 1127 parça

2 3 1 8 9 50 49 48 44 36 33 32 28 30 22 25 23 124 10 16 17 19 20 21 19 27 59 67 68 69 56 70 76 75 149 80 82 56 84 93 94 96 101 102 104 105 108 109 103 103 128 135 132 129 130 129 128 126 110 134 133 345 342 286 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9307-							●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-			●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-			●				●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-				●	●	●
19	RING; BLOCK,4TH & 5TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●				●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●	●	●				●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●	●	●				●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●				●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-			●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-			●				●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601			●				●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-			●				●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NTN	1-09811-391-0	02	1	9412-				●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-			●				●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-				●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-			●				●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205				●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9307-							●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-			●				●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-			●				●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9002-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-				●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-			●				●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-				●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-			●				●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-				●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-					●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-			●				●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302				●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-				●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-5	01	1	9002-			●				●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-				●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-					●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-			●				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9002-		●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-1	01	1	9307-				●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE CXZ(CXZ***) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-				●	●	●
80	GEAR; SPD DRIVE Z=7	1-33371-030-1	01	1	9307-							●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9002-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9002-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-					●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9307-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG	9-09180-065-0	01	1	9002-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9002-			●				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9002-	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-010-0	01	1	9002-			●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9307-							●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-			●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-			●				●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-				●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105			●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-			●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-			●				●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105				●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-				●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9307-							●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=15-22-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-				●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110					●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-					●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110						●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-						●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9307-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-050-2	01	1	9002-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-			●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-			●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-			●				●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-				●	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-		●	●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-			●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-			●				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-				●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-			●				●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-			●				●
132	SHAFT; REV	1-33351-016-1	01	1	9002-				●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●				●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●				●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●				●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-			●				●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-				●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●	●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●	●		●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-	●	●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-				●		●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-	●	●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-149-3	01	1	9102-9306			●
342	FLANGE; OUTPUT 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-203-0	01	1	9002-				●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-				●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-						●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306	●	●
345	BOLT; FLANGE TO YOKE CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306			●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412				●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-				●
345	BOLT; FLANGE TO YOKE 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46219-069-0	04	1	9002-				●

9 8 1 3 2 16 18 12 25 23 26 22 27 17 15 27 216 46 218 45 36 33 31 42 43 31 30 13 11 121 11 82 37 50 39 38 69 70 58 56 59 75 149 79 149 80 78 81 74 60 57 56 93 96 101 237 103 104 105 108 109 110 111 238 122 124 113 126 126 114 112 117 103 97 102 94 84 342 345 286 298 286 298 345 342 138 139 140 128 129 129 132 128 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9307-							●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●
11	RING; BLOCK,5TH & 6TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406				●	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9407-				●	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9407-				●	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9002-				●	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-						●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-450-0	01	1	9307-							●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9002-				●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-			●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-			●				●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-				●	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-				●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-			●	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-			●				●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601			●				●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-			●				●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NTN	1-09811-391-0	02	1	9412-				●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-				●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	9002-9111				●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-376-3	02	1	9112-				●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205				●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9307-							●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-226-0	02	1	9002-9205			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-351-0	04	1	9206-			●				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205				●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-				●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9002-				●	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9002-				●	●	●
42	SLEEVE	1-33262-133-2	01	1	9002-				●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-154-4	01	1	9002-9204				●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9205-				●	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9002-				●	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-				●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-				●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-			●				●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-				●	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9002-				●	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9002-				●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-			●				●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-				●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-					●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	9002-9302				●	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-				●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302				●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-				●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-5	01	1	9002-			●				●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-				●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-					●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9002-				●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9002-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-					●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9002-		●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-1	01	1	9307-				●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE CXZ(CXZ***) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-				●	●	●
80	GEAR; SPD DRIVE Z=7	1-33371-030-1	01	1	9307-							●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9002-					●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9002-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9002-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-					●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9307-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG	9-09180-065-0	01	1	9002-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9002-			●				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9002-	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-010-0	01	1	9002-			●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9307-							●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-				●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-					●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-244-0	01	1	9307-							●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-			●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-			●				●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-				●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105			●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-			●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-			●				●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105				●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-				●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9307-							●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=15-22-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-				●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110					●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-					●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110						●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-						●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9307-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-050-2	01	1	9002-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-			●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-			●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-			●				●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-				●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9002-					●	●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	9002-9203					●	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-					●	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9002-					●	●
114	HUB; CLU,7TH	1-33261-152-1	01	1	9002-9204					●	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9205-					●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	9002-9205					●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-					●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9412-9601					●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-					●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204		●	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204				●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-				●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-		●	●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-			●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-			●				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-				●	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-			●				●
132	SHAFT; REV	1-33351-016-1	01	1	9002-				●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-			●				●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-				●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-					●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9002-				●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-9205				●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9002-9205				●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-				●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●	●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●	●		●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9002-				●	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	9002-				●	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9002-				●	●	●
238	INSERT	1-33263-025-2	03	1	9002-					●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-	●	●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-				●		●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-	●	●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-149-3	01	1	9102-9306			●
342	FLANGE; OUTPUT 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-203-0	01	1	9002-				●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-				●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-						●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306	●	●
345	BOLT; FLANGE TO YOKE CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306			●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412				●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-				●
345	BOLT; FLANGE TO YOKE 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46219-069-0	04	1	9002-				●

2 3 1 8 9 26 23 25 22 30 27 32 37 36 28 44 48 50 37 80 149 79 78 77 149 75 76 70 69 56 68 67 59 56 82 19 21 20 19 17 16 126 120 125 122 124 115 110 109 108 105 103 104 103 102 101 96 94 93 84 126 121 119 118 129 128 130 132 134 133 128 129 135 345 342 286 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9307-							●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-			●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-			●				●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-				●	●	●
19	RING; BLOCK,4TH & 5TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●				●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●	●	●				●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●	●	●				●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●				●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-			●	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-			●				●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601			●				●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-			●				●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NTN	1-09811-391-0	02	1	9412-				●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-			●				●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-				●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-			●				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9307-							●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-226-0	02	1	9002-9205			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-351-0	04	1	9206-			●				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205				●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-				●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-			●				●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-				●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-			●				●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-				●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-			●				●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-				●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-					●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-			●				●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302				●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-				●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-5	01	1	9002-			●				●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-				●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-					●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-			●				●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-352-0	01	1	9002-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	9002-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9002-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-					●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9002-		●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-1	01	1	9307-				●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE CXZ(CXZ***) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-				●	●	●
80	GEAR; SPD DRIVE Z=7	1-33371-030-1	01	1	9307-							●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9002-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9002-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-					●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9307-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG	9-09180-065-0	01	1	9002-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9002-			●				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9002-	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-010-0	01	1	9002-			●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9307-							●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-			●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-			●				●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-				●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105			●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-			●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-			●				●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105				●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-				●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9307-							●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=15-22-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-				●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110					●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-					●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110						●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-						●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9307-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-050-2	01	1	9002-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-			●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-			●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-			●				●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-				●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9002-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9002-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-248-0	01	1	9002-9205			●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9206-			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-390-0	02	1	9412-9601			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9602-			●
118	GEAR; 6TH,COUNTER Z=45	1-33338-202-2	01	1	9002-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-238-0	01	1	9002-			●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9002-9203		●	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●
120	SLEEVE	1-33262-098-2	01	1	9002-		●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204		●	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204				●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-				●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9002-		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-		●	●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-			●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-			●				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-				●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-			●				●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-			●				●
132	SHAFT; REV	1-33351-016-1	01	1	9002-				●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●				●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●				●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●				●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-			●				●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-				●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●	●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●	●		●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-	●	●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-				●		●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-	●	●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-149-3	01	1	9102-9306			●
342	FLANGE; OUTPUT 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-203-0	01	1	9002-				●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-				●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-						●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306	●	●
345	BOLT; FLANGE TO YOKE CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306			●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412				●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-				●
345	BOLT; FLANGE TO YOKE 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46219-069-0	04	1	9002-				●

9 8 1 3 2 124 23 25 22 13 27 32 37 36 28 44 48 50 37 19 21 20 19 17 16 82 56 59 67 68 56 69 70 76 149 80 110 109 108 105 103 97 103 102 101 96 94 93 84 129 128 130 132 134 133 135 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9307-							●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-						●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-450-0	01	1	9307-							●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-			●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-			●				●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-				●	●	●
19	RING; BLOCK,4TH & 5TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●				●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●	●	●				●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●	●	●				●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●				●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-			●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-			●				●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601			●				●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-			●				●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NTN	1-09811-391-0	02	1	9412-				●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-			●				●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-			●				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9307-							●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-226-0	02	1	9002-9205			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-351-0	04	1	9206-			●				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205				●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-				●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-			●				●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-				●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-			●				●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-				●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-			●				●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-				●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-					●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-			●				●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302				●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-				●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-5	01	1	9002-			●				●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-				●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-					●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-			●				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9002-		●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-1	01	1	9307-				●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE CXZ(CXZ***) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-				●	●	●
80	GEAR; SPD DRIVE Z=7	1-33371-030-1	01	1	9307-							●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9002-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9002-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-					●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9307-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG	9-09180-065-0	01	1	9002-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9002-			●				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9002-	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-010-0	01	1	9002-			●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9307-							●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-				●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-					●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-244-0	01	1	9307-							●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-			●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-			●				●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-				●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105			●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-			●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-			●				●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105				●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9307-							●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=15-22-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-				●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110					●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-					●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110						●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-						●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9307-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-050-2	01	1	9002-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-			●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-			●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-			●				●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-				●	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-			●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-			●				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-				●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-			●				●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-			●				●
132	SHAFT; REV	1-33351-016-1	01	1	9002-				●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●				●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●				●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●				●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-			●				●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-				●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●	●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●	●		●	●

2 3 1 8 9 26 23 25 22 30 28 32 33 36 44 48 49 50 79 149 78 77 76 70 56 69 68 67 27 19 21 20 19 17 16 10 82 56 59 75 149 80 109 108 105 104 102 101 96 94 93 84 103 126 103 120 126 121 125 122 124 119 118 115 116 115 110 128 129 130 129 132 135 128 134 133 345 342 286 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9307-							●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-			●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-			●				●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-				●	●	●
19	RING; BLOCK,4TH & 5TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●				●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●	●	●				●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●	●	●				●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●				●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●				●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-			●	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205			●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-			●				●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601			●				●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-			●				●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205				●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-				●	●	●
27	BEARING; 4TH GEAR (B) NTN	1-09811-391-0	02	1	9412-				●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-			●				●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-				●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-			●				●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205				●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-				●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9307-							●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-			●				●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-			●				●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9002-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-			●				●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-				●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205			●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-			●				●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205				●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-				●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-				●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-			●				●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-				●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-					●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-			●				●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-			●				●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302				●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-				●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-5	01	1	9002-			●				●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-				●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-					●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-			●				●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-352-0	01	1	9002-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	9002-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9002-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-				●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-					●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9002-		●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-1	01	1	9307-				●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE CXZ(CXZ***) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-				●	●	●
80	GEAR; SPD DRIVE Z=7	1-33371-030-1	01	1	9307-							●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9002-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9002-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-					●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9307-							●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG	9-09180-065-0	01	1	9002-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	9002-			●				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9002-	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-010-0	01	1	9002-			●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9307-							●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-			●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-			●				●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-				●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105			●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-			●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-			●				●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105				●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-				●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-				●	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9307-							●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=15-22-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-				●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110					●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-					●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110						●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-						●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9307-							●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-050-2	01	1	9002-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-			●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-			●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-			●				●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-				●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9002-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9002-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-248-0	01	1	9002-9205			●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9206-			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-390-0	02	1	9412-9601			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9602-			●
116	COLLAR; DIST,COUNTER SHAFT	1-33315-001-0	01	1	9002-		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-202-2	01	1	9002-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-238-0	01	1	9002-			●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9002-9203		●	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●
120	SLEEVE	1-33262-098-2	01	1	9002-		●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204		●	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204				●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-				●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9002-		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-		●	●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-			●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-			●				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-				●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-			●				●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-			●				●
132	SHAFT; REV	1-33351-016-1	01	1	9002-				●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●				●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●				●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●				●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-			●				●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-				●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●	●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●	●		●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-	●	●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-				●		●
286	NUT; LK,MAINSHAFT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-	●	●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-149-3	01	1	9102-9306			●
342	FLANGE; OUTPUT 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-203-0	01	1	9002-				●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-				●
342	FLANGE; OUTPUT CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-					●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-						●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306	●	●
345	BOLT; FLANGE TO YOKE CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306			●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412				●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●	●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-				●
345	BOLT; FLANGE TO YOKE 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46219-069-0	04	1	9002-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
