Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

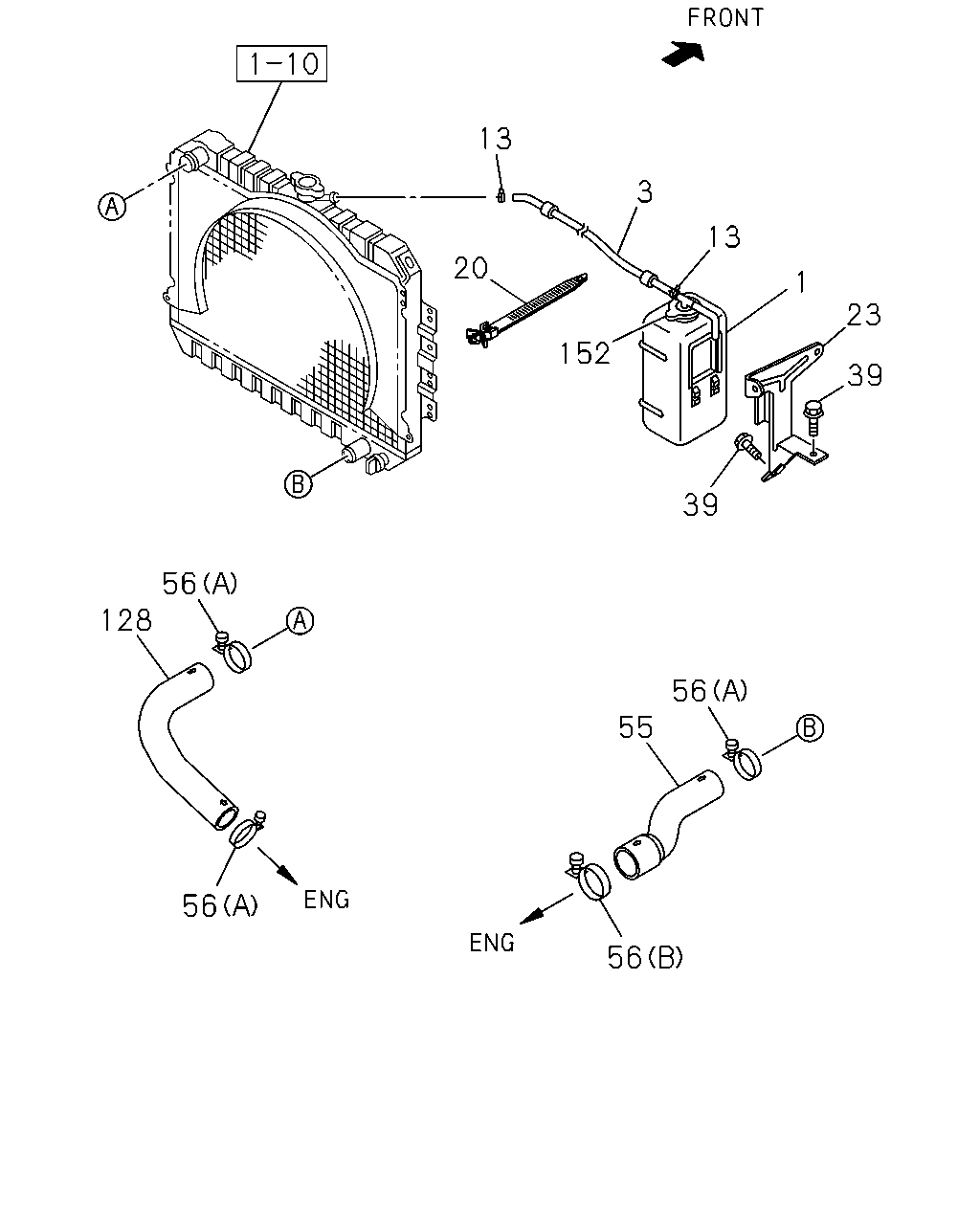

1-11 — RADIATOR HOSE AND SUB TANK
(#33519) — 15 parça
13
3
13
20
1
23
152
39
39
56
128
56
55
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
IDN
8-97956-340-4
01
1
0610-
3
HOSE; SURGE TANK
IDN
8-97957-604-2
01
1
0610-
13
CLIP; HOSE,SURGE TANK
IDN
8-97957-610-0
02
1
0610-
20
CLIP; HOSE,RAD
L=212
8-94107-652-0
01
1
0610-
23
BRACKET; RESERVE TANK
IDN
8-97956-341-3
01
1
0610-
39
BOLT; BRKT FIX
M8X16 FLANGE
0-28450-816-0
02
1
0610-
55
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75) GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI
8-97976-146-0
01
1
0610-0610
55
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75) GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI
8-97976-146-0
01
1
0611-
55
HOSE; WATER,RAD OUTLET
A/T AISIN(RMD) PHI
8-97976-146-0
01
1
0611-
55
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) PHI
8-97302-169-1
01
1
0610-
56
CLIP; WATER HOSE,RAD
(A) ID=42 PHI
9-09915-042-1
03
1
0610-
56
CLIP; WATER HOSE,RAD
(B) ID=48 PHI
9-09915-512-1
01
1
0610-
128
HOSE; WATER,RAD INL
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI
8-97977-024-0
01
1
0610-
128
HOSE; WATER,RAD INL
GRADE XUV/SPORTIVO(RBG) PHI
8-97188-604-2
01
1
0610-
152
CAP ASM; SURGE TANK
IDN
8-97957-609-0
01
1
0610-
