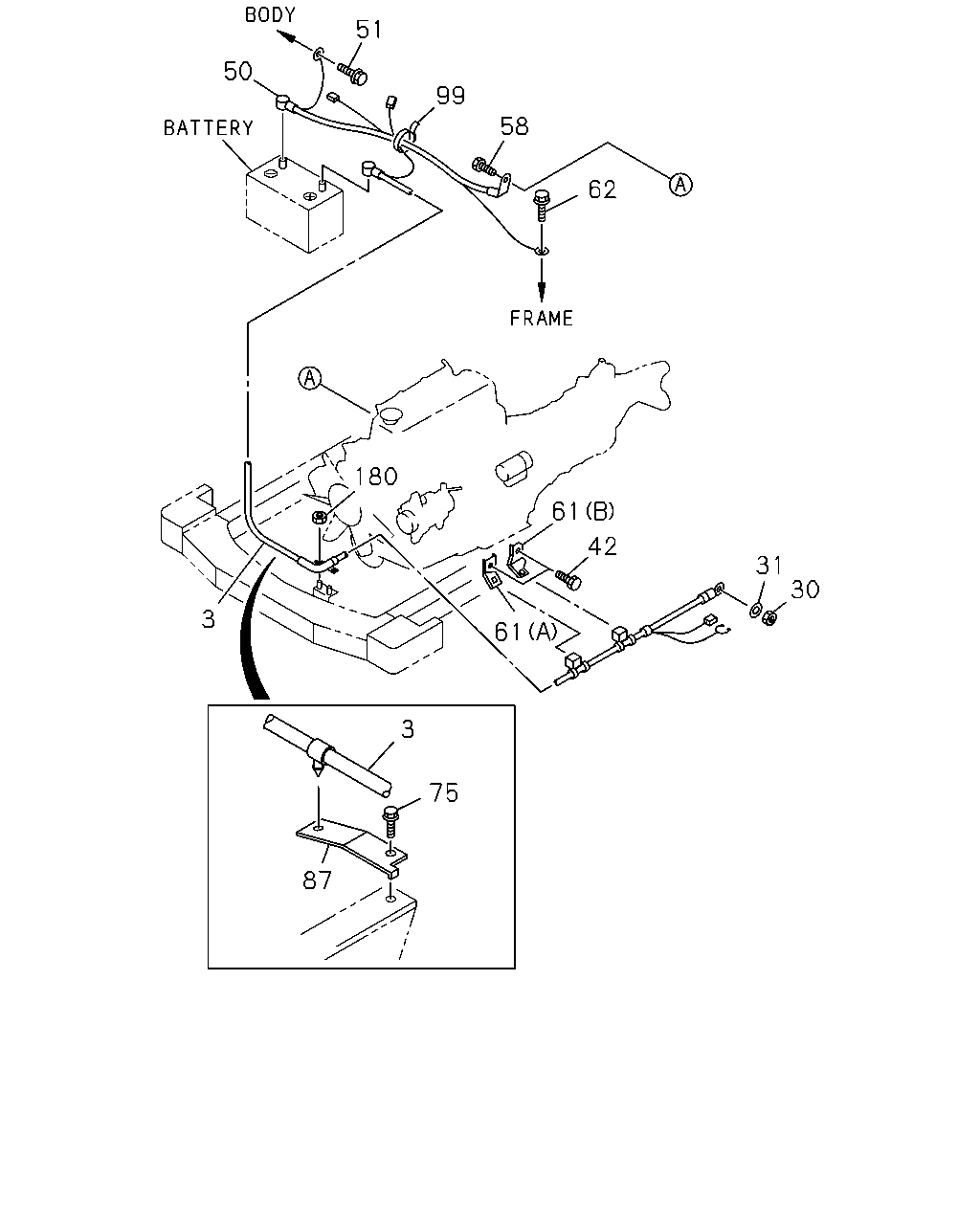

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#33510) — 16 parça
51
50
99
58
62
180
61
42
31
30
3
61
3
75
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HARNESS; CABLE,BATTERY TO STARTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI
8-97975-421-3
01
1
0610-
3
HARNESS; CABLE,BATTERY TO STARTER
GRADE XUV/SPORTIVO(RBG) PHI
8-97976-838-3
01
1
0610-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91111-508-0
01
1
0610-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-508-0
01
1
0610-
42
BOLT; BRKT,BATTERY CABLE
M/T MSG 5 SPEED(M75) M6X12 FLANGE
0-28050-612-0
02
1
0610-
50
CABLE; BATTERY TO BODY (-)
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI
8-97975-422-2
01
1
0610-
50
CABLE; BATTERY TO BODY (-)
GRADE XUV/SPORTIVO(RBG) PHI
8-97976-843-1
01
1
0610-
51
BOLT; CABLE TO FRAME
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0610-
58
BOLT; CABLE,BATTERY
M10X16 FLANGE PHI
0-28051-016-0
01
1
0610-
61
BRACKET; BATTERY CABLE
M/T MSG 5 SPEED(M75) (A)
8-97077-656-0
01
1
0610-
61
BRACKET; BATTERY CABLE
M/T MSG 5 SPEED(M75) (B) PHI
8-97957-657-0
01
1
0610-
62
BOLT; EARTH CABLE FIX
M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
0610-
75
BOLT; BRKT
M6X16 FLANGE
0-28450-616-0
01
1
0610-
87
BRACKET; HARNESS
PHI
8-97967-197-1
01
1
0610-
99
CLIP; BATTERY CABLE
L=140
5-09707-031-1
01
1
0610-
180
NUT; COVER
M6 FLANGE
5-09440-004-0
02
1
0610-
