0-60 — ENGINE ELECTRICAL CONTROL PARTS (#33509) — 31 parça

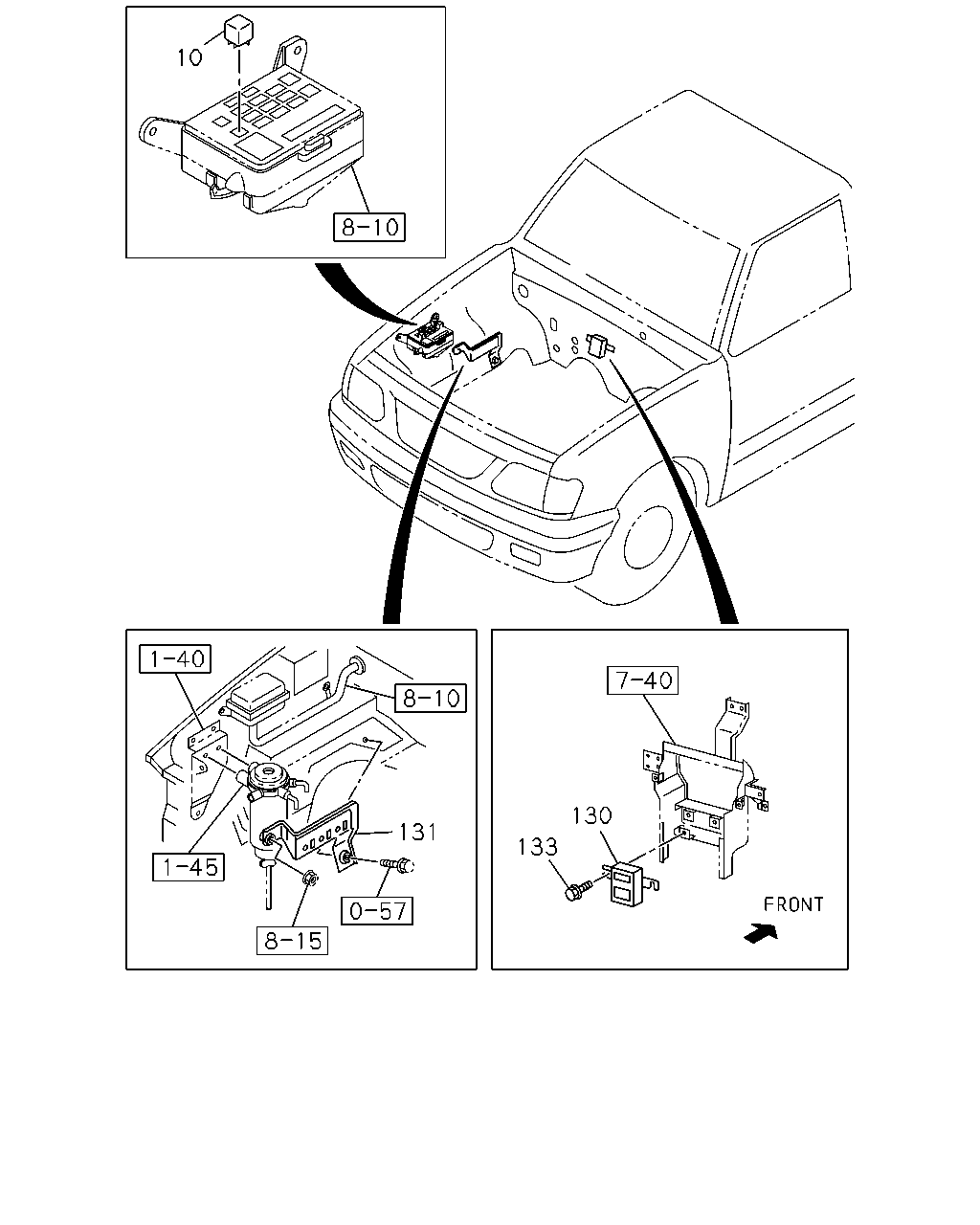

çizim 13340
10 130 131 133
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
12V 20A 		8-97060-926-1 01 1 0610-
130 CONTROLLER; EGR
A/T AISIN(RMD) 		8-98048-980-1 01 1 0611-
130 CONTROLLER; EGR
M/T MSG 5 SPEED(M75) 		8-98028-901-1 01 1 0610-
131 BRACKET; EGR
PHI 		8-98020-894-0 01 1 0610-
133 BOLT; EGR CONTROLLER
M6X16 FLANGE 		0-28650-616-0 02 1 0610-
çizim 57999
23 2 24 24 16 21 1 7 8 4 93 83
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. M/T MSG 5 SPEED(M75) 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0610-0610
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0611-
2 GENERATOR ASM
M/T MSG 5 SPEED(M75) 12V 70A THA 		8-97941-741-2 01 1 0610-0610
2 GENERATOR ASM
12V 70A THA 		8-97941-741-2 01 1 0611-
4 BOLT; STARTER
A/T AISIN(RMD) M12X70 FLANGE 		0-28051-270-0 02 1 0611-
4 BOLT; STARTER
M/T MSG 5 SPEED(M75) M12X60 		8-97161-846-1 02 1 0610-
7 NUT; STARTER
M/T MSG 5 SPEED(M75) M12 FLANGE 		0-91180-112-0 02 1 0610-0610
7 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0611-
8 SPACER; STARTER
M/T MSG 5 SPEED(M75) THA 		8-97920-767-0 01 1 0610-0610
8 SPACER; STARTER
THA 		8-97920-767-0 01 1 0611-
16 BOLT; GEN
M/T MSG 5 SPEED(M75) M10X130 FLANGE 		0-28056-013-0 01 1 0610-0610
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0611-
21 BRACKET; GEN
M/T MSG 5 SPEED(M75) THA 		8-97912-659-0 01 1 0610-0610
21 BRACKET; GEN
THA 		8-97912-659-0 01 1 0611-
23 NUT; GEN
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91180-210-0 01 1 0610-0610
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 0611-
24 BOLT; GEN BRKT
M/T MSG 5 SPEED(M75) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0610-0610
24 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 0611-0909
24 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910-
24 BOLT; GEN BRKT
M/T MSG 5 SPEED(M75) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0610-0610
24 BOLT; GEN BRKT
M10X35 W/LK WASHER 		0-50541-035-0 01 1 0611-
83 THERMOMETER UNIT
M/T MSG 5 SPEED(M75) DENSO 		8-94235-691-0 01 1 0610-0610
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0611-
83 THERMOMETER UNIT
M/T MSG 5 SPEED(M75) YAZAKI 		8-94237-861-0 01 1 0610-0610
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0611-
93 SWITCH; THERMO,A/C CUT
A/T AISIN(RMD) 		8-97028-283-0 01 1 0611-
