Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

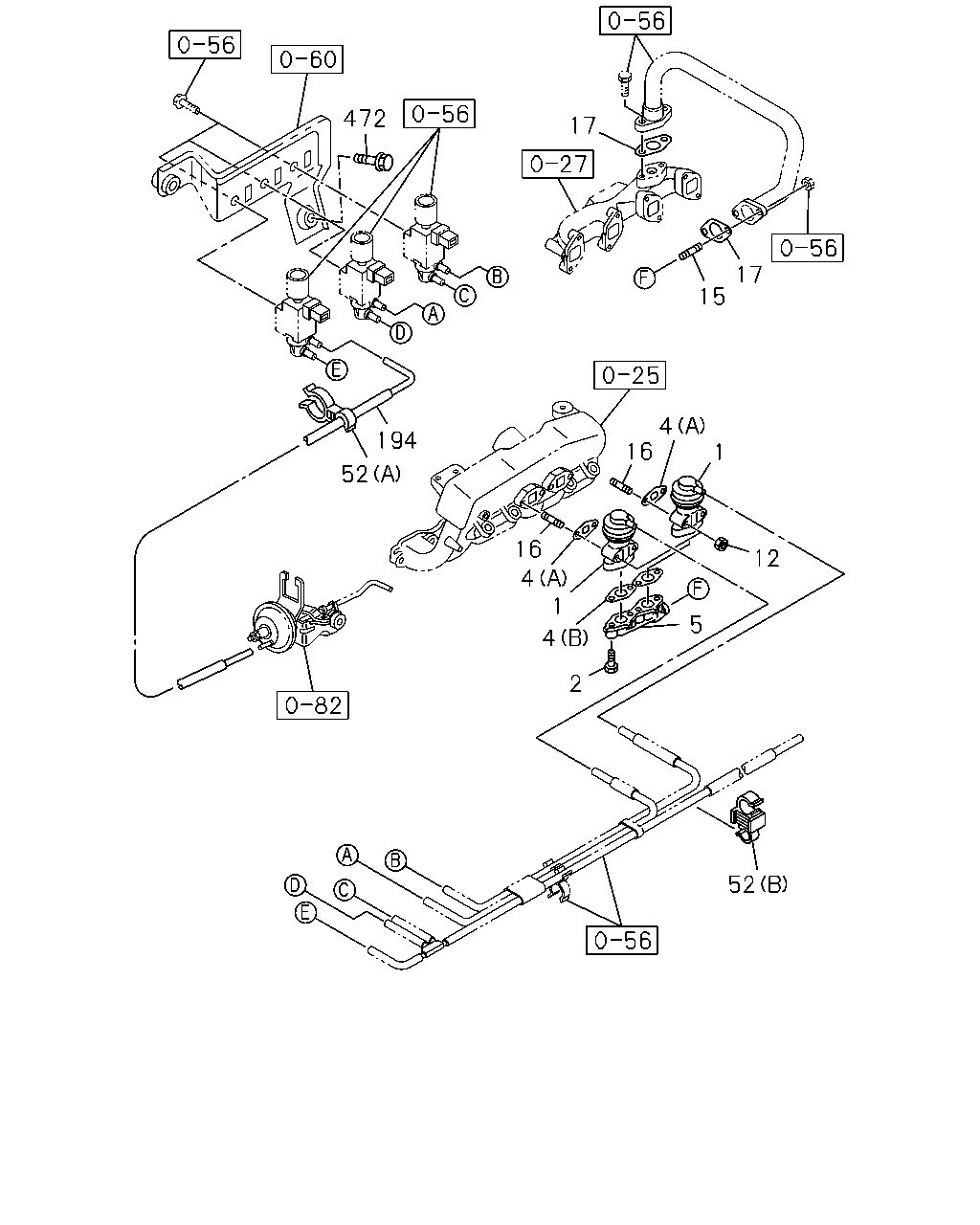

0-57 — EMISSION PIPING
(#33508) — 25 parça
472
17
17
15
4
16
194
1
16
52
12
4
1
5
4
2
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
M/T MSG 5 SPEED(M75)
8-97132-802-5
02
1
0610-0610
1
VALVE; EGR
8-97132-802-5
02
1
0611-
2
BOLT; EGR VLV
M/T MSG 5 SPEED(M75) M8X40 FLANGE
0-28050-840-0
04
1
0610-0610
2
BOLT; EGR VLV
M8X40 FLANGE
0-28050-840-0
04
1
0611-
4
GASKET; EGR VLV
M/T MSG 5 SPEED(M75) (A)
8-94334-338-0
02
1
0610-0610
4
GASKET; EGR VLV
(A)
8-94334-338-1
02
1
0611-
4
GASKET; EGR VLV
M/T MSG 5 SPEED(M75) (B)
8-94379-754-0
01
1
0610-0610
4
GASKET; EGR VLV
(B)
8-94379-754-0
01
1
0611-
5
ADAPTER ASM
A/T AISIN(RMD) IDENTIFICATION BREAKING POINT 2011 M.Y.<AUA> TACHOMETER<U16> PHI
8-98178-048-0
01
1
1010-
5
ADAPTER ASM
A/T AISIN(RMD) IMA
8-98055-708-0
01
1
0611-1009
5
ADAPTER ASM
A/T AISIN(RMD) TACHOMETER<U16> EXC. IDENTIFICATION BREAKING POINT 2011 M.Y.<AUA> IMA
8-98055-708-0
01
1
1010-
5
ADAPTER ASM
M/T MSG 5 SPEED(M75)
8-98025-558-0
01
1
0610-
12
NUT; EGR VLV
M/T MSG 5 SPEED(M75) M8 FLANGE
0-91180-208-0
04
1
0610-0610
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
04
1
0611-
15
STUD; EGR PIPE
M/T MSG 5 SPEED(M75) M8X25 L=37
0-41010-825-0
02
1
0610-0610
15
STUD; EGR PIPE
M8X25 L=37
0-41010-825-0
02
1
0611-
16
STUD; EGR VLV
M/T MSG 5 SPEED(M75) M8X49 L=63
8-97019-478-0
04
1
0610-0610
16
STUD; EGR VLV
M8X49 L=63
8-97019-478-0
04
1
0611-
17
GASKET; EGR PIPE
M/T MSG 5 SPEED(M75)
8-97324-052-0
02
1
0610-0610
17
GASKET; EGR PIPE
8-97324-052-0
02
1
0611-1505
17
GASKET; EGR PIPE
PHI
8-97520-597-0
02
1
1506-
52
CLIP; VSV HOSE
(A) ID=16.5 & 7
8-97226-171-0
01
1
0610-
52
CLIP; VSV HOSE
(B) ID=6 & 11 IMA
8-97368-292-0
01
1
0610-
194
HOSE; VAC
8-98020-908-0
01
1
0610-
472
BOLT; BRKT
M8X22 W/LK&PL WASHER
8-94329-953-1
01
1
0610-
