Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶

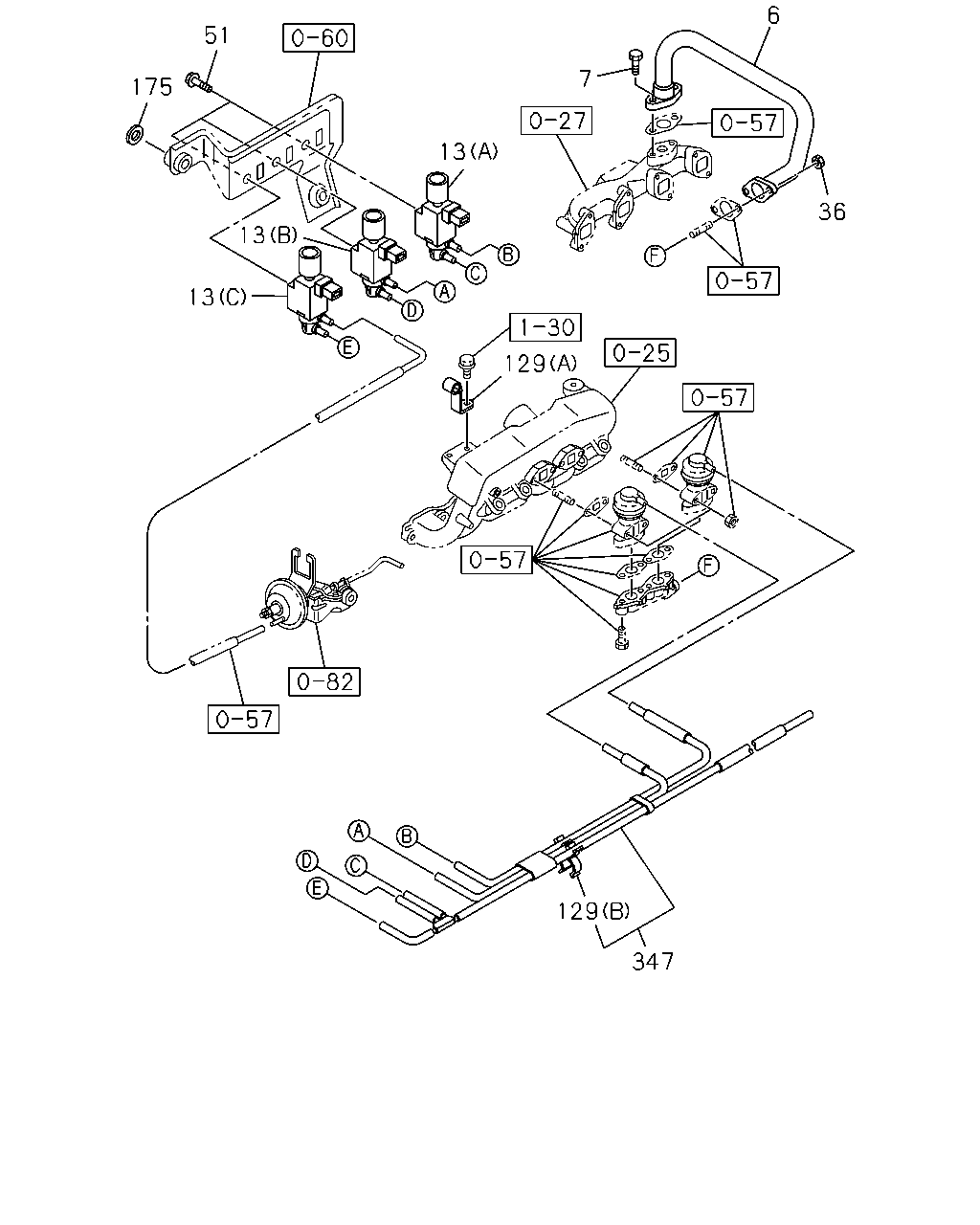

0-56 — EMISSION SYSTEM
(#33507) — 15 parça
6
51
7
175
13
36
13
13
129
129
347
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PIPE; EGR
M/T MSG 5 SPEED(M75)
8-97118-378-1
01
1
0610-0610
6
PIPE; EGR
8-97118-378-1
01
1
0611-
7
BOLT; BRKT,EGR PIPE
M/T MSG 5 SPEED(M75) M8X23 FLANGE
8-97189-522-0
02
1
0610-0610
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE
8-97189-522-0
02
1
0611-0702
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE
8-98048-437-0
02
1
0703-
13
VALVE; VAC SW
(C)
8-94384-336-0
01
1
0610-
13
VALVE; VAC SW
(A)
8-97043-750-0
01
1
0610-
13
VALVE; VAC SW
(B)
8-97171-030-0
01
1
0610-
36
NUT; EGR PIPE
M/T MSG 5 SPEED(M75) M8 FLANGE
0-91180-208-0
02
1
0610-0610
36
NUT; EGR PIPE
M8 FLANGE
0-91180-208-0
02
1
0611-
51
BOLT; VAC SW
M5X8
0-20800-508-0
03
1
0610-
129
CLIP; VAC HOSE
(A) ID=14 H=50 L=20
1-09700-843-0
01
1
0610-
129
CLIP; VAC HOSE
(B) ID=14.5 & 7X4 PHI
8-94368-499-0
01
1
0610-
175
WASHER; PL,BRKT
ID=6.4 OD=18
9-09164-706-0
01
1
0610-
347
HOSE ASM; VACUUM,EGR
8-98029-248-0
01
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
