0-52 — OIL AND VACUUM PIPING; ENGINE (#33506) — 73 parça

70 27 27 539 79 28 118 313 48 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; OIL PIPE FIX M/T MSG 5 SPEED(M75) M6X20 W/LK&PL WASHER	0-50640-620-0	02	1	0610-0610
27	BOLT; OIL PIPE FIX M6X20 W/LK&PL WASHER	0-50640-620-0	02	1	0611-
28	GASKET; OIL PIPE M/T MSG 5 SPEED(M75) (B) THA	8-97912-535-0	02	1	0610-0610
28	GASKET; OIL PIPE (B) THA	8-97912-535-0	02	1	0611-
28	GASKET; OIL PIPE M/T MSG 5 SPEED(M75) (A) THA	8-97920-587-0	01	1	0610-0610
28	GASKET; OIL PIPE (A) THA	8-97920-587-0	01	1	0611-
48	CLIP; OIL PIPE M/T MSG 5 SPEED(M75) ID=7 & 9 L=25	1-09701-228-2	01	1	0610-0610
48	CLIP; OIL PIPE ID=7 & 9 L=25	1-09701-228-3	01	1	0611-
70	GASKET; OIL PIPE,TURBOCHARGER M/T MSG 5 SPEED(M75) THA	8-97910-642-0	01	1	0610-0610
70	GASKET; OIL PIPE,TURBOCHARGER IMA	8-97910-642-1	01	1	0611-
79	NUT; OIL DRAIN PIPE M/T MSG 5 SPEED(M75) M8 FLANGE PHI	8-97943-102-0	02	1	0610-0610
79	NUT; OIL DRAIN PIPE M8 FLANGE PHI	8-97943-102-0	02	1	0611-
118	BRACKET; CLIP,OIL PIPE M/T MSG 5 SPEED(M75)	8-97350-307-2	01	1	0610-0610
118	BRACKET; CLIP,OIL PIPE	8-97350-307-2	01	1	0611-
219	BOLT; CLIP FIX,OIL PIPE M/T MSG 5 SPEED(M75) M6X35 FLANGE	0-28650-635-0	01	1	0610-0610
219	BOLT; CLIP FIX,OIL PIPE M6X35 FLANGE	0-28650-635-0	01	1	0611-
313	BOLT; PIPE BRKT M/T MSG 5 SPEED(M75) M8X12 FLANGE	0-28050-812-0	01	1	0610-0610
313	BOLT; PIPE BRKT M8X12 FLANGE	0-28050-812-0	01	1	0611-
539	PIPE; OIL,TURBOCHARGER DRAIN M/T MSG 5 SPEED(M75)	8-97162-108-0	01	1	0610-0610
539	PIPE; OIL,TURBOCHARGER DRAIN	8-97162-108-1	01	1	0611-

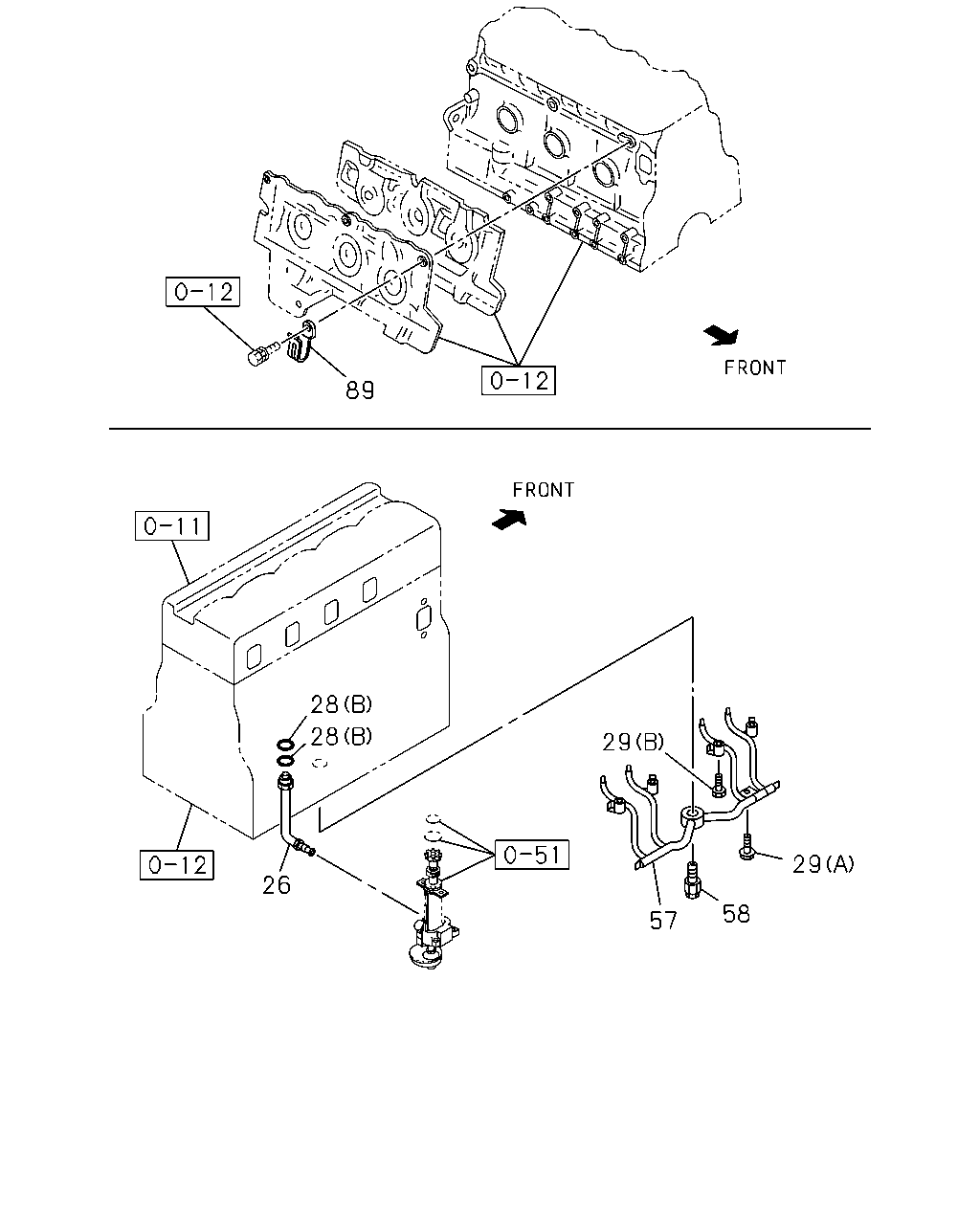

89 28 28 29 29 26 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; OIL,PUMP TO C/BL M/T MSG 5 SPEED(M75) PHI	8-97920-470-0	01	1	0610-0610
26	PIPE; OIL,PUMP TO C/BL PHI	8-97920-470-0	01	1	0611-0801
26	PIPE; OIL,PUMP TO C/BL PHI	8-97923-928-0	01	1	0802-
28	GASKET; OIL PIPE M/T MSG 5 SPEED(M75) (B) THA	8-97912-535-0	02	1	0610-0610
28	GASKET; OIL PIPE (B) THA	8-97912-535-0	02	1	0611-
28	GASKET; OIL PIPE M/T MSG 5 SPEED(M75) (A) THA	8-97920-587-0	01	1	0610-0610
28	GASKET; OIL PIPE (A) THA	8-97920-587-0	01	1	0611-
29	BOLT; OIL PIPE,OIL JET M/T MSG 5 SPEED(M75) (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0610-0610
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0611-
29	BOLT; OIL PIPE,OIL JET M/T MSG 5 SPEED(M75) (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0610-0610
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0611-
57	PIPE; OIL,OIL JET M/T MSG 5 SPEED(M75) THA	8-97912-536-2	01	1	0610-0610
57	PIPE; OIL,OIL JET THA	8-97912-536-2	01	1	0611-
58	VALVE; RELIEF,OIL JET,PISTON COOLING M/T MSG 5 SPEED(M75) THA	8-97912-540-0	01	1	0610-0610
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97912-540-0	01	1	0611-
89	CLIP; VAC HOSE M/T MSG 5 SPEED(M75) ID=8.5 THA	8-97912-612-0	01	1	0610-0610
89	CLIP; VAC HOSE ID=8.5 THA	8-97912-612-0	01	1	0611-

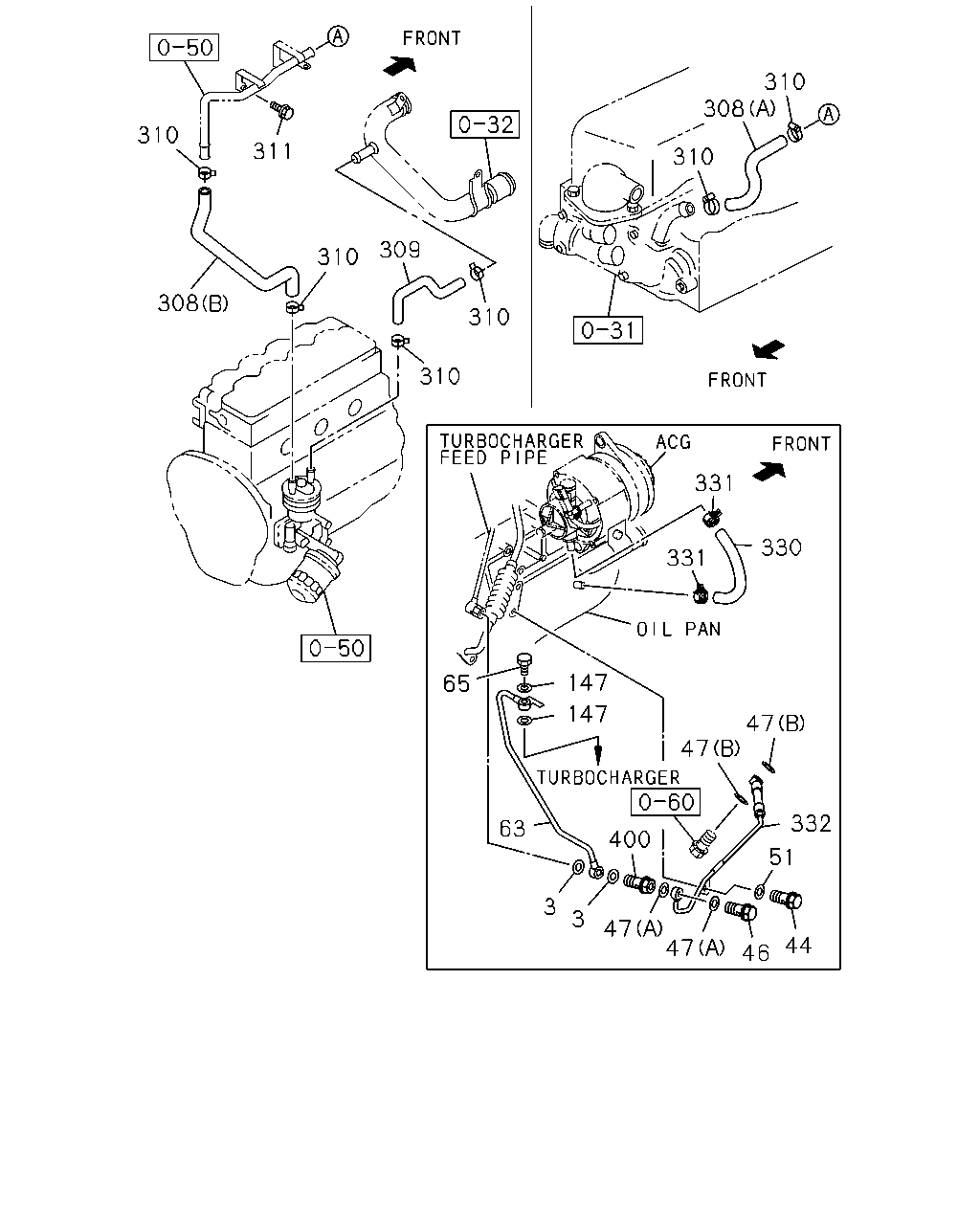

310 308 310 311 310 309 310 310 310 331 330 331 147 65 147 47 47 332 63 400 51 3 3 47 47 44 46 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; EYE BOLT,OIL PIPE M/T MSG 5 SPEED(M75) ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-0610
3	GASKET; EYE BOLT,OIL PIPE ID=14.2 OD=20.0	9-09571-414-0	02	1	0611-
44	BOLT; CLIP,OIL PIPE M/T MSG 5 SPEED(M75) M8X16 W/LK WASHER	0-50540-816-0	01	1	0610-0610
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0611-
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M/T MSG 5 SPEED(M75) M8X20 EYE-BOLT THA	8-97910-296-0	01	1	0610-0610
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE-BOLT THA	8-97910-296-0	01	1	0611-
47	GASKET; OIL PIPE M/T MSG 5 SPEED(M75) (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0610-0610
47	GASKET; OIL PIPE (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0611-
47	GASKET; OIL PIPE M/T MSG 5 SPEED(M75) (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-0610
47	GASKET; OIL PIPE (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0611-
51	WASHER; PL,OIL PIPE,VAC PUMP M/T MSG 5 SPEED(M75) ID=8.4 OD=18	0-91614-608-0	01	1	0610-0610
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	0-91614-608-0	01	1	0611-
63	PIPE; OIL,TURBOCHARGER FEED M/T MSG 5 SPEED(M75)	8-97350-308-0	01	1	0610-0610
63	PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0611-
65	BOLT; JOINT,OIL PIPE M/T MSG 5 SPEED(M75) M10X27 FLANGE	8-94443-535-0	01	1	0610-0610
65	BOLT; JOINT,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0611-
147	GASKET; OIL PIPE TO TURBOCHARGER M/T MSG 5 SPEED(M75) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-0610
147	GASKET; OIL PIPE TO TURBOCHARGER ID=10.2 OD=16.0	9-09571-410-0	02	1	0611-
308	HOSE; OIL COOLER FEED M/T MSG 5 SPEED(M75) (A) THA	8-97942-765-0	01	1	0610-0610
308	HOSE; OIL COOLER FEED (A) THA	8-97942-765-0	01	1	0611-
308	HOSE; OIL COOLER FEED M/T MSG 5 SPEED(M75) (B) THA	8-97943-163-1	01	1	0610-0610
308	HOSE; OIL COOLER FEED (B) THA	8-97943-163-1	01	1	0611-
309	HOSE; OIL COOLER RETURN M/T MSG 5 SPEED(M75) THA	8-97920-080-2	01	1	0610-0610
309	HOSE; OIL COOLER RETURN THA	8-97920-080-2	01	1	0611-
310	CLIP; WATER HOSE FIX M/T MSG 5 SPEED(M75) ID=20.8 THA	8-97944-127-0	06	1	0610-0610
310	CLIP; WATER HOSE FIX ID=20.8 THA	8-97944-127-0	06	1	0611-
311	BOLT; PIPE FIX M/T MSG 5 SPEED(M75) M8X12 FLANGE	0-28050-812-0	02	1	0610-0610
311	BOLT; PIPE FIX M8X12 FLANGE	0-28050-812-0	02	1	0611-
330	HOSE; VAC PUMP,RETURN M/T MSG 5 SPEED(M75) THA	8-97921-376-0	01	1	0610-0610
330	HOSE; VAC PUMP,RETURN THA	8-97921-376-0	01	1	0611-
331	CLAMP; VAC HOSE,PUMP RETURN M/T MSG 5 SPEED(M75)	8-97108-102-0	02	1	0610-0610
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0611-
332	PIPE; OIL,C/BL TO VAC PUMP M/T MSG 5 SPEED(M75) THA	8-97914-912-0	01	1	0610-0610
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-97914-912-0	01	1	0611-
400	NIPPLE; VAC PUMP,OIL M/T MSG 5 SPEED(M75) M14X25	8-94315-336-1	01	1	0610-0610
400	NIPPLE; VAC PUMP,OIL M14X25	8-94315-336-1	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
