◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#33504) — 29 parça

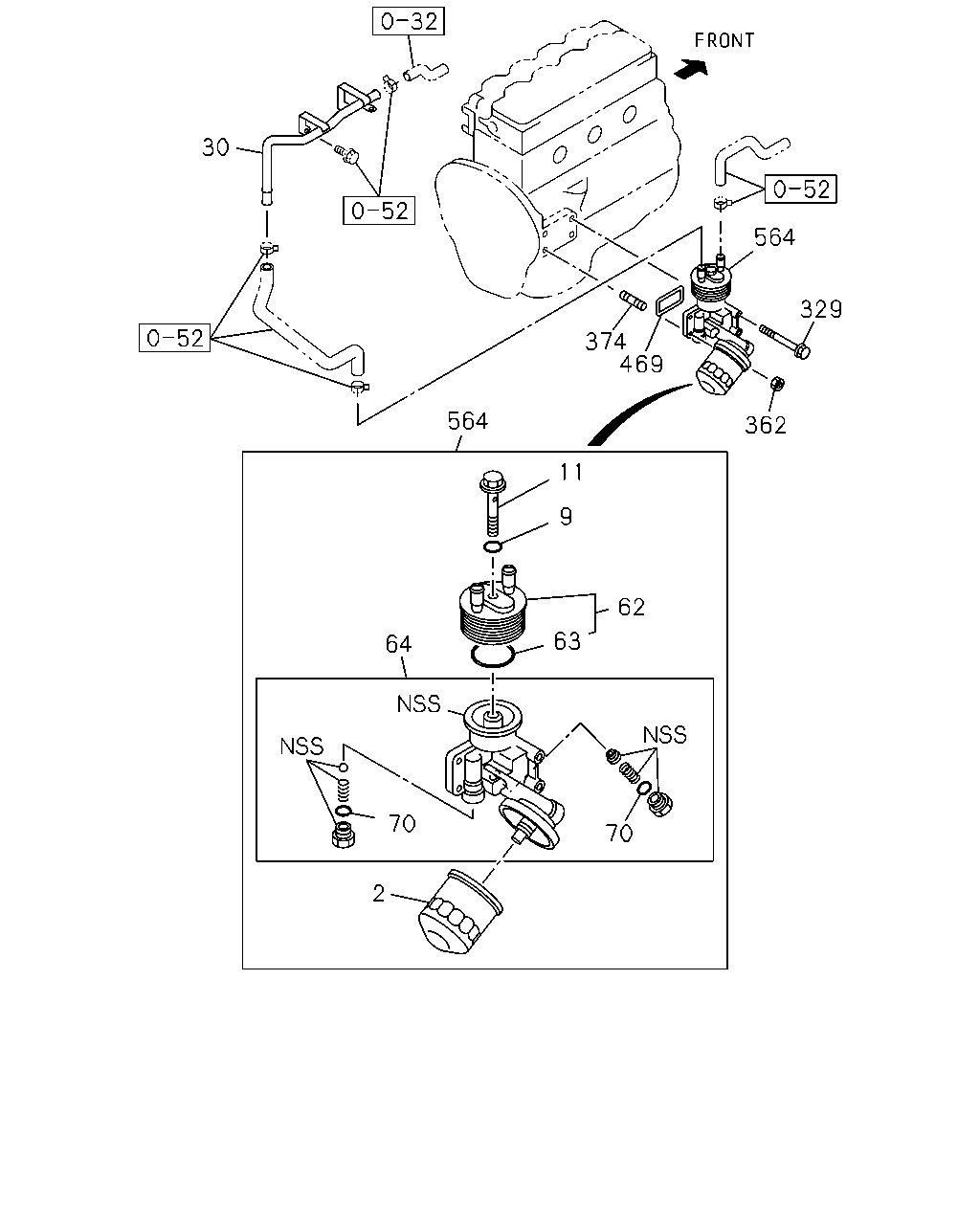

çizim 58747
30 564 329 374 469 564 362 11 9 62 63 64 70 70 2
BalonParca AdiParca NoAdetTipApplied Date
2 ELEMENT; OIL FILTER
M/T MSG 5 SPEED(M75) IDN 		8-97309-927-0 01 1 0610-0610
2 ELEMENT; OIL FILTER
IDN 		8-97309-927-0 01 1 0611-
9 GASKET; CENTER BOLT
M/T MSG 5 SPEED(M75) IDN 		8-97288-938-0 01 1 0610-0610
9 GASKET; CENTER BOLT
IDN 		8-97288-938-0 01 1 0611-
11 BOLT; CENTER
M/T MSG 5 SPEED(M75) IDN 		8-97288-935-0 01 1 0610-0610
11 BOLT; CENTER
IDN 		8-97288-935-0 01 1 0611-
30 PIPE ASM; OIL COOLER
M/T MSG 5 SPEED(M75) THA 		8-97328-475-0 01 1 0610-0610
30 PIPE ASM; OIL COOLER
THA 		8-97328-475-0 01 1 0611-
62 COOLER ASM; OIL
M/T MSG 5 SPEED(M75) PHI 		8-97943-622-0 01 1 0610-0610
62 COOLER ASM; OIL
PHI 		8-97943-622-0 01 1 0611-0911
62 COOLER ASM; OIL 8-97319-556-1 01 1 0912-
63 GASKET; COOLER TO BRKT
M/T MSG 5 SPEED(M75) THA 		8-94450-917-0 01 1 0610-0610
63 GASKET; COOLER TO BRKT
THA 		8-94450-917-0 01 1 0611-
64 BODY; OIL FILTER & OIL COOLER
M/T MSG 5 SPEED(M75) THA 		8-97942-933-0 01 1 0610-0610
64 BODY; OIL FILTER & OIL COOLER
THA 		8-97942-933-0 01 1 0611-
70 GASKET; PLUG,OIL FILTER
M/T MSG 5 SPEED(M75) IDN 		8-97914-706-0 02 1 0610-0610
70 GASKET; PLUG,OIL FILTER
IDN 		8-97914-706-0 02 1 0611-
329 BOLT; OIL FILTER
M/T MSG 5 SPEED(M75) M8X100 W/LK WASHER 		0-50040-800-0 02 1 0610-0610
329 BOLT; OIL FILTER
M8X100 W/LK WASHER 		0-50040-800-0 02 1 0611-1011
329 BOLT; OIL FILTER
M8X100 W/LK WASHER PHI 		0-50540-800-0 02 1 1012-
362 NUT; OIL FILTER
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-108-0 02 1 0610-0610
362 NUT; OIL FILTER
M8 FLANGE 		0-91180-108-0 02 1 0611-
374 STUD; OIL FILTER
M/T MSG 5 SPEED(M75) M8X25 L=37 		0-41010-825-0 02 1 0610-0610
374 STUD; OIL FILTER
M8X25 L=37 		0-41010-825-0 02 1 0611-
469 GASKET; OIL COOLER TO C/BL
M/T MSG 5 SPEED(M75) THA 		8-97912-548-0 01 1 0610-0610
469 GASKET; OIL COOLER TO C/BL
THA 		8-97912-548-0 01 1 0611-0710
469 GASKET; OIL COOLER TO C/BL
PHI 		8-97946-632-0 01 1 0711-
564 COOLER ASM; OIL,W/O FILTER
M/T MSG 5 SPEED(M75) THA 		8-97287-474-1 01 1 0610-0610
564 COOLER ASM; OIL,W/O FILTER 8-97287-474-2 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
