Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

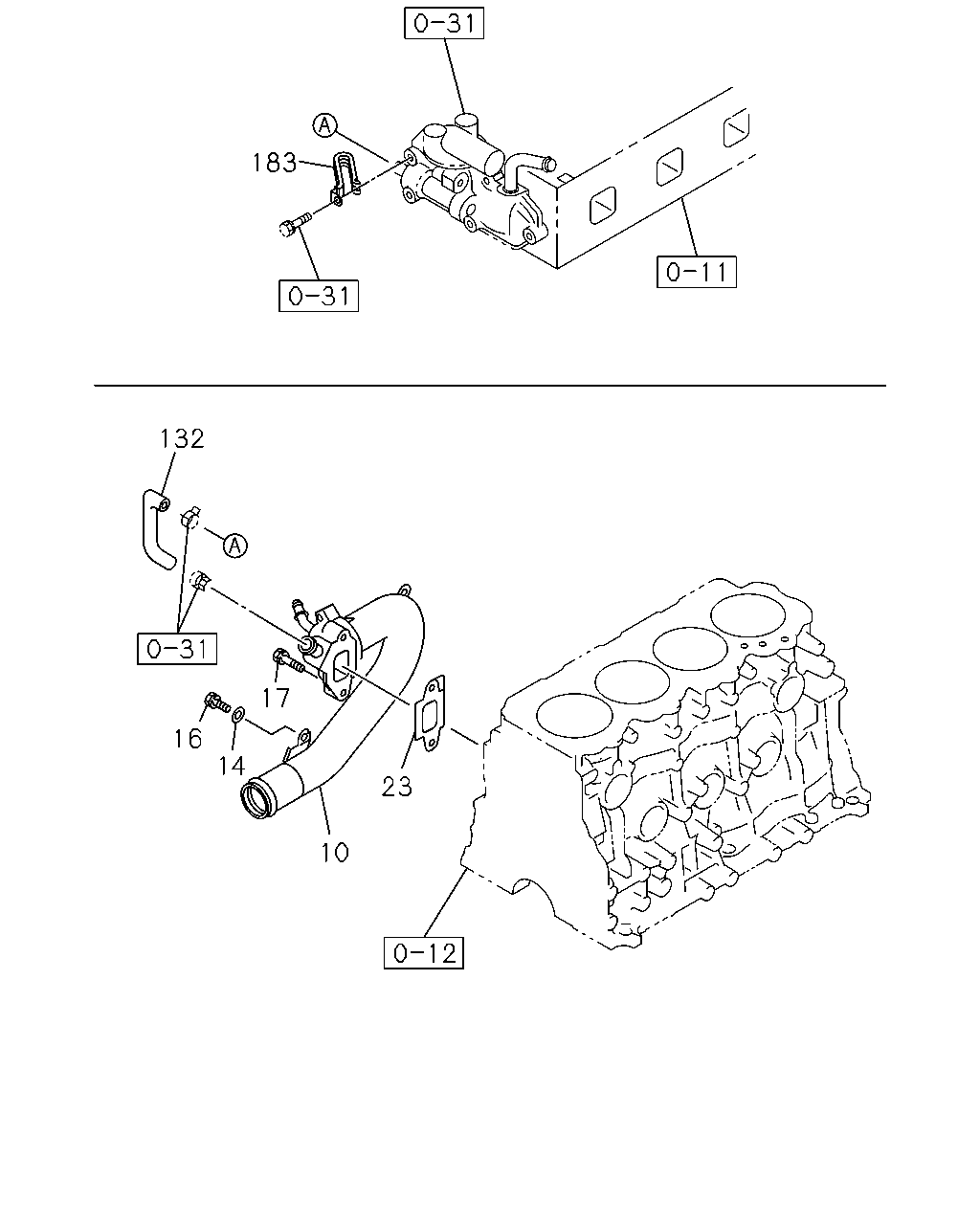

0-32 — WATER PIPING; ENGINE
(#33498) — 15 parça
183
132
17
16
14
23
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PIPE; SUCTION
M/T MSG 5 SPEED(M75)
8-97264-248-1
01
1
0610-0610
10
PIPE; SUCTION
8-97264-248-1
01
1
0611-
14
WASHER; PL,INL PIPE TO BRKT
M/T MSG 5 SPEED(M75) ID=8 OD=18 T=3
8-94174-537-0
01
1
0610-0610
14
WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3
8-94174-537-0
01
1
0611-
16
BOLT; INL PIPE
M/T MSG 5 SPEED(M75) M8X20 FLANGE
0-28050-820-0
01
1
0610-0610
16
BOLT; INL PIPE
M8X20 FLANGE
0-28050-820-0
01
1
0611-
17
BOLT; SUCTION PIPE
M/T MSG 5 SPEED(M75) M8X50 W/LK WASHER
0-50540-850-0
02
1
0610-0610
17
BOLT; SUCTION PIPE
M8X50 W/LK WASHER
0-50540-850-0
02
1
0611-
23
GASKET; SUCTION PIPE TO BLOCK
M/T MSG 5 SPEED(M75) THA
8-97943-089-0
01
1
0610-0610
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0611-
132
HOSE; WATER PIPE
M/T MSG 5 SPEED(M75) THA
8-97910-064-0
01
1
0610-0610
132
HOSE; WATER PIPE
THA
8-97910-064-0
01
1
0611-
183
CLIP; VACUUM HOSE
M/T MSG 5 SPEED(M75) ID=12 B=14 ID=8.5
5-09700-350-0
01
1
0610-0610
183
CLIP; VACUUM HOSE
ID=12 B=14 ID=8.5
5-09700-350-0
01
1
0611-0801
183
CLIP; VACUUM HOSE
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
0802-
