51128 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

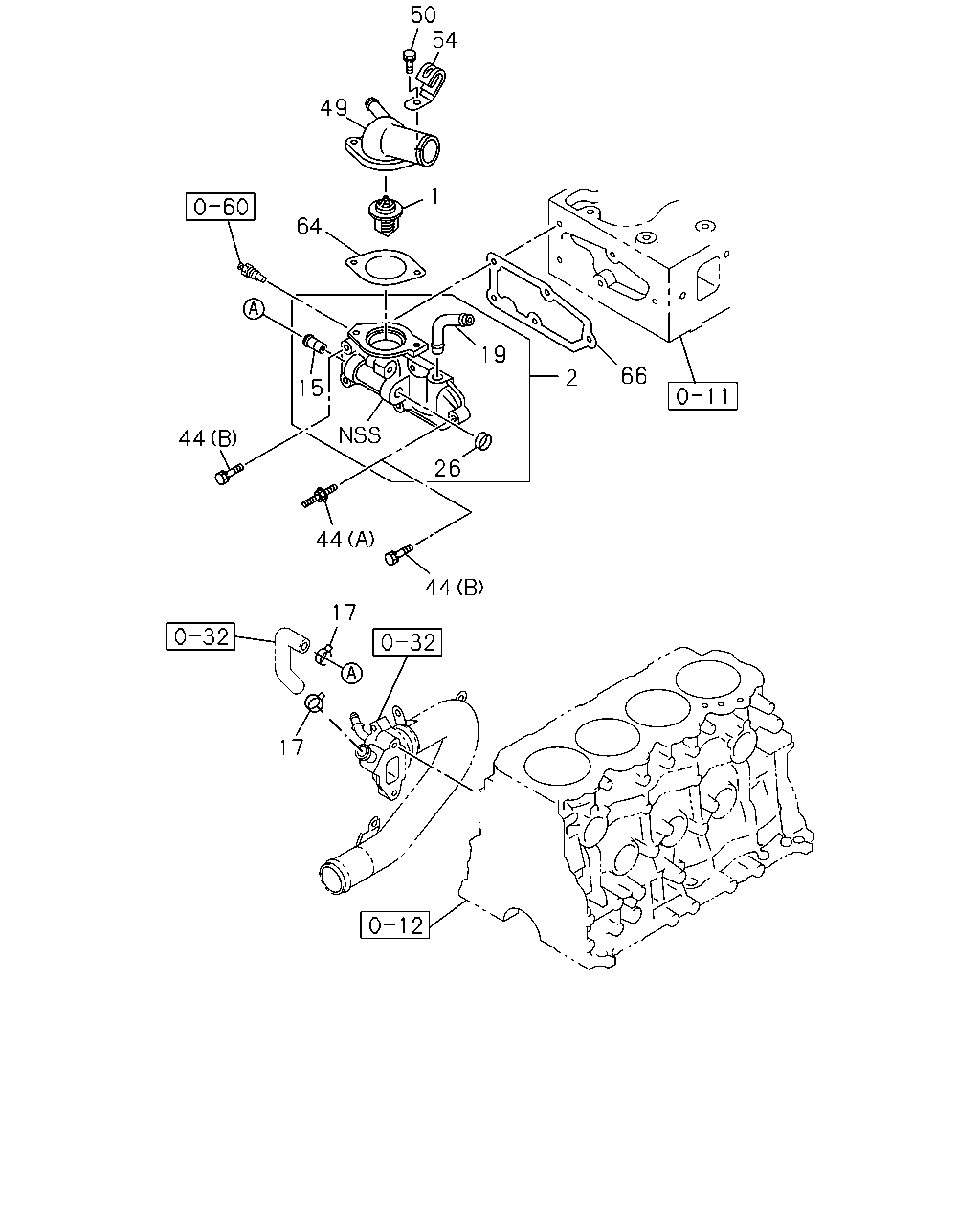

0-31 — THERMOSTAT AND HOUSING
(#33497) — 26 parça
50
54
49
1
64
19
66
2
15
44
26
44
44
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
M/T MSG 5 SPEED(M75) 82 CELSIUS THA
8-97361-770-0
01
1
0610-0610
1
THERMOSTAT
82 CELSIUS THA
8-97361-770-0
01
1
0611-
2
HOUSING; THERMOSTAT
A/T AISIN(RMD)
8-97379-305-0
01
1
0611-
2
HOUSING; THERMOSTAT
M/T MSG 5 SPEED(M75) THA
8-97916-700-0
01
1
0610-
15
PIPE; BYPASS
A/T AISIN(RMD)
8-94343-211-1
01
1
0611-
15
PIPE; BYPASS
M/T MSG 5 SPEED(M75) THA
8-97910-083-0
01
1
0610-
17
CLIP; WATER HOSE
M/T MSG 5 SPEED(M75) ID=20.8 THA
8-97944-127-0
02
1
0610-0610
17
CLIP; WATER HOSE
ID=20.8 THA
8-97944-127-0
02
1
0611-
19
PIPE; HSG TO HTR
A/T AISIN(RMD) THA
8-94478-870-1
01
1
0611-
19
PIPE; HSG TO HTR
M/T MSG 5 SPEED(M75) THA
8-97910-082-0
01
1
0610-
26
CUP; SEALING,VLV,VENTILATION
M/T MSG 5 SPEED(M75) OD=18
5-11219-008-0
02
1
0610-
26
CUP; SEALING,VLV,VENTILATION
A/T AISIN(RMD) OD=18
5-11219-008-0
01
1
0611-
44
BOLT; HSG TO HD
M/T MSG 5 SPEED(M75) (B) M8X30 W/LK WASHER
0-50540-830-0
04
1
0610-0610
44
BOLT; HSG TO HD
(B) M8X30 W/LK WASHER
0-50540-830-0
04
1
0611-
44
BOLT; HSG TO HD
M/T MSG 5 SPEED(M75) (A) M8X28,M8X34 L=69
8-94479-011-1
01
1
0610-0610
44
BOLT; HSG TO HD
(A) M8X28,M8X34 L=69
8-94479-011-1
01
1
0611-
49
PIPE; WATER OUTLET
M/T MSG 5 SPEED(M75) THA
8-97921-733-0
01
1
0610-0610
49
PIPE; WATER OUTLET
THA
8-97921-733-0
01
1
0611-
50
BOLT; OUTLET PIPE
M/T MSG 5 SPEED(M75) M8X30 W/LK&PL WASHER
0-50640-830-0
02
1
0610-0610
50
BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50640-830-0
02
1
0611-
54
CLIP; THERMO SWITCH,OUTLET PIPE
M/T MSG 5 SPEED(M75) ID=8.5 THA
8-97912-605-0
01
1
0610-0610
54
CLIP; THERMO SWITCH,OUTLET PIPE
ID=8.5 THA
8-97912-605-0
01
1
0611-
64
GASKET; OUTLET PIPE TO HSG
M/T MSG 5 SPEED(M75) THA
8-97943-088-0
01
1
0610-0610
64
GASKET; OUTLET PIPE TO HSG
THA
8-97943-088-0
01
1
0611-
66
GASKET; THERMOSTAT HSG
M/T MSG 5 SPEED(M75) THA
8-97920-513-1
01
1
0610-0610
66
GASKET; THERMOSTAT HSG
THA
8-97920-513-1
01
1
0611-
