◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#33494) — 29 parça

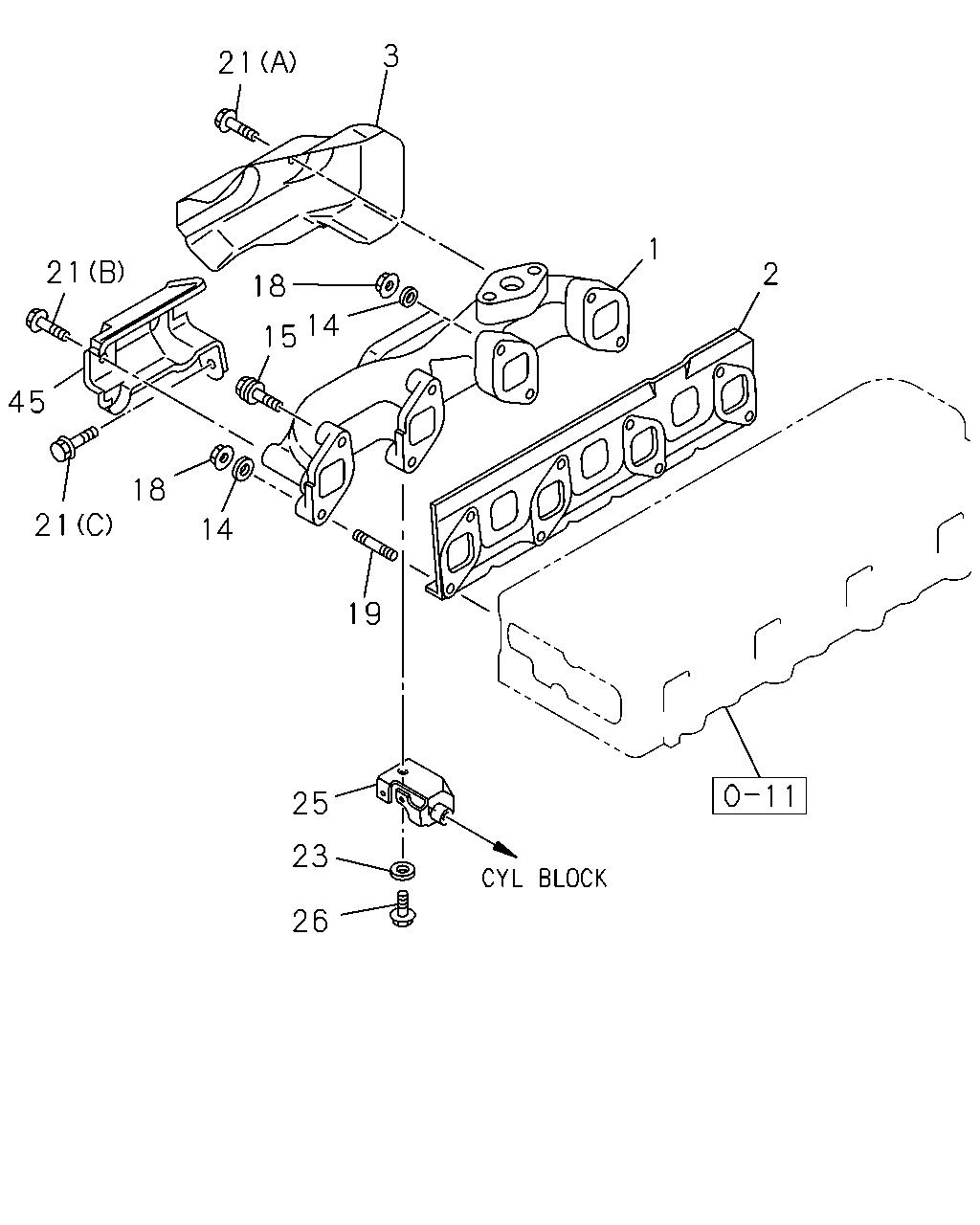

çizim 58843
3 21 1 21 2 18 14 15 45 18 21 14 19 25 23 26
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; EXHAUST
M/T MSG 5 SPEED(M75) THA 		8-97942-750-0 01 1 0610-0610
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0611-
2 GASKET; EXH MANIF TO HD
M/T MSG 5 SPEED(M75) THA 		8-97920-200-3 01 1 0610-0610
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0611-
3 PROTECTOR; HEAT,EXH MANIF
M/T MSG 5 SPEED(M75) 		8-97920-417-1 01 1 0610-0610
3 PROTECTOR; HEAT,EXH MANIF 8-97920-417-1 01 1 0611-
14 WASHER; PL,EXH MANIF
M/T MSG 5 SPEED(M75) ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610-0610
14 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0611-
15 BOLT; EXH MANIF
M/T MSG 5 SPEED(M75) M8X35 W/PL WASHER & FLANGE THA 		8-97941-057-0 06 1 0610-0610
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE THA 		8-97941-057-0 06 1 0611-1011
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE PHI 		8-98136-186-0 06 1 1012-
18 NUT; EXH MANIF
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-208-0 02 1 0610-0610
18 NUT; EXH MANIF
M8 FLANGE 		0-91180-208-0 02 1 0611-
19 STUD; MANIF TO CYL HD
M/T MSG 5 SPEED(M75) M8X35 L=46 		8-97378-065-0 02 1 0610-0610
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0611-
21 BOLT; HEAT PROTECTOR
M/T MSG 5 SPEED(M75) (B) M6X12 FLANGE 		0-28050-612-0 01 1 0610-0610
21 BOLT; HEAT PROTECTOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0611-
21 BOLT; HEAT PROTECTOR
M/T MSG 5 SPEED(M75) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0610-0610
21 BOLT; HEAT PROTECTOR
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0611-
21 BOLT; HEAT PROTECTOR
M/T MSG 5 SPEED(M75) (C) M8X16 FLANGE 		0-28450-816-0 01 1 0610-0610
21 BOLT; HEAT PROTECTOR
(C) M8X16 FLANGE 		0-28450-816-0 01 1 0611-
23 WASHER; PL EXH MANIF BRKT
M/T MSG 5 SPEED(M75) ID=8.4 OD=18 		0-91614-608-0 01 1 0610-0610
23 WASHER; PL EXH MANIF BRKT
ID=8.4 OD=18 		0-91614-608-0 01 1 0611-
25 BRACKET; EXH MANIF
M/T MSG 5 SPEED(M75) 		8-97188-185-1 01 1 0610-0610
25 BRACKET; EXH MANIF 8-97188-185-1 01 1 0611-
26 BOLT; BRKT TO EXH MANIF
M/T MSG 5 SPEED(M75) M8X14 FLANGE 		8-97378-075-0 01 1 0610-0610
26 BOLT; BRKT TO EXH MANIF
M8X14 FLANGE 		8-97378-075-0 01 1 0611-
45 PROTECTOR; HEAT,MANIF,RR
M/T MSG 5 SPEED(M75) 		8-97920-418-1 01 1 0610-0610
45 PROTECTOR; HEAT,MANIF,RR 8-97920-418-1 01 1 0611-
