0-25 — INLET MANIFOLD (#33493) — 26 parça

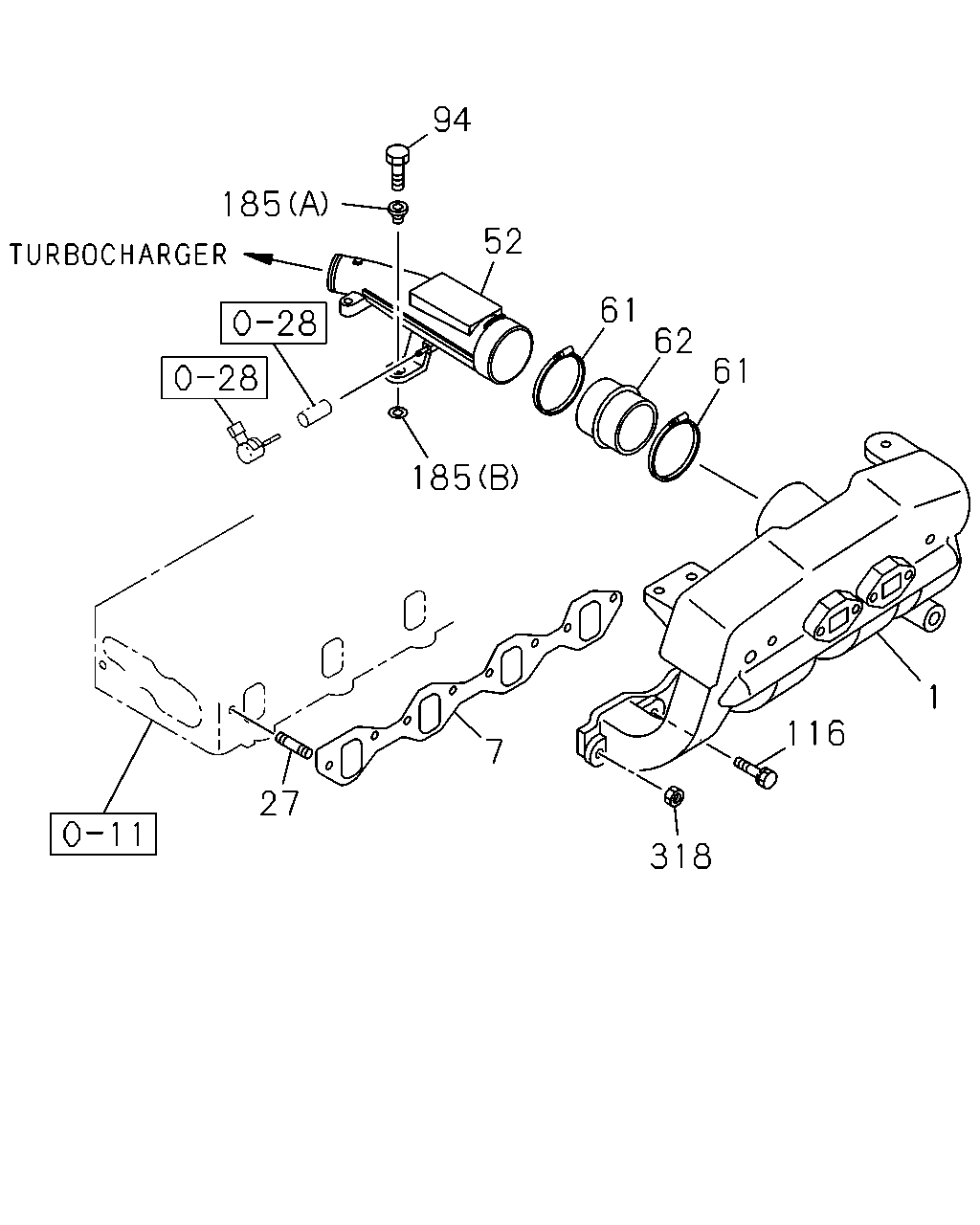

çizim 57556
94 185 52 61 62 61 185 1 116 7 27 318
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL
M/T MSG 5 SPEED(M75) 		8-98022-000-0 01 1 0610-0610
1 MANIFOLD; INL 8-98022-000-0 01 1 0611-1505
1 MANIFOLD; INL
PHI 		8-97520-922-0 01 1 1506-
7 GASKET; INL MANIF TO HD
M/T MSG 5 SPEED(M75) THA 		8-97920-514-1 01 1 0610-0610
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0611-
27 STUD; INL MANIF
M/T MSG 5 SPEED(M75) M8X25 L=37 		0-41010-825-0 02 1 0610-0610
27 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 02 1 0611-
52 PIPE; INL
M/T MSG 5 SPEED(M75) THA 		8-97942-925-0 01 1 0610-0610
52 PIPE; INL
THA 		8-97942-925-0 01 1 0611-
61 CLIP; CONNECTOR HOSE
M/T MSG 5 SPEED(M75) ID=65-82 		8-97131-942-0 02 1 0610-0610
61 CLIP; CONNECTOR HOSE
ID=65-82 		8-97131-942-0 02 1 0611-
62 HOSE; CONNECTOR
M/T MSG 5 SPEED(M75) 		8-94386-164-1 01 1 0610-0610
62 HOSE; CONNECTOR 8-94386-164-2 01 1 0611-1408
62 HOSE; CONNECTOR
PHI 		8-97520-600-0 01 1 1409-
94 BOLT
M/T MSG 5 SPEED(M75) M8X30 W/LK WASHER 		0-50540-830-0 02 1 0610-0610
94 BOLT
M8X30 W/LK WASHER 		0-50540-830-0 02 1 0611-
116 BOLT; MANIF TO INL PIPE
M/T MSG 5 SPEED(M75) M8X25 FLANGE 		0-28050-825-0 04 1 0610-0610
116 BOLT; MANIF TO INL PIPE
M8X25 FLANGE 		0-28050-825-0 04 1 0611-
116 BOLT; MANIF TO INL PIPE
M/T MSG 5 SPEED(M75) M8X30 FLANGE 		0-28050-830-0 02 1 0610-0610
116 BOLT; MANIF TO INL PIPE
M8X30 FLANGE 		0-28050-830-0 02 1 0611-
185 RUBBER; MTG,INL MANIF,UPR
M/T MSG 5 SPEED(M75) (A) THA 		8-97910-200-0 02 1 0610-0610
185 RUBBER; MTG,INL MANIF,UPR
(A) THA 		8-97910-200-0 02 1 0611-
185 RUBBER; MTG,INL MANIF,UPR
M/T MSG 5 SPEED(M75) (B) ID=12 OD=24 T=4.5 THA 		8-97912-693-1 02 1 0610-0610
185 RUBBER; MTG,INL MANIF,UPR
(B) ID=12 OD=24 T=4.5 THA 		8-97912-693-1 02 1 0611-
318 NUT; INL MANIF
M/T MSG 5 SPEED(M75) M8 FLANGE PHI 		8-97943-102-0 02 1 0610-0610
318 NUT; INL MANIF
M8 FLANGE PHI 		8-97943-102-0 02 1 0611-
