Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

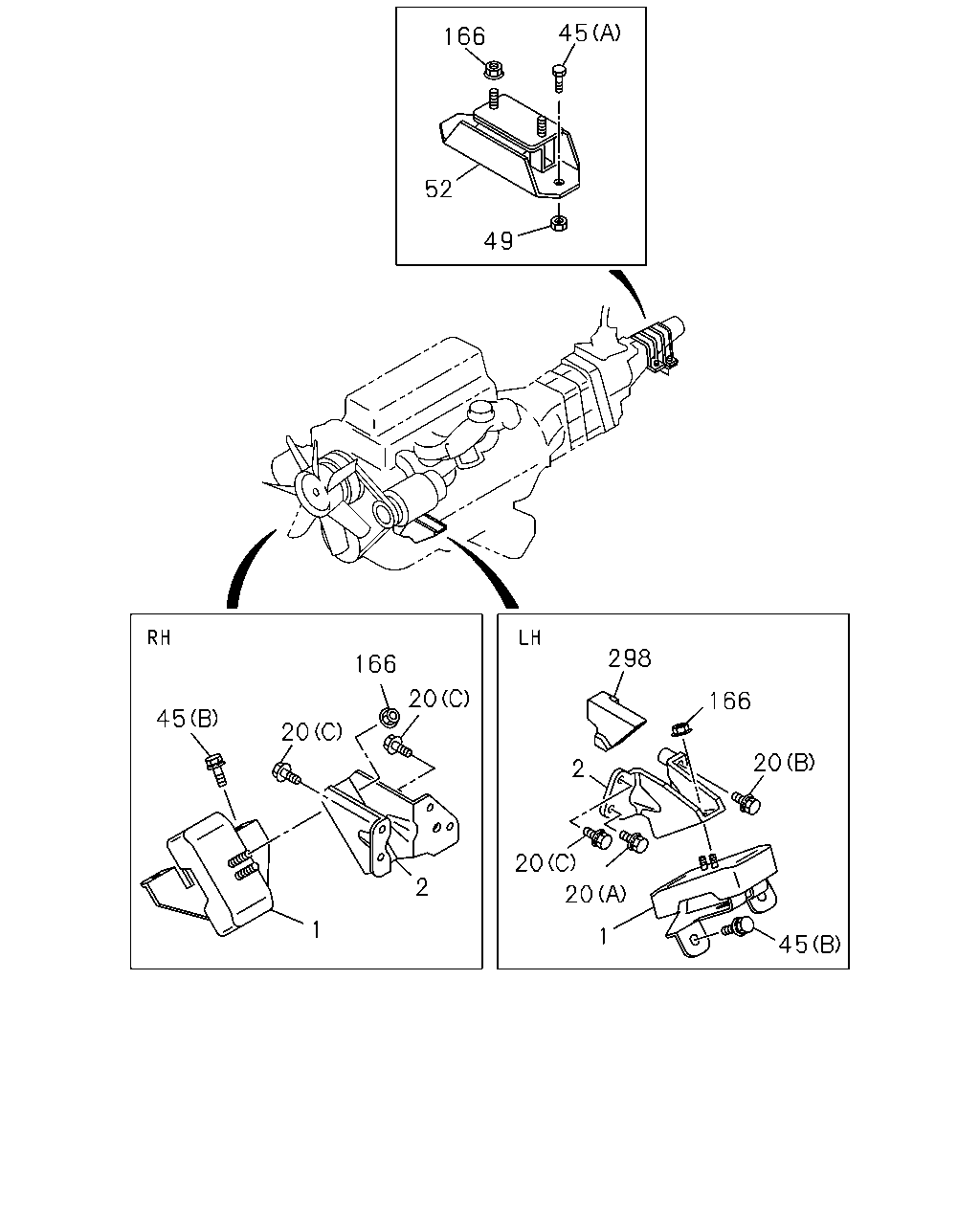

0-22 — ENGINE MOUNTING
(#33492) — 27 parça
45
166
52
49
298
166
20
166
45
20
20
2
20
2
20
1
1
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
M/T MSG 5 SPEED(M75) THA
8-97916-331-0
01
1
0610-0610
1
RUBBER; ENG FOOT,FRT
THA
8-97916-331-0
01
1
0611-
1
RUBBER; ENG FOOT,FRT
M/T MSG 5 SPEED(M75) THA
8-97916-330-0
01
1
0610-0610
1
RUBBER; ENG FOOT,FRT
THA
8-97916-330-0
01
1
0611-
2
FOOT; ENG
M/T MSG 5 SPEED(M75) TRM THA
8-97910-109-0
01
1
0610-0610
2
FOOT; ENG
TRM THA
8-97910-109-0
01
1
0611-
2
FOOT; ENG
M/T MSG 5 SPEED(M75) TRM THA
8-97910-108-0
01
1
0610-0610
2
FOOT; ENG
TRM THA
8-97910-108-0
01
1
0611-
20
BOLT; ENG FOOT
M/T MSG 5 SPEED(M75) (C) M10X22 W/LK WASHER
0-50041-022-0
06
1
0610-0610
20
BOLT; ENG FOOT
(C) M10X22 W/LK WASHER
0-50041-022-0
06
1
0611-0909
20
BOLT; ENG FOOT
(C) M10X22 W/LK WASHER
0-50541-022-0
06
1
0910-
20
BOLT; ENG FOOT
M/T MSG 5 SPEED(M75) (B) M10X35 W/LK WASHER
0-50541-035-0
01
1
0610-0610
20
BOLT; ENG FOOT
(B) M10X35 W/LK WASHER
0-50541-035-0
01
1
0611-
20
BOLT; ENG FOOT
M/T MSG 5 SPEED(M75) (A) M14X25 W/LK WASHER
0-50541-425-0
01
1
0610-0610
20
BOLT; ENG FOOT
(A) M14X25 W/LK WASHER
0-50541-425-0
01
1
0611-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M10X28 W/LK WASHER
8-97035-564-0
04
1
0610-
45
BOLT; CUSHION RUBBER TO FRAME
M/T MSG 5 SPEED(M75) (A) M10X30 FLANGE
0-28651-030-0
02
1
0610-0610
45
BOLT; CUSHION RUBBER TO FRAME
(A) M10X30 FLANGE
0-28651-030-0
02
1
0611-
49
NUT; CUSHION RUBBER TO FRAME
M10 FLANGE
8-94126-973-0
02
1
0610-
52
RUBBER; CUSHION,ENG MTG,RR
M/T MSG 5 SPEED(M75)
8-94434-208-1
01
1
0610-0610
52
RUBBER; CUSHION,ENG MTG,RR
8-94434-208-1
01
1
0611-
166
NUT; SUPPORT RUBBER
M/T MSG 5 SPEED(M75) M10 FLANGE
0-91180-110-0
02
1
0610-0610
166
NUT; SUPPORT RUBBER
M10 FLANGE
0-91180-110-0
02
1
0611-
166
NUT; SUPPORT RUBBER
M/T MSG 5 SPEED(M75) M10 FLANGE
0-91180-110-0
04
1
0610-0610
166
NUT; SUPPORT RUBBER
M10 FLANGE
0-91180-110-0
04
1
0611-
298
RUBBER; SPACE,ENG FOOT
M/T MSG 5 SPEED(M75)
8-97231-523-0
01
1
0610-0610
298
RUBBER; SPACE,ENG FOOT
8-97231-523-0
01
1
0611-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
