0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#33491) — 62 parça

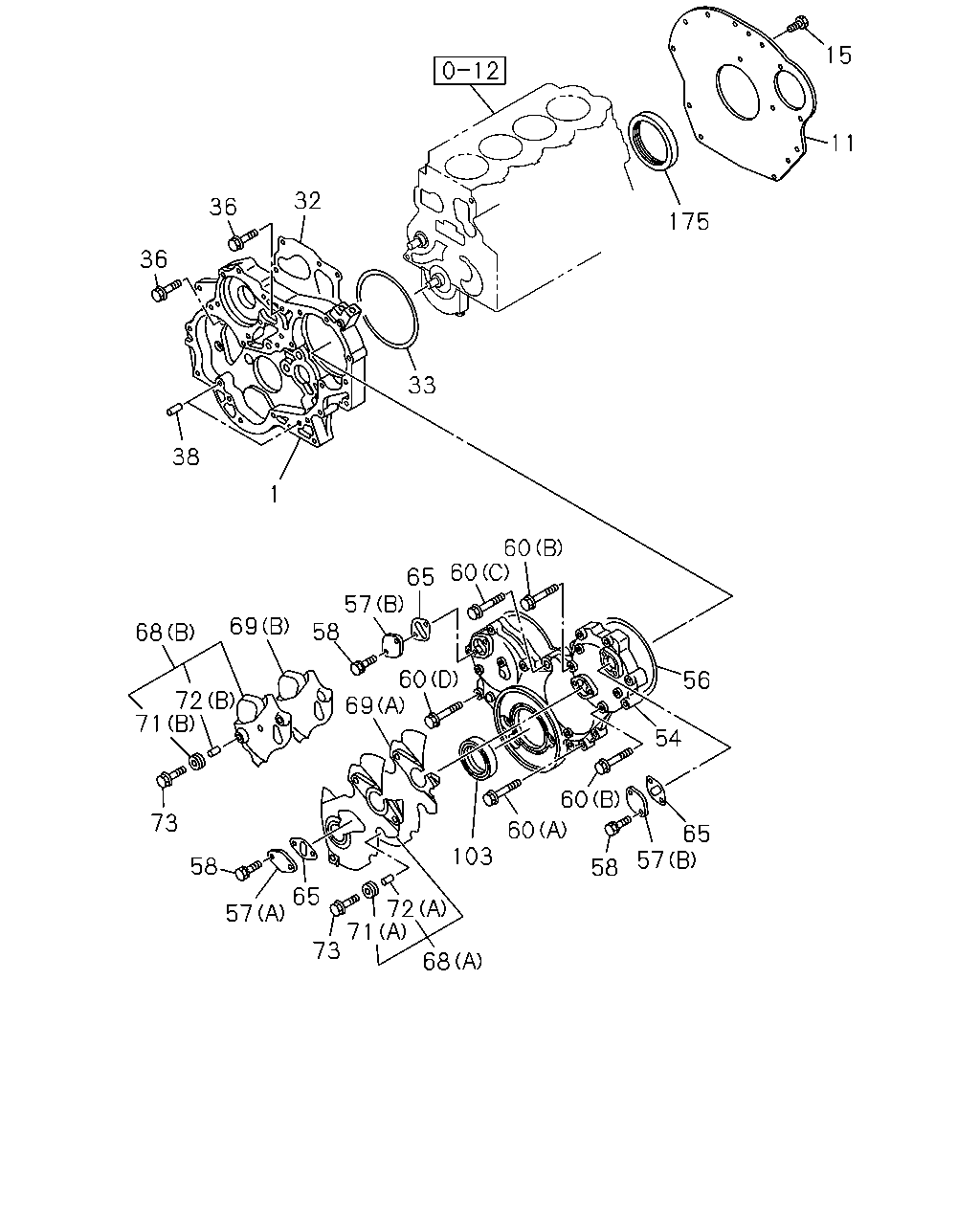

çizim 13682
15 11 32 36 175 36 33 38 1 60 60 65 57 58 69 68 60 56 72 71 69 54 60 73 60 65 57 103 58 58 65 72 71 73 57 68
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TIMING GEAR
M/T MSG 5 SPEED(M75) 		8-97306-429-1 01 1 0610-0610
1 CASE; TIMING GEAR 8-97306-429-1 01 1 0611-
11 PLATE; RR,C/BL
M/T MSG 5 SPEED(M75) 		8-97912-556-0 01 1 0610-0610
11 PLATE; RR,C/BL 8-97912-556-0 01 1 0611-
15 BOLT; RR PLATE TO C/BL
M/T MSG 5 SPEED(M75) M12X25 THA 		8-97916-324-0 03 1 0610-0610
15 BOLT; RR PLATE TO C/BL
M12X25 THA 		8-97916-324-0 03 1 0611-
32 GASKET; GEAR CASE TO C/BL
M/T MSG 5 SPEED(M75) THA 		8-97920-345-1 01 1 0610-0610
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0611-
33 GASKET; BRKT TO CASE
M/T MSG 5 SPEED(M75) THA 		8-97912-581-0 01 1 0610-0610
33 GASKET; BRKT TO CASE
THA 		8-97912-581-0 01 1 0611-
36 BOLT; GEAR CASE
M/T MSG 5 SPEED(M75) M8X20 W/LK WASHER 		0-50040-820-0 06 1 0610-0610
36 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50040-820-0 06 1 0611-0909
36 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 0910-
36 BOLT; GEAR CASE
M/T MSG 5 SPEED(M75) M8X45 W/LK WASHER 		0-50040-845-0 02 1 0610-0610
36 BOLT; GEAR CASE
M8X45 W/LK WASHER 		0-50040-845-0 02 1 0611-0909
36 BOLT; GEAR CASE
M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910-
38 PIN; GEAR CASE COVER
M/T MSG 5 SPEED(M75) OD=10 L=20 		9-08151-020-0 02 1 0610-0610
38 PIN; GEAR CASE COVER
OD=10 L=20 		9-08151-020-0 02 1 0611-
54 COVER; GEAR CASE
M/T MSG 5 SPEED(M75) 		8-97306-431-2 01 1 0610-0610
54 COVER; GEAR CASE 8-97306-431-2 01 1 0611-
56 GASKET; GEAR CASE TO COVER
M/T MSG 5 SPEED(M75) THA 		8-97287-694-0 01 1 0610-0610
56 GASKET; GEAR CASE TO COVER
THA 		8-97287-694-0 01 1 0611-
57 COVER; TIMING CHECK HOLE
M/T MSG 5 SPEED(M75) (A) 		8-97353-706-1 01 1 0610-0610
57 COVER; TIMING CHECK HOLE
(A) 		8-97353-706-2 01 1 0611-1506
57 COVER; TIMING CHECK HOLE
(A) PHI 		8-97520-918-0 01 1 1507-
57 COVER; TIMING CHECK HOLE
M/T MSG 5 SPEED(M75) (B) THA 		8-97912-582-0 02 1 0610-0610
57 COVER; TIMING CHECK HOLE
(B) THA 		8-97912-582-0 02 1 0611-
58 BOLT; CHECK HOLE COVER
M/T MSG 5 SPEED(M75) M6X12 FLANGE 		0-28050-612-0 06 1 0610-0610
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE 		0-28050-612-0 06 1 0611-
60 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) (A) M8X30 FLANGE 		0-28050-830-0 08 1 0610-0610
60 BOLT; COVER TO CASE
(A) M8X30 FLANGE 		0-28050-830-0 08 1 0611-
60 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) (B) M8X70 W/LK WASHER 		0-50540-870-0 06 1 0610-0610
60 BOLT; COVER TO CASE
(B) M8X70 W/LK WASHER 		0-50540-870-0 06 1 0611-
60 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) (C) M12X55 HEX SOCKET 		0-58331-255-0 01 1 0610-0610
60 BOLT; COVER TO CASE
(C) M12X55 HEX SOCKET 		0-58331-255-0 01 1 0611-
60 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) (D) M8X58 FLANGE THA 		8-97920-481-0 01 1 0610-0610
60 BOLT; COVER TO CASE
(D) M8X58 FLANGE THA 		8-97920-481-0 01 1 0611-1011
60 BOLT; COVER TO CASE
(D) M8X58 FLANGE PHI 		8-98136-232-0 01 1 1012-
65 GASKET; COVER,TIMING CHECK HOLE
M/T MSG 5 SPEED(M75) THA 		8-97922-242-0 03 1 0610-0610
65 GASKET; COVER,TIMING CHECK HOLE
THA 		8-97922-242-0 03 1 0611-
68 COVER ASM; GEAR CASE COVER
M/T MSG 5 SPEED(M75) (A) 		8-97255-034-1 01 1 0610-0610
68 COVER ASM; GEAR CASE COVER
(A) 		8-97255-034-1 01 1 0611-
68 COVER ASM; GEAR CASE COVER
M/T MSG 5 SPEED(M75) (B) 		8-97943-086-0 01 1 0610-0610
68 COVER ASM; GEAR CASE COVER
(B) 		8-97943-086-0 01 1 0611-
69 SEAL; RUBBER,COVER TO COVER
M/T MSG 5 SPEED(M75) (B) 		8-97306-548-1 01 1 0610-0610
69 SEAL; RUBBER,COVER TO COVER
(B) 		8-97306-548-1 01 1 0611-
69 SEAL; RUBBER,COVER TO COVER
M/T MSG 5 SPEED(M75) (A) 		8-97329-009-0 01 1 0610-0610
69 SEAL; RUBBER,COVER TO COVER
(A) PHI 		8-97329-009-1 01 1 0611-
71 RUBBER; MTG,COVER
M/T MSG 5 SPEED(M75) (A) THA 		5-19389-002-0 03 1 0610-0610
71 RUBBER; MTG,COVER
(A) THA 		5-19389-002-0 03 1 0611-
71 RUBBER; MTG,COVER
M/T MSG 5 SPEED(M75) (B) THA 		8-97914-631-0 03 1 0610-0610
71 RUBBER; MTG,COVER
(B) THA 		8-97914-631-0 03 1 0611-
72 BUSHING; SPACER,COVER TO COVER
M/T MSG 5 SPEED(M75) (A) THA 		5-19389-009-0 03 1 0610-0610
72 BUSHING; SPACER,COVER TO COVER
(A) THA 		5-19389-009-0 03 1 0611-
72 BUSHING; SPACER,COVER TO COVER
M/T MSG 5 SPEED(M75) (B) THA 		8-97914-630-0 03 1 0610-0610
72 BUSHING; SPACER,COVER TO COVER
(B) THA 		8-97914-630-1 03 1 0611-
73 BOLT; COVER FIX
M/T MSG 5 SPEED(M75) M6X16 FLANGE 		0-28050-616-0 05 1 0610-0610
73 BOLT; COVER FIX
M6X16 FLANGE 		0-28050-616-0 05 1 0611-
103 SEAL; OIL,CR/SHF,FRT
M/T MSG 5 SPEED(M75) 		8-97351-704-0 01 1 0610-0610
103 SEAL; OIL,CR/SHF,FRT 8-97351-704-0 01 1 0611-
175 SEAL; OIL,CR/SHF,RR
M/T MSG 5 SPEED(M75) ID=95 OD=118 		8-97071-561-1 01 1 0610-0610
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 		8-97071-561-1 01 1 0611-
