0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#33490) — 61 parça

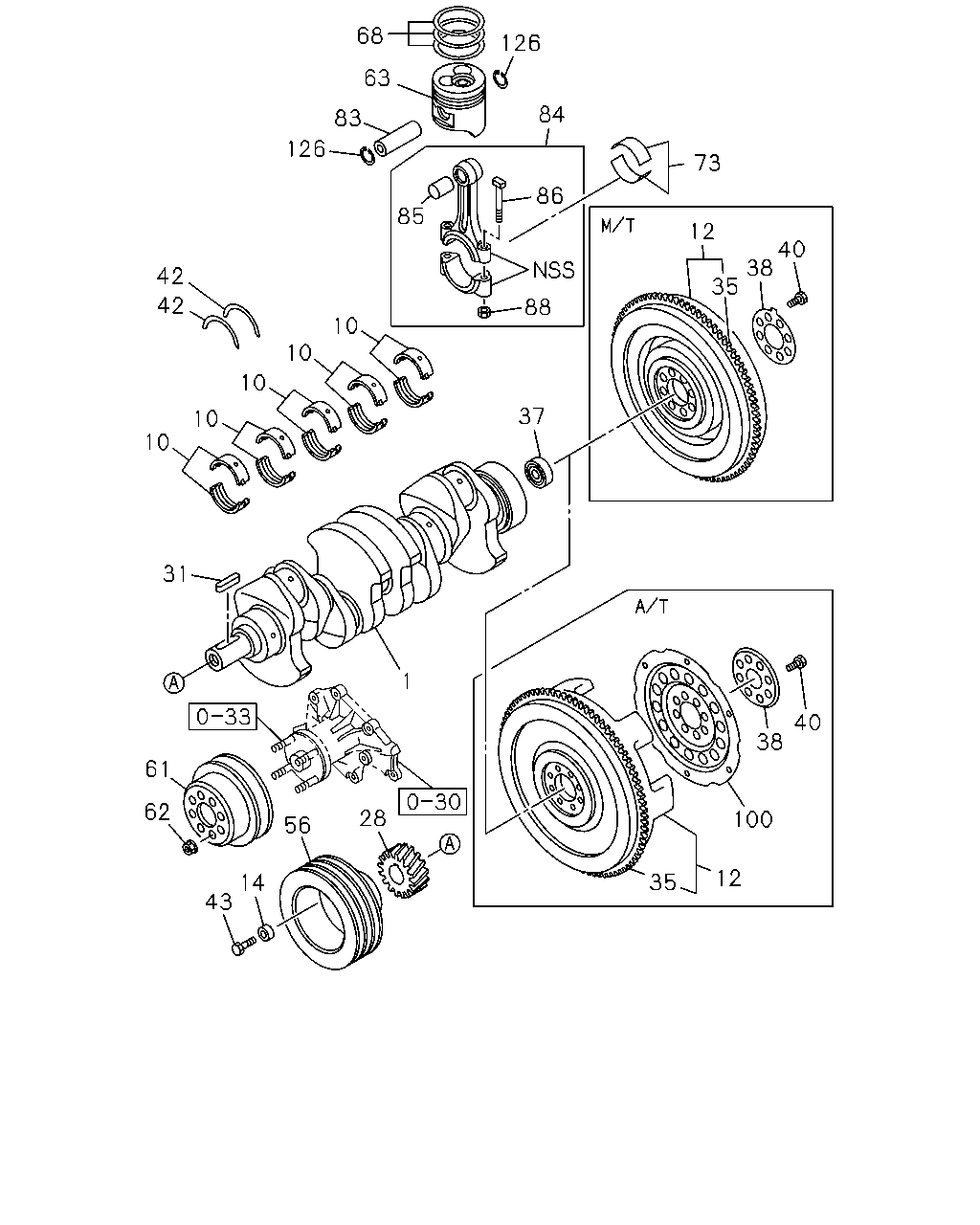

çizim 13637
68 63 83 126 126 84 86 85 88 73 12 35 38 40 37 10 10 10 10 10 42 42 31 1 28 56 14 43 62 61 35 12 100 38 40
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT
OR 		8-97190-927-1 01 1 1210-
1 CRANKSHAFT
M/T MSG 5 SPEED(M75) PHI 		8-97943-034-0 01 1 0610-0610
1 CRANKSHAFT
OR PHI 		8-97943-034-0 01 1 0611-
10 METAL SET; CRANKSHAFT,STANDARD
M/T MSG 5 SPEED(M75) GREEN IDN 		8-97958-912-0 05 1 0610-0610
10 METAL SET; CRANKSHAFT,STANDARD
GREEN IDN 		8-97958-912-0 05 1 0611-
10 METAL SET; CRANKSHAFT,STANDARD
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97958-913-0 05 1 0610-0610
10 METAL SET; CRANKSHAFT,STANDARD
BLACK IDN 		8-97958-913-0 05 1 0611-
10 METAL SET; CRANKSHAFT,STANDARD
M/T MSG 5 SPEED(M75) BLUE IDN 		8-97958-914-0 05 1 0610-0610
10 METAL SET; CRANKSHAFT,STANDARD
BLUE IDN 		8-97958-914-0 05 1 0611-
10 METAL SET; CRANKSHAFT,STANDARD
M/T MSG 5 SPEED(M75) BROWN IDN 		8-97958-915-0 05 1 0610-0610
10 METAL SET; CRANKSHAFT,STANDARD
BROWN IDN 		8-97958-915-0 05 1 0611-
10 METAL SET; CRANKSHAFT,STANDARD
M/T MSG 5 SPEED(M75) YELLOW IDN 		8-97958-916-0 05 1 0610-0610
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW IDN 		8-97958-916-0 05 1 0611-
12 FLYWHEEL
A/T AISIN(RMD) IMA 		8-97912-517-1 01 1 0611-
12 FLYWHEEL
M/T MSG 5 SPEED(M75) THA 		8-97912-518-1 01 1 0610-
14 WASHER; PULLEY DAMPER
M/T MSG 5 SPEED(M75) ID=16.5 OD=45 T=12 		5-09503-127-0 01 1 0610-0610
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0611-
28 GEAR; CR/SHF
M/T MSG 5 SPEED(M75) Z=30 THA 		8-97942-751-0 01 1 0610-0610
28 GEAR; CR/SHF
Z=30 THA 		8-97942-751-0 01 1 0611-
31 KEY; FEATHER,CR/SHF
OR 		8-94201-641-0 01 1 1210-
31 KEY; FEATHER,CR/SHF
M/T MSG 5 SPEED(M75) 		9-08030-743-0 01 1 0610-0610
31 KEY; FEATHER,CR/SHF
OR 		9-08030-743-0 01 1 0611-
35 GEAR; RING
M/T MSG 5 SPEED(M75) Z=108 THA 		8-97912-516-1 01 1 0610-0610
35 GEAR; RING
Z=108 THA 		8-97912-516-1 01 1 0611-
37 BEARING; PILOT,TOP GEAR SHAFT
M/T MSG 5 SPEED(M75) NACHI THA 		8-97922-552-0 01 1 0610-
38 WASHER; FLYWHEEL
A/T AISIN(RMD) 		8-97038-939-1 01 1 0611-
38 WASHER; FLYWHEEL
M/T MSG 5 SPEED(M75) THA 		8-97912-522-0 01 1 0610-
40 BOLT; FLYWHEEL
A/T AISIN(RMD) M13X78 		8-97080-561-1 08 1 0611-
40 BOLT; FLYWHEEL
M/T MSG 5 SPEED(M75) M13X36 THA 		8-97941-069-0 08 1 0610-
42 WASHER; THRUST,CR/SHF
M/T MSG 5 SPEED(M75) PHI 		8-97957-095-0 02 1 0610-0610
42 WASHER; THRUST,CR/SHF
PHI 		8-97957-095-0 02 1 0611-
43 BOLT; CR/SHF PULLEY
M/T MSG 5 SPEED(M75) M16X43 		5-09000-273-2 01 1 0610-0610
43 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0611-
56 PULLEY; CR/SHF DAMPER
M/T MSG 5 SPEED(M75) 3-GROOVE 		8-97306-533-5 01 1 0610-0610
56 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97306-533-5 01 1 0611-
61 PULLEY; FAN DRIVE
M/T MSG 5 SPEED(M75) THA 		8-97922-137-0 01 1 0610-0610
61 PULLEY; FAN DRIVE
THA 		8-97922-137-0 01 1 0611-
62 NUT; FAN PULLEY
M/T MSG 5 SPEED(M75) M6 FLANGE PHI 		8-97943-101-0 04 1 0610-0610
62 NUT; FAN PULLEY
M6 FLANGE PHI 		8-97943-101-0 04 1 0611-
63 PISTON
M/T MSG 5 SPEED(M75) GRADE=AX 		8-97942-987-0 04 1 0610-0610
63 PISTON
GRADE=AX 		8-97942-987-0 04 1 0611-
63 PISTON
M/T MSG 5 SPEED(M75) GRADE=CX 		8-97942-988-0 04 1 0610-0610
63 PISTON
GRADE=CX 		8-97942-988-0 04 1 0611-
68 RING SET; PISTON,STANDARD
M/T MSG 5 SPEED(M75) 		8-94247-867-1 04 1 0610-0610
68 RING SET; PISTON,STANDARD 8-94247-867-2 04 1 0611-
73 METAL SET; CONN ROD,STANDARD
M/T MSG 5 SPEED(M75) IDN 		8-97959-005-0 04 1 0610-0610
73 METAL SET; CONN ROD,STANDARD
IDN 		8-97959-005-0 04 1 0611-
83 PIN; PISTON
M/T MSG 5 SPEED(M75) THA 		8-97942-732-0 04 1 0610-0610
83 PIN; PISTON
THA 		8-97942-732-0 04 1 0611-
84 ROD ASM; CONN
M/T MSG 5 SPEED(M75) THA 		8-97943-031-2 04 1 0610-0610
84 ROD ASM; CONN
THA 		8-97943-031-3 04 1 0611-
85 BUSHING; CONNROD
M/T MSG 5 SPEED(M75) AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0610-0610
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97288-551-0 04 1 0611-0706
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. THA 		8-97352-889-0 04 1 0707-
86 BOLT; CONNROD
M/T MSG 5 SPEED(M75) M11X59 		5-12235-009-0 08 1 0610-0610
86 BOLT; CONNROD
M11X59 		5-12235-009-0 08 1 0611-
88 NUT; CONNROD
M/T MSG 5 SPEED(M75) M11 		5-09409-016-0 08 1 0610-0610
88 NUT; CONNROD
M11 		5-09409-016-0 08 1 0611-
100 PLATE; FLEX
A/T AISIN(RMD) 		8-97118-308-0 01 1 0611-
126 RING; SNAP,PISTON PIN
M/T MSG 5 SPEED(M75) ID=33.9 		8-94133-969-0 08 1 0610-0610
126 RING; SNAP,PISTON PIN
ID=33.9 		8-94133-969-0 08 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
