Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20B - MANUAL TRANSMISSION ASM AND CASE
▶
2-20B — MANUAL TRANSMISSION ASM AND CASE
(#3349) — 31 parça
Tümü
A - RTO11613 M/T FULLER
B - RT11609A M/T FULLER
C - RTO11609B M/T FULLER
D - RTX11609B M/T FULLER
◀
[220B] NO.2 (22 parça)
[220B] NO.1 (9 parça)
▶
167
169
169
436
165
164
189
188
190
172
192
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
164
CONNECTOR; ELBOW
1-33619-290-0
02
1
9002-
●
●
●
●
165
ADAPTER; STRAIGHT
1-33619-291-0
02
1
9002-
●
●
●
●
167
BRACKET; CLIP,AIR TUBE
1-47465-769-0
01
1
9002-
●
●
●
●
169
BRACKET; CLIP,PIPE HOSE
(A)
1-47475-633-0
01
1
9002-
●
●
●
●
169
BRACKET; CLIP,PIPE HOSE
10PD1 STD ENG(40L) (B) T=3.2
1-46147-083-0
01
1
9002-
●
●
169
BRACKET; CLIP,PIPE HOSE
10PD1 STD ENG(40L) (B)
1-47475-689-0
01
1
9002-
●
●
172
GASKET; AIR HOSE
ID=11 OD=18
9-09572-510-0
02
1
9307-
●
●
188
CLIP; PIPE,BRKT
1-09700-716-0
01
1
9002-9007
●
●
●
●
188
CLIP; PIPE,BRKT
1-09701-085-0
01
1
9008-9306
●
●
●
●
188
CLIP; PIPE,BRKT
ID=18 L=50
1-09701-072-0
01
1
9307-9412
●
●
188
CLIP; PIPE,BRKT
ID=19 L=50
9-09525-886-0
01
1
9501-
●
●
189
BOLT; PIPE CLIP
M8X16 W/LK WASHER
9-01910-816-0
01
1
9002-9005
●
●
●
●
189
BOLT; PIPE CLIP
M8X16 W/LK WASHER
0-50040-816-0
01
1
9006-9302
●
●
●
●
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9303-
●
●
●
●
190
CLIP; BAND,CONT TUBE
L=250
5-09707-030-0
01
1
9002-
●
●
●
●
190
CLIP; BAND,CONT TUBE
L=140
5-09707-031-0
01
1
9002-9007
●
●
●
●
190
CLIP; BAND,CONT TUBE
L=140
5-09707-031-0
01
1
9002-9007
●
190
CLIP; BAND,CONT TUBE
L=140
5-09707-031-0
02
1
9008-
●
●
●
●
192
HOSE; FLEX,TRANS
6RB1 STD ENG(07L) L=480
0-07150-480-0
01
1
9002-
●
●
●
●
192
HOSE; FLEX,TRANS
10PD1 STD ENG(40L) L=650
0-07150-650-0
01
1
9002-
●
●
193
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9002-
●
●
●
●
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
9002-
●
●
●
●

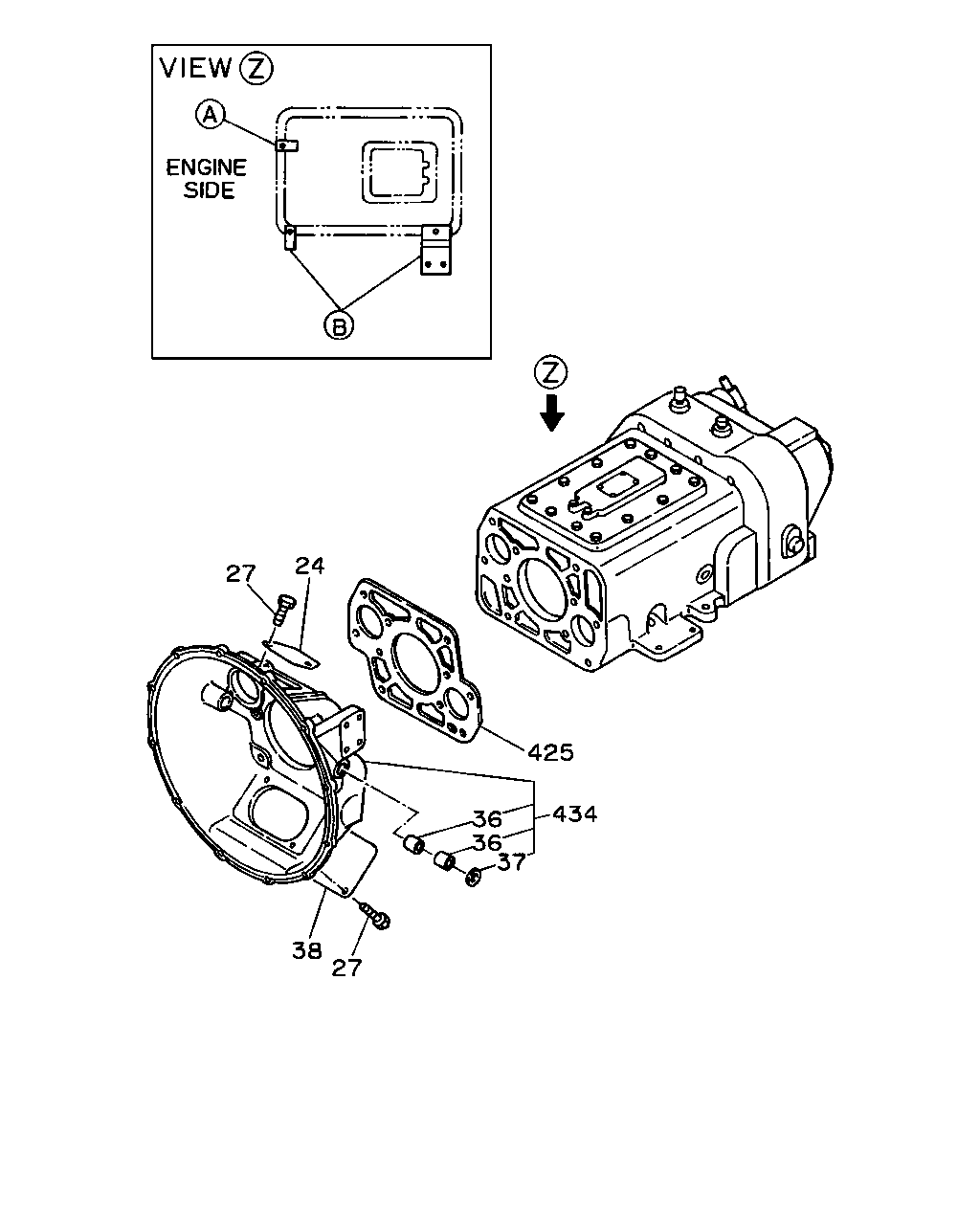

24
27
425
434
36
36
37
38
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
24
COVER; CHECK HOLE,DUST
1-31131-003-0
01
1
9002-
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
9-01900-816-0
04
1
9002-9204
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
9205-9205
●
●
●
●
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
9206-
●
●
●
●
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-181-0
04
1
9002-
●
●
●
●
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-215-0
02
1
9002-
●
●
●
●
38
COVER; CHECK HOLE,LWR
1-31131-014-0
01
1
9002-
●
●
●
●
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
9002-
●
●
●
●
434
HOUSING; CLU
1-31110-103-0
01
1
9002-
●
●
●
●
