0-14 — CAMSHAFT AND VALVE (#33489) — 84 parça

85 87 86 84 78 78 78 56 55 78 78 78 85 86 95 86 83 53 54 81 54 78 84 78 55 56 65 65 71 68 72 71 88 5 4 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	VALVE; INL M/T MSG 5 SPEED(M75) THA	8-97940-024-0	04	1	0610-0610
4	VALVE; INL THA	8-97940-024-0	04	1	0611-
5	VALVE; EXH M/T MSG 5 SPEED(M75) THA	8-97940-025-0	04	1	0610-0610
5	VALVE; EXH THA	8-97940-025-0	04	1	0611-
53	SHAFT; ROCKER ARM M/T MSG 5 SPEED(M75) THA	8-97915-833-0	01	1	0610-0610
53	SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0611-0802
53	SHAFT; ROCKER ARM THA	8-97036-197-0	01	1	0803-
54	WASHER; ROCKER SPR M/T MSG 5 SPEED(M75) ID=19.1 OD=23 THA	8-97915-840-0	06	1	0610-0610
54	WASHER; ROCKER SPR ID=19.1 OD=23 THA	8-97915-840-0	06	1	0611-0802
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0803-
55	PLUG; ROCKER SHAFT END M/T MSG 5 SPEED(M75) THA	8-97915-834-0	02	1	0610-0610
55	PLUG; ROCKER SHAFT END THA	8-97915-834-0	02	1	0611-0802
55	PLUG; ROCKER SHAFT END THA	9-12626-005-0	02	1	0803-
56	RING; SNAP,ROCKER ARM M/T MSG 5 SPEED(M75) ID=17.5	9-09180-019-0	02	1	0610-0610
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0611-
65	COLLAR; SPLIT M/T MSG 5 SPEED(M75)	5-12565-004-0	16	1	0610-0610
65	COLLAR; SPLIT	5-12565-004-0	16	1	0611-
68	SPRING; VLV M/T MSG 5 SPEED(M75) OD=30.6 THA	8-97912-651-0	08	1	0610-0610
68	SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0611-
71	SEAT; SPR M/T MSG 5 SPEED(M75) (A) OD=32.8	8-94133-731-2	08	1	0610-0610
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0611-
71	SEAT; SPR M/T MSG 5 SPEED(M75) (B) OD=34 THA	8-97912-652-0	08	1	0610-0610
71	SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0611-
72	SEAL; VLV GUIDE M/T MSG 5 SPEED(M75) THA	8-97921-229-0	08	1	0610-0610
72	SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0611-
78	ARM; ROCKER M/T MSG 5 SPEED(M75) THA	8-97915-831-1	08	1	0610-0610
78	ARM; ROCKER THA	8-97915-831-1	08	1	0611-0802
78	ARM; ROCKER THA	8-94152-344-0	08	1	0803-
81	SCREW; ADJ,ROCKER ARM M/T MSG 5 SPEED(M75) M8X30 THA	8-97915-832-0	08	1	0610-0610
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0611-0802
81	SCREW; ADJ,ROCKER ARM M8 L=30 THA	8-94152-283-1	08	1	0803-
83	NUT; ADJ SCREW,LK M/T MSG 5 SPEED(M75) M8	0-91111-508-0	08	1	0610-0610
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0611-
84	BRACKET; ROCKER SHAFT,INTER M/T MSG 5 SPEED(M75) THA	8-97915-836-1	04	1	0610-0610
84	BRACKET; ROCKER SHAFT,INTER THA	8-97915-836-1	04	1	0611-0802
84	BRACKET; ROCKER SHAFT,INTER THA	8-94152-345-1	04	1	0803-
85	BOLT; BRKT M/T MSG 5 SPEED(M75) (A) M10X60 L=82 THA	8-97915-839-0	02	1	0610-0610
85	BOLT; BRKT (A) M10X60 L=82 THA	8-97915-839-0	02	1	0611-0802
85	BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	0803-
85	BOLT; BRKT M/T MSG 5 SPEED(M75) (B) M10X60 L=104 THA	8-97915-841-0	01	1	0610-0610
85	BOLT; BRKT (B) M10X60 L=104 THA	8-97915-841-0	01	1	0611-0802
85	BOLT; BRKT (B) M8X37 & M10X60 L=104 THA	8-94437-493-1	01	1	0803-
86	WASHER; ROCKER ARM FIX M/T MSG 5 SPEED(M75) ID=10.5	9-09164-010-0	04	1	0610-0610
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0611-
87	BOLT; ROCKER SHAFT M/T MSG 5 SPEED(M75) M10X60 THA	8-97915-838-0	01	1	0610-0610
87	BOLT; ROCKER SHAFT M10X60 THA	8-97915-838-0	01	1	0611-0802
87	BOLT; ROCKER SHAFT M10X60 THA	8-94433-302-0	01	1	0803-
88	ROD; PUSH M/T MSG 5 SPEED(M75)	8-97378-496-0	08	1	0610-0610
88	ROD; PUSH	8-97378-496-0	08	1	0611-
89	TAPPET; VLV M/T MSG 5 SPEED(M75)	8-94438-305-1	08	1	0610-0610
89	TAPPET; VLV	8-94438-305-1	08	1	0611-
95	SPRING; ROCKER SHAFT M/T MSG 5 SPEED(M75) THA	8-97915-837-1	03	1	0610-0610
95	SPRING; ROCKER SHAFT THA	8-97915-837-1	03	1	0611-0802
95	SPRING; ROCKER SHAFT THA	8-94341-905-0	03	1	0803-

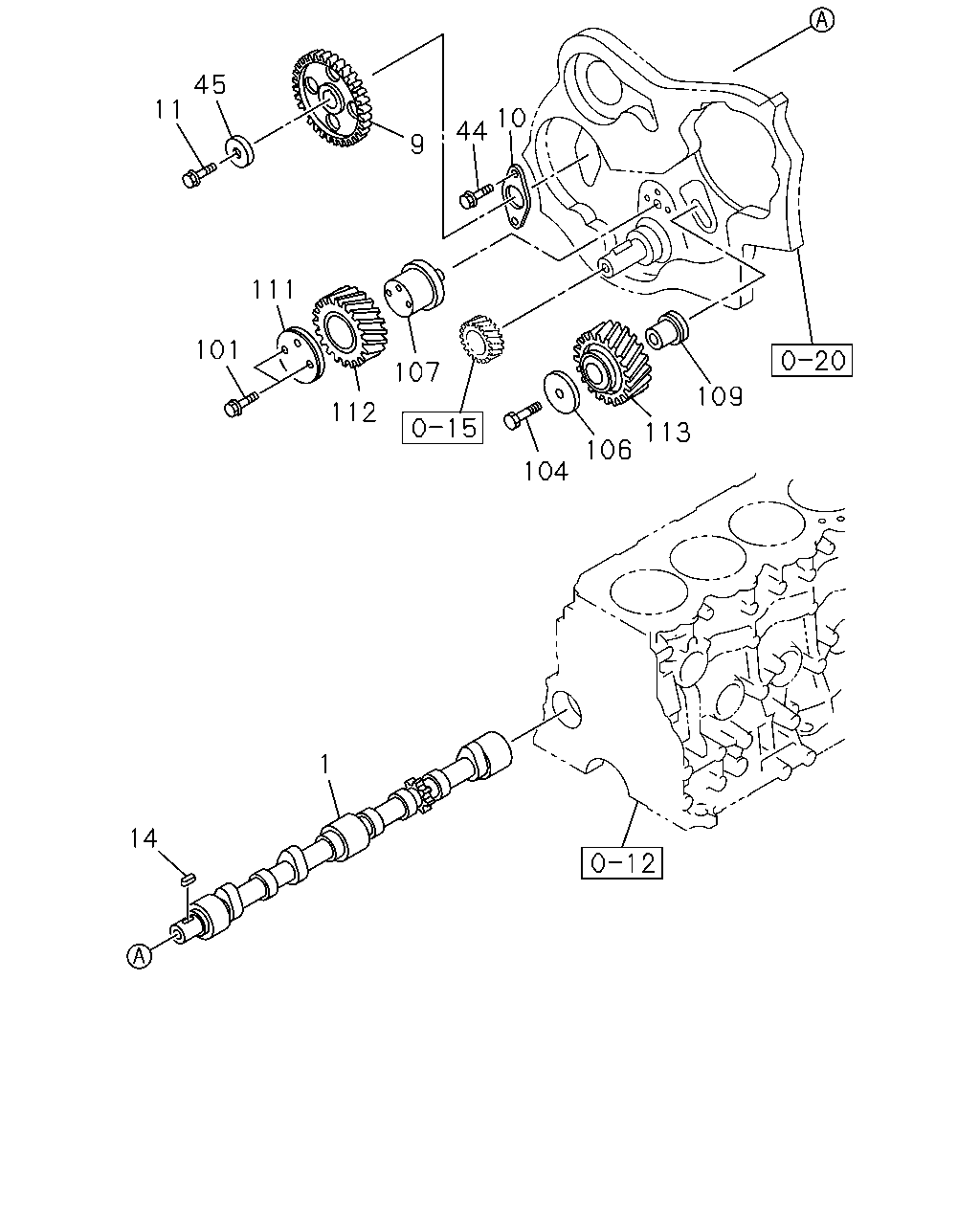

45 11 10 44 9 111 101 107 109 112 113 106 104 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT M/T MSG 5 SPEED(M75) THA	8-97287-657-1	01	1	0610-0610
1	CAMSHAFT THA	8-97287-657-1	01	1	0611-
9	GEAR; CM/SHF M/T MSG 5 SPEED(M75) Z=60 THA	8-97942-764-0	01	1	0610-0610
9	GEAR; CM/SHF Z=60 THA	8-97942-764-0	01	1	0611-
10	PLATE; THRUST M/T MSG 5 SPEED(M75)	8-94110-480-1	01	1	0610-0610
10	PLATE; THRUST	8-94110-480-1	01	1	0611-
11	BOLT; THRUST PLATE TO C/BL M/T MSG 5 SPEED(M75) M12X47 THA	8-97916-384-0	01	1	0610-0610
11	BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0611-
14	KEY; CM/SHF M/T MSG 5 SPEED(M75)	9-08000-718-0	01	1	0610-0610
14	KEY; CM/SHF	9-08000-718-0	01	1	0611-
44	BOLT M/T MSG 5 SPEED(M75) M8X16 FLANGE	0-28050-816-0	02	1	0610-0610
44	BOLT M8X16 FLANGE	0-28050-816-0	02	1	0611-
45	WASHER; GEAR CAM M/T MSG 5 SPEED(M75) THA	8-97915-110-0	01	1	0610-0610
45	WASHER; GEAR CAM THA	8-97915-110-0	01	1	0611-
101	BOLT; THRUST COLLAR M/T MSG 5 SPEED(M75) M8X53 FLANGE	8-97223-999-0	02	1	0610-0610
101	BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0611-
104	BOLT; SHAFT IDLE M/T MSG 5 SPEED(M75) M12X77	8-94129-384-1	01	1	0610-0610
104	BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0611-
106	WASHER; IDLE GEAR SHAFT M/T MSG 5 SPEED(M75) ID=13 OD=36	8-97918-881-0	01	1	0610-0610
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	8-97918-881-0	01	1	0611-
107	SHAFT; IDLE GEAR M/T MSG 5 SPEED(M75)	8-97943-224-0	01	1	0610-0610
107	SHAFT; IDLE GEAR	8-97943-224-0	01	1	0611-
109	SHAFT; IDLE GEAR M/T MSG 5 SPEED(M75)	8-97943-225-0	01	1	0610-0610
109	SHAFT; IDLE GEAR	8-97943-225-0	01	1	0611-
111	COLLAR; THRUST,IDLE GEAR M/T MSG 5 SPEED(M75) THA	8-97942-734-0	01	1	0610-0610
111	COLLAR; THRUST,IDLE GEAR THA	8-97942-734-0	01	1	0611-
112	GEAR; IDLE M/T MSG 5 SPEED(M75) Z=43 THA	8-97942-752-1	01	1	0610-0610
112	GEAR; IDLE Z=43 THA	8-97942-752-1	01	1	0611-
113	GEAR; IDLE M/T MSG 5 SPEED(M75) THA	8-97942-755-1	01	1	0610-0610
113	GEAR; IDLE THA	8-97942-755-1	01	1	0611-
