◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#33488) — 51 parça

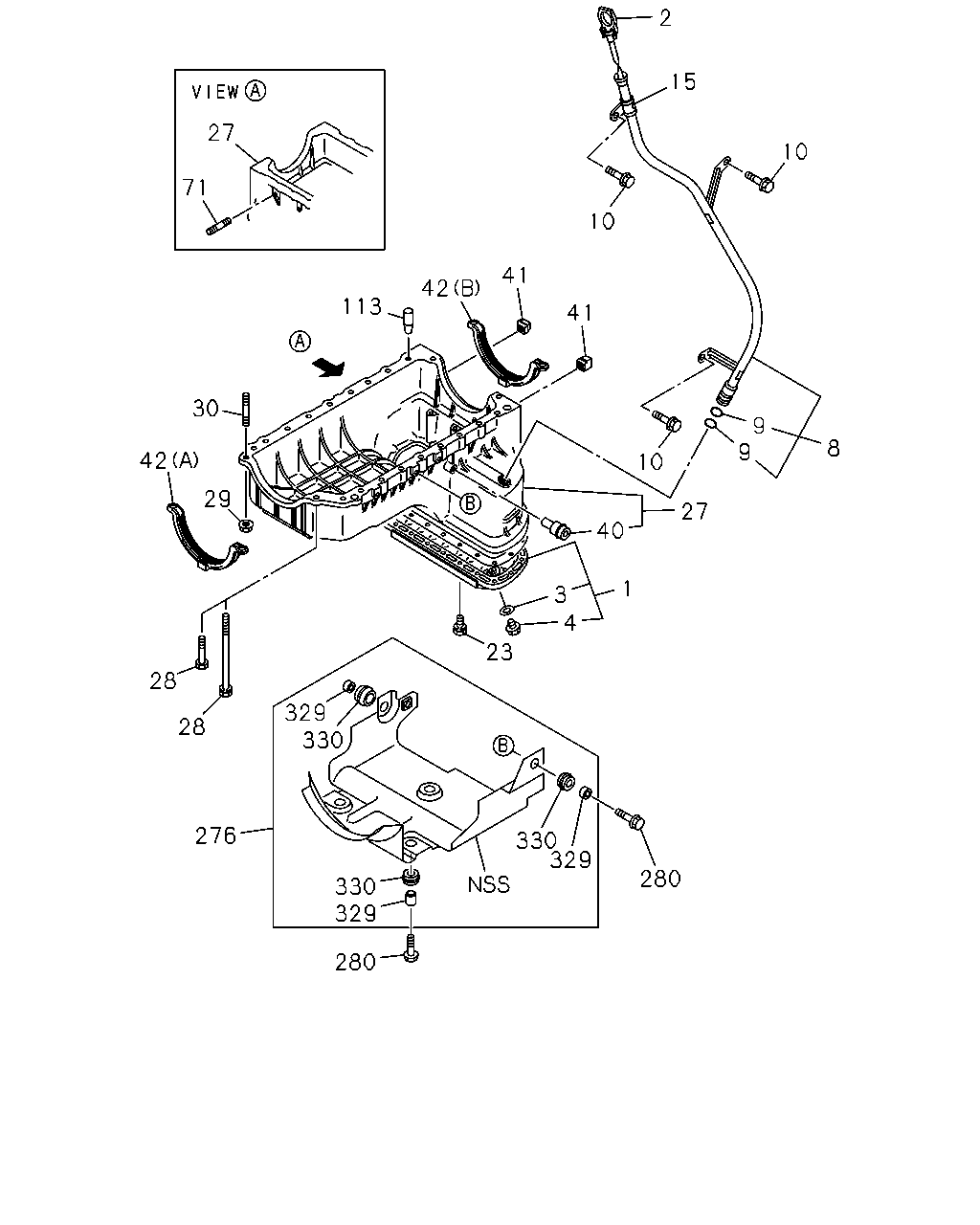

çizim 13210
2 15 27 10 71 10 41 42 113 41 30 9 9 8 42 10 29 27 40 1 3 4 23 28 329 330 28 276 330 329 280 330 329 280
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
M/T MSG 5 SPEED(M75) 		8-97131-905-0 01 1 0610-0610
1 PAN ASM; OIL 8-97131-905-0 01 1 0611-
2 GAUGE; OIL LEVEL
M/T MSG 5 SPEED(M75) PHI 		8-98036-010-0 01 1 0610-0610
2 GAUGE; OIL LEVEL
PHI 		8-98036-010-0 01 1 0611-
3 GASKET; DRAIN PLUG
M/T MSG 5 SPEED(M75) ID=14.2 OD=24 THA 		8-94158-328-0 01 1 0610-0610
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 THA 		8-94158-328-0 01 1 0611-
4 PLUG; DRAIN,OIL
M/T MSG 5 SPEED(M75) M14X14 THA 		8-94152-613-0 01 1 0610-0610
4 PLUG; DRAIN,OIL
M14X14 THA 		8-94152-613-0 01 1 0611-
8 TUBE; GUIDE,OIL LEVEL GAUGE
M/T MSG 5 SPEED(M75) 		8-98035-932-0 01 1 0610-0610
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98035-932-0 01 1 0611-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
M/T MSG 5 SPEED(M75) ID=11 		1-09623-469-0 02 1 0610-0610
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 		1-09623-469-0 02 1 0611-
10 BOLT; GUIDE TUBE
M/T MSG 5 SPEED(M75) M8X16 FLANGE 		0-28050-816-0 03 1 0610-0610
10 BOLT; GUIDE TUBE
M8X16 FLANGE 		0-28050-816-0 03 1 0611-
15 CLIP; GUIDE TUBE
M/T MSG 5 SPEED(M75) ID=11 L=28 		8-98036-081-0 01 1 0610-0610
15 CLIP; GUIDE TUBE
ID=11 L=28 		8-98036-081-0 01 1 0611-
23 BOLT; OIL PAN
M/T MSG 5 SPEED(M75) M6X13 THA 		8-97916-379-0 17 1 0610-0610
23 BOLT; OIL PAN
M6X13 THA 		8-97916-379-0 17 1 0611-1011
23 BOLT; OIL PAN
M6X13 PHI 		8-98136-169-0 17 1 1012-
27 CRANKCASE
M/T MSG 5 SPEED(M75) 		8-97358-796-0 01 1 0610-0610
27 CRANKCASE 8-97358-796-0 01 1 0611-
28 BOLT; CRANKCASE TO C/BL
M/T MSG 5 SPEED(M75) M8X120 FLANGE 		0-28055-812-0 01 1 0610-0610
28 BOLT; CRANKCASE TO C/BL
M8X120 FLANGE 		0-28055-812-0 01 1 0611-
28 BOLT; CRANKCASE TO C/BL
M/T MSG 5 SPEED(M75) M8X35 FLANGE 		0-28650-835-0 19 1 0610-0610
28 BOLT; CRANKCASE TO C/BL
M8X35 FLANGE 		0-28650-835-0 19 1 0611-
29 NUT; CRANKCASE
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-108-0 02 1 0610-0610
29 NUT; CRANKCASE
M8 FLANGE 		0-91180-108-0 02 1 0611-
30 STUD; CRANKCASE
M/T MSG 5 SPEED(M75) M8X35 L=47 		0-41010-835-0 02 1 0610-0610
30 STUD; CRANKCASE
M8X35 L=47 		0-41010-835-0 02 1 0611-
40 NIPPLE; OIL RETURN HOSE VAC PUMP
M/T MSG 5 SPEED(M75) THA 		5-11369-038-0 01 1 0610-0610
40 NIPPLE; OIL RETURN HOSE VAC PUMP
THA 		5-11369-038-0 01 1 0611-
41 RUBBER; SPACE
M/T MSG 5 SPEED(M75) 		8-97123-362-0 01 1 0610-0610
41 RUBBER; SPACE 8-97123-362-0 01 1 0611-
41 RUBBER; SPACE
M/T MSG 5 SPEED(M75) 		8-97123-363-0 01 1 0610-0610
41 RUBBER; SPACE 8-97123-363-0 01 1 0611-
42 GASKET; CRANKCASE TO C/BL
M/T MSG 5 SPEED(M75) (A) FRONT 		8-97120-933-0 01 1 0610-0610
42 GASKET; CRANKCASE TO C/BL
(A) FRONT 		8-97120-933-0 01 1 0611-
42 GASKET; CRANKCASE TO C/BL
M/T MSG 5 SPEED(M75) (B) REAR 		8-97123-342-0 01 1 0610-0610
42 GASKET; CRANKCASE TO C/BL
(B) REAR 		8-97123-342-0 01 1 0611-
71 STUD; OIL DRAIN PIPE
M/T MSG 5 SPEED(M75) M8X18 L=30 		0-41010-818-0 02 1 0610-0610
71 STUD; OIL DRAIN PIPE
M8X18 L=30 		0-41010-818-0 02 1 0611-
113 PIN; STRAIGHT
M/T MSG 5 SPEED(M75) L=31 THA 		8-97920-964-1 02 1 0610-0610
113 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 0611-
276 COVER; CRANKCASE
M/T MSG 5 SPEED(M75) THA 		8-97943-904-0 01 1 0610-0610
276 COVER; CRANKCASE
THA 		8-97943-904-0 01 1 0611-
280 BOLT; COVER
M/T MSG 5 SPEED(M75) M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0610-0610
280 BOLT; COVER
M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0611-
329 GUIDE; COVER,CRANKCASE
M/T MSG 5 SPEED(M75) THA 		8-97916-668-0 04 1 0610-0610
329 GUIDE; COVER,CRANKCASE
THA 		8-97916-668-0 04 1 0611-
330 RUBBER; MTG,CRANKCASE COVER
M/T MSG 5 SPEED(M75) THA 		8-97916-666-1 04 1 0610-0610
330 RUBBER; MTG,CRANKCASE COVER
THA 		8-97916-666-1 04 1 0611-
