0-12 — CYLINDER BLOCK (#33487) — 89 parça

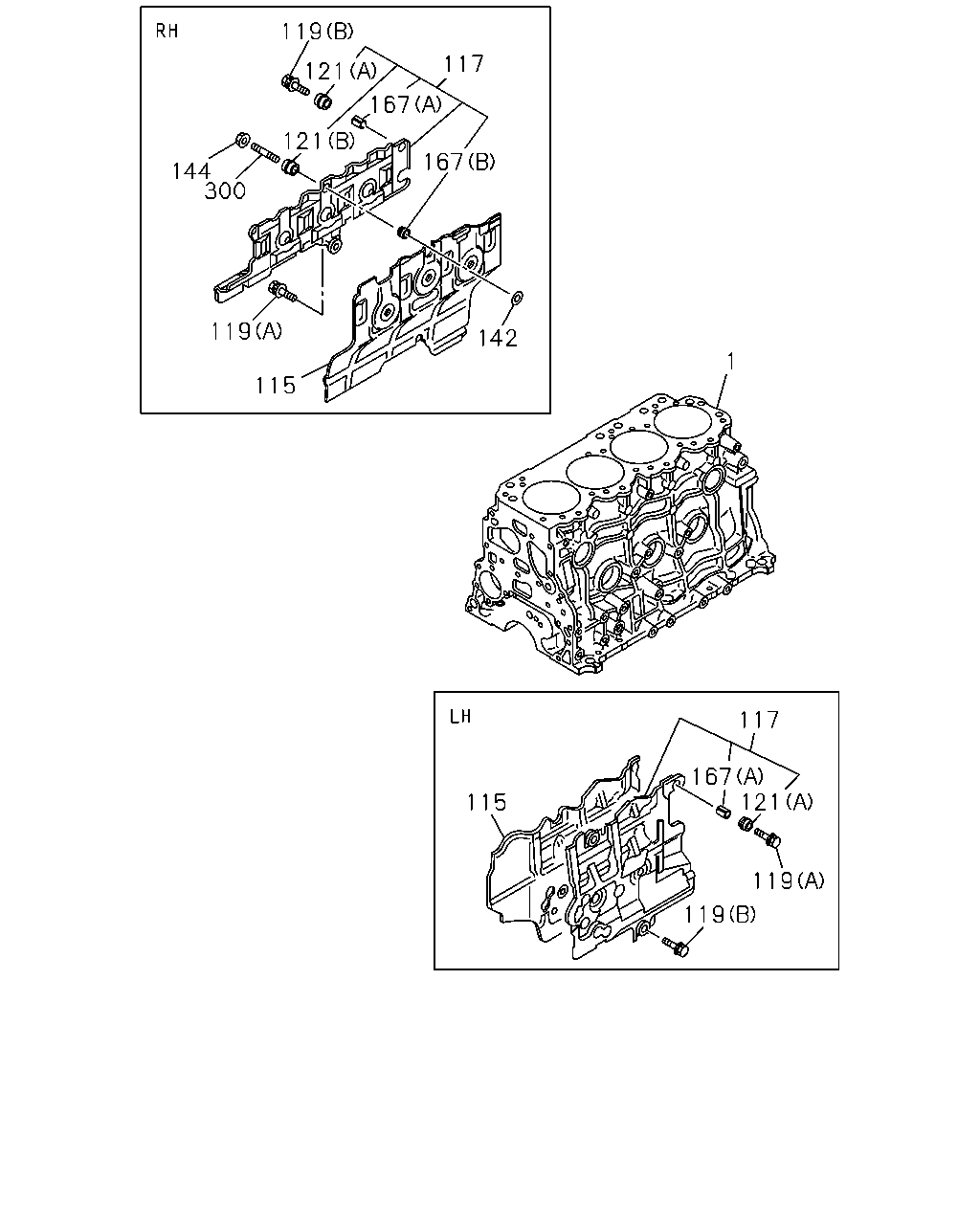

çizim 58585
119 117 121 167 121 167 144 300 119 142 1 115 117 167 121 115 119 119
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
M/T MSG 5 SPEED(M75) IDN 		8-97956-635-6 01 1 0610-0610
1 BLOCK ASM; CYL
IDN 		8-97956-635-6 01 1 0611-
115 RUBBER; SPACE
M/T MSG 5 SPEED(M75) 		8-97942-631-0 01 1 0610-0610
115 RUBBER; SPACE 8-97942-631-0 01 1 0611-
115 RUBBER; SPACE
M/T MSG 5 SPEED(M75) 		8-97942-634-0 01 1 0610-0610
115 RUBBER; SPACE 8-97942-634-0 01 1 0611-
117 COVER ASM; C/BL
M/T MSG 5 SPEED(M75) THA 		8-97919-885-1 01 1 0610-0610
117 COVER ASM; C/BL
THA 		8-97919-885-1 01 1 0611-
117 COVER ASM; C/BL
M/T MSG 5 SPEED(M75) THA 		8-97943-162-0 01 1 0610-0610
117 COVER ASM; C/BL
THA 		8-97943-162-0 01 1 0611-
119 BOLT; COVER FIX
M/T MSG 5 SPEED(M75) (A) M10X28 		8-94329-952-1 02 1 0610-0610
119 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 02 1 0611-
119 BOLT; COVER FIX
M/T MSG 5 SPEED(M75) (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0610-0610
119 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0611-
121 RUBBER; MTG,COVER
M/T MSG 5 SPEED(M75) (A) THA 		8-97916-666-1 09 1 0610-0610
121 RUBBER; MTG,COVER
(A) THA 		8-97916-666-1 09 1 0611-
121 RUBBER; MTG,COVER
M/T MSG 5 SPEED(M75) (B) THA 		8-97919-890-0 01 1 0610-0610
121 RUBBER; MTG,COVER
(B) THA 		8-97919-890-0 01 1 0611-
142 WASHER; PL
M/T MSG 5 SPEED(M75) ID=8.4 OD=26 		0-91614-808-0 01 1 0610-0610
142 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 01 1 0611-
144 NUT; COVER FIX
M/T MSG 5 SPEED(M75) M8 FLANGE 		0-91180-208-0 01 1 0610-0610
144 NUT; COVER FIX
M8 FLANGE 		0-91180-208-0 01 1 0611-
167 TUBE; DIST,SIDE COVER
M/T MSG 5 SPEED(M75) (A) THA 		8-97916-668-0 09 1 0610-0610
167 TUBE; DIST,SIDE COVER
(A) THA 		8-97916-668-0 09 1 0611-
167 TUBE; DIST,SIDE COVER
M/T MSG 5 SPEED(M75) (B) THA 		8-97919-889-0 01 1 0610-0610
167 TUBE; DIST,SIDE COVER
(B) THA 		8-97919-889-0 01 1 0611-
300 STUD; COVER
M/T MSG 5 SPEED(M75) M8X30 L=41 		0-41010-830-0 01 1 0610-0610
300 STUD; COVER
M8X30 L=41 		0-41010-830-0 01 1 0611-

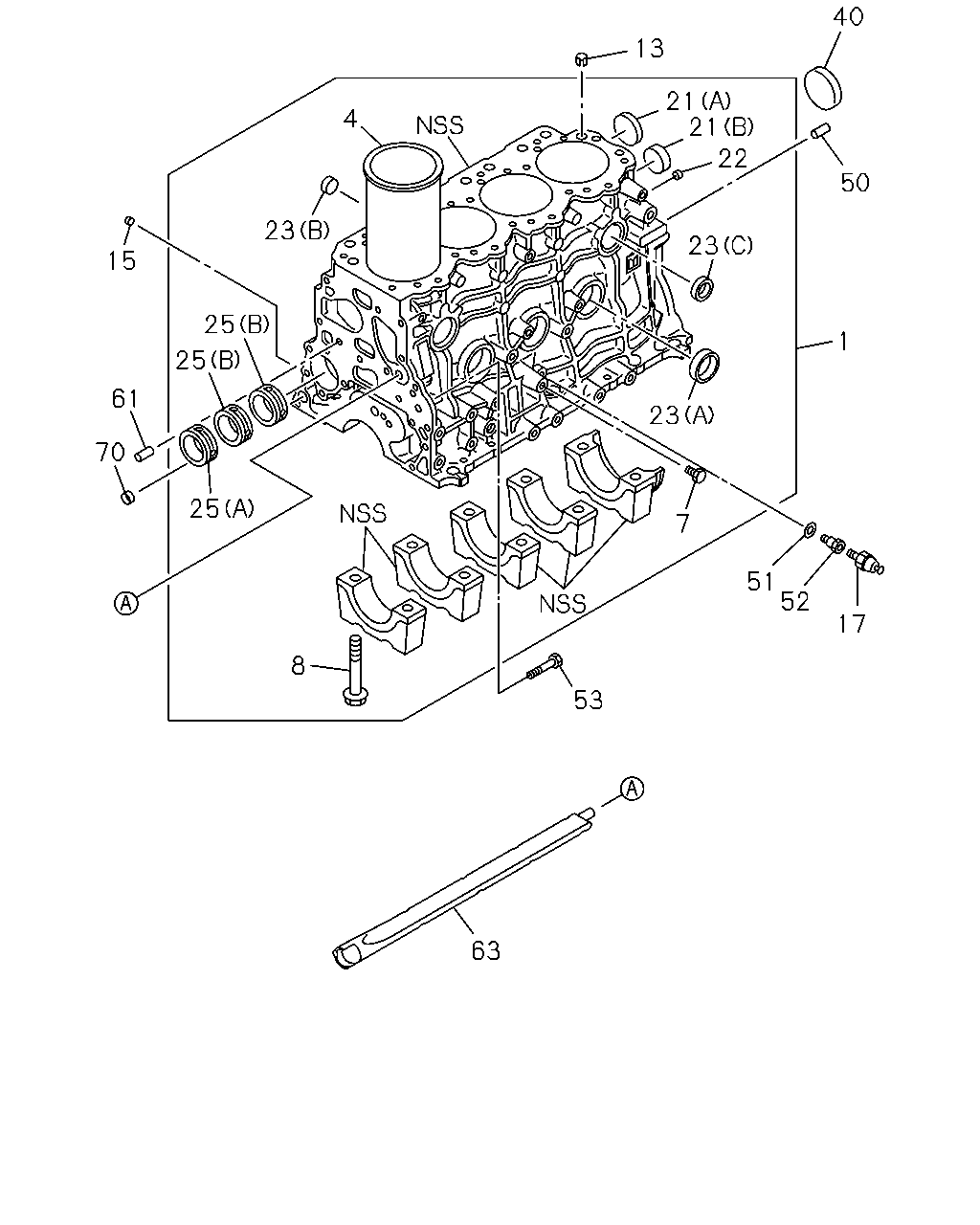

çizim 58763
40 13 21 21 22 4 50 23 23 15 25 1 25 61 23 70 25 7 51 52 17 8 53 63
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
M/T MSG 5 SPEED(M75) IDN 		8-97956-635-6 01 1 0610-0610
1 BLOCK ASM; CYL
IDN 		8-97956-635-6 01 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=1,ID GRADE=AX 		8-97176-691-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=1,ID GRADE=AX 		8-97176-691-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=1,ID GRADE=CX 		8-97176-692-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=1,ID GRADE=CX 		8-97176-692-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=2,ID GRADE=AX 		8-97176-693-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=2,ID GRADE=AX 		8-97176-693-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=2,ID GRADE=CX 		8-97176-694-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=2,ID GRADE=CX 		8-97176-694-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=3,ID GRADE=AX 		8-97176-695-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=3,ID GRADE=AX 		8-97176-695-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=3,ID GRADE=CX 		8-97176-696-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=3,ID GRADE=CX 		8-97176-696-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=4,ID GRADE=AX 		8-97176-697-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=4,ID GRADE=AX 		8-97176-697-0 04 1 0611-
4 LINER; C/BL
M/T MSG 5 SPEED(M75) OD GRADE=4,ID GRADE=CX 		8-97176-698-0 04 1 0610-0610
4 LINER; C/BL
OD GRADE=4,ID GRADE=CX 		8-97176-698-0 04 1 0611-
7 PLUG; WATER DRAIN
M/T MSG 5 SPEED(M75) PT1/4 		9-09664-001-0 01 1 0610-0610
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0611-
8 BOLT; BRG CAP
M/T MSG 5 SPEED(M75) M14X89 FLANGE 		8-94432-642-0 10 1 0610-0610
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0611-
13 DOWEL; C/BL TO HD
M/T MSG 5 SPEED(M75) OD=14 		8-94453-344-0 02 1 0610-0610
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0611-
15 PLUG; OIL GALLERY
M/T MSG 5 SPEED(M75) PT1/8 		1-09605-050-0 03 1 0610-0610
15 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0611-
17 SWITCH; OIL PRESSURE
M/T MSG 5 SPEED(M75) 		9-82720-209-2 01 1 0610-0610
17 SWITCH; OIL PRESSURE 9-82720-209-3 01 1 0611-
21 CUP; SEALING,RR
M/T MSG 5 SPEED(M75) (A) OD=38 		5-11219-017-0 01 1 0610-0610
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0611-
21 CUP; SEALING,RR
M/T MSG 5 SPEED(M75) (B) OD=36 		5-11219-018-0 01 1 0610-0610
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0611-
22 CUP; SEALING,DUCT HOLE
M/T MSG 5 SPEED(M75) OD=12.3 		5-09600-013-0 01 1 0610-0610
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 0611-
23 CUP; SEALING,C/BL FRT & RR
M/T MSG 5 SPEED(M75) (B) OD=18 		5-11219-008-0 03 1 0610-0610
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 		5-11219-008-0 03 1 0611-
23 CUP; SEALING,C/BL FRT & RR
M/T MSG 5 SPEED(M75) (C) OD=36 		5-11219-018-0 03 1 0610-0610
23 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0611-
23 CUP; SEALING,C/BL FRT & RR
M/T MSG 5 SPEED(M75) (A) OD=45 		8-97036-550-1 03 1 0610-0610
23 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0611-
25 METAL; CM/SHF
M/T MSG 5 SPEED(M75) (B) THA 		8-97378-147-0 02 1 0610-0610
25 METAL; CM/SHF
(B) THA 		8-97378-147-0 02 1 0611-
25 METAL; CM/SHF
M/T MSG 5 SPEED(M75) (A) THA 		8-97378-148-0 01 1 0610-0610
25 METAL; CM/SHF
(A) THA 		8-97378-148-0 01 1 0611-
40 CUP; SEALING,C/BL RR
M/T MSG 5 SPEED(M75) OD=56 		8-94250-514-1 01 1 0610-0610
40 CUP; SEALING,C/BL RR
OD=56 		8-94250-514-1 01 1 0611-
50 PIN; STRAIGHT,RR PLATE
M/T MSG 5 SPEED(M75) OD=10 L=32 		9-08161-032-0 01 1 0610-0610
50 PIN; STRAIGHT,RR PLATE
OD=10 L=32 		9-08161-032-0 01 1 0611-
51 GASKET; OIL PRESS WARNING SW,C/BL
M/T MSG 5 SPEED(M75) THA 		8-97912-498-0 01 1 0610-0610
51 GASKET; OIL PRESS WARNING SW,C/BL
THA 		8-97912-498-0 01 1 0611-
52 NIPPLE; OIL PRESS WARNING SW,C/BL
M/T MSG 5 SPEED(M75) THA 		8-97943-174-0 01 1 0610-0610
52 NIPPLE; OIL PRESS WARNING SW,C/BL
THA 		8-97943-174-0 01 1 0611-
53 BOLT; REAMER
A/T AISIN(RMD) M10X60 THA 		8-94200-831-2 01 1 0611-
53 BOLT; REAMER
M/T MSG 5 SPEED(M75) M10X52 THA 		8-97916-382-0 01 1 0610-1011
53 BOLT; REAMER
M/T MSG 5 SPEED(M75) M10X52 PHI 		8-98136-231-0 01 1 1012-
61 PIN; STRAIGHT
M/T MSG 5 SPEED(M75) OD=10 L=20 		9-08151-020-0 02 1 0610-0610
61 PIN; STRAIGHT
OD=10 L=20 		9-08151-020-0 02 1 0611-
63 DUCT; WATER,C/BL
M/T MSG 5 SPEED(M75) THA 		8-97912-496-0 01 1 0610-0610
63 DUCT; WATER,C/BL
THA 		8-97912-496-0 01 1 0611-
70 CUP; SEALING,FRT & RR
M/T MSG 5 SPEED(M75) OD=16 		5-11129-006-0 02 1 0610-0610
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 02 1 0611-
