◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#33486) — 51 parça

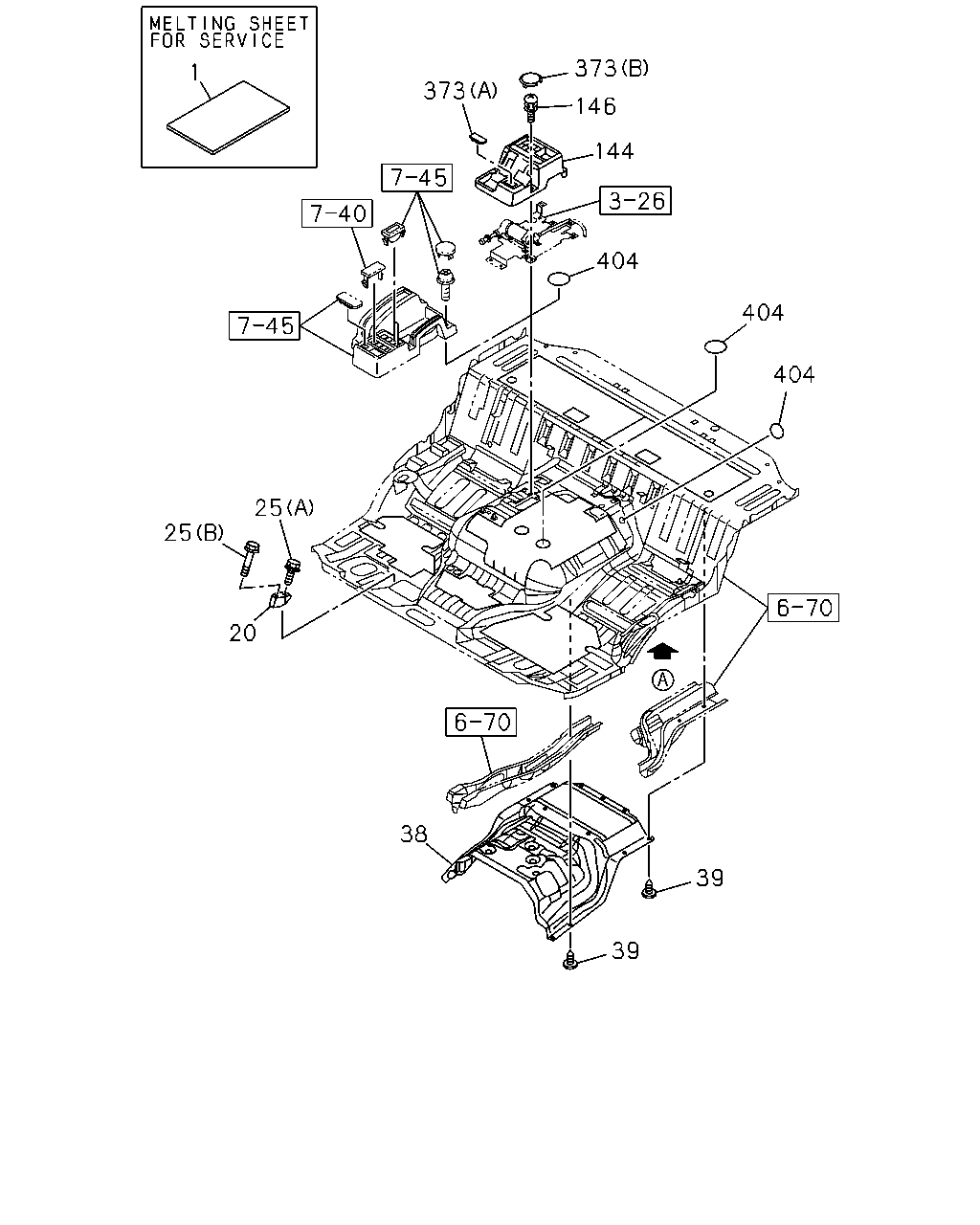

çizim 178740
373 1 373 146 144 404 404 404 25 25 20 38 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0710- ● ●
20 REST; FOOT 1-73907-176-1 01 1 0710- ● ●
25 SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710- ● ●
25 SCREW; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0710- ● ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98248-305-0 01 1 1311-1405 ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> EXC. MALAYSIA EQUIPMENT(B10) 		8-98248-305-0 01 1 1311-1405 ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98248-305-0 01 1 1406- ● ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98240-137-1 01 1 1311-1405 ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>, MALAYSIA EQUIPMENT(B10) 		8-98240-137-1 01 1 1311-1405 ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98240-137-1 01 1 1406- ● ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-98180-258-0 01 1 1012-1310 ● ●
38 INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> MALAYSIA EQUIPMENT(B10) 		8-98180-258-0 01 1 1311-1405 ●
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 0710-1011 ● ●
38 INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-97586-180-6 01 1 1012-1310 ● ●
38 INSULATOR; ENG COVER
MALAYSIA EQUIPMENT(B10) EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> 		8-97586-180-6 01 1 1311-1405 ●
39 CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 24 1 1012- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 0710-1011 ● ●
39 CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4 		8-97808-623-0 17 1 1012- ● ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97409-812-0 01 1 0907- ● ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97407-974-0 01 1 0907- ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY 		8-97407-974-0 01 1 0907- ● ●
144 COVER; HAND BRK VLV
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97409-812-0 01 1 0710-0710 ● ●
144 COVER; HAND BRK VLV
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-753-0 01 1 0711-0711 ● ●
144 COVER; HAND BRK VLV
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-753-0 01 1 0712-0808 ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-753-0 01 1 0712-0808 ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-753-0 01 1 0809-0906 ● ●
144 COVER; HAND BRK VLV
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97407-974-0 01 1 0710-0710 ● ●
144 COVER; HAND BRK VLV
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-752-0 01 1 0711-0711 ● ●
144 COVER; HAND BRK VLV
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-752-0 01 1 0712-0808 ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-752-0 01 1 0712-0808 ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY 		8-97414-752-0 01 1 0712-0808 ●
144 COVER; HAND BRK VLV
AUSTRALIA EQUIPMENT(B13) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-752-0 01 1 0809-0906 ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(B13) GRAY 		8-97414-752-0 01 1 0809-0906 ● ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 0710-0711 ● ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 0712-0808 ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16 		0-38050-616-0 04 1 0712-0808 ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16 		0-38050-616-0 04 1 0809- ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 0711-0711 ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 0712-0808 ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97409-339-0 01 1 0712-0808 ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97409-339-0 01 1 0809- ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 0710-0711 ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 0712-0808 ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY 		8-97407-951-0 04 1 0712-0808 ●
373 COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY 		8-97407-951-0 04 1 0809- ● ●
404 SEAL; FLOOR,HOLE
NEW ZEALAND EQUIPMENT(E13) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> OD=25 BLACK 		1-76798-019-0 01 1 1005- ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 11 1 0710-0711 ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 0712- ● ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●
çizim 178886
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 0710-1211 ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212- ● ●
