◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#33484) — 90 parça

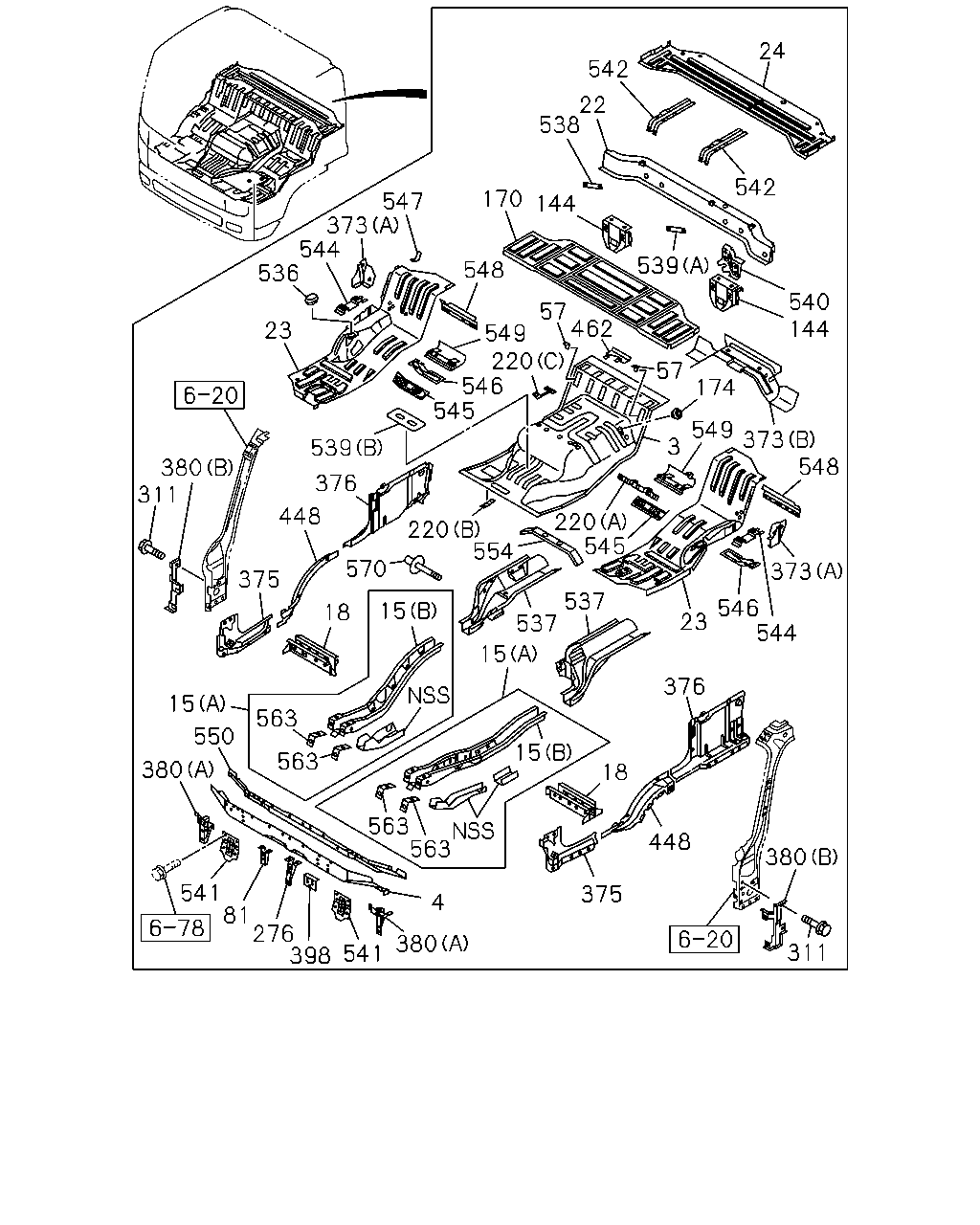

çizim 178744
24 542 22 538 542 170 547 373 544 536 144 539 548 540 144 57 462 23 549 220 546 545 57 174 549 373 548 3 539 380 311 376 448 220 545 220 554 570 373 375 537 537 546 544 15 18 23 15 376 15 563 550 563 15 380 18 563 563 448 380 541 81 276 398 375 4 380 311 541
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-359-4 01 1 0710-0711 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 		8-98081-359-4 01 1 0710-0711 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 		8-98081-359-4 01 1 0712- ● ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-357-4 01 1 0710-0711 ●
3 HOOD ASM; ENG
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-357-4 01 1 0710-0711 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-357-4 01 1 0712- ● ●
3 HOOD ASM; ENG
A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98065-705-8 01 1 0710-0711 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98065-705-8 01 1 0712- ●
3 HOOD ASM; ENG
MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-904-9 01 1 0712-0808 ●
3 HOOD ASM; ENG
MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-904-9 01 1 0809-1004 ● ●
3 HOOD ASM; ENG
MANUAL TRANSMISSION<X9C> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-036-0 01 1 1005- ● ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),A/T<X9D> 		8-98066-084-6 01 1 0712-0808 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),A/T<X9D> 		8-98066-084-6 01 1 0809- ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0710- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0710- ● ●
24 PANEL; BED PAN 8-97584-377-6 01 1 0710- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0710- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0710- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0710- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 0710- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-97584-345-9 01 1 0712-0808 ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-97584-345-9 01 1 0809- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0710-0808 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-98081-349-3 01 1 0710-0808 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-98081-349-3 01 1 0809-1507 ● ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-98228-266-0 01 1 1508- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0710- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0710- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0710-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0710- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0710- ● ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0710-1002 ● ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97585-688-1 01 1 1003- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0710- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0710- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0710- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809- ● ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0710- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0710- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0710- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0712-0808 ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0809- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0711 ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712-0808 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0712-0808 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0809- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0710- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0710- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0710- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0710- ● ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97589-557-4 01 1 0712-0808 ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97589-557-4 01 1 0809- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0710- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0710-0711 ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0712-0808 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-187-1 01 1 0712-0808 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-187-1 01 1 0809- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0710- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0710- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710- ● ●
570 FASTENER; POP RIVET 8-97319-308-0 02 1 0710-0711 ● ●
