◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#33482) — 49 parça

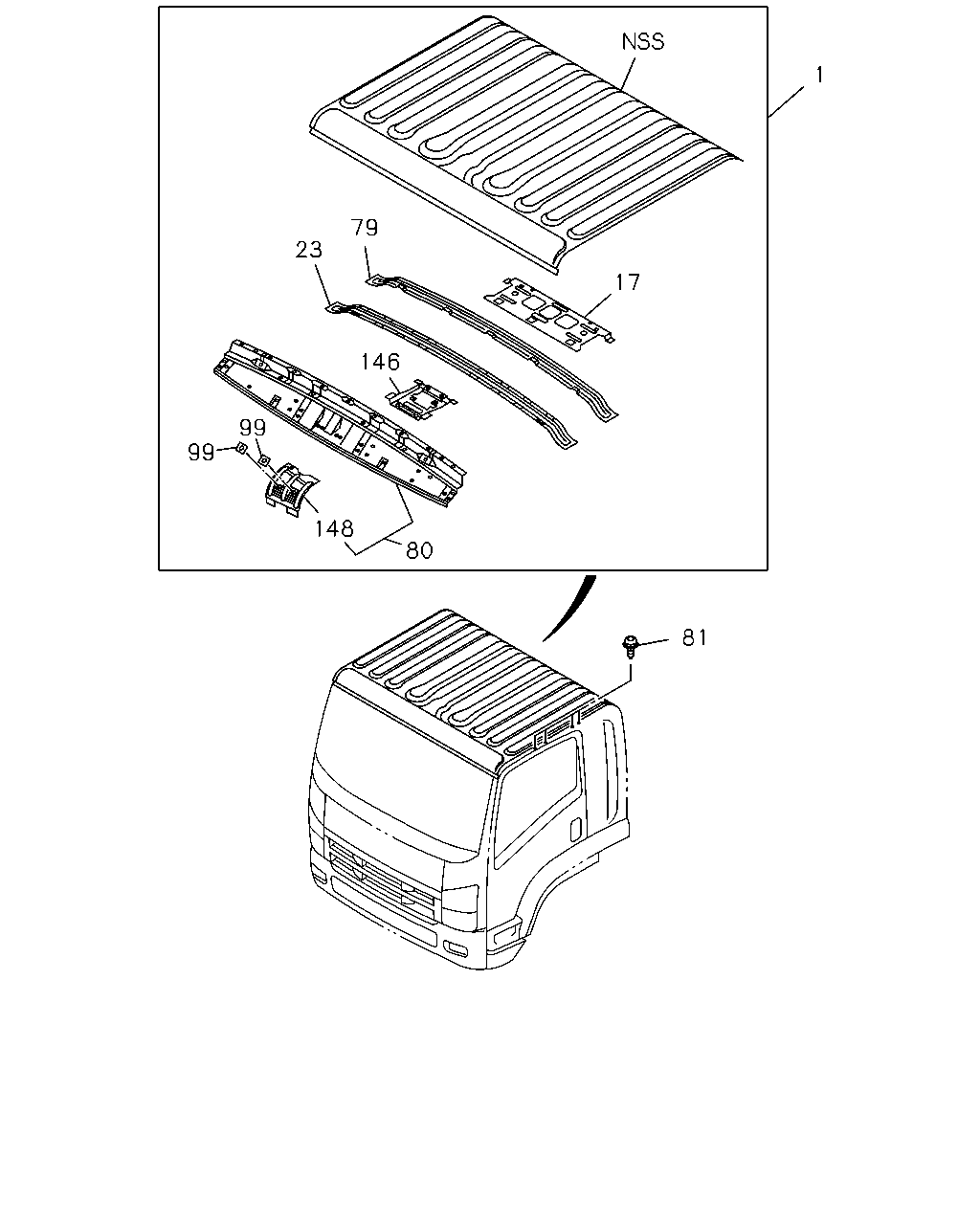

çizim 178733
1 79 23 17 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98152-801-0 01 1 1002-1311 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC> 		8-98152-801-0 01 1 1002-1311 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98152-801-1 01 1 1312- ●
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. FLUORESCENT LAMP<6UC> 		8-98152-801-1 01 1 1312- ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, FLUORESCENT LAMP<6UC> 		8-98152-801-1 01 1 1312- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98152-802-0 01 1 1002-1311 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,FLUORESCENT LAMP<6UC> 		8-98152-802-0 01 1 1002-1311 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98152-802-1 01 1 1312- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,FLUORESCENT LAMP<6UC> 		8-98152-802-1 01 1 1312- ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-170-6 01 1 0710-0711 ● ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-170-6 01 1 0712-1001 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97584-170-6 01 1 0712-1001 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-97584-170-6 01 1 1002-1311 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-170-6 01 1 1002-1311 ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-97584-170-7 01 1 1312- ●
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> 		8-97584-170-7 01 1 1312- ●
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-170-7 01 1 1312- ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98017-276-5 01 1 0710-0711 ● ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98017-276-5 01 1 0712-1001 ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98017-276-5 01 1 0712-1001 ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98017-276-5 01 1 1002-1311 ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98017-276-5 01 1 1002-1311 ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98017-276-6 01 1 1312- ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98017-276-6 01 1 1312- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0710-1001 ● ●
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1002- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0710- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-199-1 01 1 0710- ● ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-191-3 01 1 0710-0711 ● ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-191-3 01 1 0712-1311 ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97584-191-3 01 1 0712-1311 ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-191-4 01 1 1312- ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-191-4 01 1 1312- ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-191-4 01 1 1312- ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0710-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-1 02 1 0710-0711 ● ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0712-1311 ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0712-1311 ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1312- ●
99 SEAL; BODY,METAL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1312- ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1312- ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0710- ● ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0710-0711 ● ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0712-1311 ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97411-015-1 01 1 0712-1311 ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 1312- ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 1312- ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 1312- ●
