Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#33481) — 275 parça

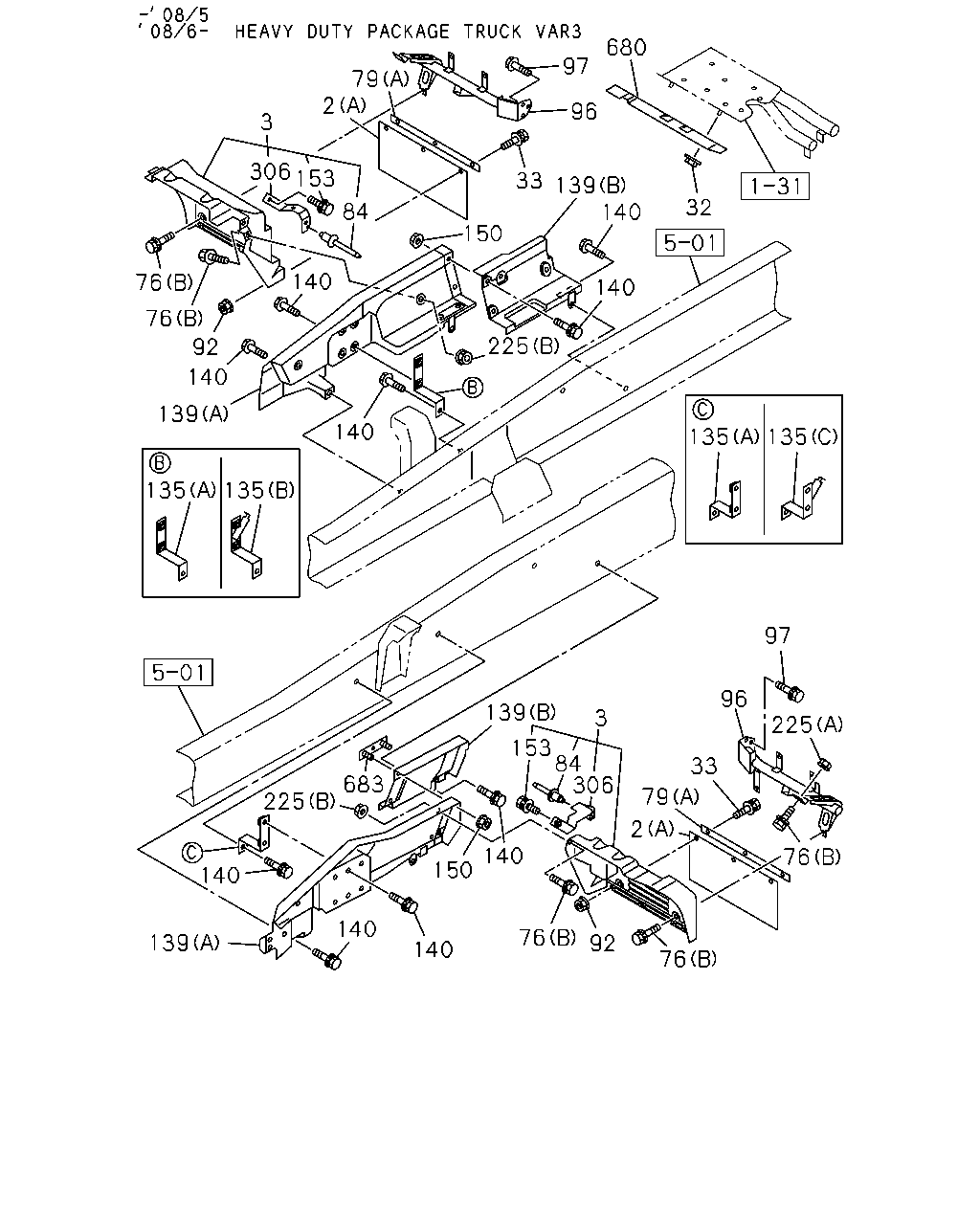

97 96 33 79 150 139 140 140 225 135 140 139 140 140 92 76 76 3 306 153 84 2 97 96 225 33 76 79 2 76 92 76 150 140 306 3 84 153 139 683 225 135 140 140 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	0806-0912	●
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1001-	●	●
2	COVER; MUD,TIRE RR (A)	1-79931-482-0	02	1	0710-0805	●	●
2	COVER; MUD,TIRE RR (A)	1-79931-482-0	02	1	0806-0912		●
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	0806-0912	●
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	1001-	●	●
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-472-2	01	1	1012-1302	●
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-542-0	01	1	0712-0912	●
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-542-0	01	1	1001-1212	●	●
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1301-	●	●
3	GUARD; MUD,RR	1-79931-475-0	01	1	0710-0711	●	●
3	GUARD; MUD,RR	1-79931-475-0	01	1	0712-0912		●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	0712-0912	●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	1001-1011	●	●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	1012-1212		●
3	GUARD; MUD,RR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	1012-1212	●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1301-	●	●
3	GUARD; MUD,RR	1-79931-471-0	01	1	0710-1212	●	●
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-	●	●
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	0806-0912	●
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1001-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0710-0805	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0806-0912		●
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0806-0912	●
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1001-	●	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	0712-0912	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	1001-1211	●	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1212-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-0711	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-0912		●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-0912	●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1001-1211	●	●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	0806-0912	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1001-	●	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	0806-0912	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1001-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0805	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0806-0912		●
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	0806-0912	●
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	1001-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0710-	●	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-522-2	01	1	0712-0912	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-522-2	01	1	1001-	●	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-523-2	01	1	0712-0912	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-523-2	01	1	1001-	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	0710-0711	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	0712-0912		●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98066-745-2	01	1	0712-0912	●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98066-745-2	01	1	1001-	●	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0710-0711	●	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0712-0912		●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-479-3	01	1	0712-0912	●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-479-3	01	1	1001-	●	●
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	0712-0912	●
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1001-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0710-0711	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0712-0912		●
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	0712-0912	●
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1001-	●	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98089-387-0	01	1	0712-0912	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98089-387-0	01	1	1001-	●	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98089-388-0	01	1	0712-0912	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98089-388-0	01	1	1001-	●	●
135	BRACKET; SIDE PANEL (A)	1-53457-191-0	02	1	0710-0711	●	●
135	BRACKET; SIDE PANEL (A)	1-53457-191-0	02	1	0712-0912		●
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-53457-191-0	02	1	0712-0912	●
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-53457-191-0	02	1	1001-	●	●
139	PANEL; SIDE (A)	8-98090-077-0	01	1	0710-	●	●
139	PANEL; SIDE (A)	8-98090-078-0	01	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-590-1	01	1	0710-	●	●
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	0712-0912	●
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1001-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0710-0711	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0712-0912		●
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0712-0912	●
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1001-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0710-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0710-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1301-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-	●	●
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1301-	●	●
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98067-739-0	01	1	0712-0912	●
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98067-739-0	01	1	1001-1211	●	●
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98199-233-0	01	1	1212-	●	●

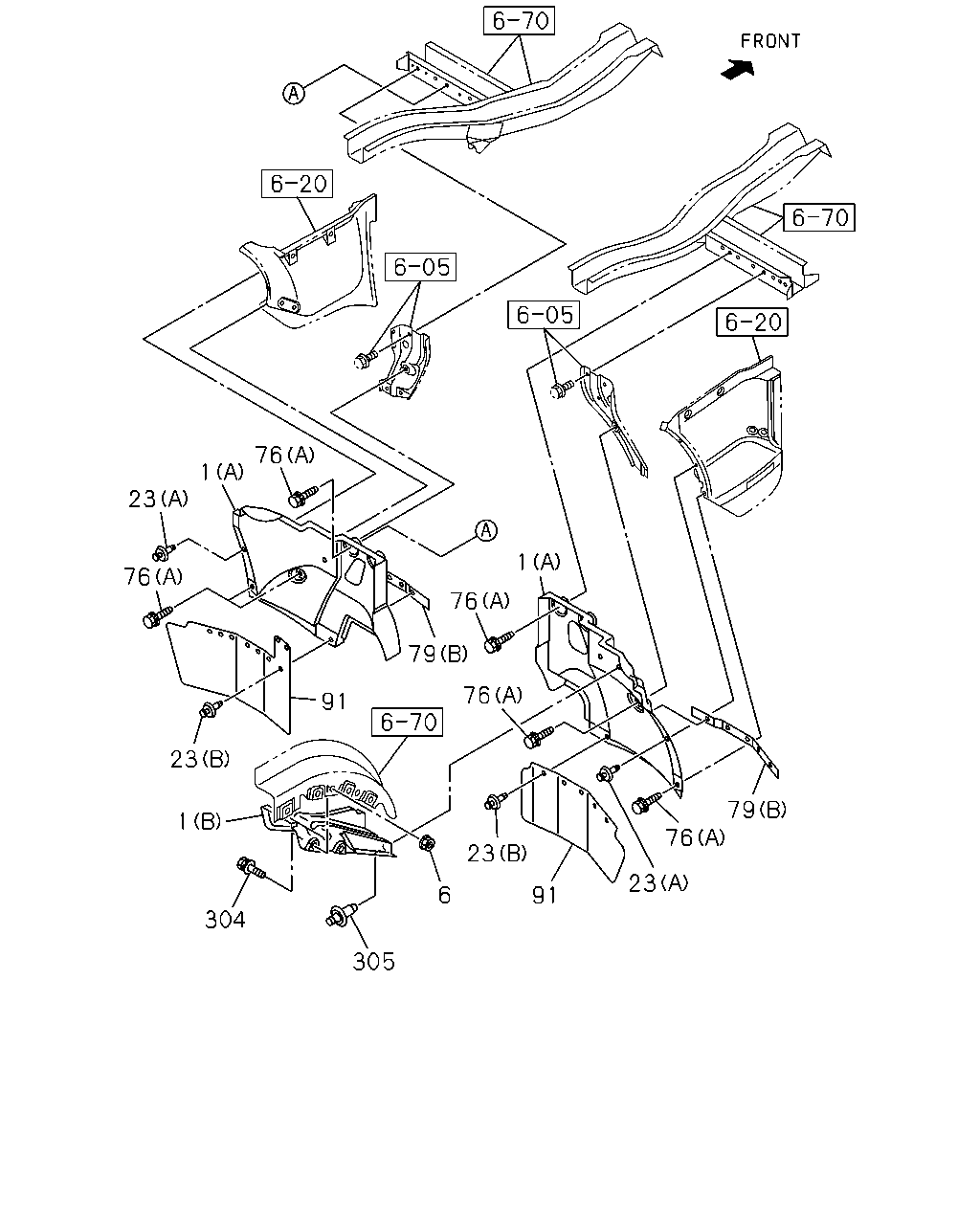

76 1 23 1 76 76 79 76 91 23 79 1 76 23 23 6 91 304 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT (A)	8-98039-843-2	01	1	0710-0908	●	●
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	0909-	●	●
1	GUARD; MUD,FRT (A)	8-98039-842-2	01	1	0710-0908	●	●
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	0909-	●	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-188-0	01	1	0710-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0710-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	0710-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0710-	●	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	0712-0912	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	1001-1211	●	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1212-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-0711	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-0912		●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-0912	●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1001-1211	●	●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	0806-0912	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1001-	●	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	0806-0912	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1001-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0805	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0806-0912		●
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	0806-0912	●
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	1001-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-	●	●
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS)	8-98093-463-0	01	1	1012-	●
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS)	8-98093-464-0	01	1	1012-	●
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-430-2	01	1	0712-0808	●
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-214-3	01	1	0809-0912	●
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-214-3	01	1	1001-	●	●
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-432-2	01	1	0712-0808	●
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-428-2	01	1	0809-0912	●
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-428-2	01	1	1001-	●	●
91	COVER; MUD,FRT	8-98092-834-0	01	1	0710-0711	●	●
91	COVER; MUD,FRT	8-98092-834-0	01	1	0712-0912		●
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-834-0	01	1	0712-0912	●
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-834-0	01	1	1001-1011	●	●
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-834-0	01	1	1012-		●
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-834-0	01	1	1012-	●
91	COVER; MUD,FRT	8-98092-836-0	01	1	0710-0711	●	●
91	COVER; MUD,FRT	8-98092-836-0	01	1	0712-0912		●
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-836-0	01	1	0712-0912	●
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-836-0	01	1	1001-1011	●	●
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-836-0	01	1	1012-		●
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-836-0	01	1	1012-	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0710-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0710-	●	●

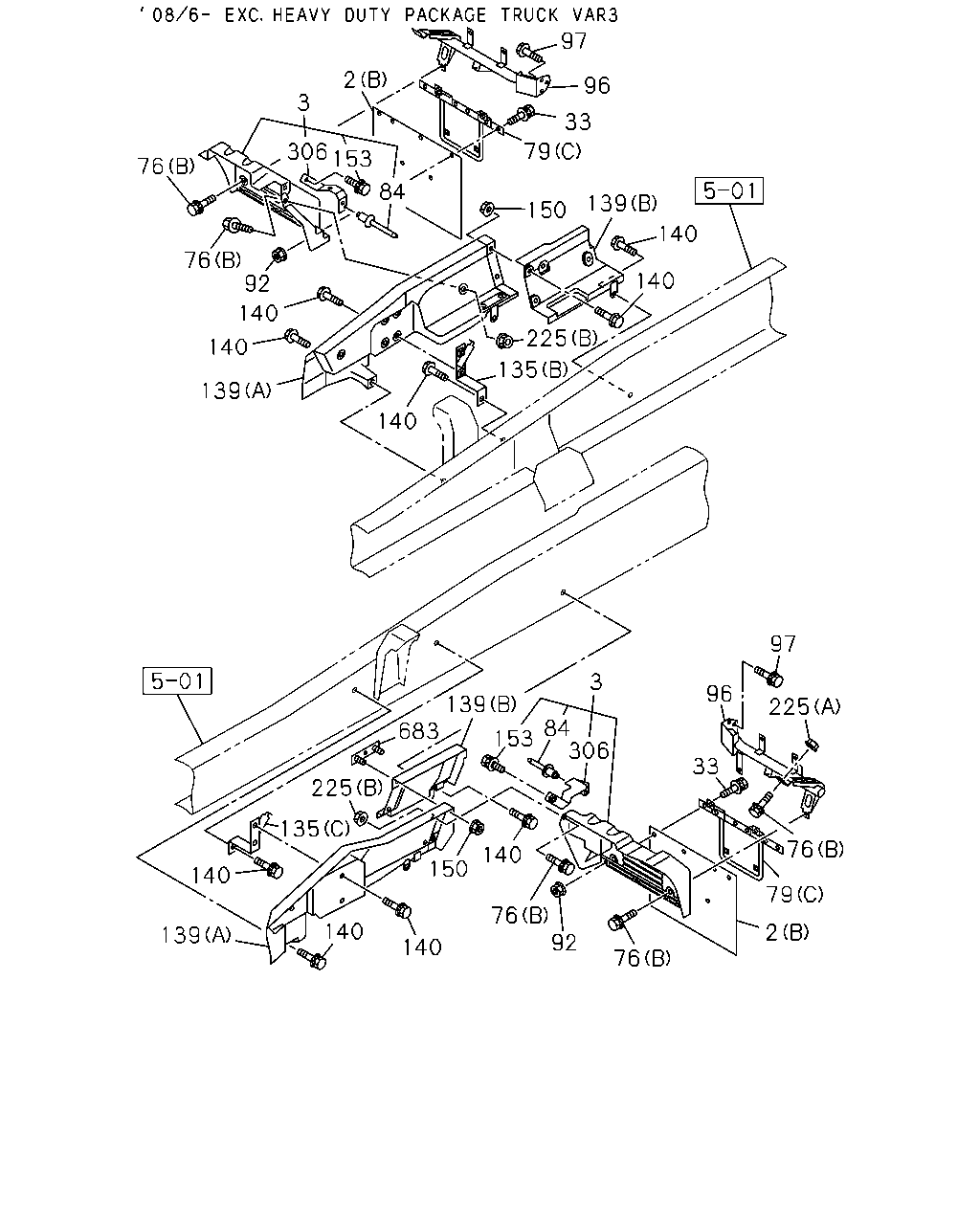

76 92 76 2 33 79 96 225 97 76 306 3 84 153 139 140 150 140 140 683 225 140 135 135 135 135 139 140 92 76 76 140 5 140 306 150 84 153 3 140 140 32 139 33 96 680 97 2 79 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	0806-0912	●
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1001-	●	●
2	COVER; MUD,TIRE RR (A)	1-79931-482-0	02	1	0710-0805	●	●
2	COVER; MUD,TIRE RR (A)	1-79931-482-0	02	1	0806-0912		●
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	0806-0912	●
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	1001-	●	●
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-472-2	01	1	1012-1302	●
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-542-0	01	1	0712-0912	●
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-542-0	01	1	1001-1212	●	●
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1301-	●	●
3	GUARD; MUD,RR	1-79931-475-0	01	1	0710-0711	●	●
3	GUARD; MUD,RR	1-79931-475-0	01	1	0712-0912		●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	0712-0912	●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	1001-1011	●	●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	1012-1212		●
3	GUARD; MUD,RR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	1012-1212	●
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1301-	●	●
3	GUARD; MUD,RR	1-79931-471-0	01	1	0710-1212	●	●
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-	●	●
32	NUT; MUD GUARD 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 W/DISHED WASHER	8-97329-625-0	02	1	1012-	●
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	0806-0912	●
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1001-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0710-0805	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0806-0912		●
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0806-0912	●
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1001-	●	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	0712-0912	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	1001-1211	●	●
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1212-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-0711	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-0912		●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0712-0912	●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1001-1211	●	●
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	0806-0912	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1001-	●	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	0806-0912	●
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1001-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0805	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0806-0912		●
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	0806-0912	●
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	1001-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0710-	●	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-522-2	01	1	0712-0912	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-522-2	01	1	1001-	●	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-523-2	01	1	0712-0912	●
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-523-2	01	1	1001-	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	0710-0711	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	0712-0912		●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98066-745-2	01	1	0712-0912	●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98066-745-2	01	1	1001-	●	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0710-0711	●	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0712-0912		●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-479-3	01	1	0712-0912	●
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-479-3	01	1	1001-	●	●
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	0712-0912	●
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1001-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0710-0711	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0712-0912		●
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	0712-0912	●
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1001-	●	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98089-387-0	01	1	0712-0912	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98089-387-0	01	1	1001-	●	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98089-388-0	01	1	0712-0912	●
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98089-388-0	01	1	1001-	●	●
135	BRACKET; SIDE PANEL (A)	1-53457-191-0	02	1	0710-0711	●	●
135	BRACKET; SIDE PANEL (A)	1-53457-191-0	02	1	0712-0912		●
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-53457-191-0	02	1	0712-0912	●
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-53457-191-0	02	1	1001-	●	●
139	PANEL; SIDE (A)	8-98090-077-0	01	1	0710-	●	●
139	PANEL; SIDE (A)	8-98090-078-0	01	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-590-1	01	1	0710-	●	●
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	0712-0912	●
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1001-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0710-0711	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0712-0912		●
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0712-0912	●
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1001-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0710-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0710-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1301-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-	●	●
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1301-	●	●
680	GUARD; MUD,UPPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-477-1	01	1	1012-	●
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98067-739-0	01	1	0712-0912	●
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98067-739-0	01	1	1001-1211	●	●
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98199-233-0	01	1	1212-	●	●

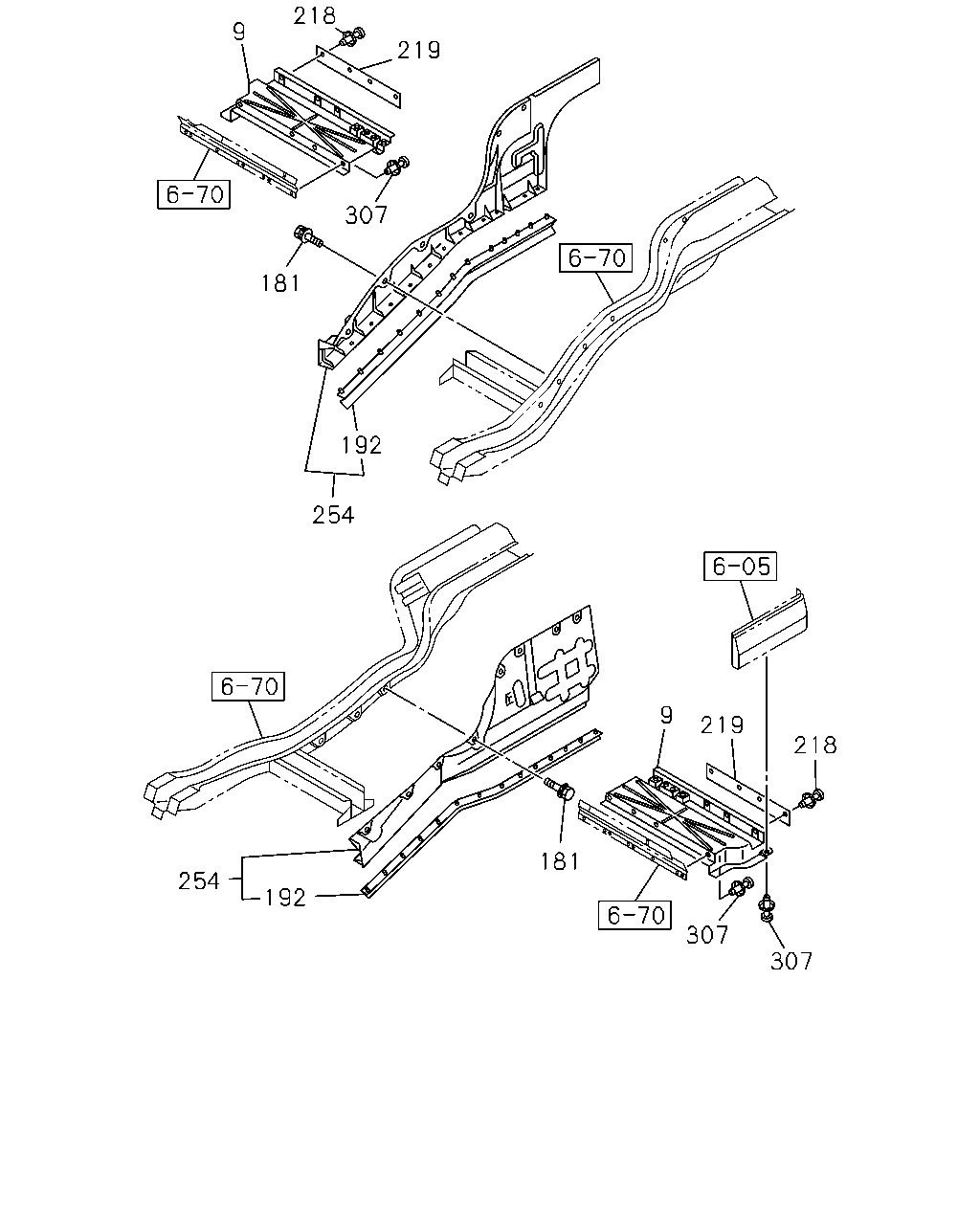

218 9 219 307 181 192 254 9 219 218 254 192 307 307 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-121-0	01	1	0712-0912	●
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-121-0	01	1	1001-	●	●
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-122-0	01	1	0712-0912	●
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-122-0	01	1	1001-	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-	●	●
192	SEAL; MUD COVER	8-98041-159-2	01	1	0710-	●	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	0710-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0710-	●	●
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS)	8-98041-148-1	02	1	1012-	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	0710-1011	●	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	1012-		●
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1012-	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-919-2	01	1	1012-	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-920-1	01	1	1012-	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	0710-1011	●	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	1012-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1012-	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	0710-1011	●	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	1012-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1012-	●
307	RETAINER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5	1-09987-248-1	08	1	0712-0912	●
307	RETAINER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5	1-09987-248-1	08	1	1001-	●	●

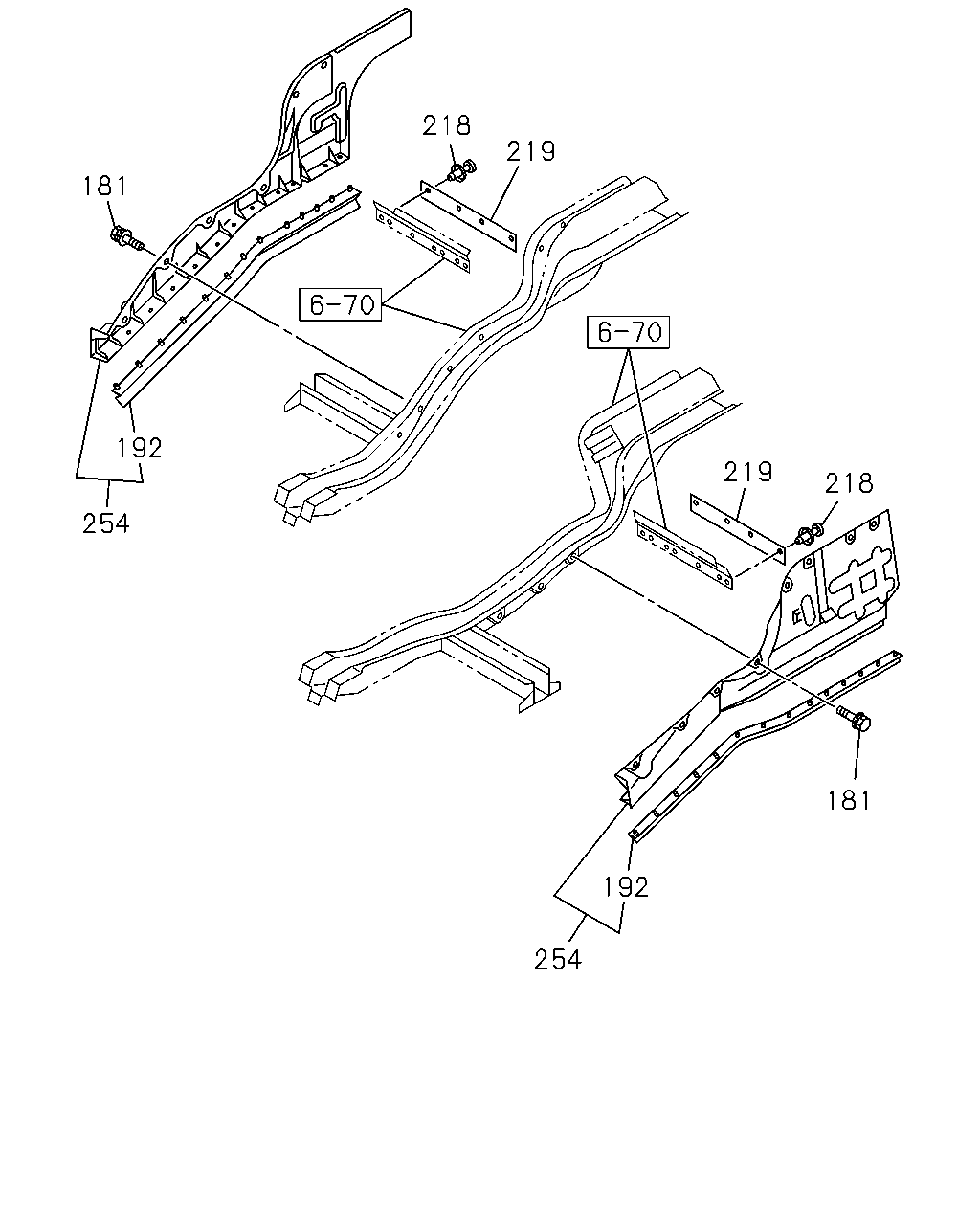

218 219 181 192 219 218 254 181 192 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-	●	●
192	SEAL; MUD COVER	8-98041-159-2	01	1	0710-	●	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	0710-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0710-	●	●
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS)	8-98041-148-1	02	1	1012-	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	0710-1011	●	●
219	FLAP; MUD GUARD	8-98041-150-1	02	1	1012-		●
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1012-	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-919-2	01	1	1012-	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-920-1	01	1	1012-	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	0710-1011	●	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	1012-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1012-	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	0710-1011	●	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	1012-		●
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
