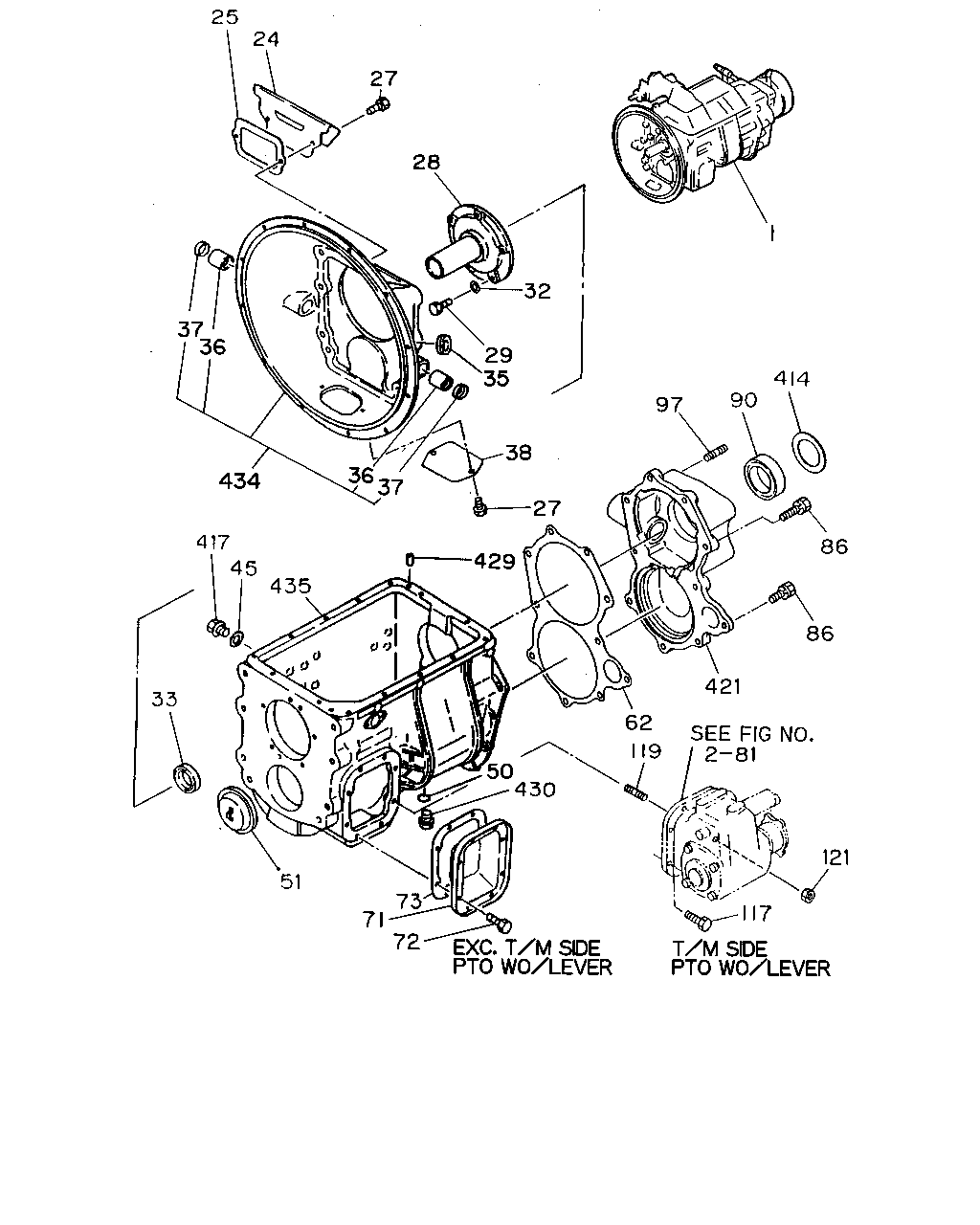

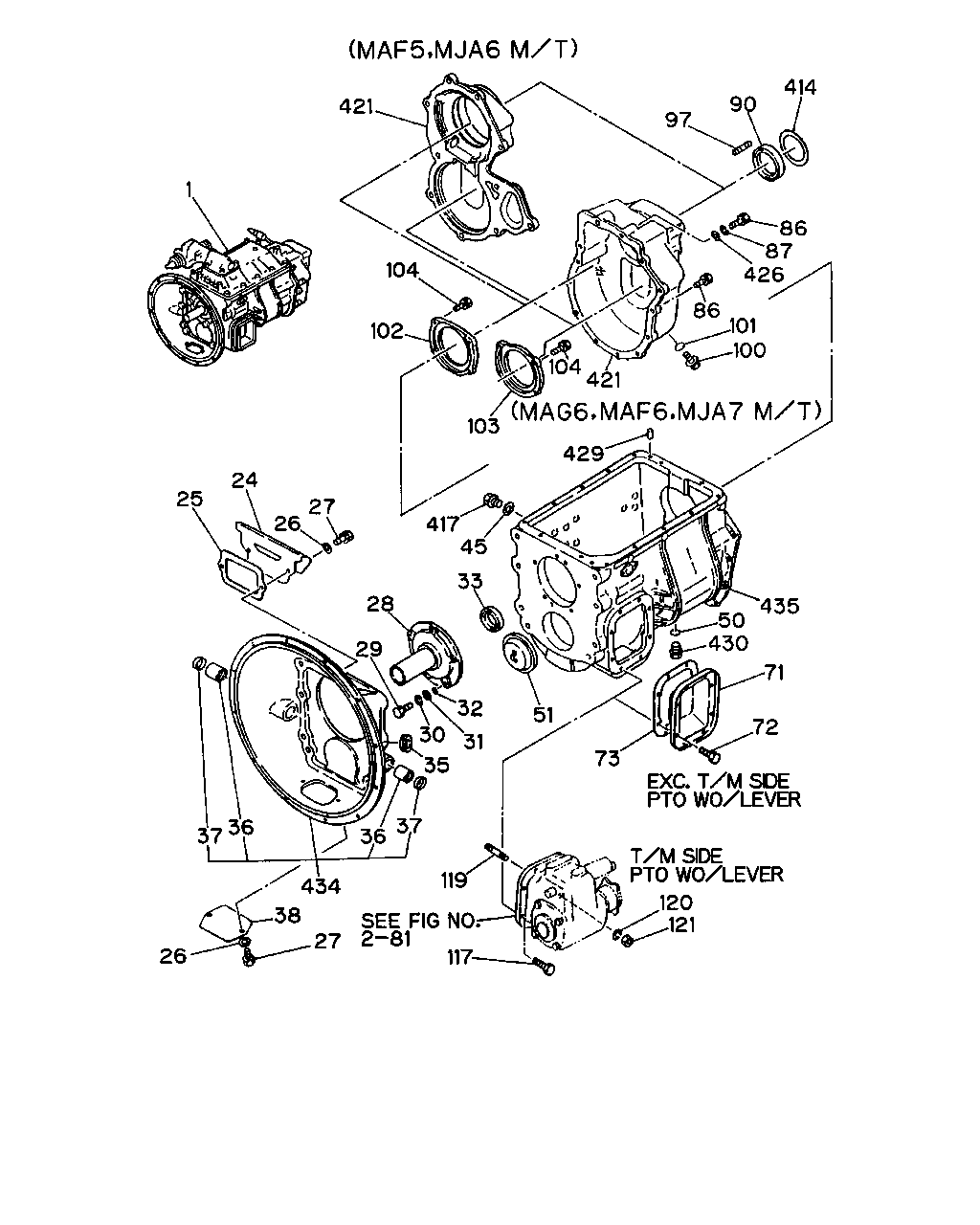

2-20A — MANUAL TRANSMISSION ASM AND CASE (#3348) — 321 parça

414 90 97 421 86 87 426 86 101 100 104 1 102 104 421 103 429 435 50 430 71 72 73 51 33 45 417 25 24 26 27 28 29 32 31 30 35 37 36 36 37 26 38 434 27 117 119 121 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	TRANSMISSION ASM; MANUAL	1-33037-878-0	01	1	9307-	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) 16 INCH CLUTCH(RF2)	1-33026-808-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33026-834-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33026-886-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33026-739-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33026-765-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U) 16 INCH CLUTCH(RF2)	1-33026-687-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33026-730-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33026-756-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) 16 INCH CLUTCH(RF2)	1-33026-678-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33037-883-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33037-796-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 16 INCH CLUTCH(RF2) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33038-098-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 16 INCH CLUTCH(RF2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33037-792-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33037-813-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M) ASSISTER SHIFT CONTROL<WX8>	1-33025-340-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33025-340-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-961-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-961-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33025-349-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-970-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-944-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33037-231-0	01	1	9205-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-935-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33037-811-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33037-807-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L)	1-33037-830-0	01	1	9307-				●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W)	1-33026-947-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B)	1-33026-938-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33037-817-0	01	1	9307-				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/6 17.5"(W3U)	1-33026-921-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B)	1-33026-912-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-121-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33027-147-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/6 17.5"(W4W) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-130-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/6 17.5"(W4W) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33027-156-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-078-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33027-104-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-069-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33027-095-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 12PD1 C ENG(43L)	1-33037-874-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33037-847-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-348-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-361-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL CXM(CXM***)	1-33037-867-0	01	1	9311-					●
1	TRANSMISSION ASM; MANUAL CXZ(CXZ***) 10PD1 STD ENG(40L) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33037-867-0	01	1	9311-					●
1	TRANSMISSION ASM; MANUAL CXZ(CXZ***) 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33037-858-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL CXZ(CXZ***) 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33037-851-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL	1-33026-990-0	01	1	9002-9210						●
1	TRANSMISSION ASM; MANUAL	1-33037-836-0	01	1	9307-						●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33037-973-0	01	1	9211-9306						●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33026-990-0	01	1	9211-9306						●
1	TRANSMISSION ASM; MANUAL	1-33037-805-0	01	1	9307-							●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9002-	●	●	●	●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9002-	●	●	●	●	●	●	●
26	WASHER; PL,COVER ID=8.4 OD=22	9-09160-708-0	02	1	9002-9205	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-	●	●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-1	01	1	9002-	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	05	1	9002-9205	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	05	1	9206-	●	●	●	●	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	05	1	9002-9205	●	●	●	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9002-	●	●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-496-0	01	1	9002-	●	●	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9002-	●	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9002-	●	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9002-	●	●	●	●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9002-	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9405	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9002-	●	●	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9002-	●	●	●	●	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9002-	●	●	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9002-9204	●	●
72	BOLT; SIDE COVER CXZ(CXZ***) M10X20 W/LK WASHER	9-01921-020-0	08	1	9002-9204			●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●
72	BOLT; SIDE COVER CXZ(CXZ***) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-037-0	01	1	9002-9310	●	●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33142-037-0	01	1	9311-9411	●	●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9412-	●	●	●	●	●	●	●
86	BOLT; RR COVER M10X22	1-09033-005-0	01	1	9002-9205	●
86	BOLT; RR COVER M14X20	1-09044-078-0	01	1	9206-	●						●
86	BOLT; RR COVER M12X40	9-01931-240-0	09	1	9002-9205	●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9206-9306				●	●	●
86	BOLT; RR COVER M10X16,M12X35 L=59	1-09029-031-0	02	1	9002-9205	●	●	●		●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9206-9310	●	●	●		●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9311-9512		●	●		●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-		●	●		●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9307-9512	●	●	●				●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9601-	●				●	●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9002-9205		●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9601-		●	●
86	BOLT; RR COVER M12X70	9-01656-270-0	02	1	9002-9205		●	●		●	●
86	BOLT; RR COVER M12X65	1-09044-077-0	02	1	9206-		●	●		●	●
86	BOLT; RR COVER CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X40	9-09804-155-0	01	1	9002-			●
86	BOLT; RR COVER M12X40	9-01931-240-0	10	1	9002-9205				●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-9306	●	●
86	BOLT; RR COVER CXZ(CXZ***) M17X35	1-09044-076-0	09	1	9206-9306			●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9307-9512				●	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9601-				●
86	BOLT; RR COVER M12X40	9-01991-240-0	10	1	9002-9205					●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	04	1	9002-9205	●	●	●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-474-0	01	1	9002-9406	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-579-1	01	1	9407-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-471-0	01	1	9002-9406			●				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9407-			●				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-472-0	01	1	9002-9406				●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9407-				●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9002-	●	●	●	●	●	●	●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 L=72	1-09302-002-0	03	1	9002-		●	●		●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9002-					●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9002-					●	●
102	RETAINER; BRG UPR,MAINSHAFT	9-33151-014-0	01	1	9002-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9002-			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	9002-					●	●
103	RETAINER; BRG	9-33151-015-0	01	1	9002-		●
103	RETAINER; BRG	9-33151-014-0	01	1	9002-			●
103	RETAINER; BRG	1-33151-035-1	01	1	9002-					●	●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9002-9205		●	●		●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-		●	●		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	04	1	9002-9105	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER	0-50051-040-0	01	1	9002-9105	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	06	1	9106-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	9206-				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9206-	●	●	●				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	9002-				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	03	1	9002-9205				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER	0-50051-040-0	02	1	9002-9006				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50	0-16806-050-0	02	1	9007-9205				●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37.5	9-04501-025-0	03	1	9002-9105	●	●	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37.5	9-04501-025-0	02	1	9106-9203	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04411-025-0	02	1	9204-9205	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04501-025-0	03	1	9106-9203				●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04411-025-0	03	1	9204-9205				●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04411-025-0	02	1	9206-	●	●	●	●	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	03	1	9002-9006	●	●	●	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	03	1	9007-9105	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9106-9205	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	05	1	9007-9205				●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9106-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	03	1	9002-9105	●	●	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	03	1	9106-9205				●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●	●	●	●
414	COVER; DUST,RR COVER	1-33139-004-0	01	1	9002-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9002-			●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9002-9405	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●	●	●	●	●
421	COVER; RR,TRANS	1-33131-108-1	01	1	9002-	●
421	COVER; RR,TRANS	1-33131-096-3	01	1	9002-		●	●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9002-				●
421	COVER; RR,TRANS	1-33131-122-2	01	1	9002-9011					●	●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9012-					●	●
421	COVER; RR,TRANS	1-33131-111-1	01	1	9307-							●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	02	1	9002-9205	●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	04	1	9002-9205		●	●		●	●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9002-			●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9002-	●	●	●	●	●	●	●
434	HOUSING; CLU STEEL	1-31110-123-4	01	1	9002-	●	●	●				●
434	HOUSING; CLU STEEL	1-31110-118-8	01	1	9002-				●	●	●
435	CASE; TRANS	1-33111-199-5	01	1	9002-	●
435	CASE; TRANS	1-33111-213-0	01	1	9002-9108		●
435	CASE; TRANS	1-33111-227-0	01	1	9109-		●
435	CASE; TRANS	1-33111-224-1	01	1	9002-			●
435	CASE; TRANS	1-33111-197-1	01	1	9002-				●
435	CASE; TRANS	1-33111-195-1	01	1	9002-					●	●
435	CASE; TRANS	1-33111-208-2	01	1	9307-							●

25 24 27 28 1 32 414 90 97 29 35 37 36 434 36 37 38 27 86 86 421 62 119 121 117 72 71 73 430 50 51 33 417 45 435 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	TRANSMISSION ASM; MANUAL	1-33037-878-0	01	1	9307-	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) 16 INCH CLUTCH(RF2)	1-33026-808-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33026-834-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33026-886-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33026-739-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33026-765-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U) 16 INCH CLUTCH(RF2)	1-33026-687-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33026-730-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33026-756-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) 16 INCH CLUTCH(RF2)	1-33026-678-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. 16 INCH CLUTCH(RF2)	1-33037-883-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE TRANSMISSION REAR(PJ8),16 INCH CLUTCH(RF2)	1-33037-796-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 16 INCH CLUTCH(RF2) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33038-098-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 16 INCH CLUTCH(RF2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33037-792-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33037-813-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M) ASSISTER SHIFT CONTROL<WX8>	1-33025-340-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33025-340-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-961-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-961-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33025-349-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-970-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-944-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33037-231-0	01	1	9205-9306			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-935-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33037-811-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33037-807-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L)	1-33037-830-0	01	1	9307-				●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W)	1-33026-947-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B)	1-33026-938-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33037-817-0	01	1	9307-				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/6 17.5"(W3U)	1-33026-921-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B)	1-33026-912-0	01	1	9002-9306				●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-121-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33027-147-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/6 17.5"(W4W) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-130-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/6 17.5"(W4W) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33027-156-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-078-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33027-104-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33027-069-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33027-095-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 12PD1 C ENG(43L)	1-33037-874-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33037-847-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-348-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-361-0	01	1	9002-9306					●
1	TRANSMISSION ASM; MANUAL CXM(CXM***)	1-33037-867-0	01	1	9311-					●
1	TRANSMISSION ASM; MANUAL CXZ(CXZ***) 10PD1 STD ENG(40L) PARKING BRAKE TRANSMISSION REAR(PJ8) ASSISTER SHIFT CONTROL<WX8>	1-33037-867-0	01	1	9311-					●
1	TRANSMISSION ASM; MANUAL CXZ(CXZ***) 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-33037-858-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL CXZ(CXZ***) 10PD1 STD ENG(40L) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), ASSISTER SHIFT CONTROL<WX8>	1-33037-851-0	01	1	9307-					●
1	TRANSMISSION ASM; MANUAL	1-33026-990-0	01	1	9002-9210						●
1	TRANSMISSION ASM; MANUAL	1-33037-836-0	01	1	9307-						●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33037-973-0	01	1	9211-9306						●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33026-990-0	01	1	9211-9306						●
1	TRANSMISSION ASM; MANUAL	1-33037-805-0	01	1	9307-							●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9002-	●	●	●	●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9002-	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-	●	●	●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-1	01	1	9002-	●	●	●	●	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	05	1	9002-9205	●	●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	05	1	9206-	●	●	●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9002-	●	●	●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-496-0	01	1	9002-	●	●	●	●	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9002-	●	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9002-	●	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9002-	●	●	●	●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9002-	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9405	●	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9002-	●	●	●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9002-	●	●	●	●	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-026-0	01	1	9307-							●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9002-	●	●	●	●	●	●	●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	9-01921-020-0	08	1	9002-9204	●	●
72	BOLT; SIDE COVER CXZ(CXZ***) M10X20 W/LK WASHER	9-01921-020-0	08	1	9002-9204			●
72	BOLT; SIDE COVER M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●
72	BOLT; SIDE COVER CXZ(CXZ***) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-037-0	01	1	9002-9310	●	●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33142-037-0	01	1	9311-9411	●	●	●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9412-	●	●	●	●	●	●	●
86	BOLT; RR COVER M10X22	1-09033-005-0	01	1	9002-9205	●
86	BOLT; RR COVER M14X20	1-09044-078-0	01	1	9206-	●						●
86	BOLT; RR COVER M12X40	9-01931-240-0	09	1	9002-9205	●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9206-9306				●	●	●
86	BOLT; RR COVER M10X16,M12X35 L=59	1-09029-031-0	02	1	9002-9205	●	●	●		●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9206-9310	●	●	●		●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9311-9512		●	●		●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-		●	●		●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9307-9512	●	●	●				●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9601-	●				●	●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9002-9205		●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9601-		●	●
86	BOLT; RR COVER M12X70	9-01656-270-0	02	1	9002-9205		●	●		●	●
86	BOLT; RR COVER M12X65	1-09044-077-0	02	1	9206-		●	●		●	●
86	BOLT; RR COVER CXZ(CXZ***) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X40	9-09804-155-0	01	1	9002-			●
86	BOLT; RR COVER M12X40	9-01931-240-0	10	1	9002-9205				●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-9306	●	●
86	BOLT; RR COVER CXZ(CXZ***) M17X35	1-09044-076-0	09	1	9206-9306			●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9307-9512				●	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9601-				●
86	BOLT; RR COVER M12X40	9-01991-240-0	10	1	9002-9205					●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-474-0	01	1	9002-9406	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-579-1	01	1	9407-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-471-0	01	1	9002-9406			●				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9407-			●				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-472-0	01	1	9002-9406				●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9407-				●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9002-	●	●	●	●	●	●	●
97	STUD; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 L=72	1-09302-002-0	03	1	9002-		●	●		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	04	1	9002-9105	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER	0-50051-040-0	01	1	9002-9105	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	06	1	9106-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	9206-				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9206-	●	●	●				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	9002-				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	03	1	9002-9205				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER	0-50051-040-0	02	1	9002-9006				●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50	0-16806-050-0	02	1	9007-9205				●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37.5	9-04501-025-0	03	1	9002-9105	●	●	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37.5	9-04501-025-0	02	1	9106-9203	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04411-025-0	02	1	9204-9205	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04501-025-0	03	1	9106-9203				●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04411-025-0	03	1	9204-9205				●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04411-025-0	02	1	9206-	●	●	●	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9106-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	03	1	9002-9105	●	●	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	03	1	9106-9205				●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●	●	●	●
414	COVER; DUST,RR COVER	1-33139-004-0	01	1	9002-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9002-			●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9002-9405	●	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●	●	●	●	●
421	COVER; RR,TRANS	1-33131-108-1	01	1	9002-	●
421	COVER; RR,TRANS	1-33131-096-3	01	1	9002-		●	●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9002-				●
421	COVER; RR,TRANS	1-33131-122-2	01	1	9002-9011					●	●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9012-					●	●
421	COVER; RR,TRANS	1-33131-111-1	01	1	9307-							●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9002-			●	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9002-	●	●	●	●	●	●	●
434	HOUSING; CLU STEEL	1-31110-123-4	01	1	9002-	●	●	●				●
434	HOUSING; CLU STEEL	1-31110-118-8	01	1	9002-				●	●	●
435	CASE; TRANS	1-33111-199-5	01	1	9002-	●
435	CASE; TRANS	1-33111-213-0	01	1	9002-9108		●
435	CASE; TRANS	1-33111-227-0	01	1	9109-		●
435	CASE; TRANS	1-33111-224-1	01	1	9002-			●
435	CASE; TRANS	1-33111-197-1	01	1	9002-				●
435	CASE; TRANS	1-33111-195-1	01	1	9002-					●	●
435	CASE; TRANS	1-33111-208-2	01	1	9307-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
