◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#33479) — 62 parça

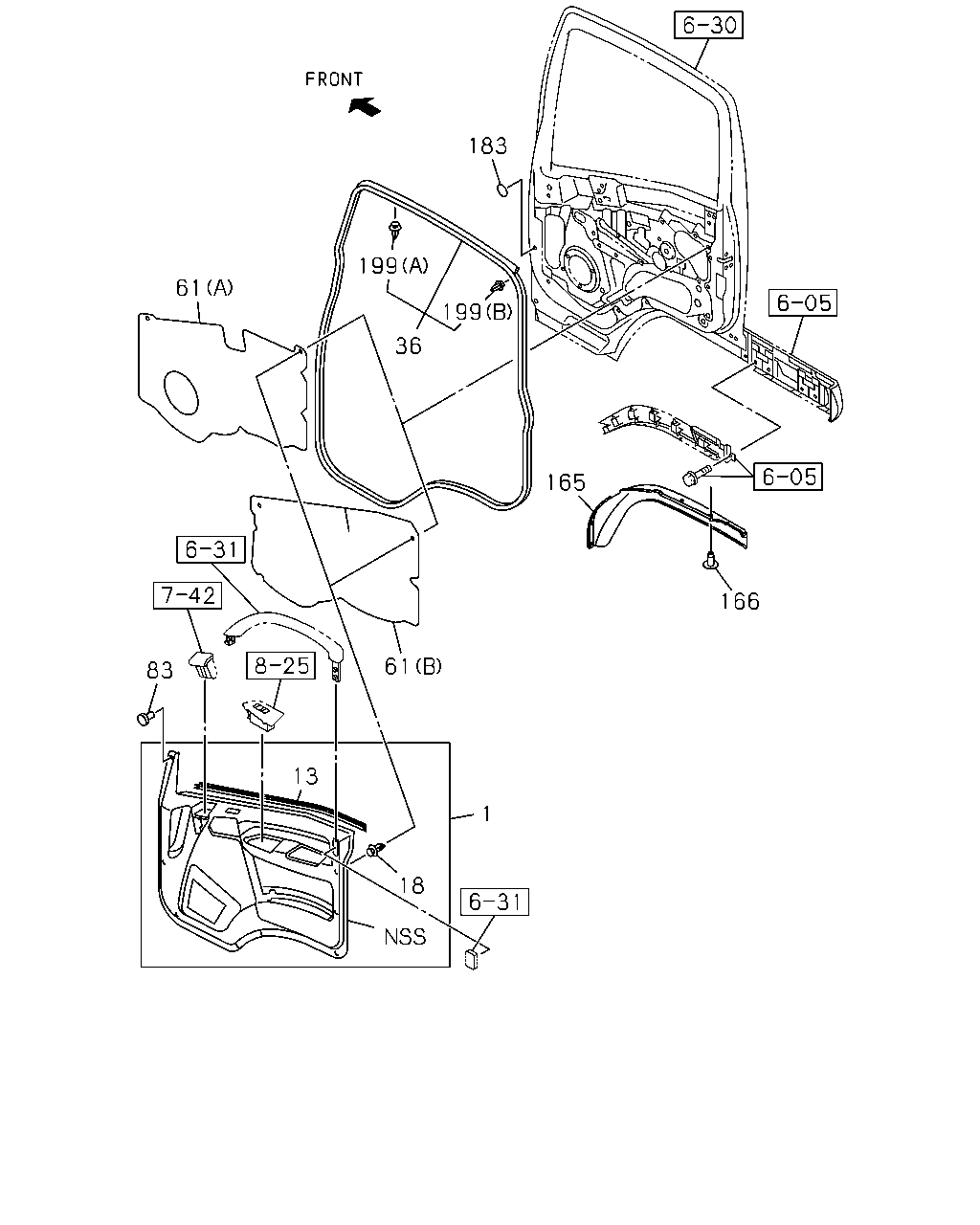

çizim 178737
183 199 61 199 36 165 166 61 83 13 1 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
OK WINDOW<6ND> GRAY 		8-97407-468-3 01 1 0712-0912 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0712-0808 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0809-1011 ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>,OK WINDOW<6ND> GRAY 		8-97405-305-6 01 1 1012- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>,OK WINDOW<6ND> GRAY 		8-97405-307-6 01 1 0712-0808 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>,OK WINDOW<6ND> GRAY 		8-97405-307-6 01 1 0809- ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0710-0711 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0712-0808 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> GRAY 		8-97405-306-6 01 1 0712-0808 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> GRAY 		8-97405-306-6 01 1 0809-0912 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 1001- ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0710-0711 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0712-0808 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0712-0808 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0809- ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0710- ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0710- ● ●
18 CLIP; DOOR PAD
OK WINDOW<6ND> 		8-98004-025-0 06 1 0712-0912 ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0710-0711 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0710-0711 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0712-0808 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0712-0808 ●
18 CLIP; DOOR PAD
EXC. OK WINDOW<6ND> 		8-98004-025-0 07 1 0712-0808 ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0809-0912 ● ●
18 CLIP; DOOR PAD
EXC. OK WINDOW<6ND> 		8-98004-025-0 07 1 0809-0912 ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 1001- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98077-429-0 01 1 0712-1009 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0710-0711 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0712-1009 ●
36 SEAL; DOOR,MAIN,CAB SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98029-198-3 01 1 0712-1009 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0710- ● ●
61 SEAL; WATER,DOOR PAD
OK WINDOW<6ND> EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98029-396-0 01 1 0910-0912 ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> OK WINDOW<6ND> (A) 		8-98031-227-0 01 1 0712-0912 ●
61 SEAL; WATER,DOOR PAD
OK WINDOW<6ND> EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98041-906-0 01 1 0712-0912 ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (A) 		8-98029-395-2 01 1 0710-0711 ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (A) 		8-98029-395-2 01 1 0712-0912 ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> EXC. OK WINDOW<6ND> (A) 		8-98029-395-2 01 1 0712-0912 ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (A) 		8-98029-395-2 01 1 1001- ● ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98029-396-0 02 1 0710-0711 ● ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98029-396-0 02 1 0712-0912 ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95>,OK WINDOW<6ND> (B) 		8-98029-396-0 02 1 0712-0912 ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98029-396-0 02 1 1001- ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> (A) 		8-98029-394-2 01 1 0710- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0710- ● ●
165 LINER; DOOR LWR 8-98038-286-1 01 1 0710-1412 ● ●
165 LINER; DOOR LWR 8-98299-436-0 01 1 1501- ● ●
165 LINER; DOOR LWR 8-98038-285-1 01 1 0710-1412 ● ●
165 LINER; DOOR LWR 8-98299-434-0 01 1 1501- ● ●
166 PLUG; HOLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5 		1-09987-248-1 08 1 0712-0912 ●
166 PLUG; HOLE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5 		1-09987-248-1 08 1 1001- ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 10 1 0710-0711 ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 10 1 0712-0912 ●
166 PLUG; HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5 		1-09987-248-1 10 1 0712-0912 ●
166 PLUG; HOLE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5 		1-09987-248-1 10 1 1001- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0710-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0710-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1010- ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0710-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0710-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1010- ● ●
