◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#33477) — 244 parça

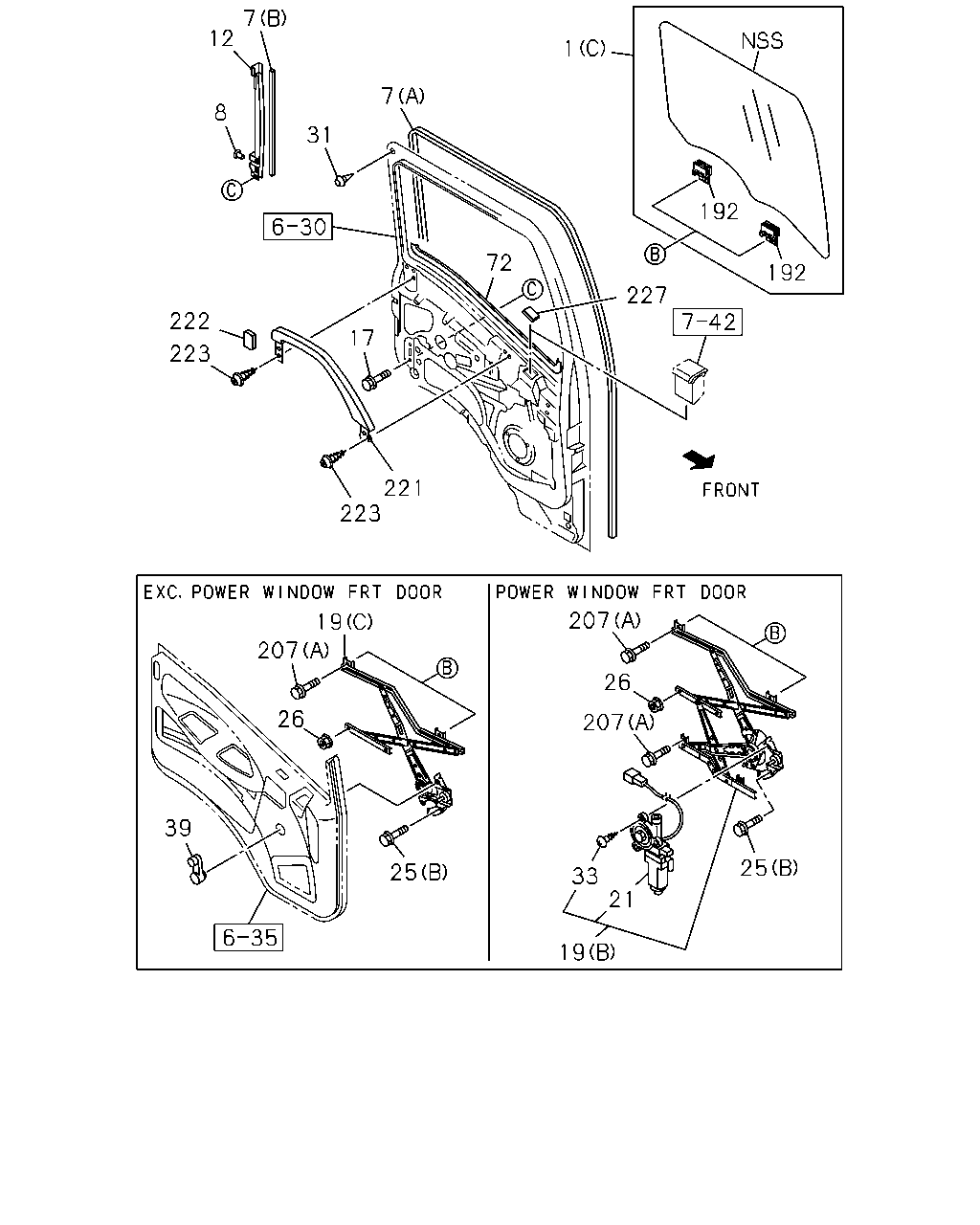

çizim 178723
7 12 1 7 8 31 192 72 192 227 222 17 223 221 223 207 19 207 26 26 207 39 25 25 33 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
OK WINDOW<6ND> (B) 		8-98023-442-3 01 1 0712-0906 ●
1 GLASS; FRT DOOR
OK WINDOW<6ND> (A) 		8-98031-224-0 01 1 0712-0912 ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 0710-0711 ● ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 0712-0912 ●
1 GLASS; FRT DOOR
EXC. OK WINDOW<6ND> (C) 		8-98029-190-1 01 1 0712-0912 ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 1001-1204 ● ●
1 GLASS; FRT DOOR
(C) 		8-98211-765-0 01 1 1205- ● ●
1 GLASS; FRT DOOR
(A) 		8-98029-189-1 01 1 0710-1204 ● ●
1 GLASS; FRT DOOR
(A) 		8-98211-764-0 01 1 1205- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0710- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0710-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0710-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412- ● ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 0710- ● ●
19 REGULATOR; WINDOW,FRT DOOR
OK WINDOW<6ND> (A) 		8-98031-226-3 01 1 0712-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 0809- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 0809- ● ●
19 REGULATOR; WINDOW,FRT DOOR
(B) 		8-98029-237-3 01 1 0710-0711 ● ●
19 REGULATOR; WINDOW,FRT DOOR
(B) 		8-98029-237-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> (B) 		8-98029-237-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 0809-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> (B) 		8-98029-237-3 01 1 0809-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1001- ● ●
19 REGULATOR; WINDOW,FRT DOOR
(E) 		8-98029-236-3 01 1 0710-0711 ● ●
19 REGULATOR; WINDOW,FRT DOOR
(E) 		8-98029-236-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (E) 		8-98029-236-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (E) 		8-98029-236-3 01 1 0809- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 0710-0711 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-430-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 0809-0912 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-430-0 01 1 0809-0912 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 1001- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 0710-0711 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0809- ● ●
25 BOLT; WINDOW REG
OK WINDOW<6ND> (A) M6X12 FLANGE 		0-28050-612-0 03 1 0712-0912 ●
25 BOLT; WINDOW REG
(B) M6X10 FLANGE 		0-28050-610-0 08 1 0710- ● ●
26 NUT; FLANGE,WINDOW REG
OK WINDOW<6ND> M6 FLANGE 		0-91180-106-0 02 1 0712-0912 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0712-0912 ●
26 NUT; FLANGE,WINDOW REG
EXC. OK WINDOW<6ND> M6 FLANGE 		0-91180-106-0 04 1 0712-0912 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1001- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 0710- ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0710-0711 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0710-0711 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 0809-0912 ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 0809-0912 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-431-0 03 1 0809-0912 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 1001- ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 1001- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0712-0808 ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0809- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0710- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0710- ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 0710-1204 ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 0710-1204 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205- ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205- ● ●
207 SCREW; DOOR GLASS
OK WINDOW<6ND> (B) M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712-0912 ●
207 SCREW; DOOR GLASS
(A) BOLT M6X10 FLANGE 		0-28050-610-0 04 1 0710- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 0710- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 0710- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0710- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0710- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0710-1108 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 0710- ● ●

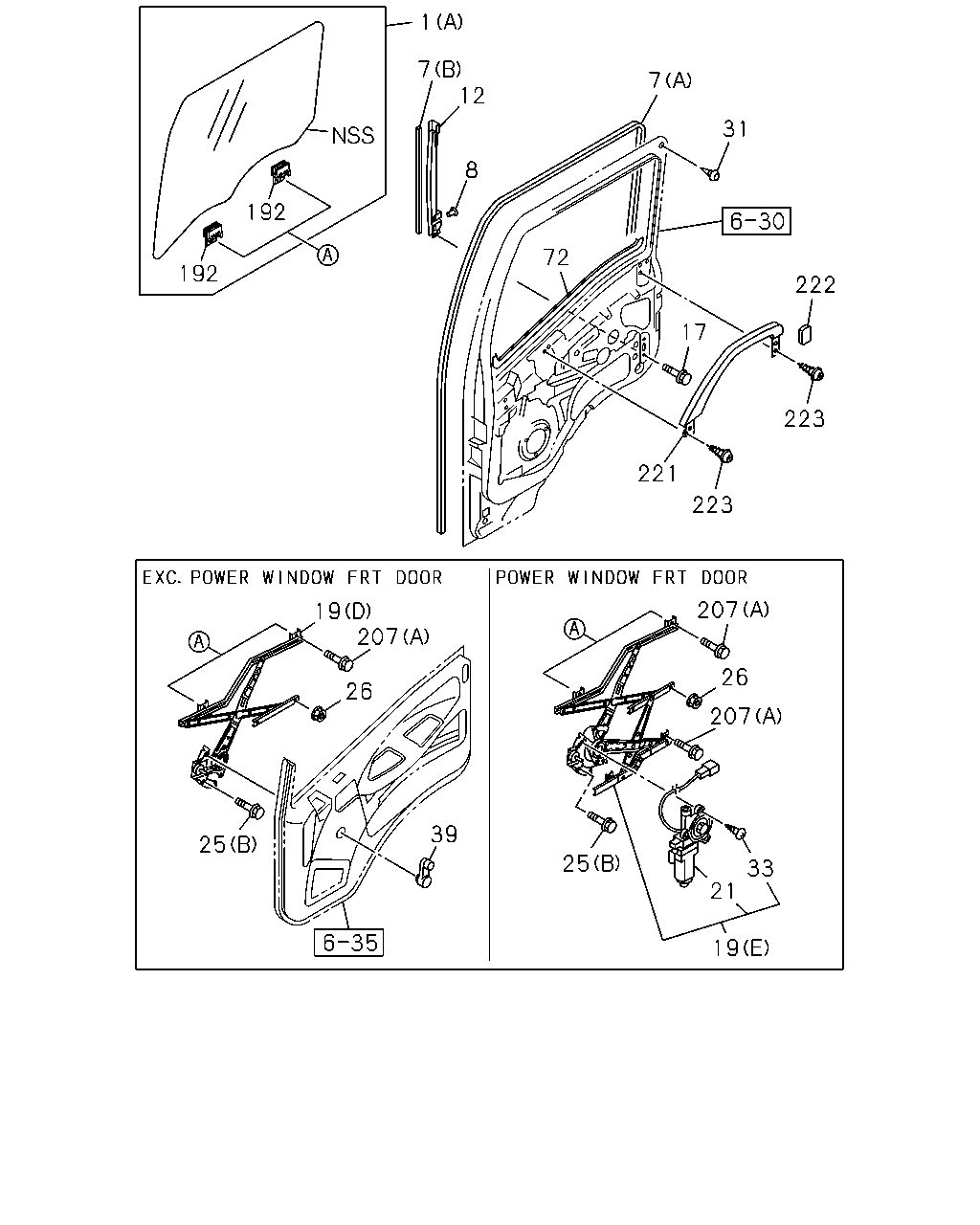

çizim 178729
1 7 12 7 31 8 192 72 192 222 17 223 221 223 207 19 207 26 26 207 39 25 25 33 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
OK WINDOW<6ND> (B) 		8-98023-442-3 01 1 0712-0906 ●
1 GLASS; FRT DOOR
OK WINDOW<6ND> (A) 		8-98031-224-0 01 1 0712-0912 ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 0710-0711 ● ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 0712-0912 ●
1 GLASS; FRT DOOR
EXC. OK WINDOW<6ND> (C) 		8-98029-190-1 01 1 0712-0912 ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 1001-1204 ● ●
1 GLASS; FRT DOOR
(C) 		8-98211-765-0 01 1 1205- ● ●
1 GLASS; FRT DOOR
(A) 		8-98029-189-1 01 1 0710-1204 ● ●
1 GLASS; FRT DOOR
(A) 		8-98211-764-0 01 1 1205- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0710- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0710-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0710-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412- ● ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 0710- ● ●
19 REGULATOR; WINDOW,FRT DOOR
OK WINDOW<6ND> (A) 		8-98031-226-3 01 1 0712-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 0809- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 0809- ● ●
19 REGULATOR; WINDOW,FRT DOOR
(B) 		8-98029-237-3 01 1 0710-0711 ● ●
19 REGULATOR; WINDOW,FRT DOOR
(B) 		8-98029-237-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> (B) 		8-98029-237-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 0809-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> (B) 		8-98029-237-3 01 1 0809-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1001- ● ●
19 REGULATOR; WINDOW,FRT DOOR
(E) 		8-98029-236-3 01 1 0710-0711 ● ●
19 REGULATOR; WINDOW,FRT DOOR
(E) 		8-98029-236-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (E) 		8-98029-236-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (E) 		8-98029-236-3 01 1 0809- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 0710-0711 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-430-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 0809-0912 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-430-0 01 1 0809-0912 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 1001- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 0710-0711 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0712-0808 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0809- ● ●
25 BOLT; WINDOW REG
OK WINDOW<6ND> (A) M6X12 FLANGE 		0-28050-612-0 03 1 0712-0912 ●
25 BOLT; WINDOW REG
(B) M6X10 FLANGE 		0-28050-610-0 08 1 0710- ● ●
26 NUT; FLANGE,WINDOW REG
OK WINDOW<6ND> M6 FLANGE 		0-91180-106-0 02 1 0712-0912 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0712-0912 ●
26 NUT; FLANGE,WINDOW REG
EXC. OK WINDOW<6ND> M6 FLANGE 		0-91180-106-0 04 1 0712-0912 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1001- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 0710- ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0710-0711 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0710-0711 ● ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR 8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-431-0 03 1 0712-0808 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 0809-0912 ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 0809-0912 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> 		8-98058-431-0 03 1 0809-0912 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 1001- ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 03 1 1001- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0712-0808 ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0809- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0710- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0710- ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 0710-1204 ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 0710-1204 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205- ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205- ● ●
207 SCREW; DOOR GLASS
OK WINDOW<6ND> (B) M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712-0912 ●
207 SCREW; DOOR GLASS
(A) BOLT M6X10 FLANGE 		0-28050-610-0 04 1 0710- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 0710- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 0710- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0710- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0710- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0710-1108 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●

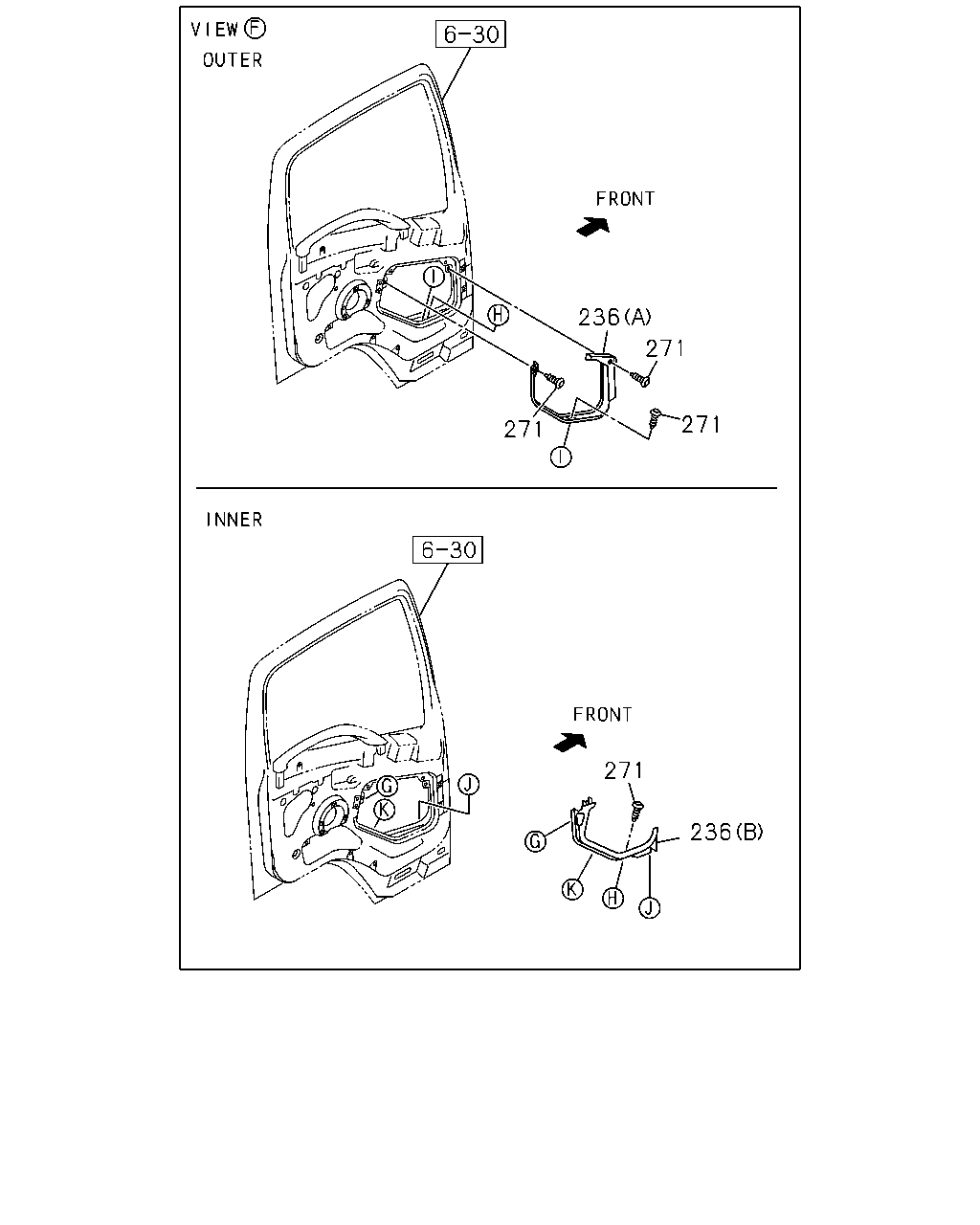

çizim 178885
236 271 271 271 271 236
BalonParca AdiParca NoAdetTipApplied Date A B
236 COVER; OK WINDOW
OK WINDOW<6ND> (A) OUTER 		8-98031-221-2 01 1 0712-0912 ●
236 COVER; OK WINDOW
OK WINDOW<6ND> (B) INNER 		8-98031-222-1 01 1 0712-0912 ●
271 PLUG; HOLE
OK WINDOW<6ND> 		8-98068-058-0 04 1 0712-0912 ●

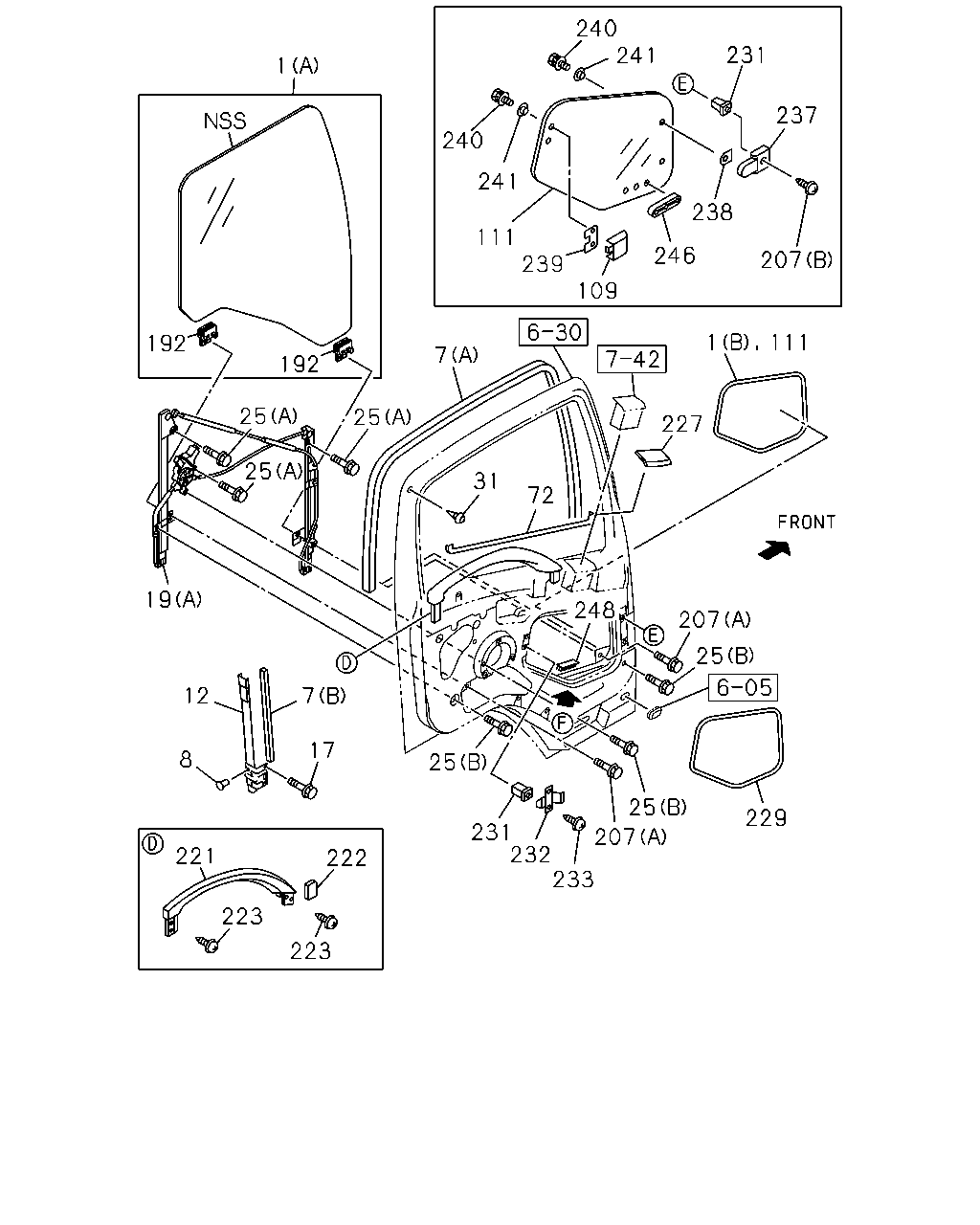

çizim 178923
223 222 223 221 8 12 17 7 19 233 232 231 25 207 229 25 25 207 248 72 31 111 227 7 25 25 25 192 192 1 111 241 240 240 231 237 241 238 207 246 109 239 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
OK WINDOW<6ND> (B) 		8-98023-442-3 01 1 0712-0906 ●
1 GLASS; FRT DOOR
OK WINDOW<6ND> (A) 		8-98031-224-0 01 1 0712-0912 ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 0710-0711 ● ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 0712-0912 ●
1 GLASS; FRT DOOR
EXC. OK WINDOW<6ND> (C) 		8-98029-190-1 01 1 0712-0912 ●
1 GLASS; FRT DOOR
(C) 		8-98029-190-1 01 1 1001-1204 ● ●
1 GLASS; FRT DOOR
(C) 		8-98211-765-0 01 1 1205- ● ●
1 GLASS; FRT DOOR
(A) 		8-98029-189-1 01 1 0710-1204 ● ●
1 GLASS; FRT DOOR
(A) 		8-98211-764-0 01 1 1205- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0710-1411 ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0710- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0710-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0710-1105 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-1411 ● ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412- ● ●
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 0710- ● ●
19 REGULATOR; WINDOW,FRT DOOR
OK WINDOW<6ND> (A) 		8-98031-226-3 01 1 0712-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 0809- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 0809- ● ●
19 REGULATOR; WINDOW,FRT DOOR
(B) 		8-98029-237-3 01 1 0710-0711 ● ●
19 REGULATOR; WINDOW,FRT DOOR
(B) 		8-98029-237-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> (B) 		8-98029-237-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 0809-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. OK WINDOW<6ND> (B) 		8-98029-237-3 01 1 0809-0912 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1001- ● ●
19 REGULATOR; WINDOW,FRT DOOR
(E) 		8-98029-236-3 01 1 0710-0711 ● ●
19 REGULATOR; WINDOW,FRT DOOR
(E) 		8-98029-236-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (E) 		8-98029-236-3 01 1 0712-0808 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (E) 		8-98029-236-3 01 1 0809- ● ●
25 BOLT; WINDOW REG
OK WINDOW<6ND> (A) M6X12 FLANGE 		0-28050-612-0 03 1 0712-0912 ●
25 BOLT; WINDOW REG
(B) M6X10 FLANGE 		0-28050-610-0 08 1 0710- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 0710- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0710- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0710- ● ●
109 LOCK ASM; DOOR WINDOW GLASS
OK WINDOW<6ND> 		1-74998-052-0 01 1 0712-0912 ●
111 GLASS; FRT DOOR,LWR
OK WINDOW<6ND> 		8-98023-442-3 01 1 0907-0912 ●
111 GLASS; FRT DOOR,LWR
OK WINDOW<6ND> 		8-98023-456-0 01 1 0712-0912 ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 0710-1204 ● ●
192 HOLDER; DOOR GLASS 8-98041-907-0 02 1 0710-1204 ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205- ● ●
192 HOLDER; DOOR GLASS 8-98211-762-0 02 1 1205- ● ●
207 SCREW; DOOR GLASS
OK WINDOW<6ND> (B) M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712-0912 ●
207 SCREW; DOOR GLASS
(A) BOLT M6X10 FLANGE 		0-28050-610-0 04 1 0710- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 0710- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 0710- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0710- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0710- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0710-1108 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 0710- ● ●
229 SEAL; OK WINDOW
OK WINDOW<6ND> 		8-98031-223-0 01 1 0712-0912 ●
231 GROMMET; SCREW
OK WINDOW<6ND> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0712-0912 ●
232 STRIKER; OK WINDOW
OK WINDOW<6ND> 		8-98048-053-0 01 1 0712-0912 ●
233 SCREW; STRIKER
OK WINDOW<6ND> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712-0912 ●
237 HINGE; DOOR WINDOW GLASS
OK WINDOW<6ND> 		8-98041-910-1 02 1 0712-0912 ●
238 SHEET; HINGE
OK WINDOW<6ND> 		1-74998-051-0 02 1 0712-0912 ●
239 SHEET; LOCK
OK WINDOW<6ND> 		1-74998-053-0 01 1 0712-0912 ●
240 SCREW; HINGE & LOCK
OK WINDOW<6ND> M6X12 W/LK&PL WASHER 		8-98046-974-0 04 1 0712-0912 ●
241 GASKET; HINGE & LOCK
OK WINDOW<6ND> 		1-74998-054-0 04 1 0712-0912 ●
246 GRILLE; OK WINDOW
OK WINDOW<6ND> 		1-74298-002-1 01 1 0712-0912 ●
248 FASTENER
OK WINDOW<6ND> 		1-74998-071-0 03 1 0712-0712 ●
248 FASTENER
OK WINDOW<6ND> 		1-74998-071-1 02 1 0712-0912 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
