6-20 — SIDE PANEL AND STEP (#33475) — 174 parça

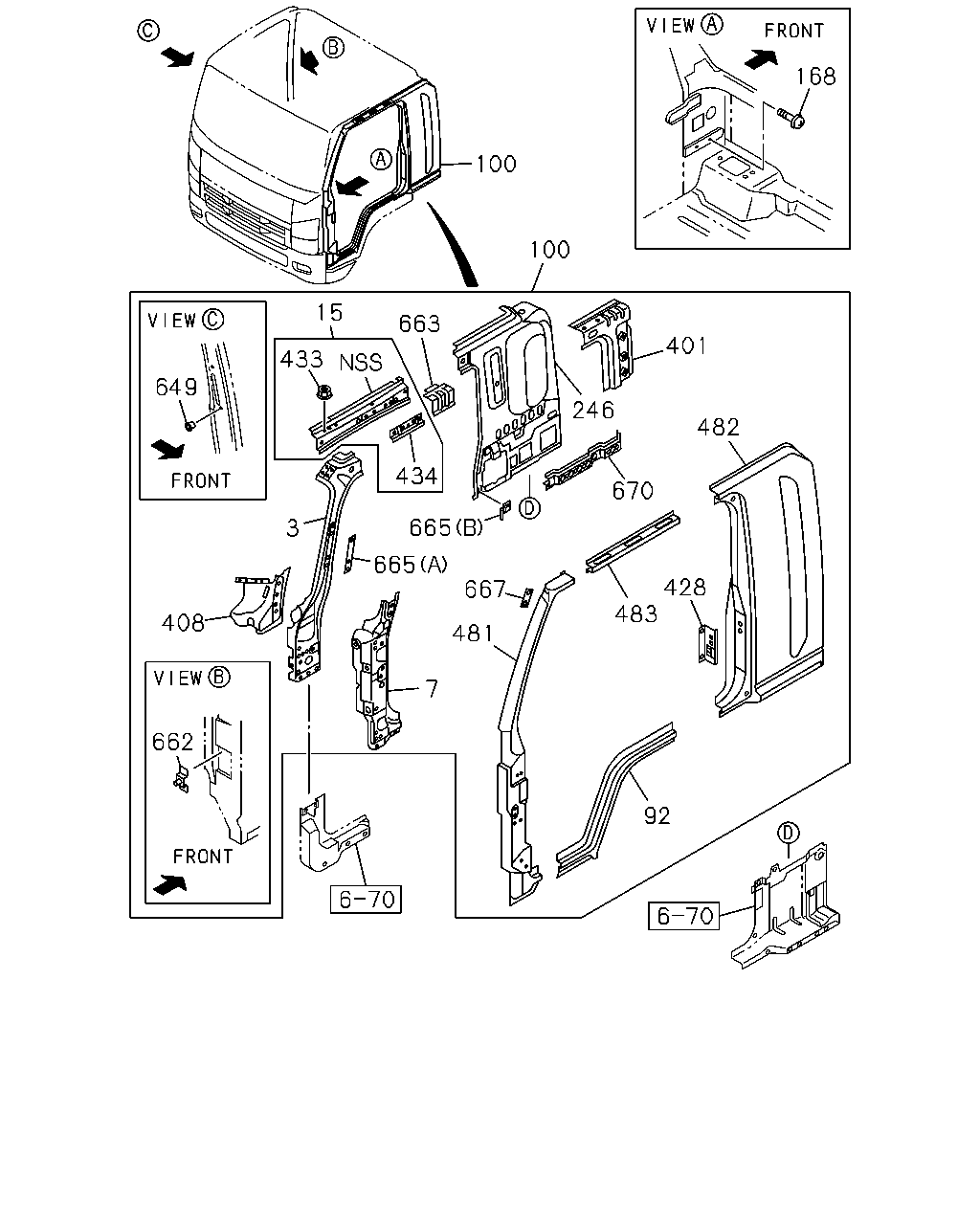

çizim 178721
168 100 100 15 663 401 433 649 246 482 434 670 665 3 665 428 483 667 408 481 7 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710-1204 ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1205- ●
3 PANEL; CLOSING,FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98058-236-1 01 1 1205- ●
3 PANEL; CLOSING,FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98058-236-1 01 1 1205- ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0710- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710-1204 ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1205- ●
7 REINFORCEMENT; HINGE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-240-3 01 1 1205- ●
7 REINFORCEMENT; HINGE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-240-3 01 1 1205- ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0710- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0710-1204 ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1205- ●
15 PANEL; CANT RAIL SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-292-2 01 1 1205- ●
15 PANEL; CANT RAIL SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-292-2 01 1 1205- ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0710- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0710- ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-97586-061-5 01 1 0712-1005 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-6 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-079-6 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-079-6 01 1 0809-0901 ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-6 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-6 01 1 0902-1005 ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-6 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1006- ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-065-6 01 1 0712- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0809- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0809- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0809- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-4 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-063-4 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-4 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-063-4 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-4 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-063-5 01 1 1006-1204 ● ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-063-5 01 1 1205- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-5 01 1 1205- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-5 01 1 0902-1005 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-6 01 1 1006- ● ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-070-6 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-070-6 01 1 0809- ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-070-6 01 1 0809- ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 0809- ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 0809- ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0710-0711 ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98088-590-3 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98088-590-3 01 1 0809-0901 ● ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE 8-98088-579-2 01 1 0710-0711 ● ●
100 PANEL ASM; BODY SIDE 8-98088-579-2 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98088-579-2 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> 		8-98088-579-2 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98088-579-2 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0710-0711 ● ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0712-0808 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0809-0901 ●
100 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0809-0901 ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0802 ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0710- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0710-1204 ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1205- ●
246 PANEL; RR PILLAR,INNER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-156-5 01 1 1205- ●
246 PANEL; RR PILLAR,INNER
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-156-5 01 1 1205- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0710- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0710-1204 ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1205- ●
401 PATCH; CLOSING,FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-160-2 01 1 1205- ●
401 PATCH; CLOSING,FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-160-2 01 1 1205- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0710- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0710-1204 ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1205- ●
408 GUSSET; PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-193-3 01 1 1205- ●
408 GUSSET; PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-193-3 01 1 1205- ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0710- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0710-1204 ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1205- ●
428 REINFORCEMENT; DOOR STRIKER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-260-4 01 1 1205- ●
428 REINFORCEMENT; DOOR STRIKER
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-260-4 01 1 1205- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0710- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0710- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0710- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0710-1204 ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1205- ●
434 PATCH; ASSIST GRIP
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98039-019-0 01 1 1205- ●
434 PATCH; ASSIST GRIP
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98039-019-0 01 1 1205- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98093-580-0 01 1 0712-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 0712- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0710-0808 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0710-0808 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0710-0808 ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0712-0808 ●
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0809- ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 0710-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 0710-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 0710-1005 ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1006- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0711 ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0712-0808 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 0712-0808 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 0809-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 0809-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 1006- ● ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710-1005 ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006- ● ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0808-0808 ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) 		8-98092-923-0 01 1 0808-0808 ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) 		8-98092-923-0 01 1 0809-0901 ● ●
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0808-0808 ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) 		8-98092-925-0 01 1 0808-0808 ●
482 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) 		8-98092-925-0 01 1 0809-0901 ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0710-0807 ● ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98055-468-0 01 1 0808-0808 ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98055-468-0 01 1 0809-0901 ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0902- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0710-0807 ● ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98055-469-0 01 1 0808-0808 ●
482 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98055-469-0 01 1 0809-0901 ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0902- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0710- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0710- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0710-1204 ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1205- ●
649 NUT; POP
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> M5 POP NUT 		8-97249-574-0 02 1 1205- ●
649 NUT; POP
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M5 POP NUT 		8-97249-574-0 02 1 1205- ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0710-1204 ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1205- ●
662 BRACKET; DUCT
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97584-611-1 01 1 1205- ●
662 BRACKET; DUCT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-611-1 01 1 1205- ●
663 BRACKET; AIR 8-97585-208-2 01 1 0710- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0710-1204 ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1205- ●
663 BRACKET; AIR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-207-2 01 1 1205- ●
663 BRACKET; AIR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-207-2 01 1 1205- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0710- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0710- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0710- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0710- ● ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 0807-1005 ●
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 02 1 1006- ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0710-0711 ● ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR 8-98005-264-0 01 1 0712-0806 ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807- ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807- ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0710- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0710- ● ●
çizim 178727
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-326-3 01 1 0710- ● ●
103 PLATE; STEP 8-98037-325-3 01 1 0710- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0710- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0710- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0710-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0710- ● ●
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 0710- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
