5-10 — CAB MOUNTING; FRAME SIDE (#33466) — 133 parça

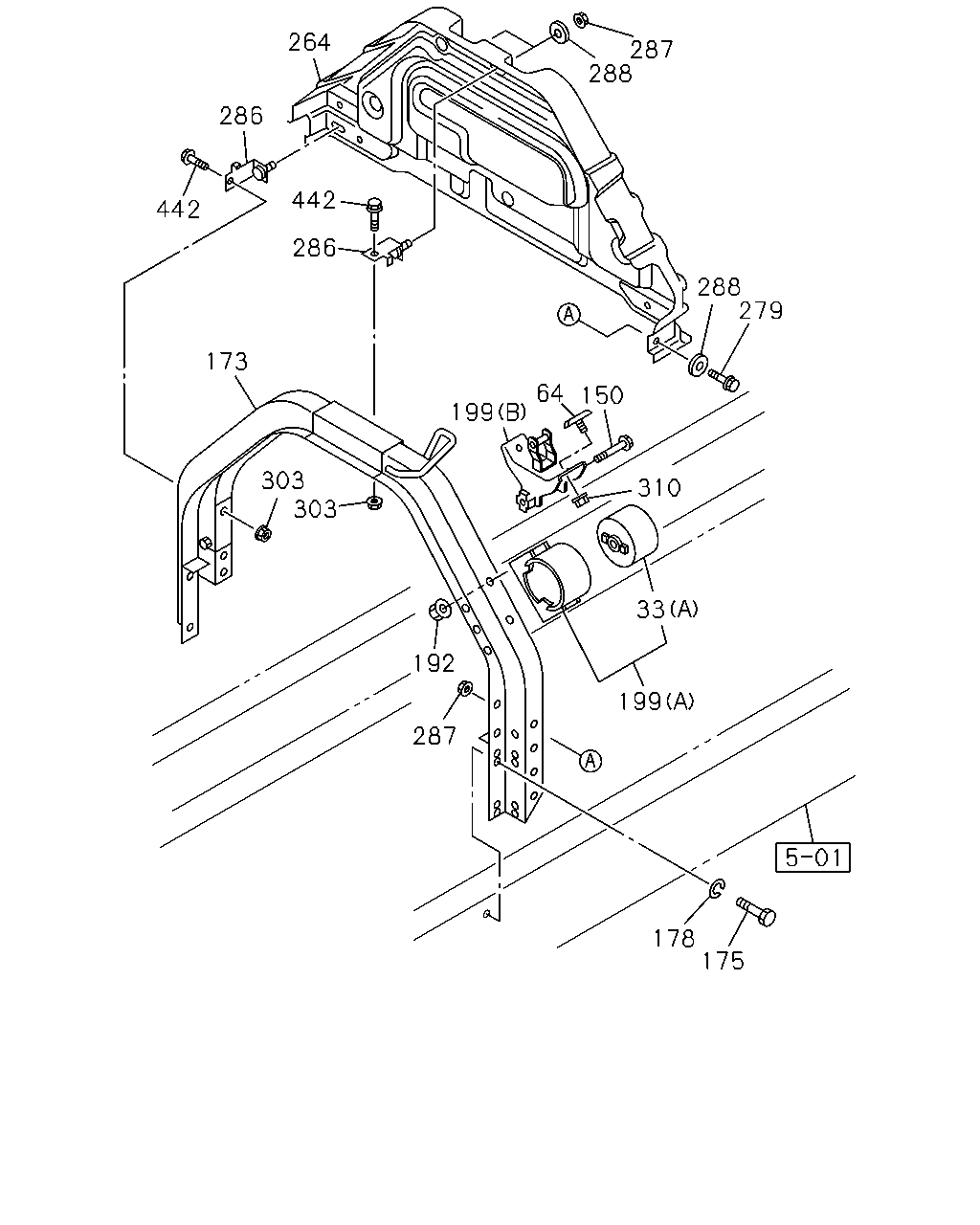

çizim 178706
264 287 288 286 442 442 286 288 279 173 64 199 150 303 303 310 33 192 199 287 178 175
BalonParca AdiParca NoAdetTipApplied Date A B
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A) 		8-98013-934-1 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A) 		8-98013-934-1 02 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 0710-0711 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-759-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-759-2 02 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 0710-0711 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		8-98013-932-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		8-98013-932-2 02 1 0809- ● ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 0710- ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 0710- ● ●
173 MEMBER; CAB MTG RR
4HK1-TCS ENG(RJS) 		8-98010-768-4 01 1 1012- ●
173 MEMBER; CAB MTG RR 8-98017-669-3 01 1 0710-0910 ● ●
173 MEMBER; CAB MTG RR 8-98150-944-0 01 1 0911-1011 ● ●
173 MEMBER; CAB MTG RR 8-98150-944-0 01 1 1012- ●
173 MEMBER; CAB MTG RR
6HK1-TCN ENG(82L) 		8-98150-944-0 01 1 1012- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 0710- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 0710- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 0710- ● ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> (A) 		8-98064-944-0 02 1 0712-0808 ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION RIGID<W71> (A) 		8-98064-944-0 02 1 0809- ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98010-769-2 02 1 0710-0711 ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98010-769-2 02 1 0712-0808 ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-769-2 02 1 0712-0808 ●
199 BRACKET; CAB RR MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-769-2 02 1 0809- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 0710- ● ●
264 PANEL; BACK
LCT2000 A/T ALLISON(Y4F) 		8-98092-711-3 01 1 0710-0711 ●
264 PANEL; BACK
LCT2000 A/T ALLISON(Y4F) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98092-711-3 01 1 0712- ●
264 PANEL; BACK 1-53194-609-2 01 1 0710-0711 ●
264 PANEL; BACK
MZX6P M/T(RSW) 		1-53194-609-2 01 1 0710-0711 ●
264 PANEL; BACK 1-53194-609-2 01 1 0712-0805 ●
264 PANEL; BACK
MZX6P M/T(RSW) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 0712-0805 ●
264 PANEL; BACK 1-53194-609-2 01 1 0806-0808 ●
264 PANEL; BACK
MZX6P M/T(RSW),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 0806-0808 ●
264 PANEL; BACK
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 0809-0906 ●
264 PANEL; BACK
MZX6P M/T(RSW),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 0809-0906 ●
264 PANEL; BACK
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 0907-1011 ●
264 PANEL; BACK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 0907-1011 ●
264 PANEL; BACK
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 1012- ●
264 PANEL; BACK
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53194-609-2 01 1 1012- ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0808 ●
279 BOLT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE 		0-28650-825-0 01 1 0712-0808 ●
279 BOLT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011 ● ●
279 BOLT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
279 BOLT
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
286 BRACKET; LOW 1-53457-187-0 02 1 0710-0711 ● ●
286 BRACKET; LOW 1-53457-187-0 02 1 0712-0808 ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53457-187-0 02 1 0712-0808 ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53457-187-0 02 1 0809-1011 ● ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53457-187-0 02 1 1012- ●
286 BRACKET; LOW
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53457-187-0 02 1 1012- ●
287 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
287 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
287 NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
287 NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 02 1 0809-0809 ● ●
287 NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 03 1 0810-1011 ● ●
287 NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 03 1 1012- ●
287 NUT
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 03 1 1012- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 0710-0711 ● ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 0712-0808 ●
288 WASHER; PL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26 		0-91614-808-0 03 1 0712-0808 ●
288 WASHER; PL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26 		0-91614-808-0 03 1 0809-1011 ● ●
288 WASHER; PL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26 		0-91614-808-0 03 1 1012- ●
288 WASHER; PL
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26 		0-91614-808-0 03 1 1012- ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
303 NUT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 02 1 0712-0808 ●
303 NUT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 02 1 0809-1011 ● ●
303 NUT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 02 1 1012- ●
303 NUT; BRKT
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 02 1 1012- ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
442 BOLT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ●
442 BOLT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011 ● ●
442 BOLT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
442 BOLT; BRKT
6HK1-TCN ENG(82L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●

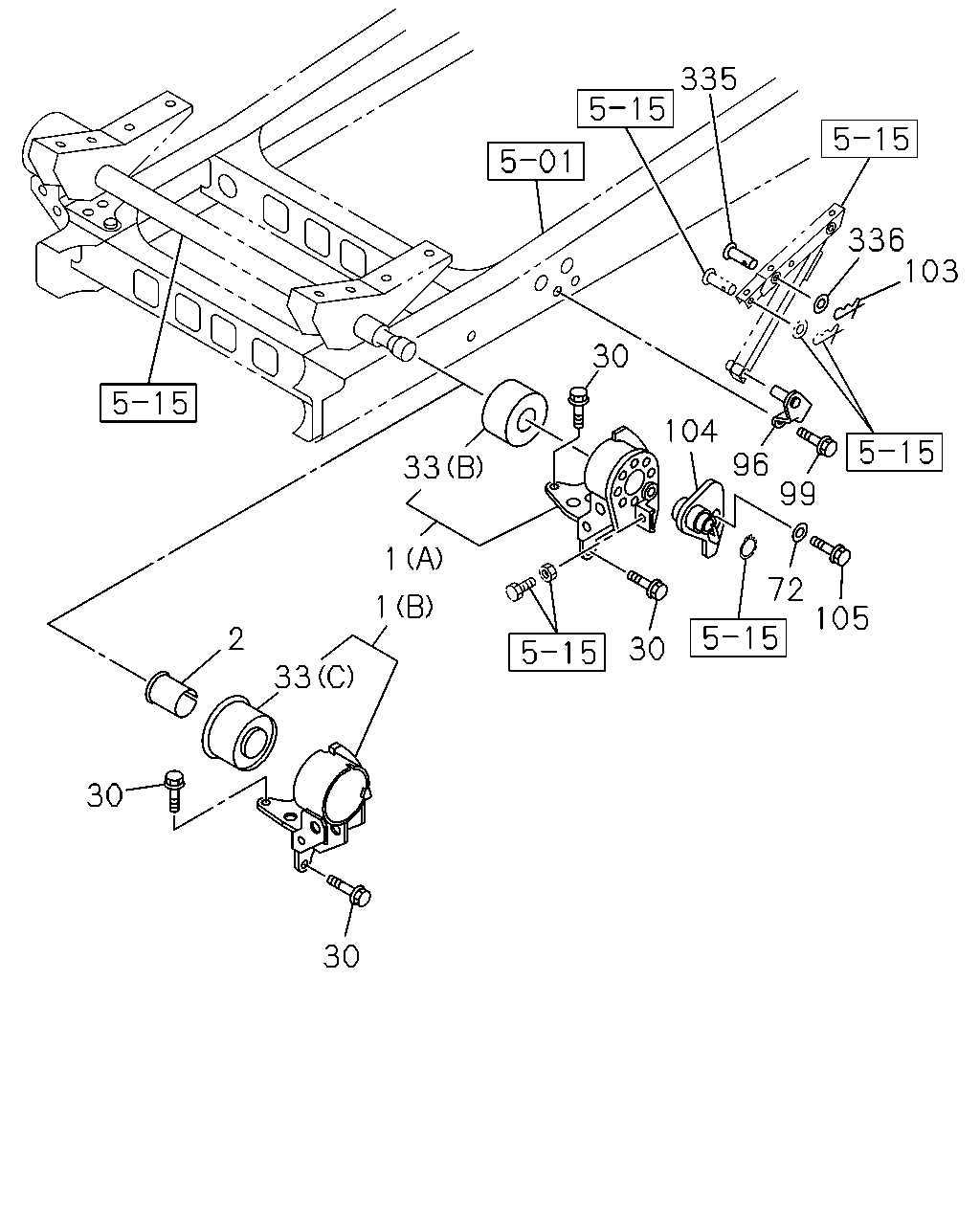

çizim 178709
335 336 103 30 104 96 99 33 1 72 105 1 2 30 33 30 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
4HK1-TCS ENG(RJS) CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-746-2 01 1 1012- ●
1 BRACKET; CAB MTG
4HK1-TCS ENG(RJS) CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-747-2 01 1 1012- ●
1 BRACKET; CAB MTG
4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> (B) 		8-98010-750-2 01 1 1012- ●
1 BRACKET; CAB MTG
4HK1-TCS ENG(RJS) CAB SUSPENSION RIGID<W71> (B) 		8-98056-501-2 01 1 1012- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98017-618-3 01 1 0712-0808 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98017-618-3 01 1 0809-1011 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98017-618-3 01 1 1012- ●
1 BRACKET; CAB MTG
6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71> (B) 		8-98017-618-3 01 1 1012- ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98017-665-2 01 1 0712-0808 ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98017-665-2 01 1 0809-1011 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71> (B) 		8-98017-665-2 01 1 1012- ●
1 BRACKET; CAB MTG
6HK1-TCN ENG(82L) CAB SUSPENSION RIGID<W71> (B) 		8-98017-665-2 01 1 1012- ●
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 0710-0711 ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 0712-0808 ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-749-3 01 1 0712-0808 ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-749-3 01 1 0809-1011 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-749-3 01 1 1012- ●
1 BRACKET; CAB MTG
6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-749-3 01 1 1012- ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 0710-0711 ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 0712-0808 ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-748-2 01 1 0712-0808 ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-748-2 01 1 0809-1011 ● ●
1 BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-748-2 01 1 1012- ●
1 BRACKET; CAB MTG
6HK1-TCN ENG(82L) CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-748-2 01 1 1012- ●
2 BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71> 		8-98010-767-0 02 1 0712-0808 ●
2 BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71> 		8-98010-767-0 02 1 0809- ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 0710- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A) 		8-98013-934-1 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (A) 		8-98013-934-1 02 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71> (C) 		8-98013-933-1 01 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 0710-0711 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-759-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (A) 		8-98010-759-2 02 1 0809- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 0710-0711 ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		8-98013-932-2 02 1 0712-0808 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK> (B) 		8-98013-932-2 02 1 0809- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 0710- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 0710- ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28661-030-0 02 1 0710- ● ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 0710- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98010-753-3 01 1 0710-1511 ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98330-224-0 01 1 1512- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 0710- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 0710- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 0710- ● ●
