5-01 — FRAME AND OTHER PARTS (#33465) — 303 parça

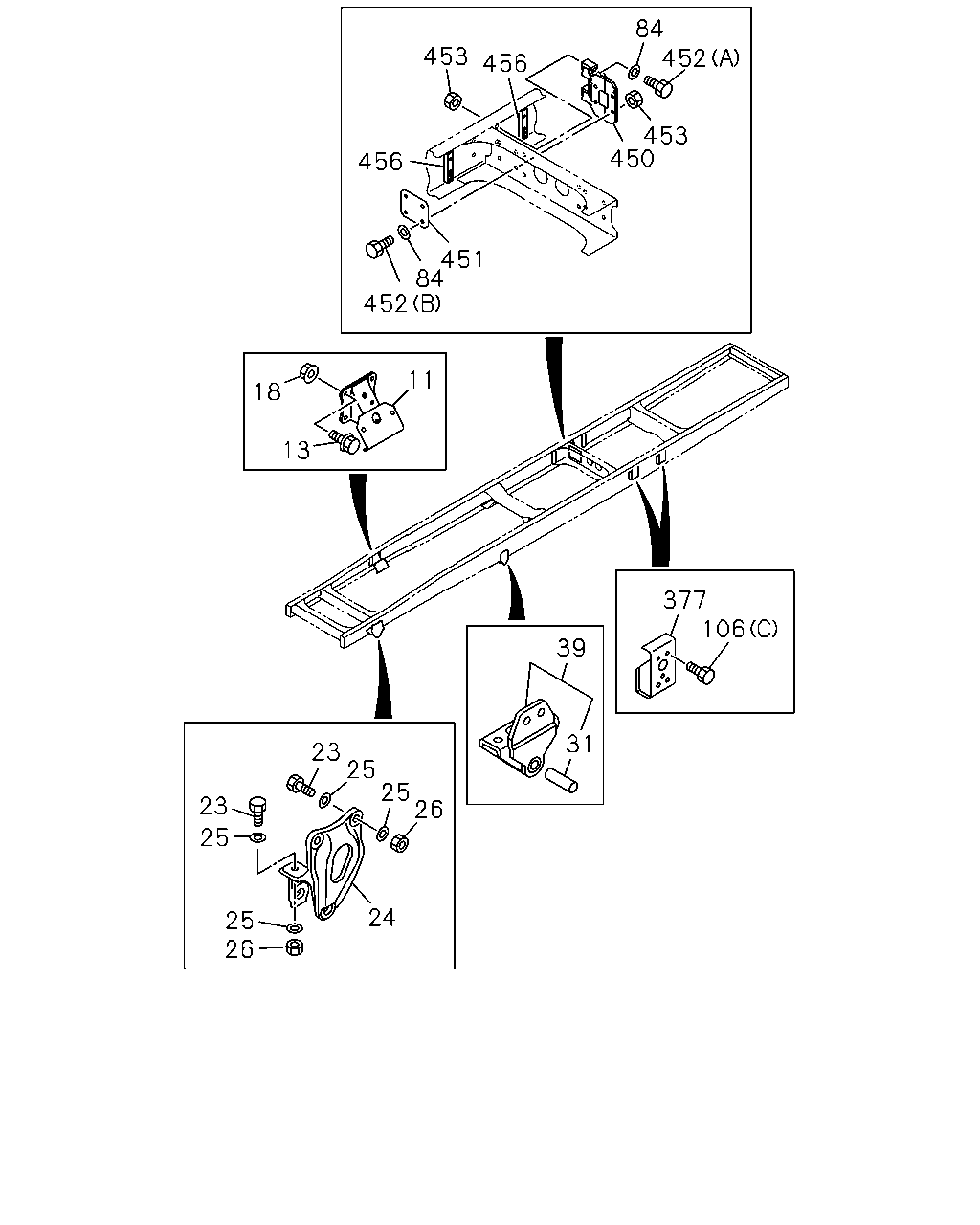

çizim 178712
84 452 453 456 453 450 456 451 84 452 11 18 13 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1012- ● ● ● ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 0809- ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0710-0711 ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0712-0808 ● ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 0809-1011 ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0809-1011 ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1012- ● ● ●
11 BRACKET; ENG MTG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1012- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0808 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0808 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0710-0711 ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0712-0808 ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0712-0808 ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0809- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0712-0808 ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0809- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0710-0711 ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0712-0808 ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0710-0803 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0804-0808 ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0804-0808 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0809- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0710-0711 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0712-0803 ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 0804- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0710-0711 ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0712-0808 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-1 02 1 0710-0711 ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-1 02 1 0712-0808 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0809- ● ● ● ● ●
84 WASHER; PL,BRKT
AIR SUS(FCD***) ID=16.2 		1-09503-316-0 12 1 0710- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0710-0803 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0804-0808 ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0804-0808 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0809- ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0809- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0710-0711 ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0712-0803 ●
106 BOLT; BRKT
LEAF SUS(FCR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M10X35 		0-10961-035-0 04 1 0712-0803 ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0804- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 0710- ●
377 BRACKET; TOP PLATE
AIR SUS(FCD***) 		8-98061-350-0 04 1 0710- ●
450 BRACKET; V ROD
AIR SUS(FCD***) 		1-53353-121-0 02 1 0710- ●
451 GUSSET; V ROD
AIR SUS(FCD***) 		8-97610-436-0 02 1 0710- ●
452 BOLT; V ROD
AIR SUS(FCD***) (A) M16X120 		1-09000-677-0 04 1 0710-0908 ●
452 BOLT; V ROD
AIR SUS(FCD***) (A) M16X110 		1-09000-738-0 04 1 0909- ●
452 BOLT; V ROD
AIR SUS(FCD***) (B) M16X50 		1-09000-679-0 08 1 0710- ●
453 NUT; V ROD
AIR SUS(FCD***) M16 FLANGE 		1-09440-066-0 12 1 0710- ●
456 PATCH; STOPPER
AIR SUS(FCD***) 		8-97610-437-1 04 1 0710- ●

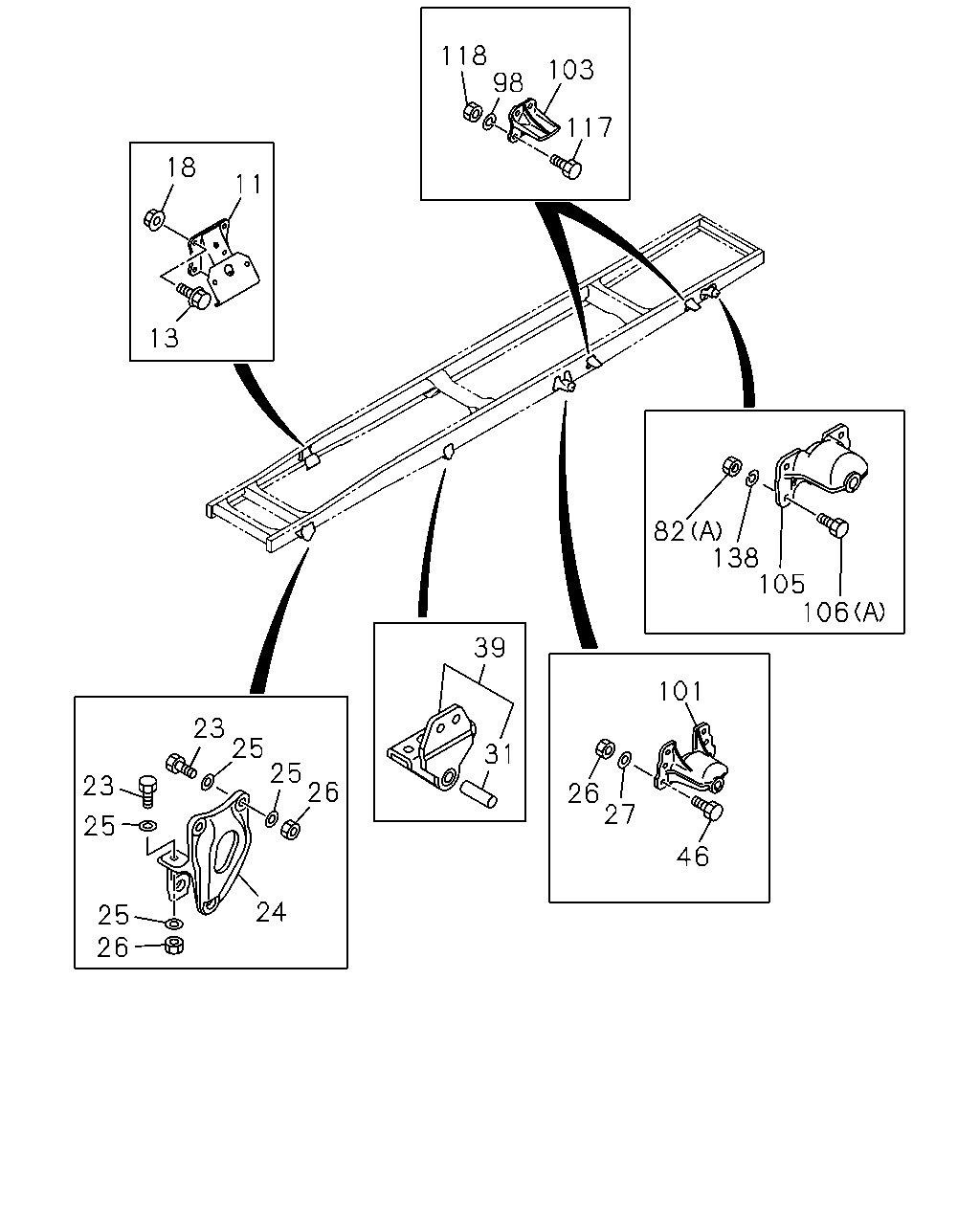

çizim 178717
118 98 103 117 18 11 13 82 138 105 106 39 101 23 25 25 26 31 23 26 27 25 46 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1012- ● ● ● ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 0809- ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0710-0711 ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0712-0808 ● ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 0809-1011 ● ● ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0809-1011 ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1012- ● ● ●
11 BRACKET; ENG MTG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1012- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0710-0711 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0712-0808 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0710-0711 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0712-0808 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0710-0711 ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0712-0808 ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0712-0808 ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0809- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0710-0711 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0712-0808 ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0809- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0710-0711 ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-0 16 1 0712-0808 ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0710-0803 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0804-0808 ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0804-0808 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 0809- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0710-0711 ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0712-0803 ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 0804- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0710-0803 ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0804-0808 ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 0804-0808 ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0809- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 0809- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0710-0711 ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0712-0808 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-1 02 1 0710-0711 ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-1 02 1 0712-0808 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0809- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0710-0803 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0804-0808 ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 0804-0808 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0809- ● ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 0809- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0710-0803 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0804-0808 ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0804-0808 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0809- ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0809- ●
82 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 0710-0711 ●
82 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 0712-0803 ● ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 0804- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0710-0803 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0804-0808 ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 0804-0808 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0809- ● ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 0809- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0710-0711 ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 0710-0711 ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0712-0808 ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 0712-0808 ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0809- ● ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 0809- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0710-0711 ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 0710-0711 ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0712-0808 ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 0712-0808 ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0809- ● ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 0809- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0710-0711 ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 0710-0711 ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0712-0808 ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 0712-0808 ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0809- ● ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 0809- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0710-0803 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0804-0808 ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0804-0808 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0809- ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0809- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0710-0711 ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0712-0803 ●
106 BOLT; BRKT
LEAF SUS(FCR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M10X35 		0-10961-035-0 04 1 0712-0803 ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0804- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 0710- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0710-0803 ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0804-0808 ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 0804-0808 ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809- ● ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 0809- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0710-0803 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0804-0808 ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 0804-0808 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809- ● ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 0809- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0710-0803 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0804-0808 ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 0804-0808 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0809- ● ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 0809- ●

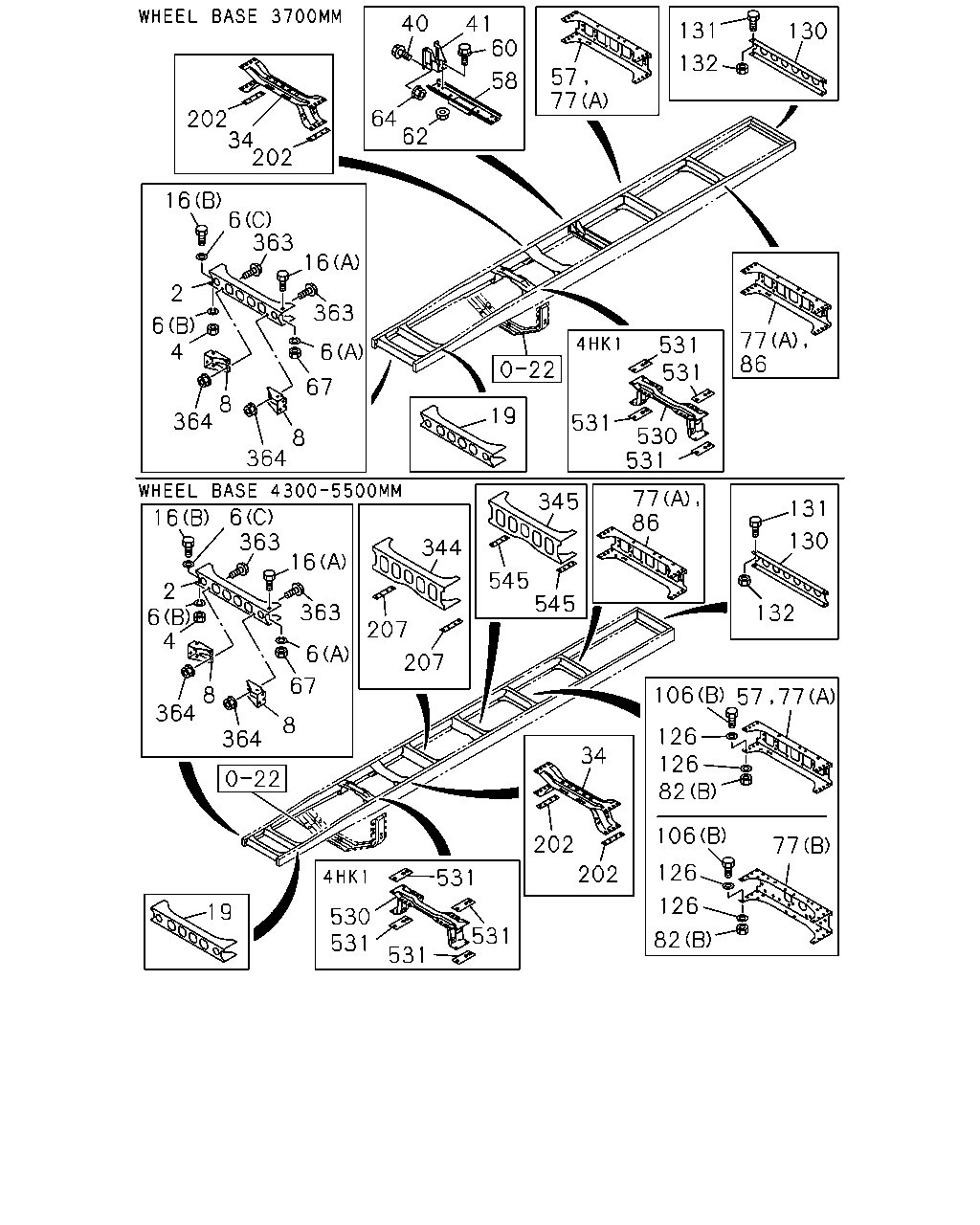

çizim 178722
40 41 60 131 130 132 57 77 58 64 62 202 34 202 16 6 363 16 2 363 6 4 77 86 531 531 6 67 8 364 19 530 531 531 8 364 6 363 77 86 345 131 16 130 344 16 545 545 2 6 4 363 132 207 6 207 67 8 364 106 8 126 126 82 364 34 106 202 77 126 202 531 126 19 530 531 531 82 531 57 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 8-97615-669-1 01 1 0710-0711 ● ●
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0712-0808 ● ● ●
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0710- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0710-0711 ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0712-0808 ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 1012- ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 1012- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR 8-97609-759-0 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
LEAF SUS(FCR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-759-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 0804-0808 ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 0809-1011 ● ● ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-759-2 01 1 1012- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR 8-97609-760-1 01 1 0712-0803 ● ●
8 GUSSET; 1ST C/MBR
LEAF SUS(FCR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-760-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 0804-0808 ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 0809-1011 ● ● ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-760-3 01 1 1012- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-0 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR
AIR SUS(FCD***) 		8-97609-578-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR
LEAF SUS(FCR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-578-0 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR 8-97609-579-1 01 1 0710-0711 ●
8 GUSSET; 1ST C/MBR
AIR SUS(FCD***) 		8-97609-579-1 01 1 0712-0803 ●
8 GUSSET; 1ST C/MBR
LEAF SUS(FCR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97609-579-1 01 1 0712-0803 ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0710-0711 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0712-0808 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0710- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0710-0711 ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0712-0808 ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 0809- ● ● ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-97609-501-2 01 1 1012- ● ● ● ●
34 MEMBER; CROSS,3RD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 0809- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0710-0711 ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0712-0808 ● ● ●
34 MEMBER; CROSS,3RD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 0809-1011 ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0809-1011 ● ●
34 MEMBER; CROSS,3RD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 1012- ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 1012- ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0710- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0710- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0710- ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 0809- ● ● ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 0809-0906 ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 0907- ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 0809-0906 ●
58 MEMBER; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 0907- ●
58 MEMBER; CENTER BRG
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-113-0 01 1 0809- ●
58 MEMBER; CENTER BRG 8-97619-112-0 01 1 0710-0808 ●
58 MEMBER; CENTER BRG
LCT2000 A/T ALLISON(Y4F) 		8-97619-112-0 01 1 0809- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0710- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0710- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0710- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0710-0711 ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0712-0808 ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 0710-0711 ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 0710-0711 ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 0712-0808 ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 0712-0808 ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97609-481-4 02 1 0809- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (A) 		8-97609-481-4 02 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 0809- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (A) REAR 		8-97609-481-4 01 1 0710- ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (B) FRONT 		8-97609-483-0 01 1 0710- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0710-0803 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0804-0808 ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0804-0808 ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0809- ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 0809- ●
82 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 0710-0711 ●
82 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 0712-0803 ● ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 0804- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 0809- ● ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0710-0803 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0804-0808 ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0804-0808 ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0809- ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 0809- ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0710-0711 ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0712-0803 ●
106 BOLT; BRKT
LEAF SUS(FCR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M10X35 		0-10961-035-0 04 1 0712-0803 ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 0804- ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 0710- ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0710-0711 ●
126 WASHER; PL,BRKT
AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 0712-0803 ●
126 WASHER; PL,BRKT
LEAF SUS(FCR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=10.5 OD=22 		0-91614-610-0 08 1 0712-0803 ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0712-0803 ●
126 WASHER; PL,BRKT
AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 0804- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0710-0711 ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0712-0808 ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0710-0711 ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0712-0808 ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0710-0711 ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0712-0808 ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) 		8-97609-756-1 02 1 1012- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0710-0711 ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0712-0808 ● ● ●
202 SPACER; 3RD C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 0809-1011 ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0809-1011 ● ●
202 SPACER; 3RD C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 1012- ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 1012- ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0710-0711 ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0712-0808 ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0809- ● ●
207 SPACER; 4TH C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 0809- ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 0809- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0710-0711 ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0712-0808 ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0809- ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 0809- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0809- ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 0710- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0710-0711 ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0712-0808 ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0710-0711 ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0712-0808 ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1012- ● ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) 		8-97616-461-1 02 1 1012- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
