◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#33464) — 114 parça

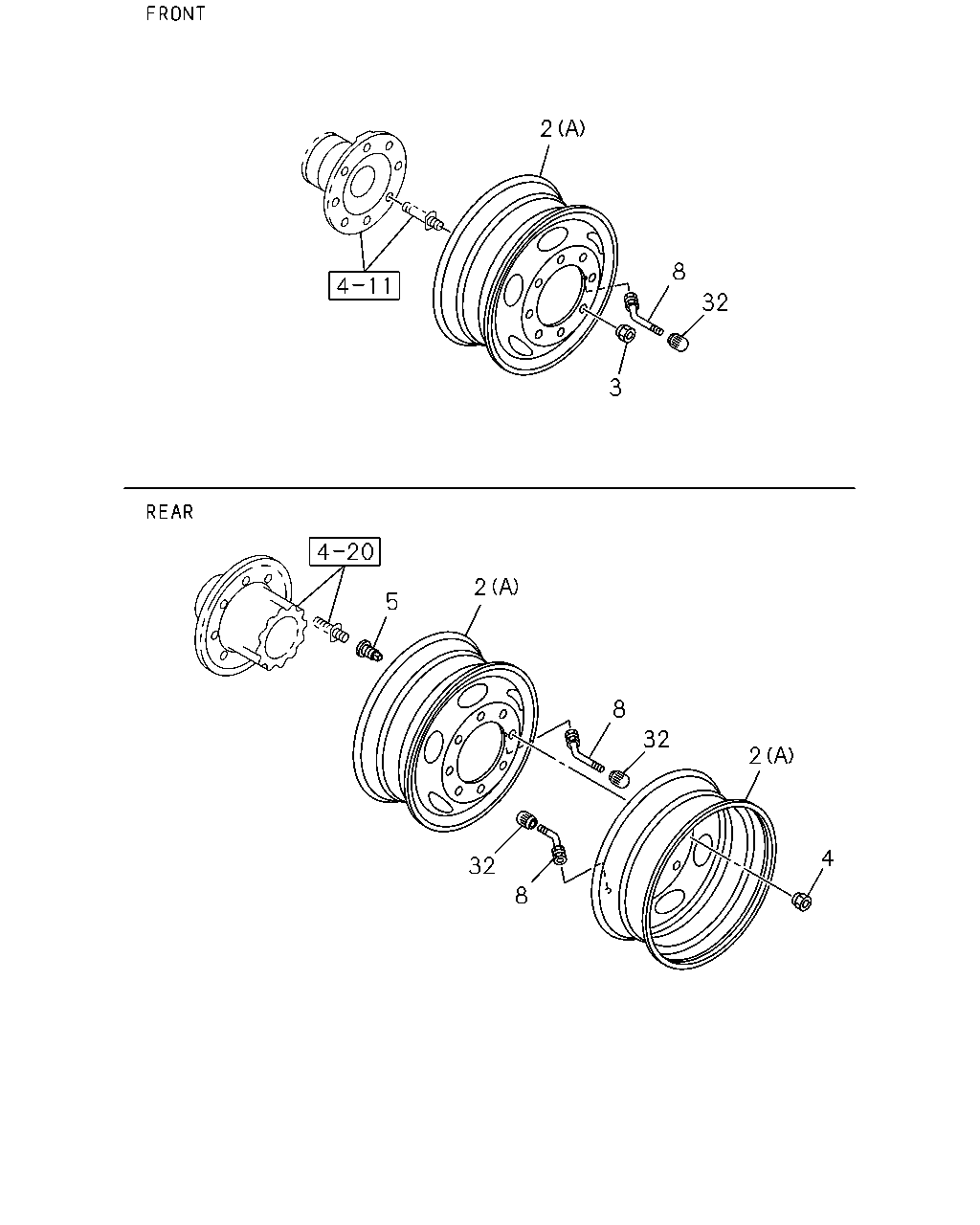

çizim 178701
2 8 32 3 2 5 8 32 2 4 32 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-407-1 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-407-1 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-641-0 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-641-0 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0804-0808 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-407-1 06 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT,REAR 		1-42350-641-0 06 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-761-1 06 1 0712-0803 ●
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-761-1 06 1 0804- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-761-1 06 1 0804- ●
2 WHEEL; DISC
(A) FRONT,REAR 		1-42350-762-1 06 1 0710-0711 ● ●
2 WHEEL; DISC
(A) FRONT,REAR 		1-42350-762-1 06 1 0712-0803 ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-762-1 06 1 0712-0803 ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-762-1 06 1 0804- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-762-1 06 1 0804- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0710-0711 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0712-0803 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-762-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0804-0808 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0809- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0809- ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0710- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0710- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0710- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0710- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0710- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0710- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-020-3 06 1 0710-0711 ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-020-3 06 1 0712- ●
8 VALVE; TIRE
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) FRONT,REAR 		1-42370-020-3 06 1 0712- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0710-0711 ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0712-0808 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0712-0808 ●
8 VALVE; TIRE
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0712-0808 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0809- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0809- ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0809- ●
8 VALVE; TIRE
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0809- ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0710-0711 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0712-0808 ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0712-0808 ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0712-0808 ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0809- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0809- ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0710-0711 ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0712-0808 ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TI RE ONE<WH2> 		1-42374-001-0 06 1 0712-0808 ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TI RE ONE<WH2> 		1-42374-001-0 06 1 0809- ● ●

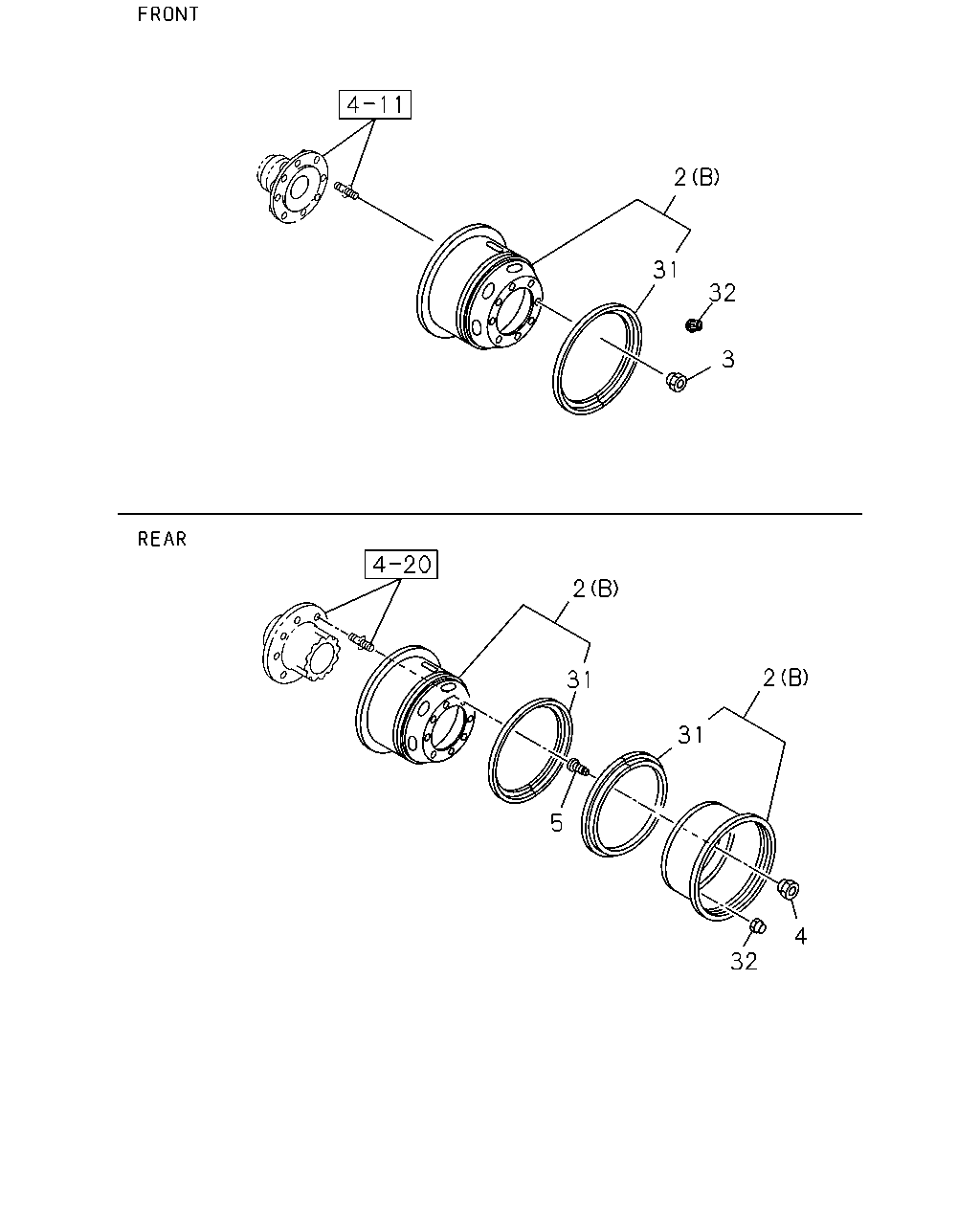

çizim 178862
2 31 32 3 2 2 31 31 5 4 32
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-407-1 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-407-1 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-641-0 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-641-0 01 1 0712- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0804-0808 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-761-1 01 1 0809- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-407-1 06 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) FRONT,REAR 		1-42350-641-0 06 1 0712- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-761-1 06 1 0712-0803 ●
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-761-1 06 1 0804- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-761-1 06 1 0804- ●
2 WHEEL; DISC
(A) FRONT,REAR 		1-42350-762-1 06 1 0710-0711 ● ●
2 WHEEL; DISC
(A) FRONT,REAR 		1-42350-762-1 06 1 0712-0803 ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-762-1 06 1 0712-0803 ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-762-1 06 1 0804- ●
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT,REAR 		1-42350-762-1 06 1 0804- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0710-0711 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0712-0803 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0712-0803 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-762-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0804-0808 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0804-0808 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0809- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-762-1 01 1 0809- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-762-1 01 1 0809- ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0710- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0710- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0710- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0710- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0710- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0710- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>,DISC WHEELSPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 0712- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 0712- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		1-42355-012-1 06 1 0712- ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0710-0711 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0712-0808 ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0712-0808 ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0712-0808 ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0809- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0809- ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0710-0711 ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0712-0808 ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TI RE ONE<WH2> 		1-42374-001-0 06 1 0712-0808 ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TI RE ONE<WH2> 		1-42374-001-0 06 1 0809- ● ●
