4-65 — REAR LEAF SPRING (#33460) — 157 parça

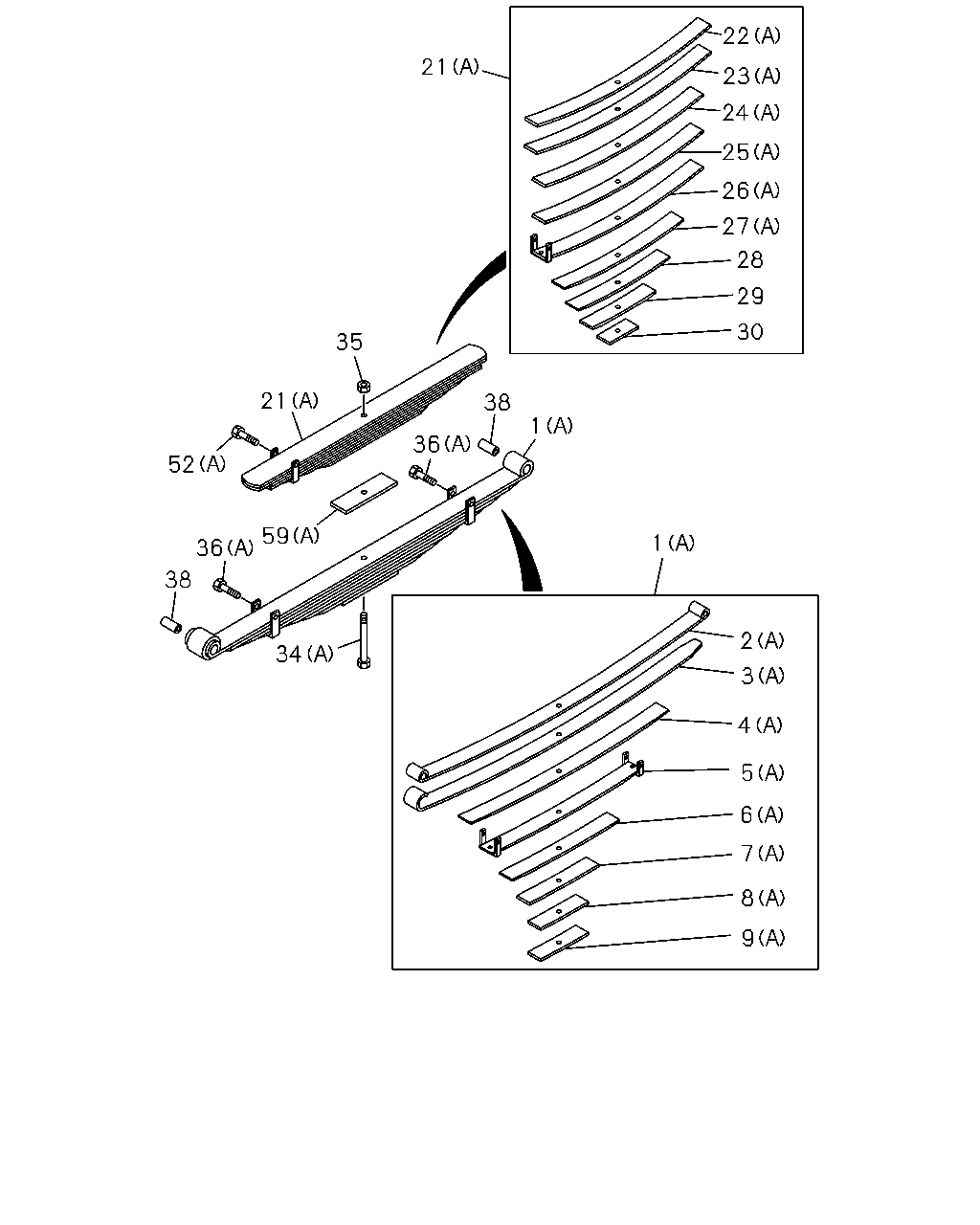

22 21 23 24 25 26 27 28 29 30 35 21 38 1 36 52 59 1 36 38 2 34 3 4 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-287-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-306-0	01	1	-0712
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98110-698-0	01	1	0801-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-288-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-307-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-289-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-308-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-290-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-309-0	01	1	-0712
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98110-697-0	01	1	0801-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-291-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-310-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-292-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-311-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-293-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-312-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-313-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-295-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-314-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-296-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-315-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-197-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-297-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-316-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-193-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-298-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-317-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-194-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-299-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-318-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-195-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-300-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-319-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-196-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-301-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: B = 8-98017-563-1	8-98031-320-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-302-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: B = 8-98017-563-1	8-98031-321-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98017-561-0	8-98031-303-0	01	1	-
29	SPRING; LEAF,NO 8,RR SUB ASM PART: A = 8-98017-561-0	8-98031-304-0	01	1	-
30	SPRING; LEAF,NO 9,RR SUB ASM PART: A = 8-98017-561-0	8-98031-305-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=210 ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	1-51356-344-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=195 ASM PART: B = 8-98017-563-1	1-51356-346-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98017-561-0, B = 8-98017-563-1, C = 8-98064-447-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR (B), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	02	1	-0712
36	BOLT; CLIP,LEAF SPR,RR (B), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	03	1	0801-
36	BOLT; CLIP,LEAF SPR,RR (A), M8X85 ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	1-09000-366-0	02	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98017-561-0, B = 8-98017-563-1, C = 8-98064-447-0	9-51151-032-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (C), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (A), M8X85 ASM PART: A = 8-98017-561-0	1-09000-366-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (B), M8X90.5 ASM PART: C = 8-98064-447-0	8-98040-333-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=11 ASM PART: C = 8-98064-447-0	1-51377-199-0	03	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98017-561-0	1-51377-359-0	01	1	-
59	SEAT; RR SPRING,SUB (C), T=6 ASM PART: B = 8-98017-563-1	8-94367-965-0	01	1	-

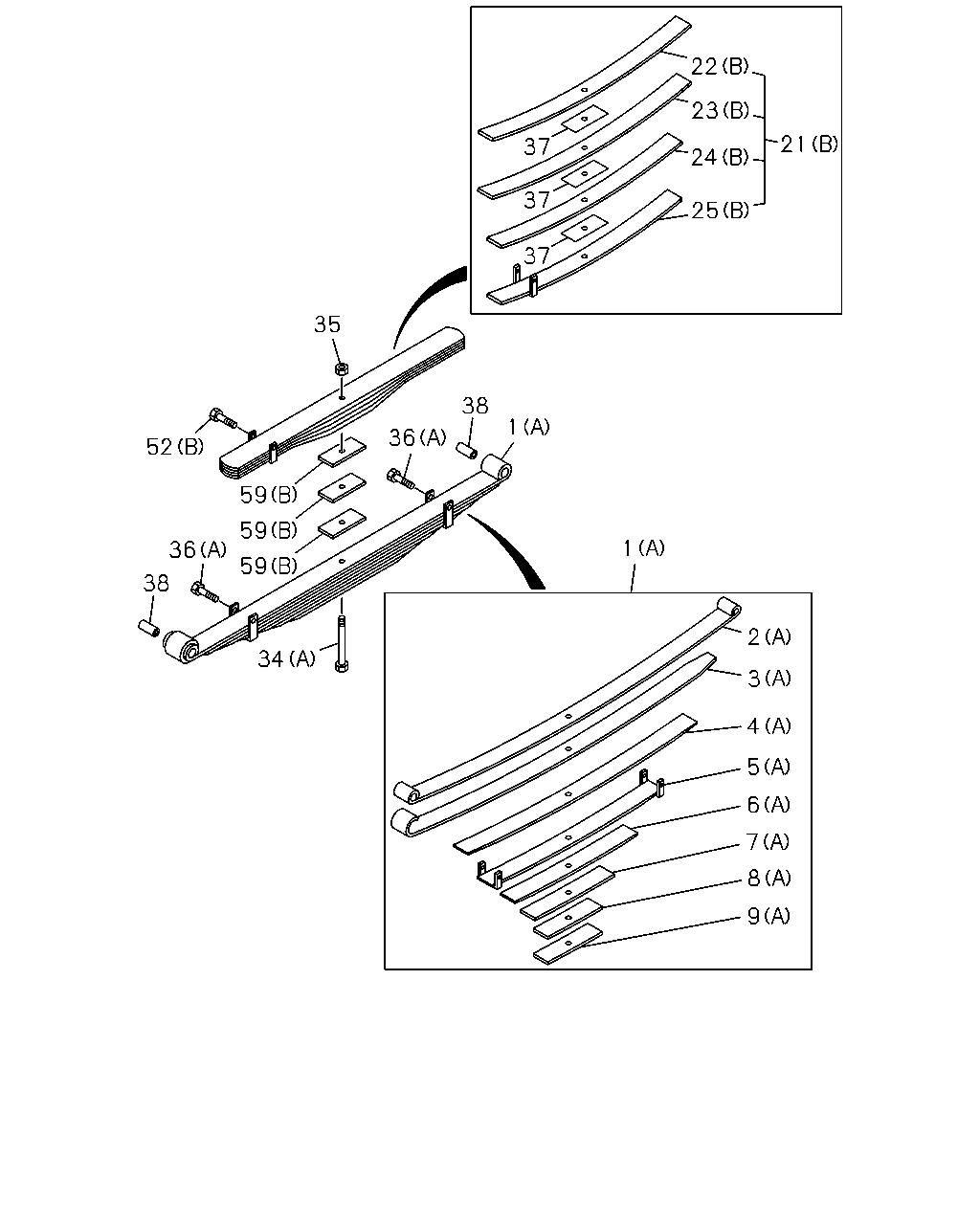

22 23 21 37 24 37 25 37 35 38 1 36 52 59 59 1 36 59 38 2 34 3 4 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-287-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-306-0	01	1	-0712
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98110-698-0	01	1	0801-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-288-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-307-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-289-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-308-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-290-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-309-0	01	1	-0712
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98110-697-0	01	1	0801-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-291-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-310-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-292-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-311-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-293-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-312-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-313-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-295-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-314-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-296-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-315-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-197-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-297-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-316-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-193-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-298-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-317-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-194-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-299-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-318-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-195-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-300-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-319-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-196-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=210 ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	1-51356-344-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=195 ASM PART: B = 8-98017-563-1	1-51356-346-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98017-561-0, B = 8-98017-563-1, C = 8-98064-447-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR (B), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	02	1	-0712
36	BOLT; CLIP,LEAF SPR,RR (B), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	03	1	0801-
36	BOLT; CLIP,LEAF SPR,RR (A), M8X85 ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	1-09000-366-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 8-98064-447-0	1-51377-361-0	03	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98017-561-0, B = 8-98017-563-1, C = 8-98064-447-0	9-51151-032-0	02	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (C), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (A), M8X85 ASM PART: A = 8-98017-561-0	1-09000-366-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (B), M8X90.5 ASM PART: C = 8-98064-447-0	8-98040-333-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=11 ASM PART: C = 8-98064-447-0	1-51377-199-0	03	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98017-561-0	1-51377-359-0	01	1	-
59	SEAT; RR SPRING,SUB (C), T=6 ASM PART: B = 8-98017-563-1	8-94367-965-0	01	1	-

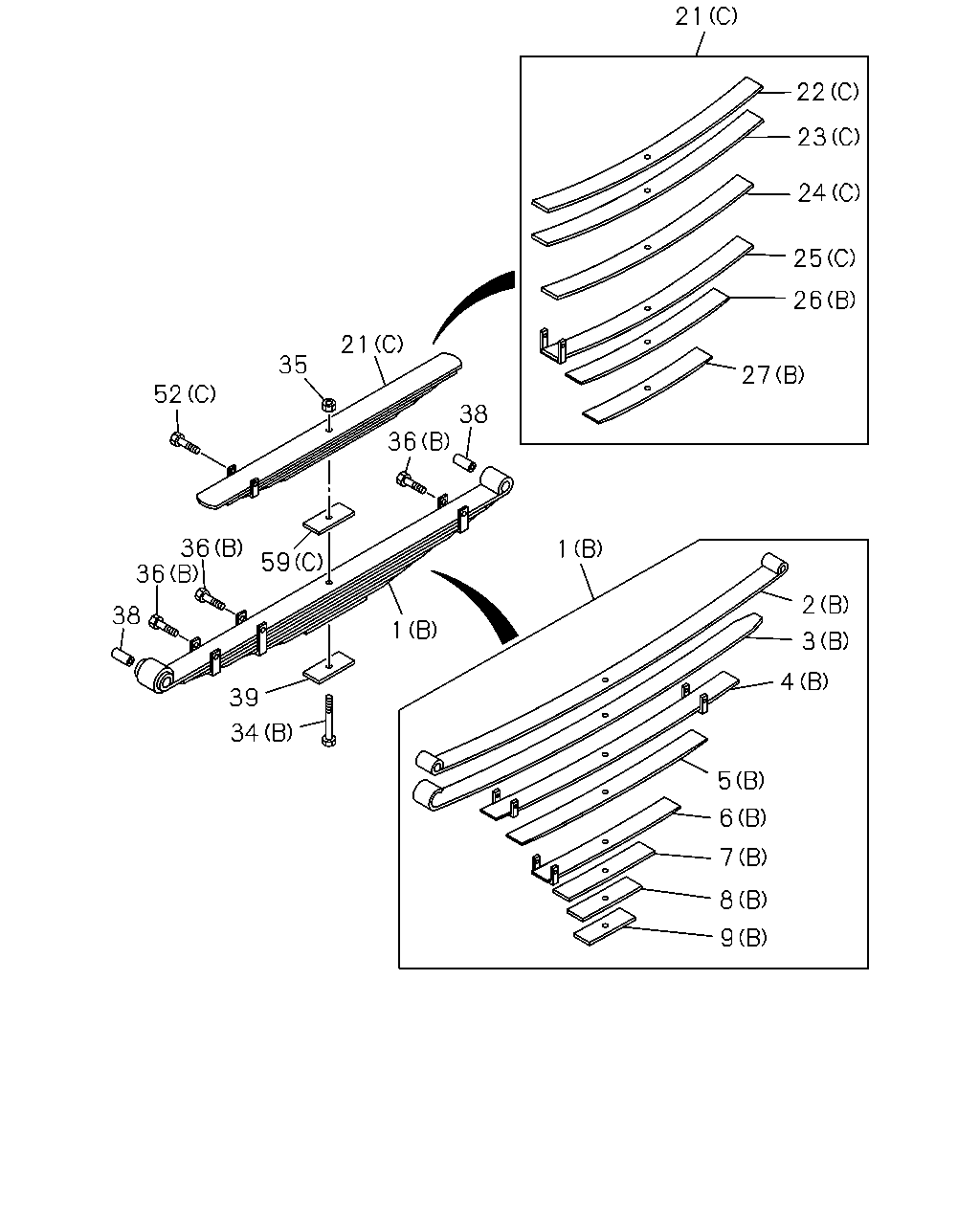

21 22 23 24 25 26 21 35 27 52 38 36 36 36 1 59 2 38 1 3 4 39 34 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-287-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-306-0	01	1	-0712
1	SPRING ASM; LEAF,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98110-698-0	01	1	0801-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-288-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-307-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-289-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-308-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-290-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-309-0	01	1	-0712
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98110-697-0	01	1	0801-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-291-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-310-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-292-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-311-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-293-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-312-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-313-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (A) ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	8-98031-295-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN (B) ASM PART: B = 8-98017-563-1	8-98031-314-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-296-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-315-0	01	1	-
21	SPRING ASM; LEAF,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-197-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-297-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-316-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-193-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-298-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-317-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-194-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-299-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-318-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-195-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-300-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (C) ASM PART: B = 8-98017-563-1	8-98031-319-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB (B) ASM PART: C = 8-98064-447-0	8-98083-196-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-301-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB (B) ASM PART: B = 8-98017-563-1	8-98031-320-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (A) ASM PART: A = 8-98017-561-0	8-98031-302-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB (B) ASM PART: B = 8-98017-563-1	8-98031-321-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=210 ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	1-51356-344-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=195 ASM PART: B = 8-98017-563-1	1-51356-346-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98017-561-0, B = 8-98017-563-1, C = 8-98064-447-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR (B), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	02	1	-0712
36	BOLT; CLIP,LEAF SPR,RR (B), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	03	1	0801-
36	BOLT; CLIP,LEAF SPR,RR (A), M8X85 ASM PART: A = 8-98017-561-0, C = 8-98064-447-0	1-09000-366-0	02	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98017-561-0, B = 8-98017-563-1, C = 8-98064-447-0	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=6 ASM PART: B = 8-98017-563-1	8-94367-965-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (C), M8X87 ASM PART: B = 8-98017-563-1	1-09000-335-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (A), M8X85 ASM PART: A = 8-98017-561-0	1-09000-366-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB (B), M8X90.5 ASM PART: C = 8-98064-447-0	8-98040-333-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=11 ASM PART: C = 8-98064-447-0	1-51377-199-0	03	1	-
59	SEAT; RR SPRING,SUB (A), T=6 ASM PART: A = 8-98017-561-0	1-51377-359-0	01	1	-
59	SEAT; RR SPRING,SUB (C), T=6 ASM PART: B = 8-98017-563-1	8-94367-965-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
