◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#33454) — 210 parça

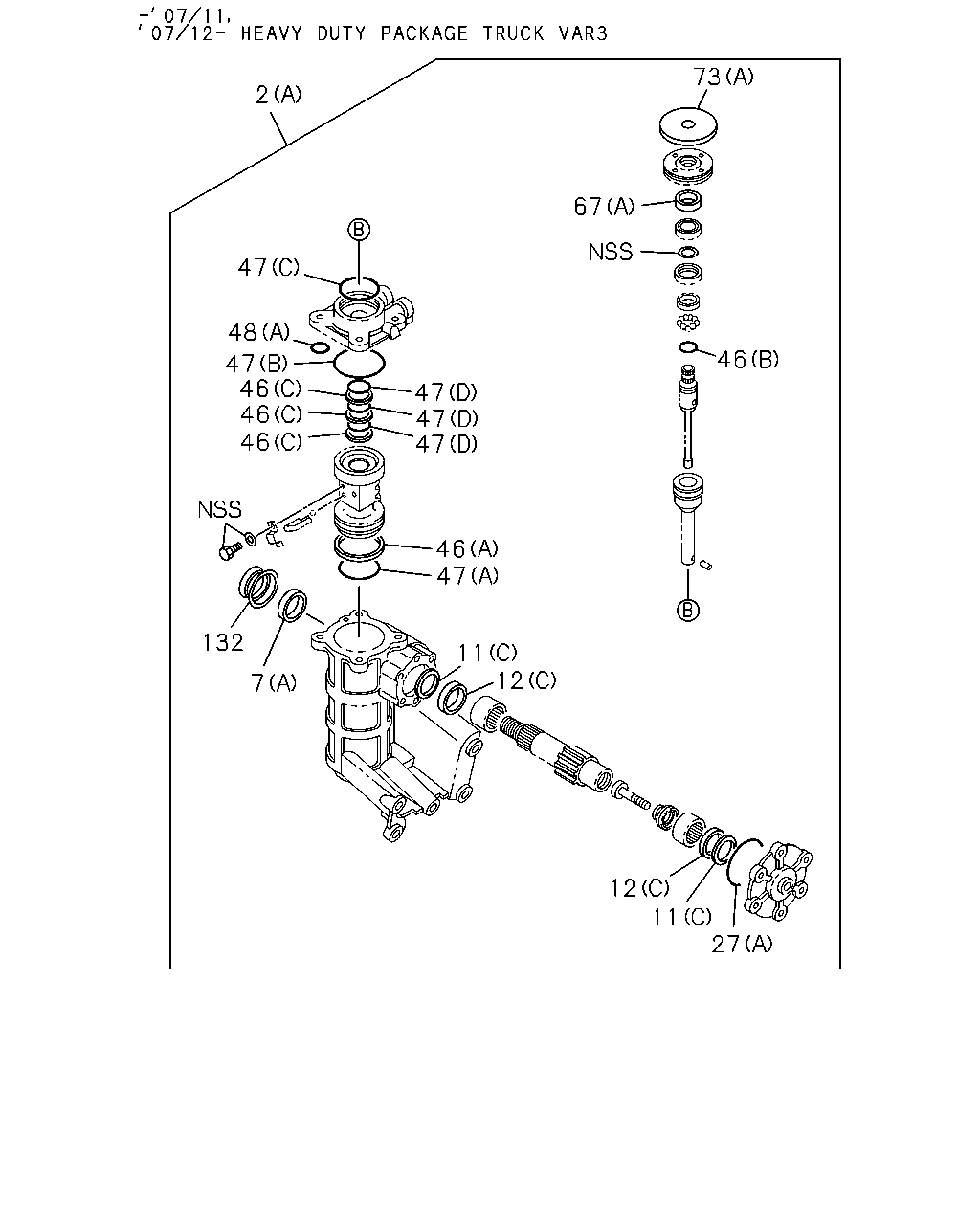

çizim 178686
73 2 67 47 48 46 47 46 46 46 47 47 47 46 47 132 11 12 7 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
(B) ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
(A) ASM PART: B = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -

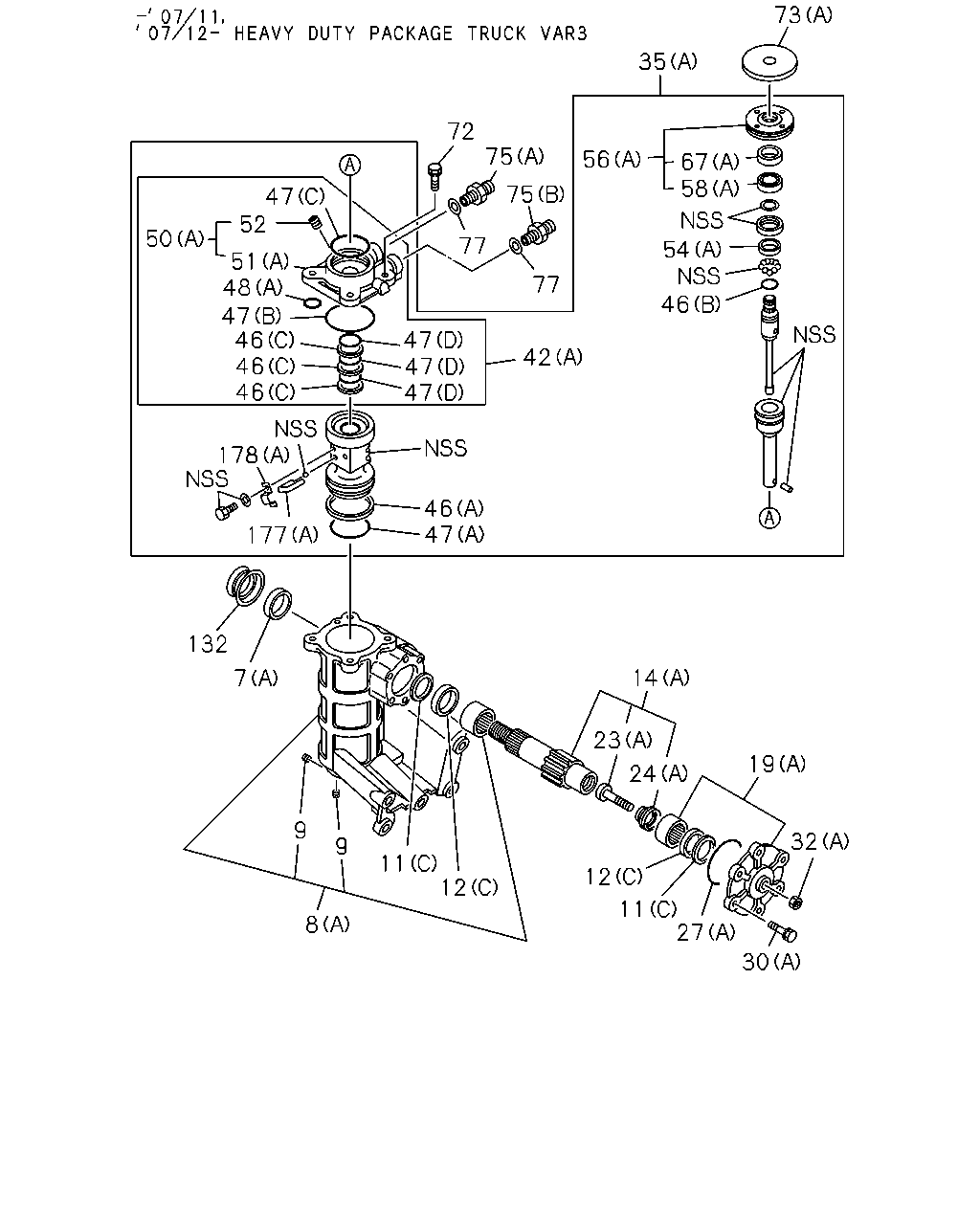

çizim 178694
73 35 72 75 56 67 58 75 47 52 50 77 54 46 51 48 47 46 46 46 77 47 47 47 42 178 46 47 177 132 14 7 23 19 24 9 32 9 11 12 12 11 27 8 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44240-124-0 01 1 -1001
8 BOX ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-675-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44261-029-0 01 1 -1001
19 COVER; SIDE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-681-0 01 1 1002-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
(B), M12 ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-052-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-053-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44561-015-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44151-017-0 02 1 1002-
177 TUBE; BALL BRG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-252-0 02 1 -1001
178 CLIP; BALL TUBE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -

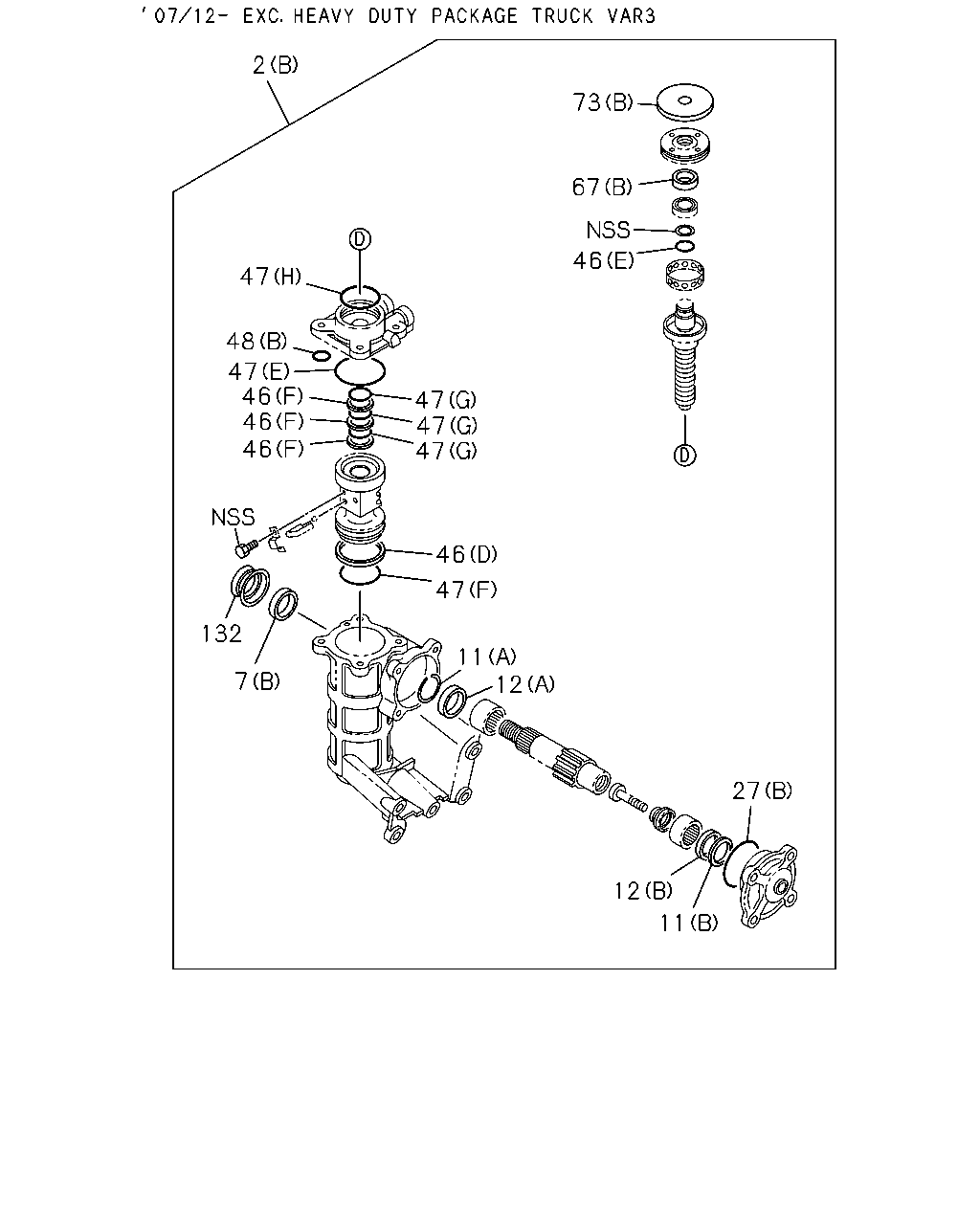

çizim 178866
2 73 67 46 47 48 47 46 46 46 47 47 47 46 47 132 11 12 7 27 12 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
(B) ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
(A) ASM PART: B = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -

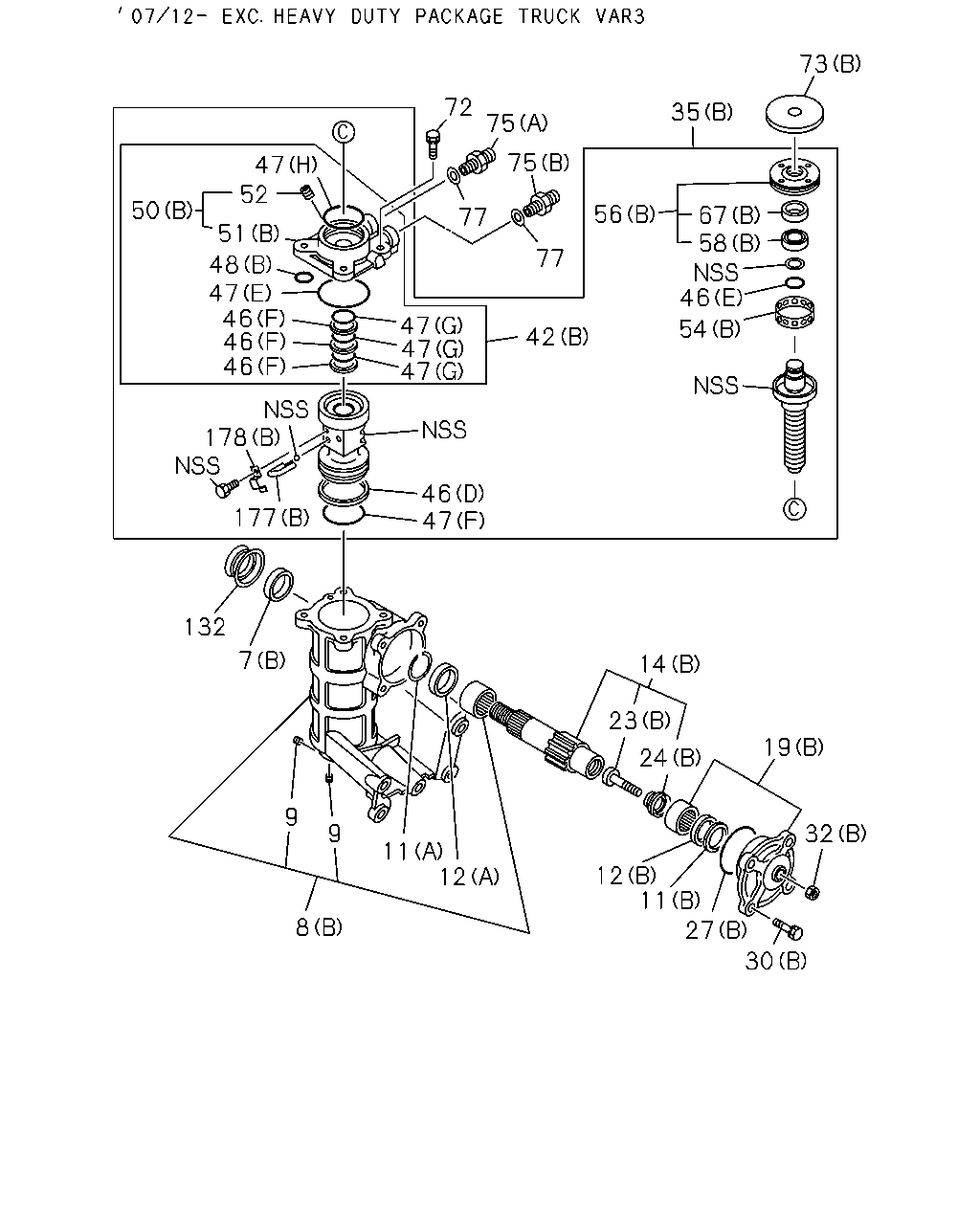

çizim 178880
73 72 35 75 75 47 52 50 56 67 58 46 77 51 77 48 47 46 46 46 47 47 47 54 42 178 46 47 177 132 7 14 23 19 24 9 9 32 11 12 12 11 27 8 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44240-124-0 01 1 -1001
8 BOX ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-675-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44261-029-0 01 1 -1001
19 COVER; SIDE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-681-0 01 1 1002-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
(B), M12 ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-052-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-053-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44561-015-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44151-017-0 02 1 1002-
177 TUBE; BALL BRG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-252-0 02 1 -1001
178 CLIP; BALL TUBE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
