Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#33452) — 337 parça

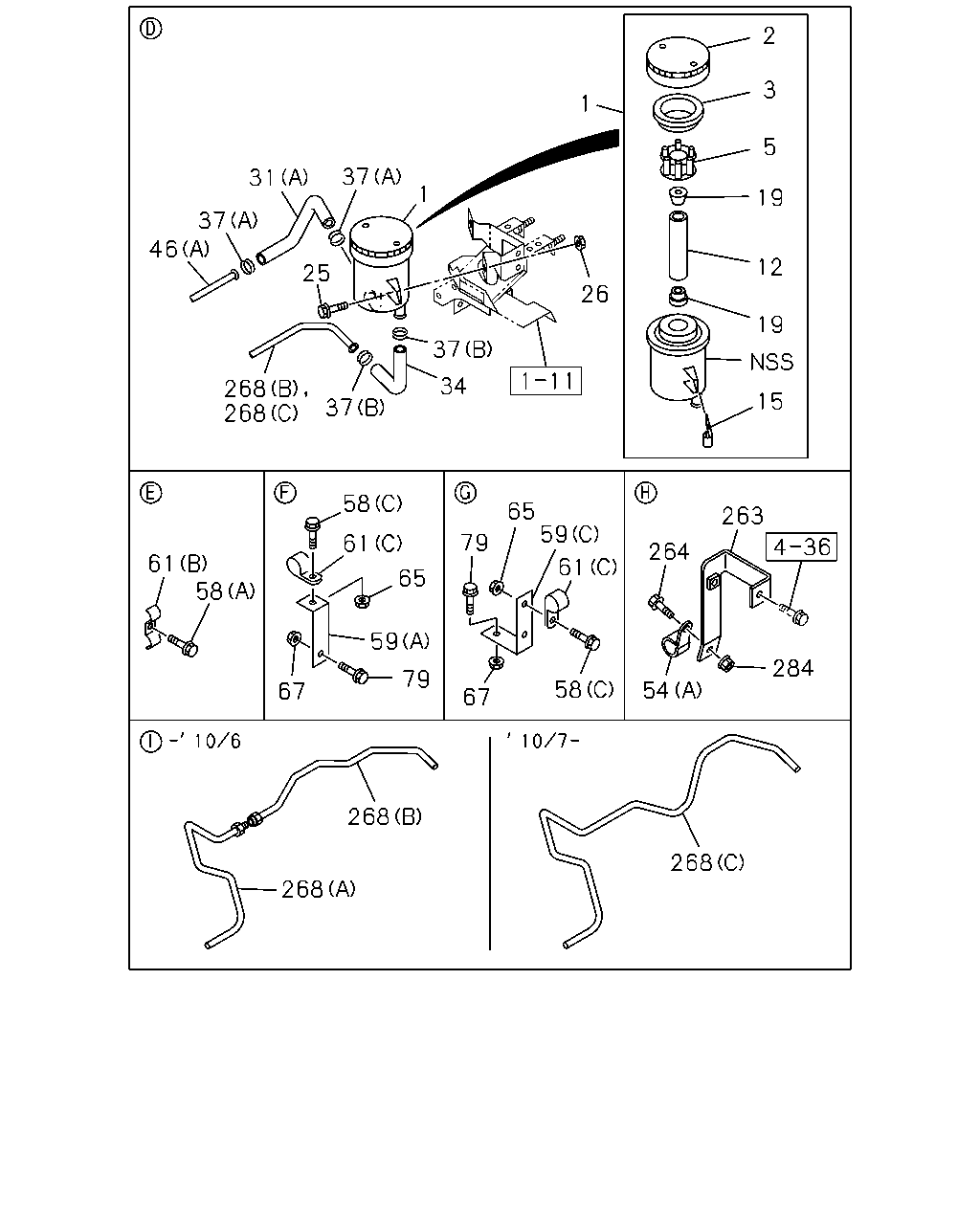

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 34 268 268 15 37 58 65 59 263 79 61 264 61 58 61 65 59 284 79 58 54 67 67 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1012-		●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0710-1011	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2912	8-98080-645-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-139-0	01	1	0712-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-151-0	01	1	0804-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0710-0711	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0712-0912	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-153-0	01	1	0712-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-1011	●	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-1011	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0710-1011	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-1011	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (D)	8-98064-809-1	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-1011	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-1011	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-	●	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-1011	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1012-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1011	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0906	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0710-1011	●	●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1012-	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1012-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (D)	8-98165-444-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-1011	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (C)	8-98154-041-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-1006	●	●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1012-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-		●

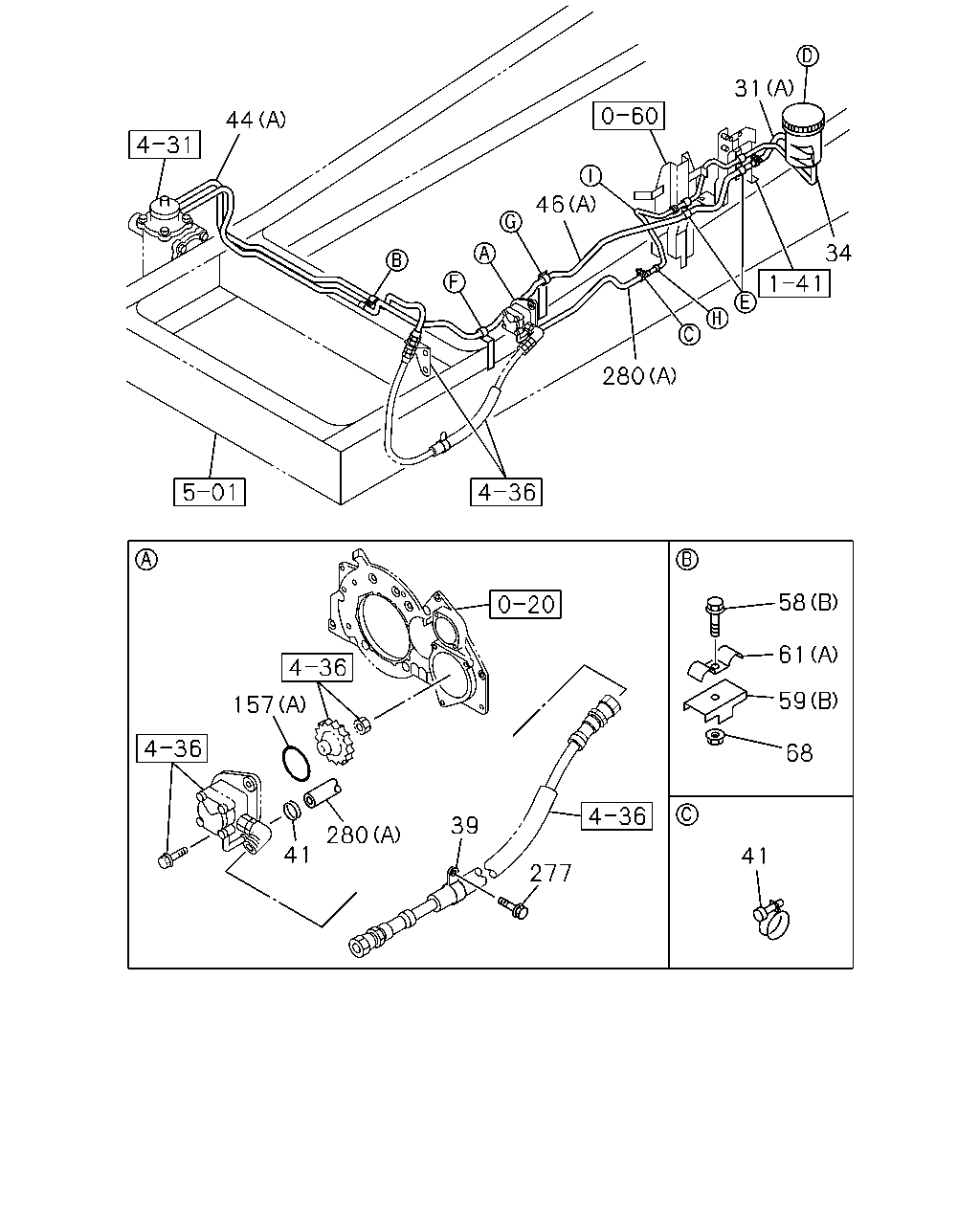

31 44 46 34 280 58 61 59 157 68 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1012-		●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0710-1011	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0710-1011	●	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1012-	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1012-		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98077-661-0	01	1	1012-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98098-972-0	01	1	0712-0803		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	0804-0912		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1001-1011	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1012-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	0710-0711	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	0712-0912	●
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	0712-0912		●
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1001-1011	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2912	8-98080-645-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-139-0	01	1	0712-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-151-0	01	1	0804-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0710-0711	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0712-0912	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-153-0	01	1	0712-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-1011	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0710-1011	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-1011	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (D)	8-98064-809-1	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-1011	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-1011	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-	●	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-1011	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0710-1011	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1012-1311	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1012-1311		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1312-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0710-1011	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1012-	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0710-1011	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-		●

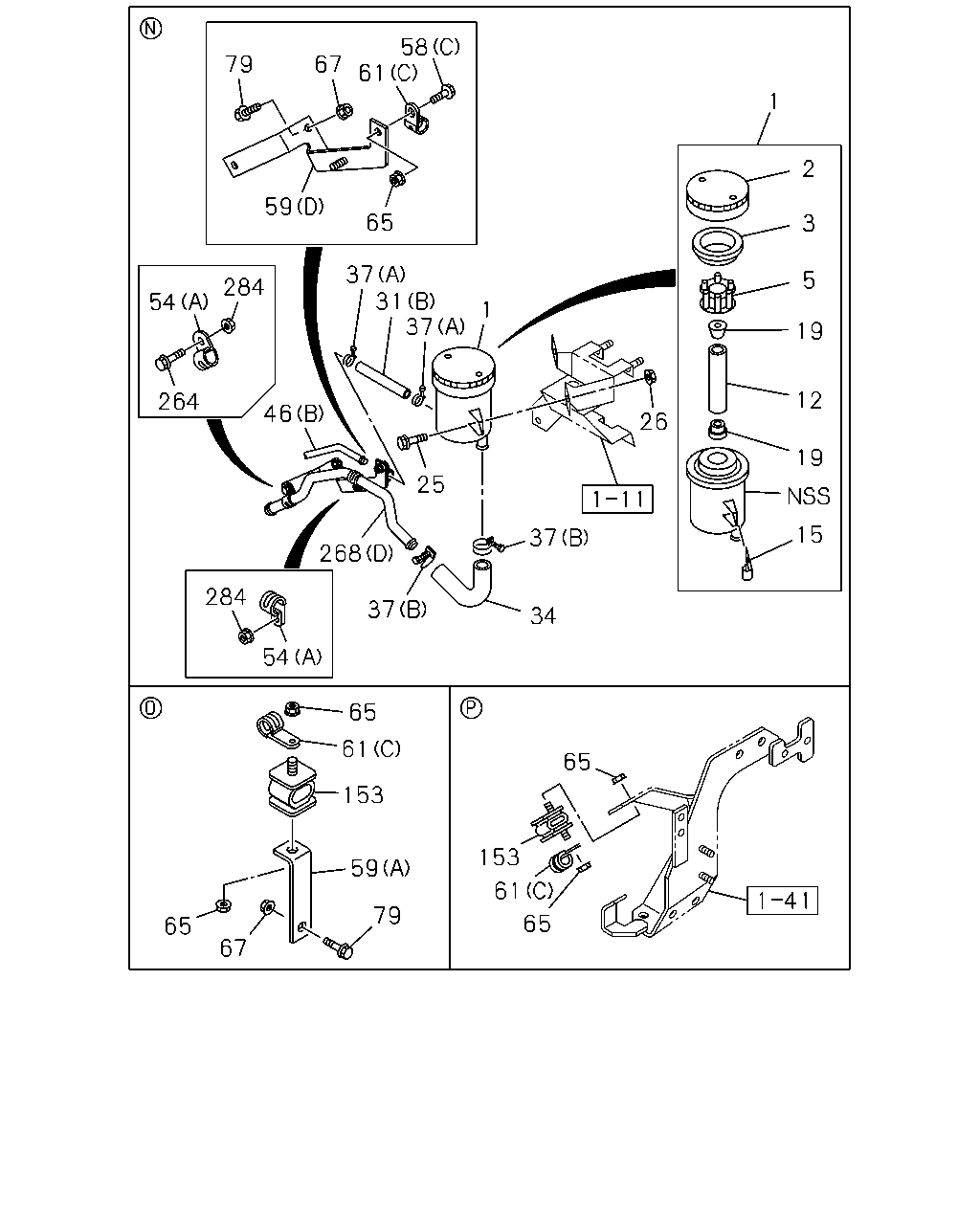

58 61 79 67 1 2 59 65 3 37 31 37 5 284 54 1 19 12 264 46 26 19 25 15 37 268 284 37 34 54 65 61 65 153 153 59 61 79 65 65 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0710-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0710-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0710-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0710-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0710-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0710-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0710-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1012-		●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0710-1011	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1012-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0710-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0710-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2912	8-98080-645-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-139-0	01	1	0712-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-151-0	01	1	0804-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0710-0711	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0712-0912	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-153-0	01	1	0712-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-1011	●	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-1011	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0710-1011	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-1011	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (D)	8-98064-809-1	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0710-1011	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0710-1011	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1012-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-47475-427-1	01	1	1012-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0710-	●	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-1011	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1012-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1011	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0906	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS)	8-94158-156-1	03	1	1012-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (D)	8-98165-444-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-1011	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (C)	8-98154-041-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-1006	●	●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1012-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0710-1011	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1012-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-		●

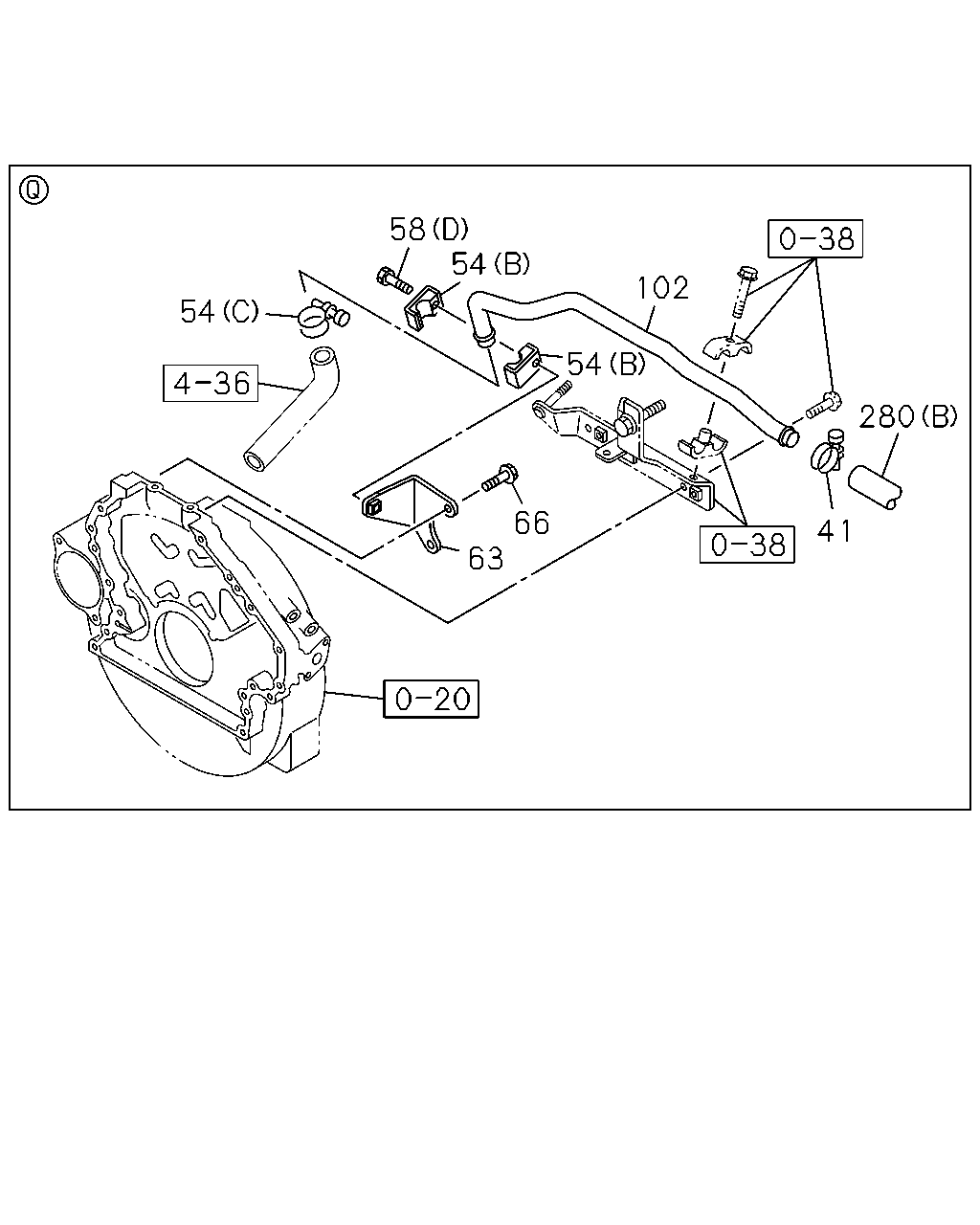

58 54 102 54 54 280 66 63 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-	●	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-1011	●	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-1011	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0710-1011	●	●
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0710-1011	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-		●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-97375-107-0	01	1	1012-		●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0710-1011	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-		●

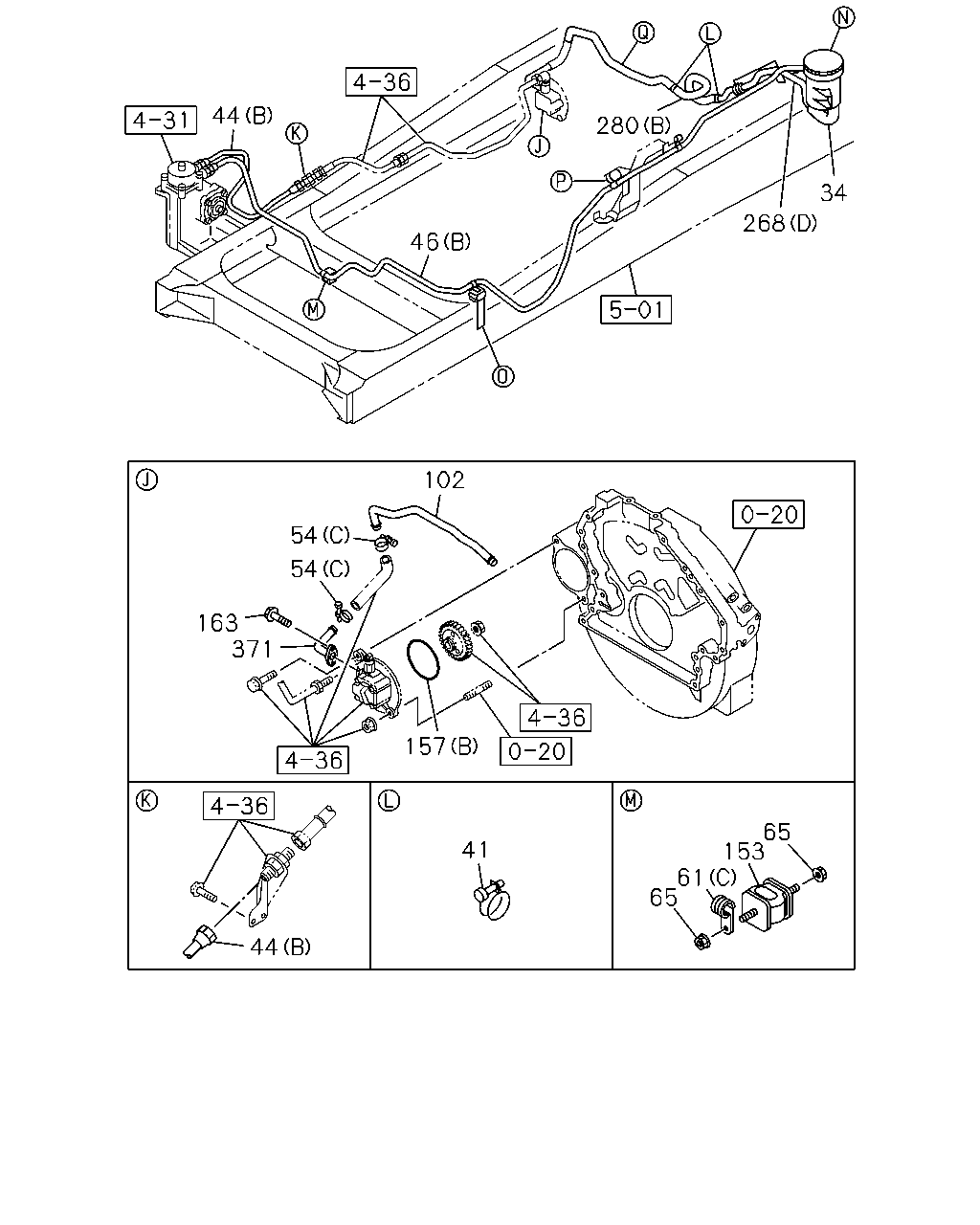

44 280 34 268 46 102 54 54 163 371 157 65 153 61 65 41 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0710-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0710-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98077-661-0	01	1	1012-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98098-972-0	01	1	0712-0803		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	0804-0912		●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1001-1011	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-150-0	01	1	1012-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	0710-0711	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-152-0	01	1	0712-0912	●
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	0712-0912		●
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1001-1011	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1012-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-152-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2912	8-98080-645-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-139-0	01	1	0712-0803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-151-0	01	1	0804-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2726	8-98099-151-0	01	1	1012-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0710-0711	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98099-153-0	01	1	0712-0912	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98099-153-0	01	1	0712-0912		●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1001-1011	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2747	8-98099-153-0	01	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-		●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0710-1011	●	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1012-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	04	1	1012-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1012-		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0710-1011	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1012-		●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0710-1011	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-		●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1012-		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-1011	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1012-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-		●
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1012-		●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS)	8-94158-156-1	03	1	1012-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0710-1011	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1012-1311	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1012-1311		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1312-	●	●
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (D)	8-98165-444-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0710-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-1011	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1012-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (C)	8-98154-041-0	01	1	1012-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0710-1006	●	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-		●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0710-1011	●	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1012-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-		●
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
