4-30 — STEERING WHEEL AND COWL (#33449) — 39 parça
çizim 178673
20 81 5 6 26 44 33 30 106 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97407-720-0 01 1 0710-1210 ● ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 0710- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0710- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 0710- ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-985-1 01 1 0710- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97405-841-0 01 1 0710-1210 ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1211- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 0710- ● ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 0712-0808 ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 0809- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0710-0711 ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0712-0808 ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 0712-0808 ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 0809- ● ●
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 0712-0808 ●
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 0809- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0710- ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-986-0 01 1 0710- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0907- ● ●

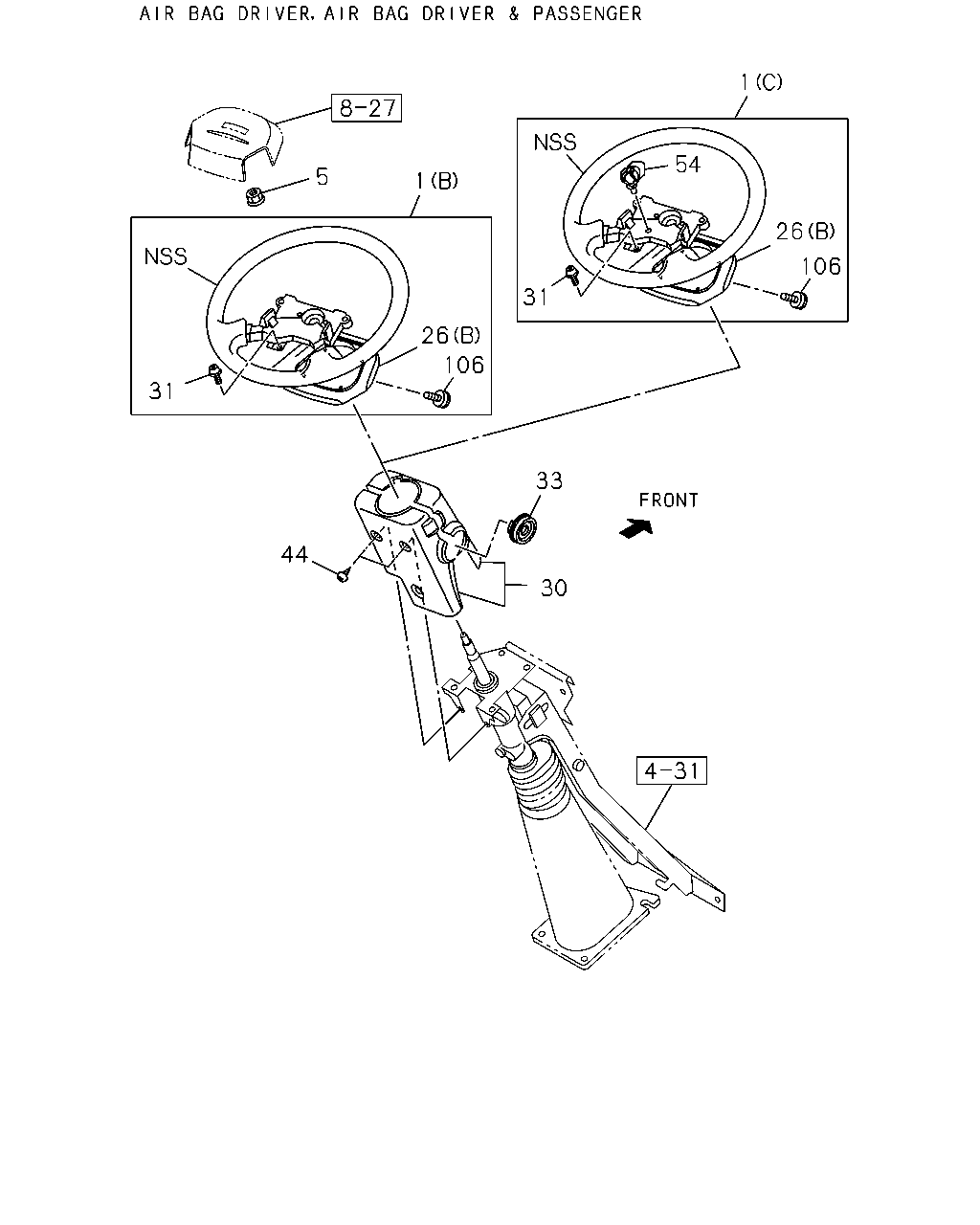

çizim 178678
5 1 26 31 106 54 31 26 106 33 30 44 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97407-720-0 01 1 0710-1210 ● ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 0710- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0710- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97405-841-0 01 1 0710-1210 ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1211- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 0710- ● ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 0712-0808 ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 0809- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0710-0711 ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0712-0808 ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 0712-0808 ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 0809- ● ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 0710- ● ●
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 0712-0808 ●
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 0809- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0710- ● ●
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1211- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0907- ● ●
