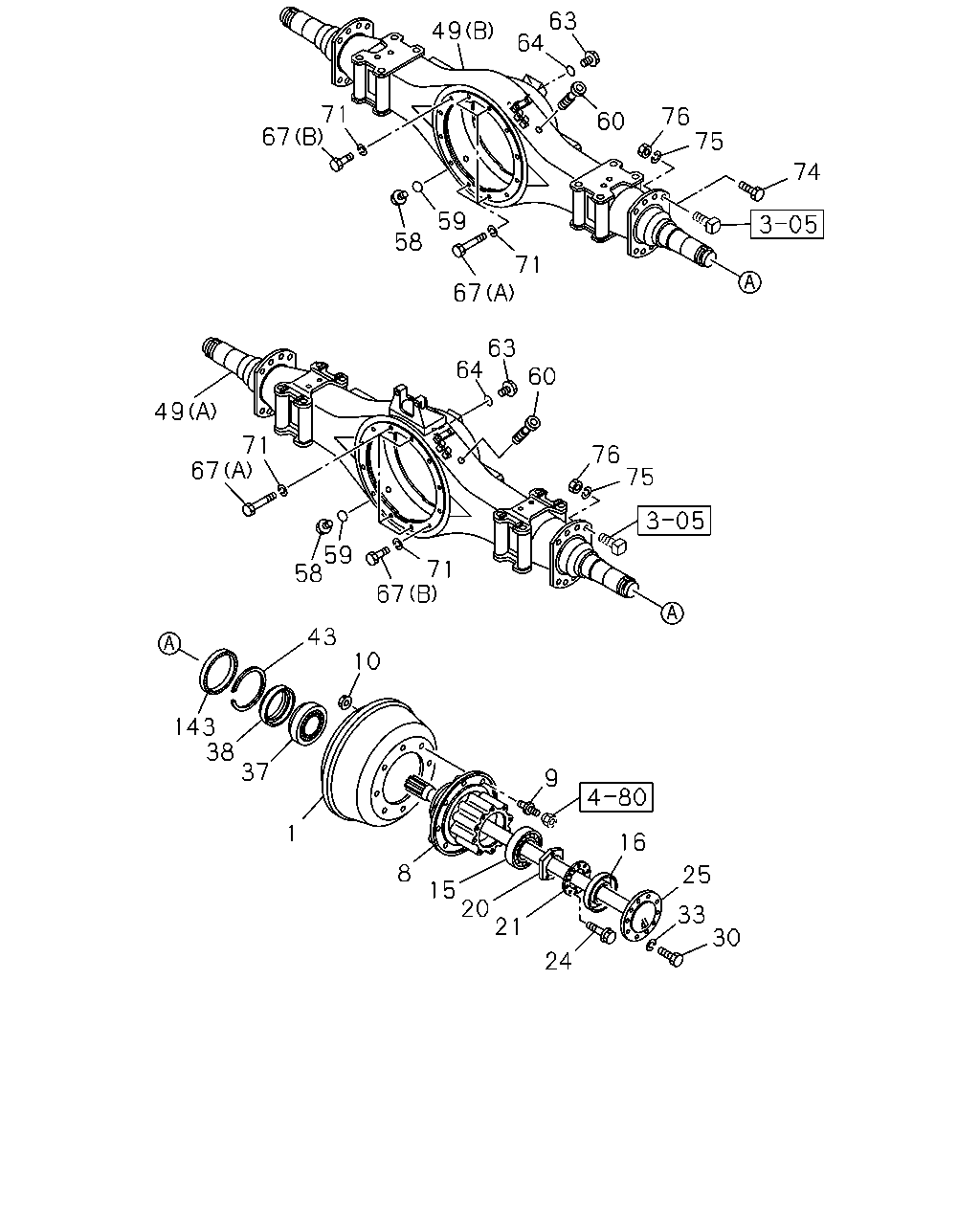

4-20 — REAR AXLE CASE AND SHAFT (#33447) — 64 parça

63 64 49 71 67 76 75 60 74 59 58 71 67 63 64 60 49 71 76 75 67 59 58 71 67 43 10 143 38 37 9 1 16 8 25 15 20 21 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42315-355-0	02	1	0712-	●
1	DRUM; BRK,RR	1-42315-368-0	02	1	0710-0711	●	●
1	DRUM; BRK,RR	1-42315-368-0	02	1	0712-		●
1	DRUM; BRK,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42315-368-0	02	1	0712-	●
8	HUB; RR AXLE EXC. ANTI LOCK BRAKE(JE5)	8-97379-875-1	02	1	0712-	●
8	HUB; RR AXLE	8-97379-877-1	02	1	0710-0711	●	●
8	HUB; RR AXLE	8-97379-877-1	02	1	0712-		●
8	HUB; RR AXLE ANTI LOCK BRAKE(JE5)	8-97379-877-1	02	1	0712-	●
9	PIN; WHEEL,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0712-	●
9	PIN; WHEEL,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0712-	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X49.5 RH THREAD	1-42331-114-2	08	1	0710-0711	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X49.5 RH THREAD	1-42331-114-2	08	1	0712-		●
9	PIN; WHEEL,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20X34.5,M22X49.5 RH THREAD	1-42331-114-2	08	1	0712-	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X49.5 RH THREAD	1-42332-114-2	08	1	0710-0711	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X49.5 RH THREAD	1-42332-114-2	08	1	0712-		●
9	PIN; WHEEL,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20X34.5 LH THREAD,M22X49.5 RH THREAD	1-42332-114-2	08	1	0712-	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	0710-	●	●
15	BEARING; HUB OUTER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-049-0	02	1	0712-1002	●
15	BEARING; HUB OUTER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	8-98156-814-0	02	1	1003-	●
15	BEARING; HUB OUTER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	9-00093-159-0	02	1	0712-	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-222-0	02	1	0710-0711	●	●
15	BEARING; HUB OUTER,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-222-0	02	1	0712-	●	●
15	BEARING; HUB OUTER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BEST VALUE PARTS	1-87610-160-0	02	1	1003-	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	0710-	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0710-	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0710-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0710-	●	●
25	SHAFT; AXLE,RR L=925	8-97380-682-0	02	1	0710-		●
25	SHAFT; AXLE,RR L=945	8-97380-684-0	02	1	0710-	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0710-	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0710-	●	●
37	BEARING; HUB INNER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-044-0	02	1	0712-1002	●
37	BEARING; HUB INNER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-154-0	02	1	1003-	●
37	BEARING; HUB INNER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NACHI	1-09812-053-0	02	1	0712-1002	●
37	BEARING; HUB INNER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	9-00093-161-0	02	1	0712-1002	●
37	BEARING; HUB INNER,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09812-153-0	02	1	1003-	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-221-0	02	1	0710-0711	●	●
37	BEARING; HUB INNER,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-221-0	02	1	0712-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0710-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0710-	●	●
49	CASE; RR AXLE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98029-632-1	01	1	0712-	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98029-634-2	01	1	0712-1302	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B)	8-98223-712-0	01	1	1303-	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98029-625-0	01	1	0712-	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI LOCK BRAKE(JE5) (B)	8-98029-636-1	01	1	0712-	●
49	CASE; RR AXLE (A)	8-98012-446-3	01	1	0710-1302		●
49	CASE; RR AXLE (A)	8-98223-711-0	01	1	1303-		●
49	CASE; RR AXLE (B)	8-98012-444-2	01	1	0710-0711	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98012-444-4	01	1	0712-1302	●
49	CASE; RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98223-709-0	01	1	1303-	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0710-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0710-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	0710-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0710-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0710-	●	●
67	BOLT; FINAL DRIVE SETTING (A) M12X60	0-10956-260-0	04	1	0710-	●	●
67	BOLT; FINAL DRIVE SETTING (B) M12X35	0-20951-235-0	08	1	0710-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	0710-	●	●
74	BOLT; RR BRK ASM SETTING EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X50	1-09040-066-0	16	1	0712-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0710-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0710-	●	●
143	RING; EXCITER	1-42319-169-1	02	1	0710-0711	●	●
143	RING; EXCITER	1-42319-169-1	02	1	0712-		●
143	RING; EXCITER ANTI LOCK BRAKE(JE5)	1-42319-169-1	02	1	0712-	●
